Creating components and setting up LSM - LSM 3.5 SP3 Business + Prof.

Before you start setting up LSM, the most important settings for operating a network must be configured in the LSM software and the RouterNode 2 must be ready for use.

  1. Create different identification media (e.g. Add new transponder) and locking devices (e.g. Add new locking device).
  2. Perform initial programming of the components created (Programme transponder and Programme locking device).
  3. Create a SmartRelay 2 G2 (Type G2_SmartRelay active/hybrid).
  4. Open the locking device properties.
  5. Change to the "Configuration/Data" tab.

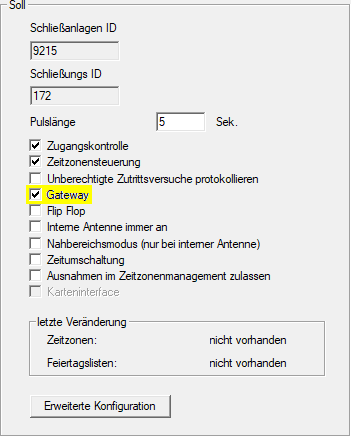

  6. Activate the Gateway check box.
  8. Switch back to the matrix view.
  9. Authorise all identification media on SmartRelay 2 G2 which are to receive new authorisations there at a later point in time.
  10. Carry out initial programming of the SmartRelay 2 G2.
  11. Ensure that a LockNode is installed in the SmartRelay 2 G2.
  12. Set up RouterNode 2 using WaveNet Manager (see Setting up the network and importing into LSM).
  13. Assign the gateway (or SmartRelay 2 G2) to it.
  1. The virtual network is now ready for use.
