Configuration/Data: DoorMonitoring SmartHandle - LSM 3.5 SP3 Business + Prof.

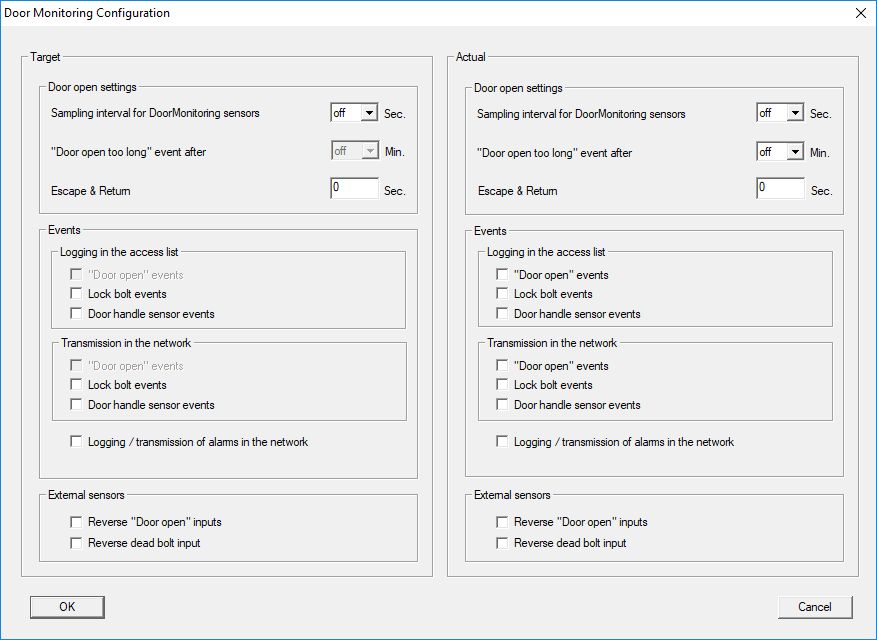

You can configure the DoorMonitoring functions in the SmartHandle using the "Monitoring configuration" button on the "Configuration/Data" tab on the locking device (see also Putting DoorMonitoring locks into operation).

This function is only available if the SmartHandle features the DM function and this function was also directly added into the LSM software as "G2 SmartHandle DoorMonitoring".

Activate the required changes in the left hand "Target area".

• Escape & return: Prolongs the time that the SmartHandle is engaged to open after the door has been detected as closed again.
