Configuration - LSM 3.5 SP3 Business + Prof.

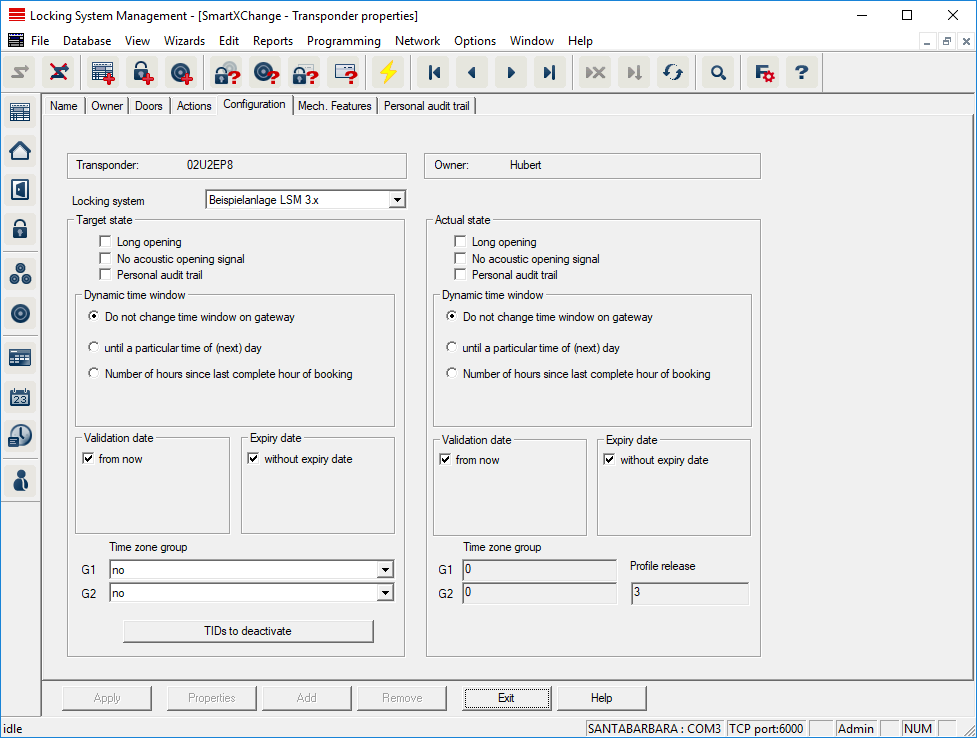

This tab is divided into two sides:
- The left side shows the transponder's target status – i.e. the required status configured in the LSM software.
- The right side shows the transponder's current status, i.e. the status which was last programmed.
- Locking system
- Displays the transponder's currently assigned locking system.
- Long opening
- This allows the locking device to remain engaged to open for longer. The locking device impulse length is doubled. Example: People with disability possibly require the door to be open longer.
- No audible opening signal
- The locking device responds to the transponder without emitting an audible signal. Example of use: assisted living accommodation. The duty nurse can enter the room at night without making a noise.
- Physical access list
- Saves all access events on the transponder.
- Do not change time window on the gateway
- There is no time limit on the validity period for this G2 transponder booking at the gateway.
- Until a specific time on the next day
- There is a time limit on the validity period for this G2 transponder booking at the gateway. Enter a time.
- Number of hours from the last full hour of the booking
- The validity of this G2 transponder booking at the gateway is extended by the specified number of hours. Enter the number of hours.
- Activation date
- Date and time from which the transponder is to be valid.
- Expiry date
- Date and time from which the transponder is to be no longer valid.
- Time zone group
- You can assign the transponder to a previously assigned time zone group.
- TIDs to deactivate
- You can save to the transponder ID for other transponders which have been deactivated. As soon as the transponder registers on a locking device, the deactivations will come into effect on the locking device in question.
