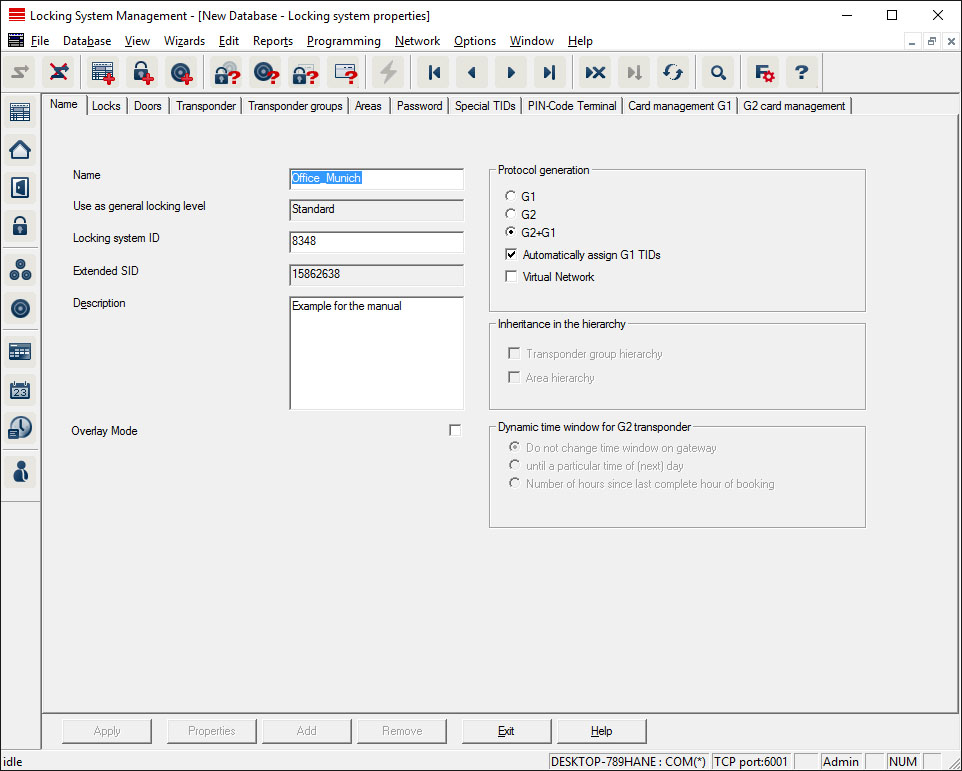

Name - LSM 3.5 SP3 Business + Prof.

  • Name
  • Name of the locking system
  • Use as a common locking level
  • Establishes the common locking level
  • Locking system ID
  • Locking system number
  • Extended SID
  • Additional distinctive feature of the locking system
  • Description
  • Blank field to describe the locking system
  • Operate in overlay mode (G1 only)
  • Activates the overlay mode. This function must already be enabled when the locking system is created. You cannot change it afterwards.
  • Protocol generation
  • Selects the extension variant for the hardware components
  • Inheritance in the hierarchy [LSM BUSINESS]
  • Select the inheritance areas
  • Dynamic time slot for G2 transponders
  • Advanced time settings for use with gateways:
    • Do not change time window on the gateway
    • There is no time limit on the validity period for any G2 transponders able to book at the gateway.
    • Until a specific time on the (next) day
    • There is a time limit on the validity period for all G2 transponders able to book at the gateway.
    • Number of hours from the last full hour of the booking
    • The validity of all G2 transponders able to book at the gateway is extended by the specified number of hours.

NOTE

notice

Virtual network not required

You do not need to configure a virtual network to use a gateway to manage time frames.
