Resetting and replacing - AXM Classic

  1. AXM Classic open.
  2. Locking device list or matrix view open.
  3. Locking device present.
  4. Suitable replacement locking device available.
  5. Suitable programming device connected.
  1. Use to sort/filter the displayed entries if required (see Sorting and filtering).
  2. Select the faulty locking device.
  3. Click the Replace lock button in the Wizards section.
  4. Wizard for dealing with a faulty locking device will open.
  6. Select the Replace lock option.
  7. Click on the Next button.
  8. Reset query will open.
  10. Click on the Yes button.
  11. Reset query will close.
  12. The locking device is reset.
  13. Confirmation dialogue for creating a replacement locking device will open.
  15. If necessary, change the entry in the Copy name field.
  16. Click on the Yes button.
  17. Confirmation dialogue for creating a replacement locking device closes.
  18. Replacement locking device is already visible in the matrix in the background.
  20. Wizard prepares synchronisation for the replacement locking device.
  22. Click on the Next button.
  23. Replacement locking device is being synchronised.
  25. Replacement locking device is synchronised.

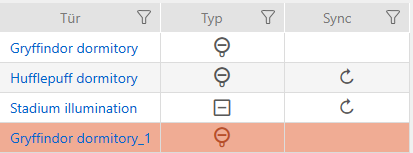

  1. Replacement locking device is displayed in the matrix.
