Adding locking devices and identification media to access levels - AXM Classic

Ideally, you will have already created your access levels before creating the locking devices (see Best practice: setting up the locking system and Creating access levels). This allows you to set access levels directly in locking device and identification medium properties when you create locking devices and identification media:

Obviously, you can also add your locking devices and identification media to the access levels at a later date:

  1. AXM Classic open.
  2. Access level created (see Creating access levels).
  1. Click the orange AXM button .
  2. AXM bar opens.
  4. Select the Access levels entry in the LOCKING SYSTEM CONTROL group.
  6. The AXM bar will close.
  7. The Access levels tab will open.
  9. Select another locking system in the drop-down menu or select the All drop-down entry to display the access levels in all locking systems.
  11. Click on the access level to which you wish to add locking devices and identification media.
  12. The access level window will open.
  14. Click on the Locks tab.
  16. Window switches to the Locks tab.
  18. Use to sort/filter the displayed entries if required (see Sorting and filtering).
  19. Select all locking devices that you wish to add to the access level (Ctrl+click for individual devices or Shift+click for multiple devices).

  20. NOTE

    notice

    Double-clicking as an alternative to arrow keys

    Double-clicking an entry in the list will also move this entry to the other column.

  21. Use to move only the selected locking devices or to move all locking devices.
  22. The selected locking device in the left-hand column is added to the access level.
  24. Click on the Transponders tab.
  26. Window switches to the Transponders tab.
  28. Use to sort/filter the displayed entries if required (see Sorting and filtering).

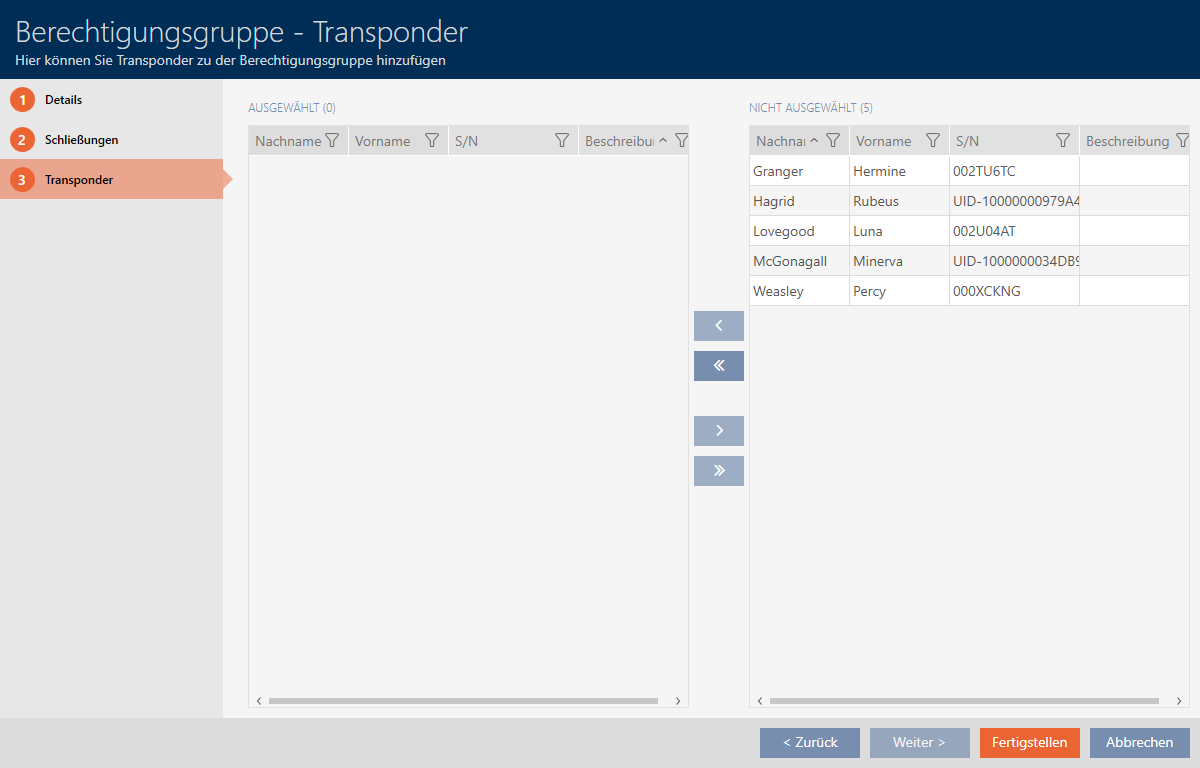

  29. Select all identification media that you wish to add to the access level (Ctrl+click for individual media or Shift+click for multiple media).

  30. NOTE

    notice

    Double-clicking as an alternative to arrow keys

    Double-clicking an entry in the list will also move this entry to the other column.

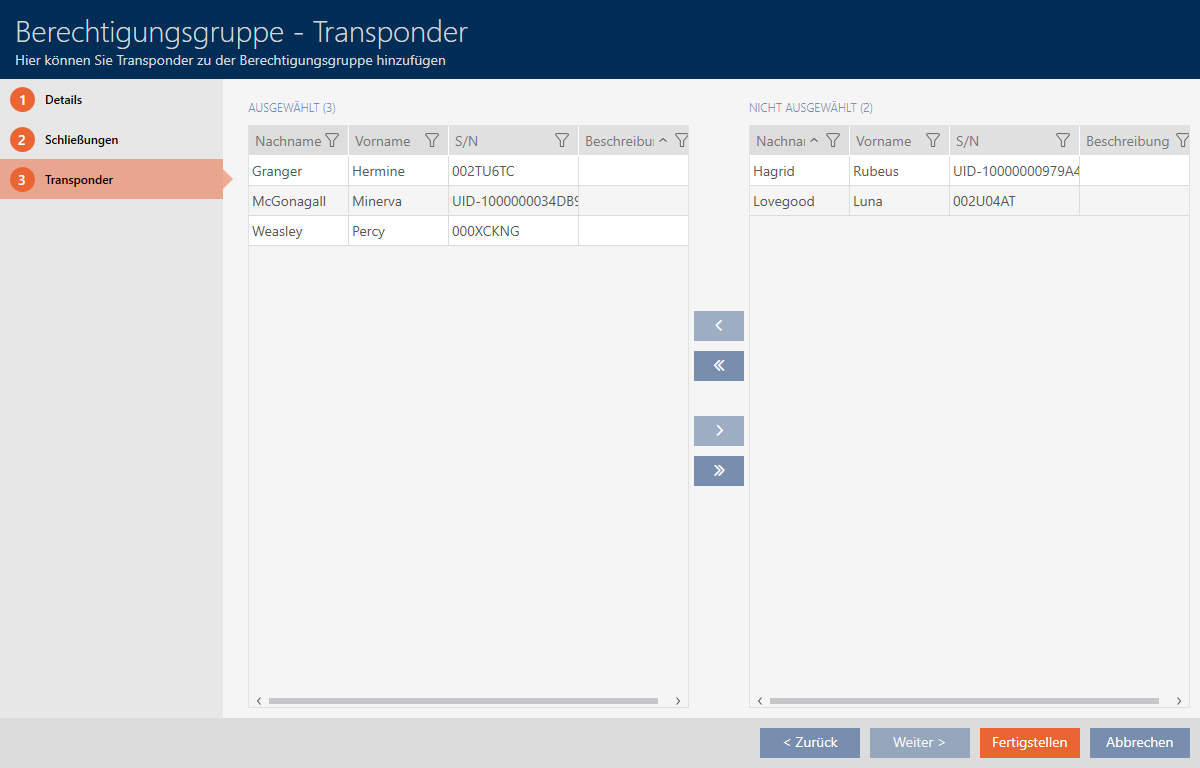

  31. Use to move only the selected identification media or to move all locking devices displayed.
  32. The selected identification media in the left-hand column are added to the access level.
  34. Click on the Finish button.
  35. The access level window closes.
  36. All identification media in this access level are authorised for all locking devices in this access level.
  37. Matrix view is visible again.
  38. Click on the Refresh button.

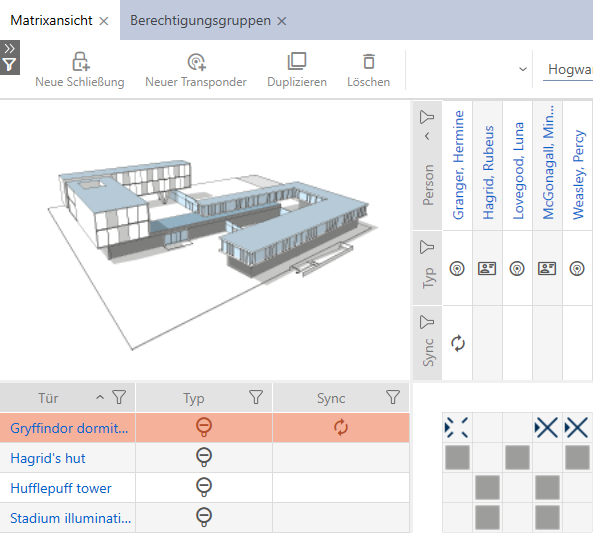

  1. Matrix displays authorisations from your access level (identified by a small triangle next to the cross).

You can also overwrite individual authorisations from access levels manually. For example, it is possible to remove authorisation from an identification medium that would actually be authorised for a locking device.

Proceed as with the normal assignment of individual authorisations (see Changing individual authorisations (cross)). In this case, it is only the cross that disappears, not the triangle:

The triangle continues to indicate that there is actually an authorisation from an access level here.
