Recognise unknown cards/transponders - AXM Classic

  1. Suitable programming device connected.
  2. AXM Classic open.
  1. Click on the icon in the header.

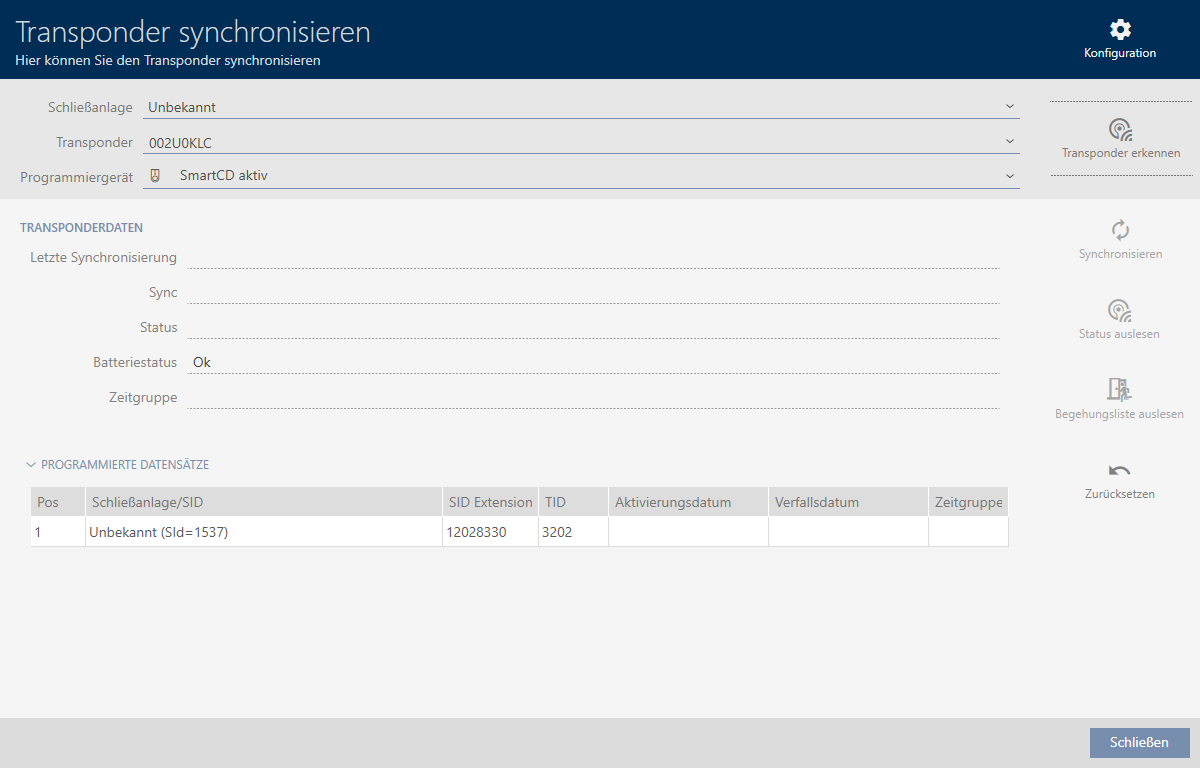

  3. The Synchronise transponder window will open.
  5. Select the programming device which you wish to use to identify your identification medium from the Programming device drop-down menu.
  6. Click on the Identify transponder button .

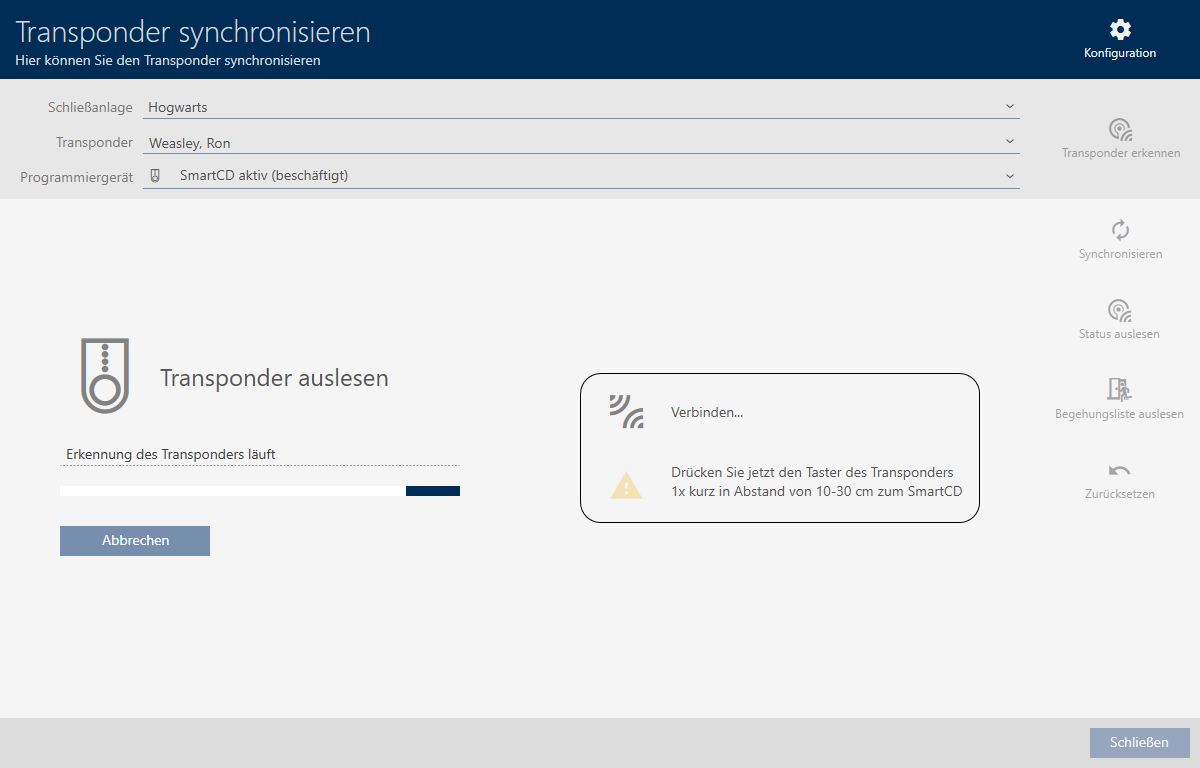

  7. Follow the instructions as necessary.
  8. Identification medium is identified.
  1. Information about the identification medium is displayed in the window.

You can now reset the identification medium, for example (see Resetting cards/transponders).
