Add multiple LockNodes (Manual) - Step-by-Step WO

Finding LockNodes

  1. LockNodes accessible from at least one GatewayNode.
  2. SmartIntego Manager opened.
  1. Right-click on the GatewayNode with which you want to search for the LockNodes.
  2. The window Administration opens.
  4. Select the option Search master segment.
  5. Click on the button OK.
  6. Window Administration closes.
  7. The window for selecting between quick and intensive search opens.
  9. Click on the button Yesto perform a quick search or
    click on the button Noto perform an intensive search.
  10. Searching for new and known LockNodes. (Known LockNodes are already assigned to other segments.)
  11. The window Search results opens.

Display of search results

Column

Meaning

Nodes in this segment

These LockNodes are assigned to the current GatewayNode.

Nodes in other segments

These LockNodes are assigned to another GatewayNode in this WaveNet.

New nodes

These LockNodes are not yet assigned to a GatewayNode.

RSSI value

The value displayed refers to the connection quality from the current GatewayNode to the respective LockNodes.

Add LockNodes

  1. Mark the new LockNodes that you want to add (Ctrl + selection with the mouse).
  2. LockNodes are selected.
  4. Drag the LockNodes to the "Nodes in this segment" column.
  5. LockNodes are located in the "Nodes in this segment" column.
  7. Click on the Exit button.
  8. Window Search results closes.
  9. LockNodes are displayed in SmartIntego Manager.
  11. Enter a name (alternative: list of names for updating the names, see)Creating, expanding and importing a name list.
  1. LockNodes are added.

View after import

SmartIntego Manager shows you the following information for the locking device:

  • WaveNet address
  • Chip ID
  • Name
  • Device Address
  • Last RSSI value measured by SmartIntego Manager in dBm

Import to SmartIntego Tool (WO)

  1. Click on the button Save.
  2. Click on the Exit button.

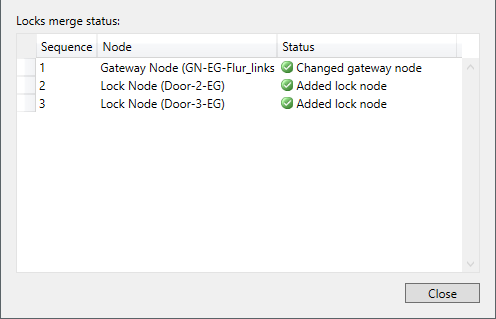

  1. Transfer and save values in SmartIntego tool (WO).

NOTE

notice

Data loss due to improper termination

The data is not transferred to the SmartIntego tool (WO) until the SmartIntego Manager is properly ended. After saving, the files are permanently saved in the * ikp file in the SmartIntego tool (WO).

  1. Click on the Save button.
  2. Close SmartIntego Manager correctly using the button Exit.
