Best Practice: Resetting RouterNodes in the WaveNet Manager - WaveNet

NOTE

notice

Reset locked

LockNodes assigned to the RouterNode can no longer be reached after resetting the RouterNode. Therefore, the option Reset/delete is disabled if LockNodes are still assigned to the RouterNode.

  1. First reset or delete all LockNodes assigned to the RouterNode (see LockNodes).
  1. WaveNet Manager opened via LSM (see Best Practice: From the LSM software)
  2. RouterNode connected to WaveNet (see Add RouterNode to WaveNet).
  1. Right-click on the entry of the router node you want to reset.

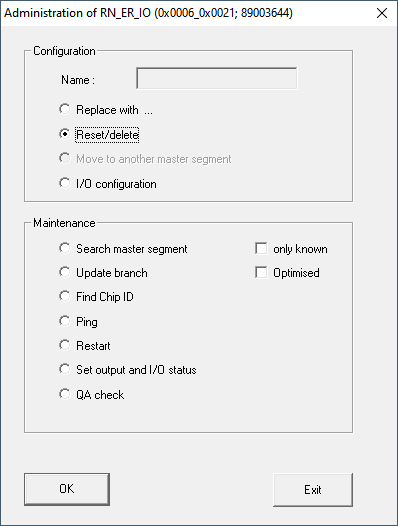

  2. The window Administration opens.
  4. In the area Configuration select the option Reset/delete.
  5. Click on the OK button.

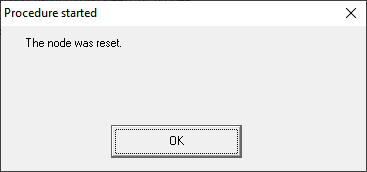

  6. The window Procedure started opens.
  8. Click on the OK button.
  9. The Procedure started window closes.

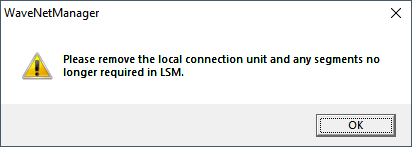

  10. The window WaveNetManager opens.
  12. Click on the OK button.
  13. The WaveNetManager window closes.
  14. Click on the button Save.
  1. RouterNode is reset and deleted from the WaveNet topology.
