RouterNodes - WaveNet

Restarting Ethernet Router Nodes via the Browser Interface

  1. Browser interface open (see Browser interface).

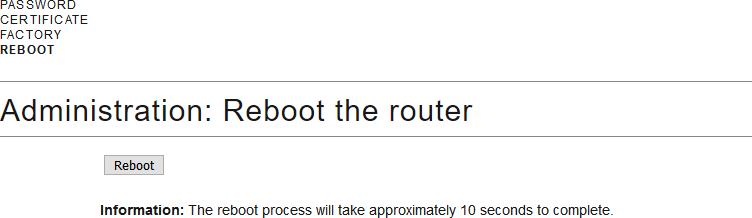

  1. Via ADMINISTRATION open the tab REBOOT.
  2. Now you see the restart menu.
  4. Click on the button Reboot.
  5. Restart is performed.
  1. Ethernet RouterNode is restarted.

Restarting RouterNodes in the WaveNet Manager

  1. WaveNet Manager opened via LSM (see Best Practice: From the LSM software)
  2. RouterNode connected to WaveNet (see Add RouterNode to WaveNet).
  1. Right-click on the entry of the RouterNode you want to restart.

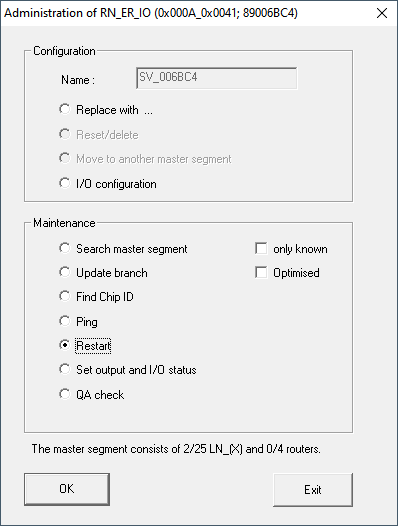

  2. The window Administration opens.
  4. In the area Maintenance select the option Restart.
  5. Click on the OK button.
  6. The Procedure started window opens temporarily.
  8. RouterNode will be restarted.
  1. RouterNode is restarted.

Restart RouterNodes via power connection

Your RouterNodes will restart when you disconnect the power supply, wait about half a minute and reconnect.
