Best Practice: Reset with the WaveNet Manager - WaveNet

  1. WaveNet Manager opened via LSM (see Best Practice: From the LSM software)
  2. LockNode connected to WaveNet (see Adding Lock Nodes to WaveNet).
  1. Right-click on the entry of the LockNode you want to reset.

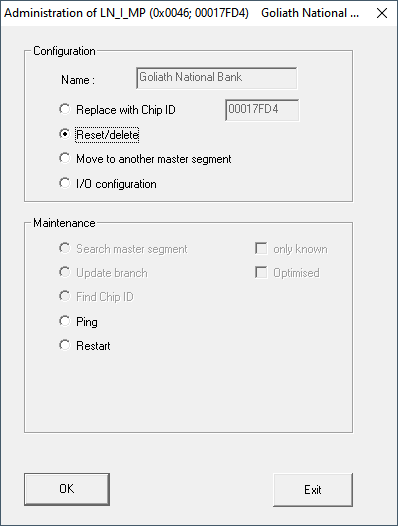

  2. The window Administration opens.
  4. In the area Configuration select the option Reset/delete.
  5. Click on the OK button.
  6. The window Procedure started opens.
  8. Click on the OK button.
  9. The Procedure started window closes.
  10. Click on the button Save.
  1. LockNode is reset and deleted from the WaveNet topology.
