Complete or limited (select RouterNodes from list) - WaveNet

  1. WaveNet Manager opened via LSM (see Best Practice: From the LSM software)
  2. RouterNodes/LockNodes within range.
  1. Right-click on the WaveNet_XX_X entry.

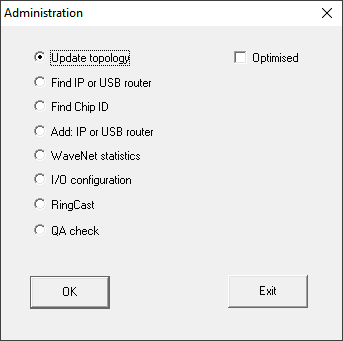

  2. The window Administration opens.
  4. Select the option Update topology.
  5. Click on the OK button.
  6. The Administration window closes.
  7. The window Select CN/RN opens.
  9. Select all RouterNodes you want to search with or check the all checkbox to automatically configure your entire WaveNet.
  10. Click on the OK button.
  11. The window Select CN/RN closes.

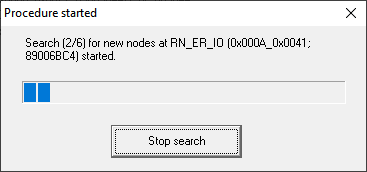

  12. The Procedure started window opens temporarily.
  14. Accessed devices (RouterNodes, LockNodes) are listed.
  15. Click on the button Save.
  1. Accessed devices (RouterNodes, LockNodes) are added. LockNodes have been assigned to the RouterNodes from your selection that are best accessible.
