Designs - SmartHandle 3062

The following section describes the different individual versions or options available for SmartHandle 3062.

This SmartHandle 3062 has a reader on one side only. The inside handle is permanently engaged to open. You can use the inside handle to operate or open the door in dangerous situations at any time, even without an identification medium.

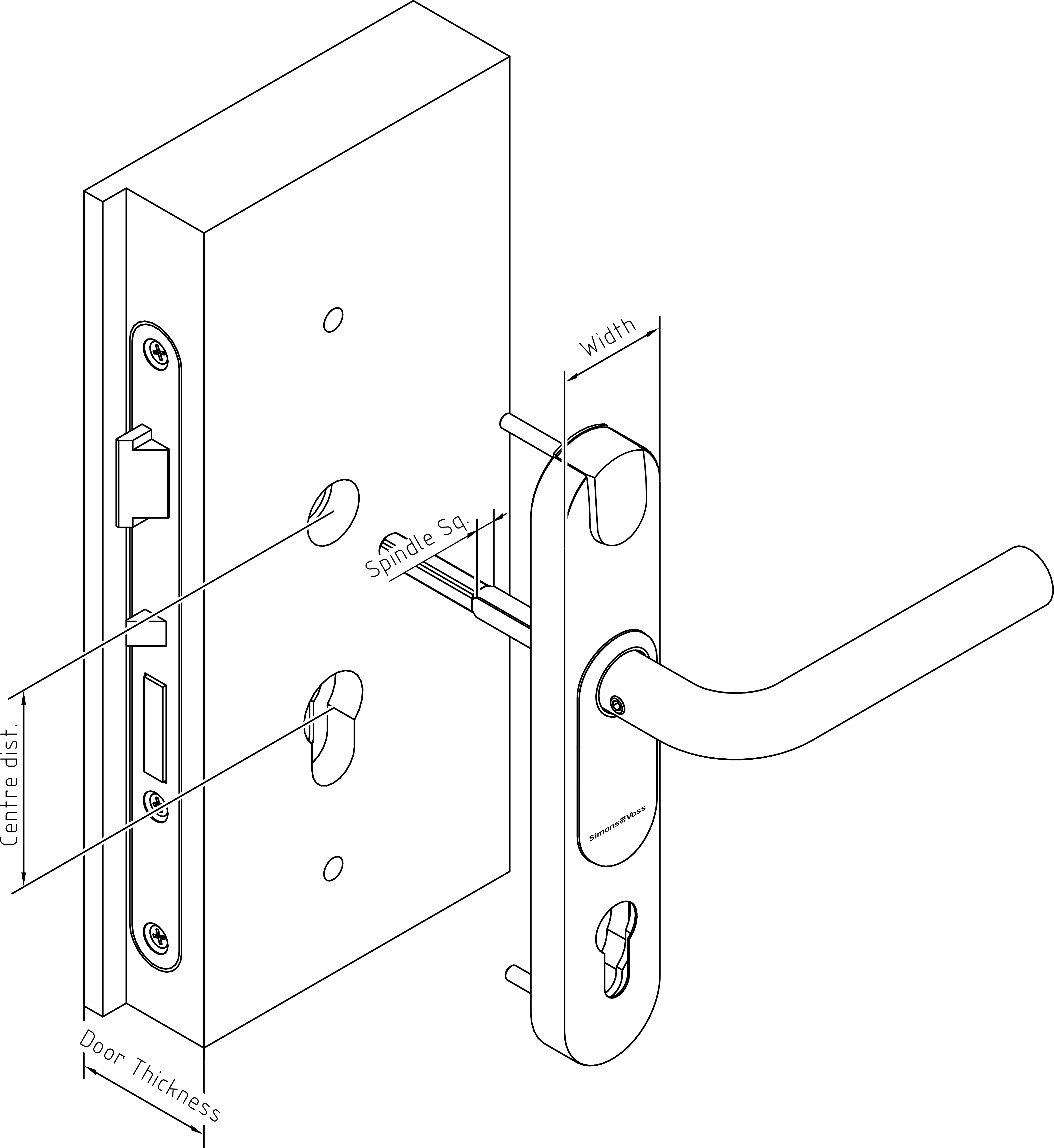

You can use the SmartHandle 3062 in mortise locks with an actuation angle of up to 31°.

NOTE

notice

Damage potentially caused by larger actuation angles

The SmartHandle 3062 has been developed for actuation angles or spindle hub angles up to 31 degrees. Use with too acute a spindle hub angle can cause a defect in the SmartHandle 3062 .

  1. If necessary, use a different mortise lock.
