Register LSM - LSM 3.5 SP3 Basic Online

LSM needs to be registered. A registration file is created for this purpose and sent to a designated email address. You will then automatically receive a reply which contains your personal licence file. You can use this licence file to register LSM with the modules that you ordered.

Procedure

  1. LSM installation is implemented.
  2. Delivery note with registration information is on hand.
  3. Sending mails is possible.
  1. In the tab Help click on the Registration button.
  2. The Registration window opens.
  4. Click on the Edit button.
  6. The Edit registration window opens.

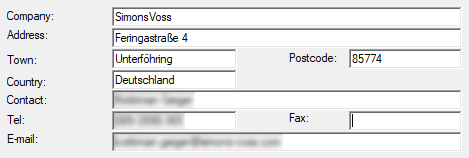

  7. Complete the form.
  9. Make sure the correct edition is selected (example: Business).
  11. Click on the Apply button.
  13. The data record is saved.
  14. Click on the Produce licence query button.

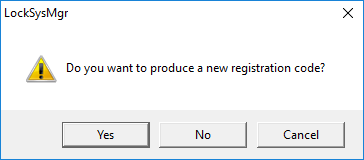

  16. Click on the Yes button to accept the query prompt.

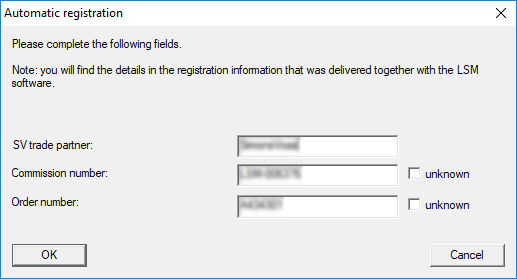

  18. Complete the form (LSM consignment number in LSM-xxxxxx format; order number in Axxxxxx format).
  20. Click on the OK button.
  21. The RGO file is created.
  22. The Explorer window will open.
  23. Save the RGO file to a directory of your choice.

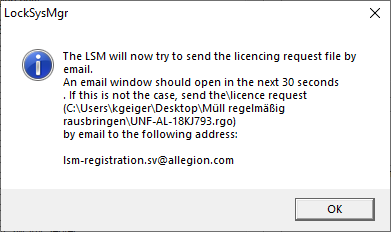

  25. Click on the OK button.
  27. The standard email client will open. An email is automatically generated with the RGO file attached.
  28. If the RGO file is not attached, then attach it manually.
  29. Send an email with the RGO file to lsm-registration.sv@allegion.com.
  30. Reply is automatically sent with the LIC file attached.
  31. Save the LIC file to a directory of your choice.
  32. Switch back to LSM.
  33. Click on the Read in licence file button.
  35. The Explorer window will open.

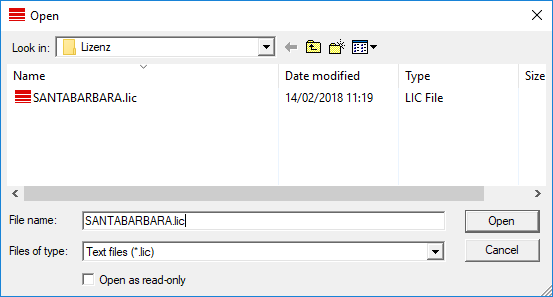

  36. Select the LIC file.
  38. Click on the Open button.
  39. Click on the OK button to accept the prompt notice.
  40. Re-start LSM.
  1. Registration is implemented.
