Setting up a locking system - LSM 3.5 SP3 Basic Online

The Virtual network (SREL2, limited functions) checkbox must be activated in the (exclusively) G2 locking system.

  1. Open the properties of your locking system using Edit - Locking system properties.
  2. Change to the "Name" tab.

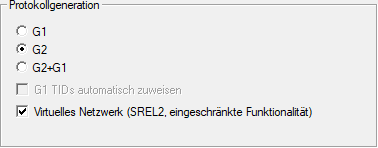

  3. Activate the checkbox in Protocol generation the areaVirtual network (SREL2, limited functions).
  5. If you use cards: select an AV card template from the G2 card management tab.
  1. Locking system is designed for use with a virtual network with SmartRelay 2 G2.

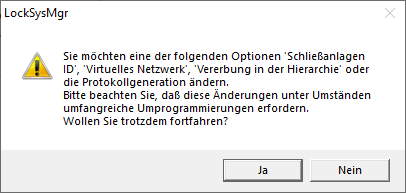

If this setting is applied to an existing locking system, considerable programming may be required.
