WaveNet - RouterNode 3

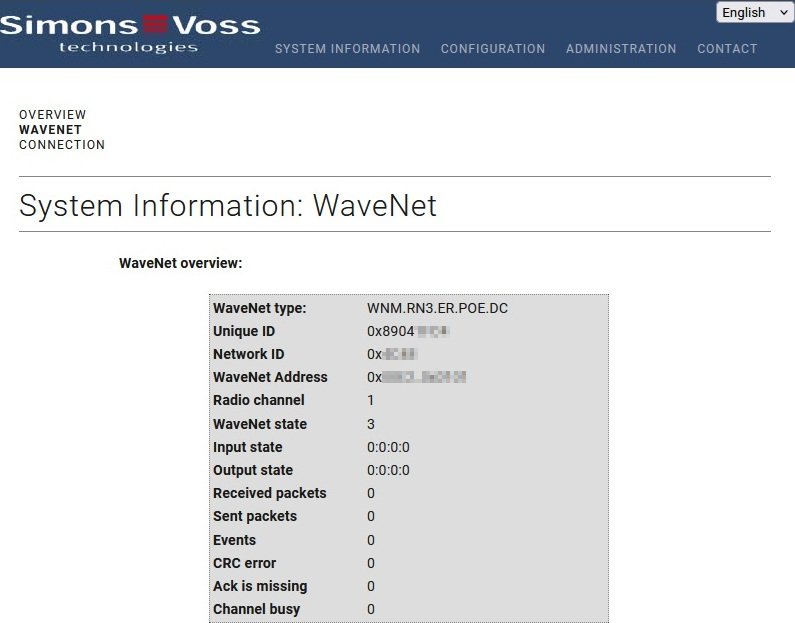

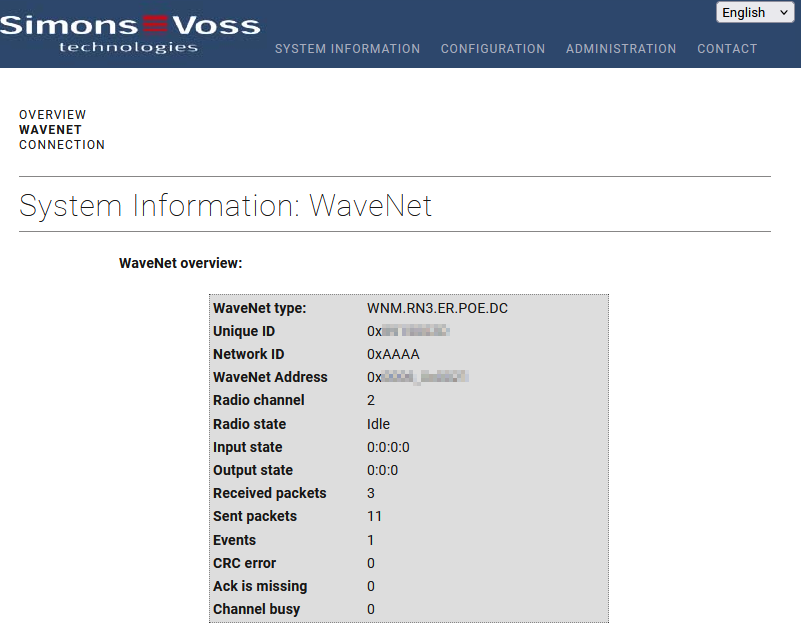

You will see the following WaveNet information for RouterNode 3:
WaveNet type | Sales item number of the RouterNode 3 |
Unique ID | Serial number of the RouterNode 3 |
Network ID | WaveNet network address configured in RouterNode 3. The address “0xDDDD” means that the RouterNode 3 is not configured. |
WaveNet address | WaveNet network address configured in RouterNode 3. The address “0x0000_0x0000” means that the RouterNode 3 is not configured. |
Radio channel | Default WaveNet radio channel. |
WaveNet status | WaveNet radio network status. |
Input status | For RouterNode 3 with IO connectors: status of IO input pins |
Initial status | For RouterNode 3 with IO connectors: status of IO output pins |
Received packets | WaveNet statistics |
Sent packages | |
Events: | |
CRC error | |
missing confirmation | |
Channel in use |
