Overview - RouterNode 3

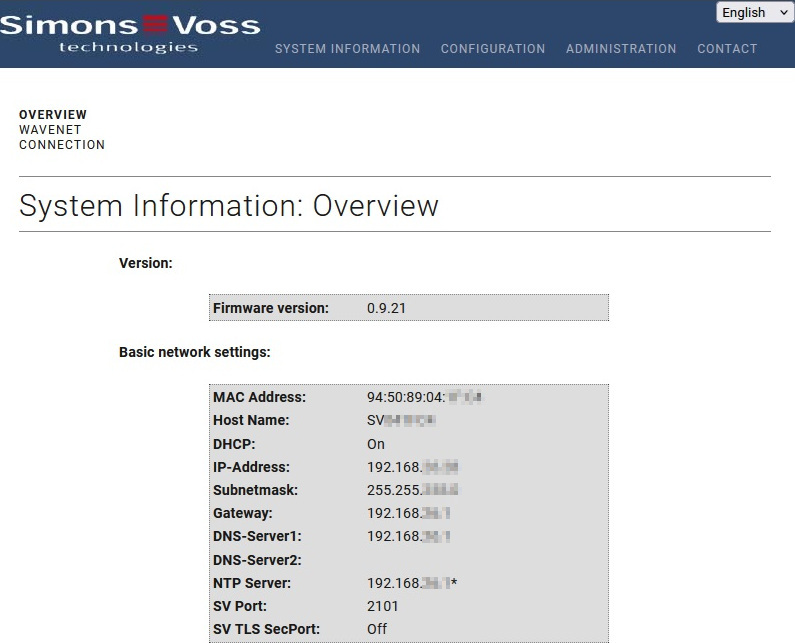

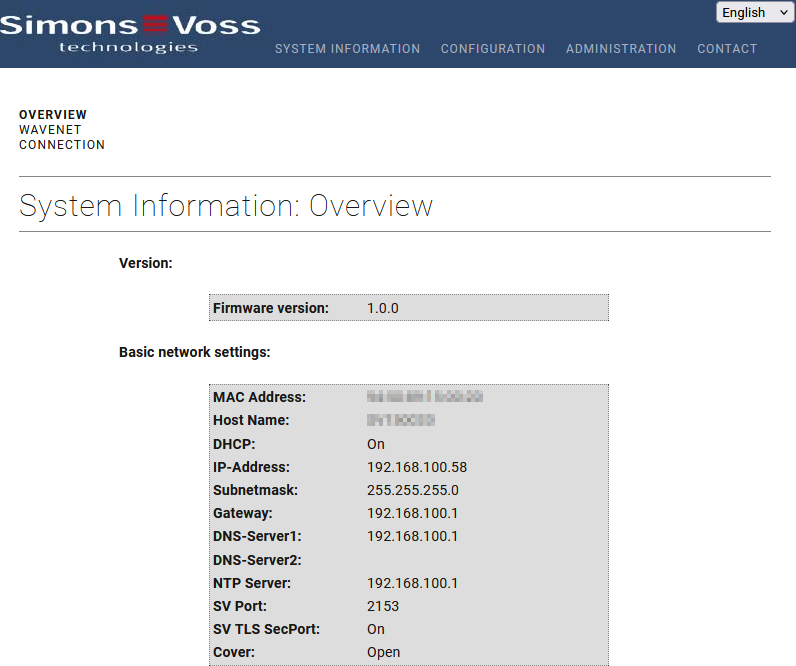

This is the start page of the configuration interface. You will see a brief overview of the RouterNode 3 with the following information:
Firmware version | Firmware version of the RouterNode 3. |
MAC address: | MAC address of the RouterNode 3. |
Hostname | Hostname of the RouterNode 3. |
DHCP | On/Off – depends on if DHCP is configured. |
IP address | IP address of the RouterNode 3. |
Subnet mask | IP address subnet mask of RouterNode 3. |
Gateway | If configured/assigned: IP address of the gateway. |
DNS server1 | If configured/assigned: IP address of the primary DNS server. |
DNS server2 | If configured/assigned: IP address of the secondary DNS server. |
NTP server | If configured/assigned: IP address of the NTP server. An asterisk (*) after the IP address indicates that the has successfully synchronised RouterNode 3 the time with the NTP server. |
SV port: | TCP port number used by the embedded web server of the RouterNode 3 to communicate. |
SV TLS SecPort | On/Off - depending on whether the embedded web server uses RouterNode 3 TLS security and encryption. |
