Operation with fixed IP address - RouterNode 3

  1. Configuration web page is open (see Initial configuration/find in LAN or Configuration interface).

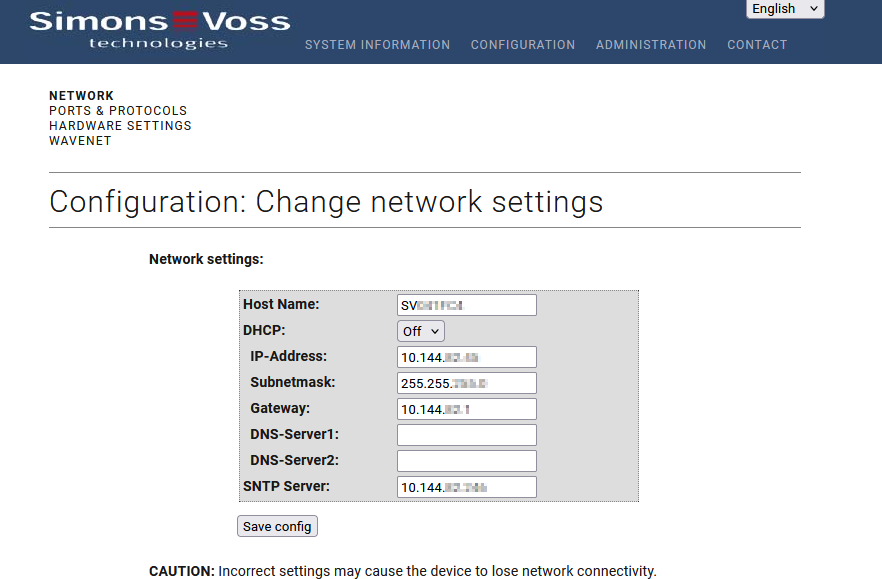

  1. Open the NETWORK tab using CONFIGURATION.
  2. You will see the RouterNode 3‘s network settings.
  4. Select item Off from the drop-down menu DHCP:.
  5. Further network settings become available.
  6. Enter the required network settings such as the IP address.
    (Minimum required information: IP address, subnet mask and gateway. DNS and NTP are not mandatory, but may be required depending on the situation).
  7. Click the Save button.
  1. RouterNode 3 is now configured to operate with a fixed IP address.
