Set mode - PIN code terminal

The mode is set once in LSM during commissioning and applies to all PIN code terminals (see also Mode overview).

  1. LSM open.
  1. Open the properties of your locking system using Edit - Locking system properties.
  2. Change to the PIN-Code Terminal tab.

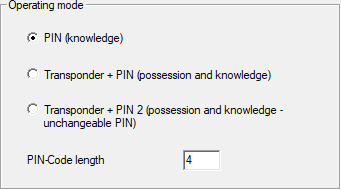

  3. In the area Operating mode select the mode.
  5. Click on the Apply button.
  1. Mode.

NOTE

notice

Subsequent change of mode

The mode applies to the entire locking system. If it is subsequently changed, there is considerable effort involved (programming requirement at all PIN code terminals in the system, issuing new User PINs, issuing new transponders, etc.).

  1. Carefully plan beforehand which mode you want to use.
  2. Do not change the mode after programming the first PIN code terminal in the locking system.
