Third-party handle adapter (FSB) - SmartHandle AX Advanced SmartIntego

Item code

Description

S3.ADAPTER.FSB

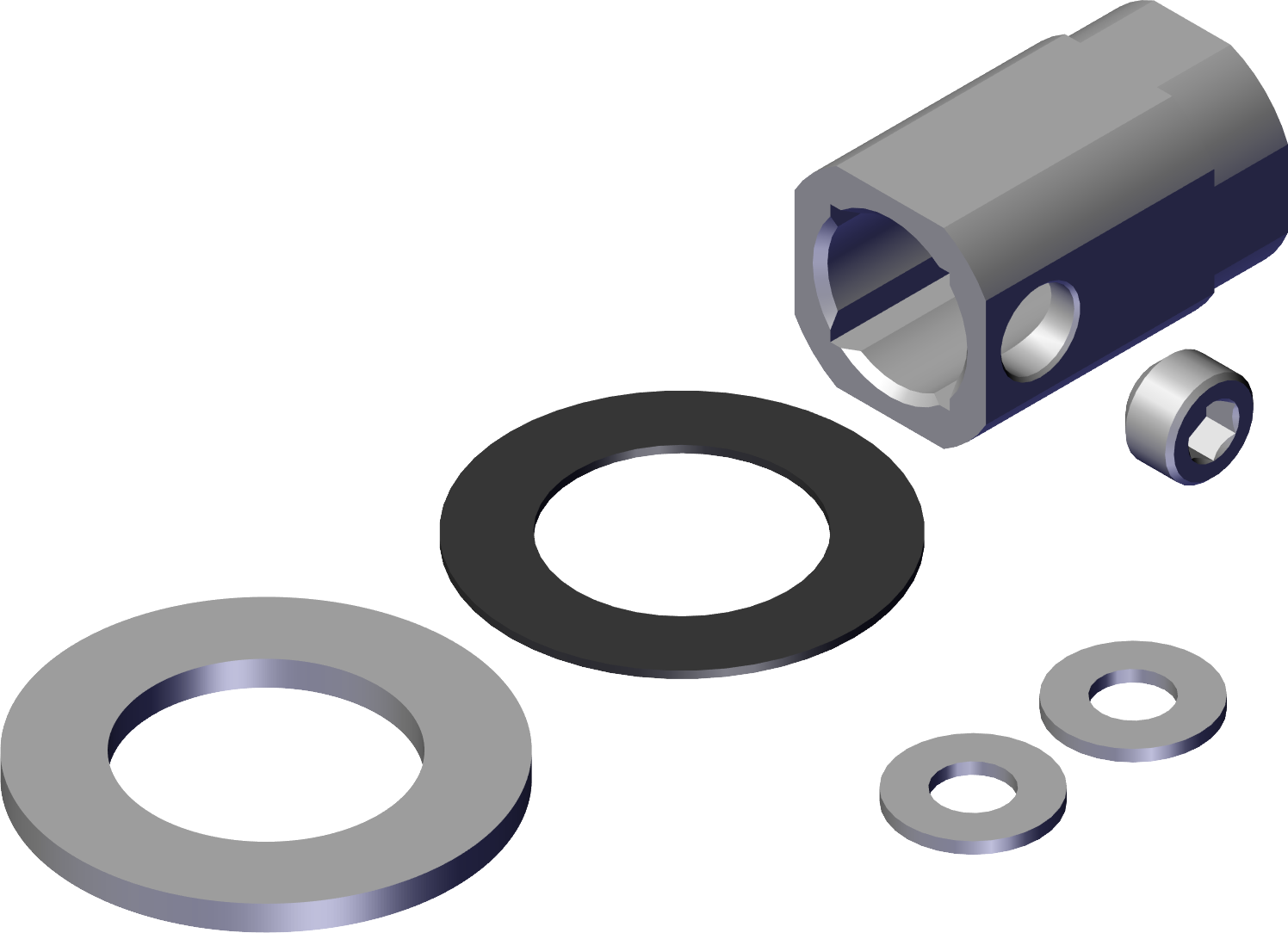

Adapter set for FSB lever handles from FSB model year 2018, compatible with the following FSB fastening types:

  • Standard (FSB ASL®)
  • Object (FSB AGL®)

S3.ADAPTER.FSB.2.8

Adapter for mounting a handle (8 mm) from FSB for the inner side of variants N1 and M1

S3.ADAPTER.FSB.2.9

Adapter for mounting a handle (9 mm) from FSB for the inner side of variants N1 and M1

Adapter for electronics side

The ADAPTER S3.ADAPTER.FSB is used for the electronics side and is therefore always outdoors. Double-sided readers SI SmartHandle AX Advanced have two electronic sides, so two S3.ADAPTER.FSB are required.

Inside handle adapter not required

Suitable inside handles are available directly from FSB for the following variants. This means you do not need an adapter on the inner side for these variants:

  • L1 (Mounting of rosettes RMO)
  • P1 (Scandinavian Oval SO)
  • K1 (metal frame doors RRund double-sided reading DS)

Inside handle adapter required

The following variants use a special fastening, which is not available for FSB inside handles. Therefore, you need an adapter that matches the spindle.

  • N1 (long backplate LS/short backplate KS)
  • M1 (Security fitting ES3)
