Prepare door (drilling template) - SmartHandle AX Advanced SmartIntego

  1. Pin or scriber at hand.
  2. Drill at hand.
  3. Suitable drill bit at hand (Ø 7 mm).
  4. Countersink at hand.
  5. Ruler at hand.
  6. PH2 screwdriver at hand.

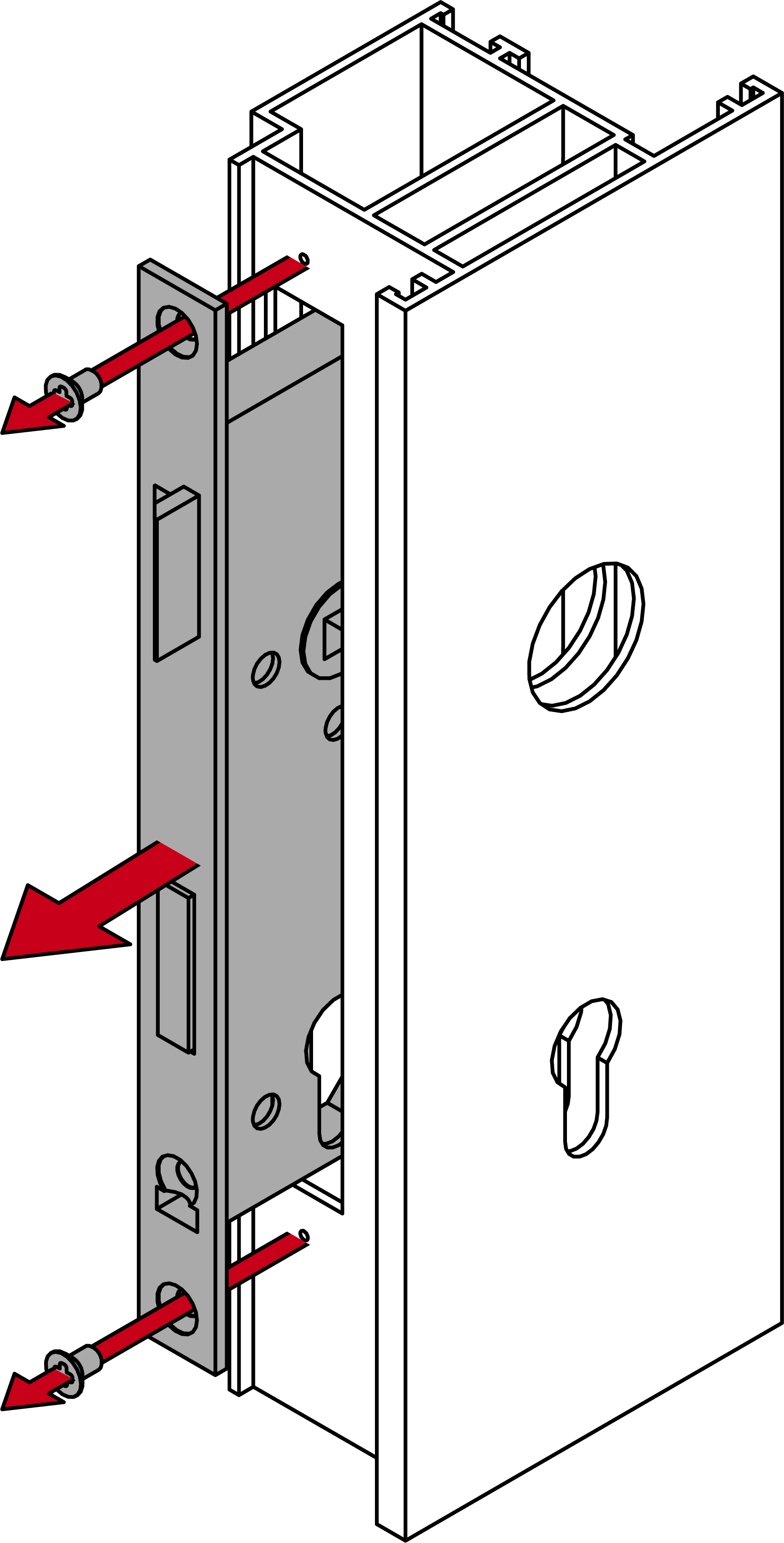

  1. Remove the mortise lock.
  3. Measure the distance (gap between the spindle and cylinder axes of rotation).

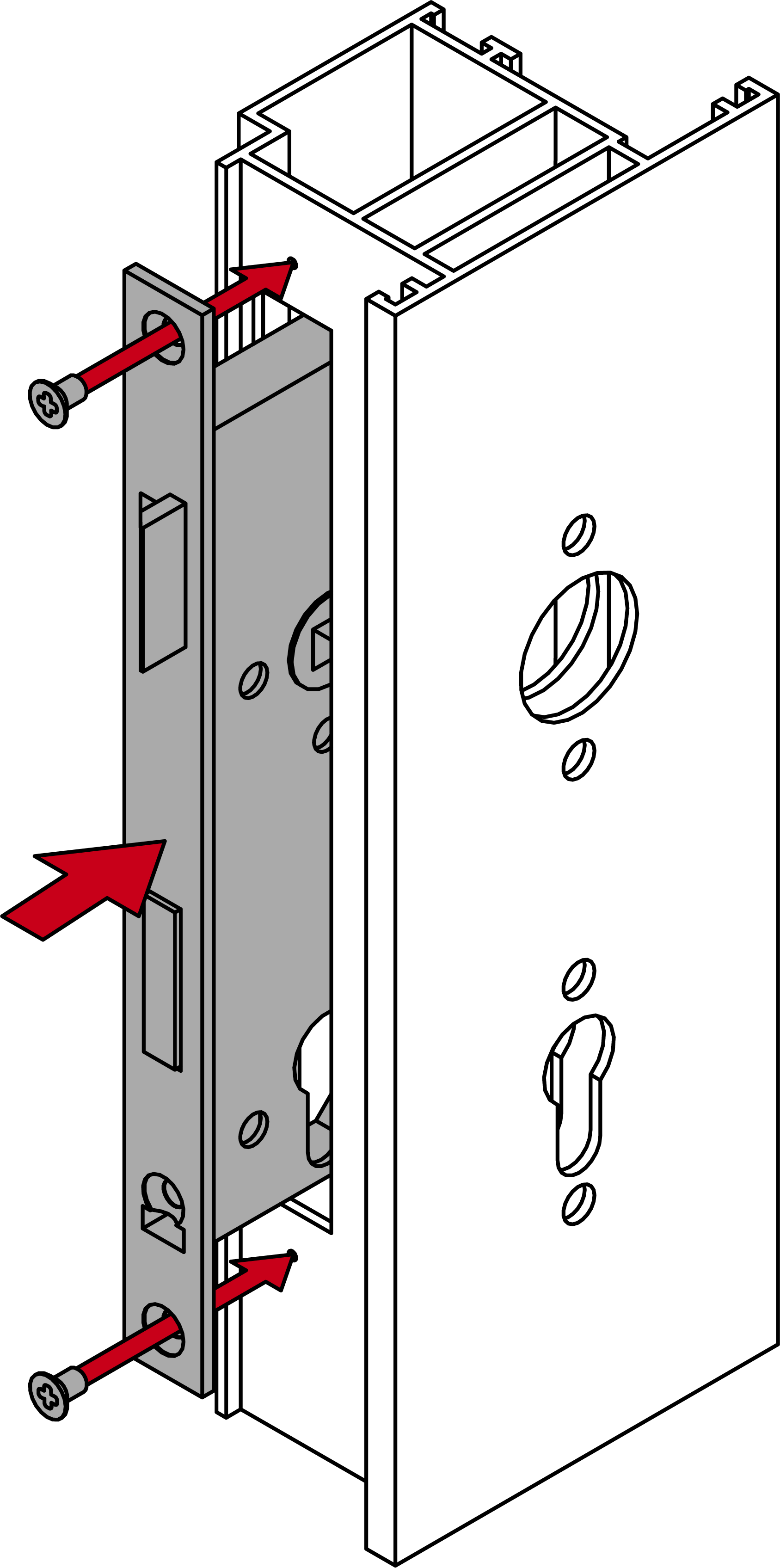

  5. Fit the mortise lock.

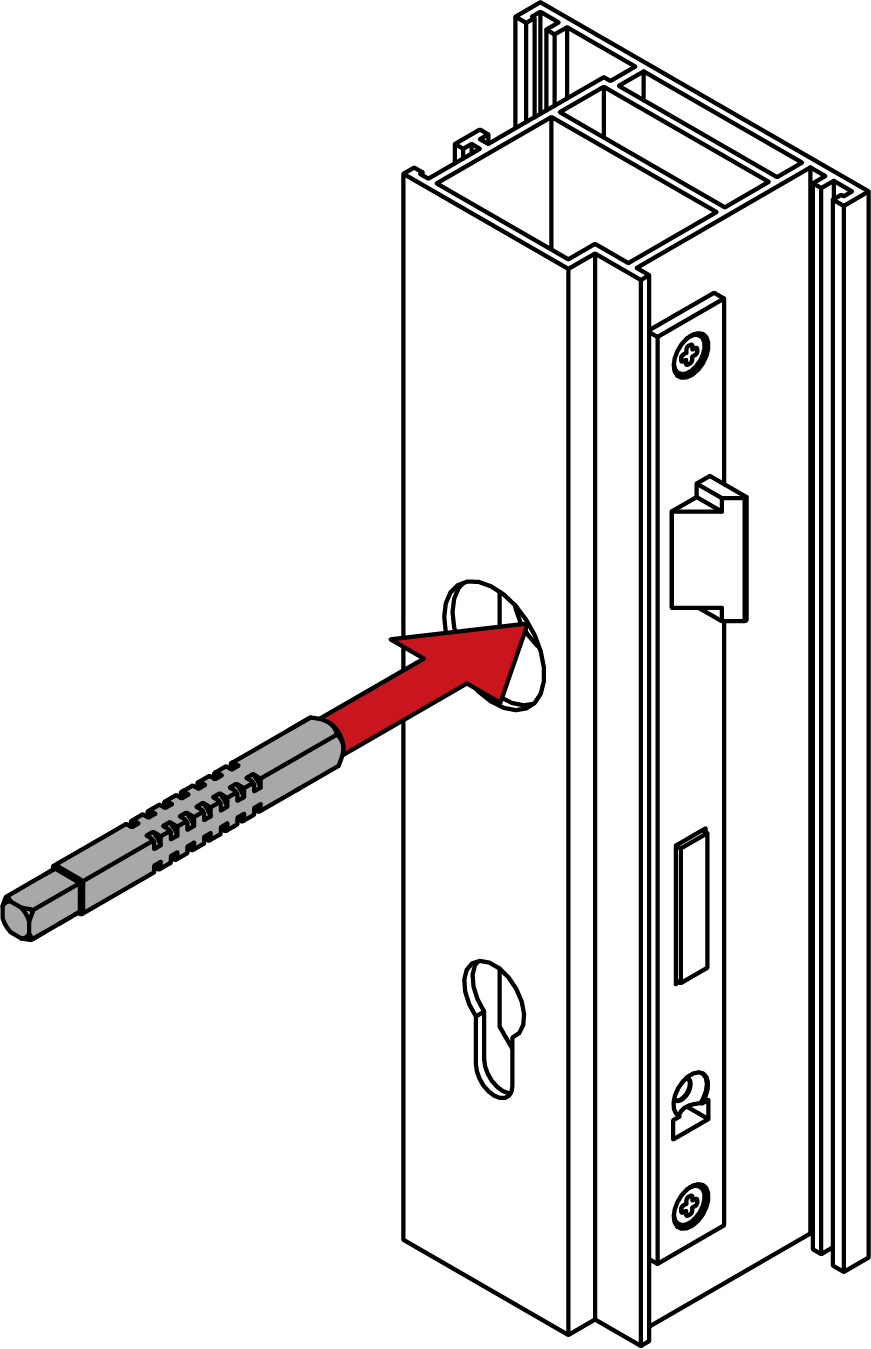

  7. Insert the spindle into the mortise lock.
  9. Place the drilling template on the spindle from the inner side.

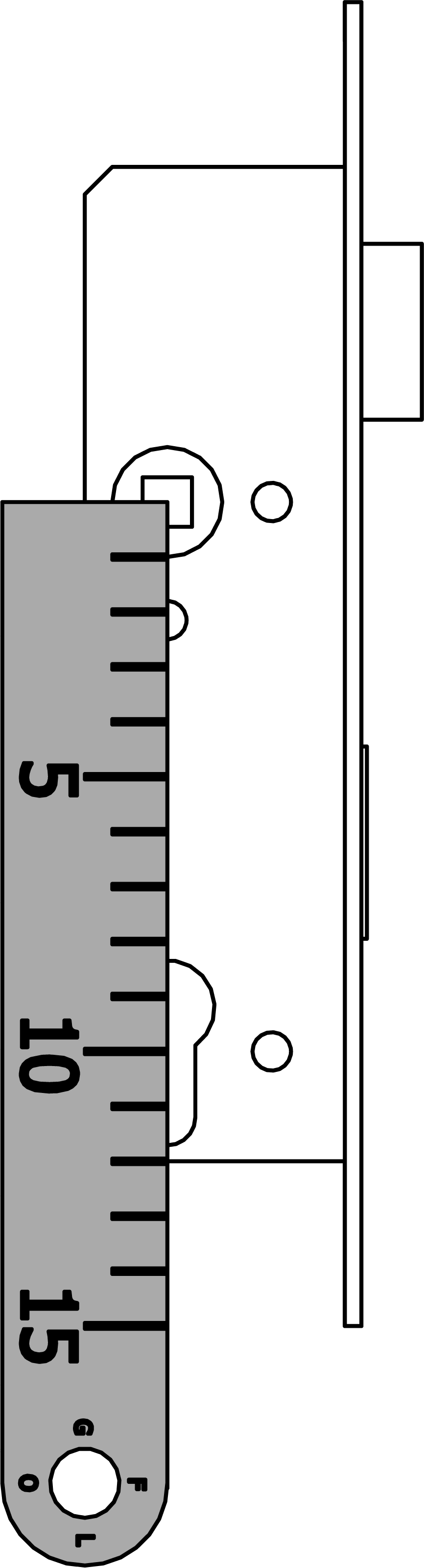

  11. Align the drill template vertically using the printed scale.

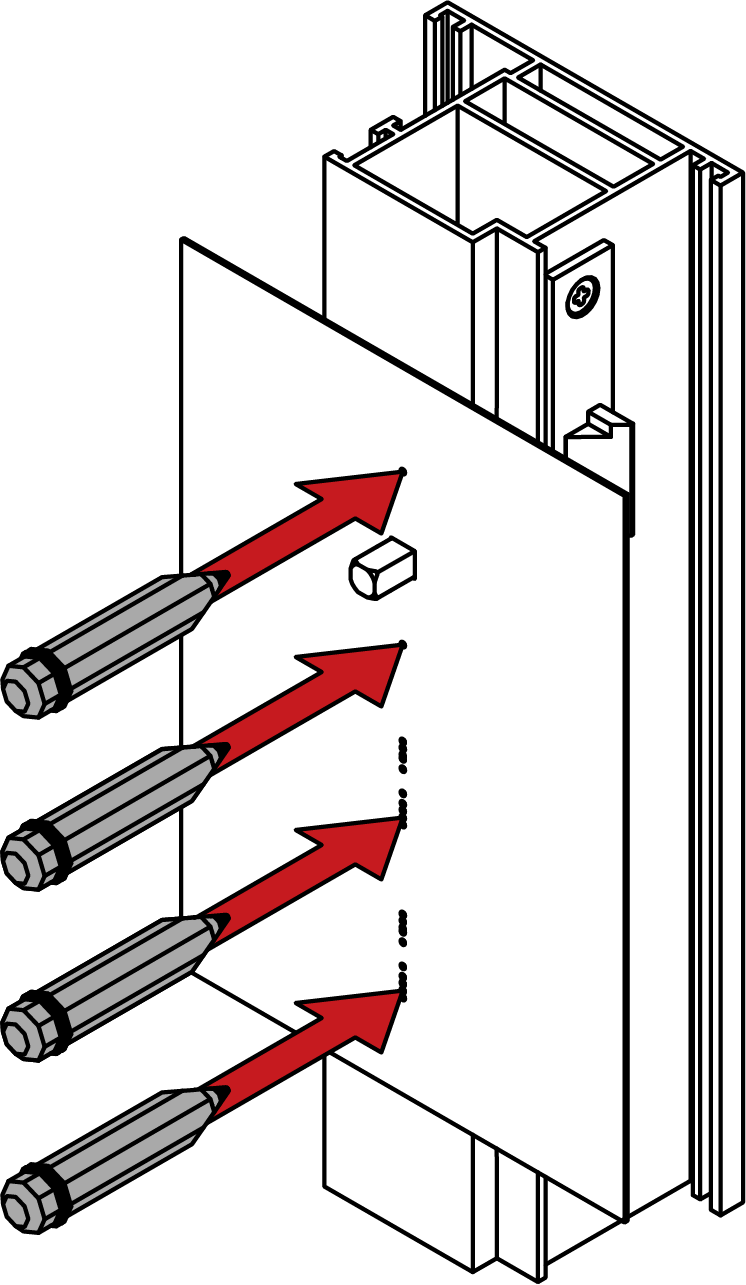

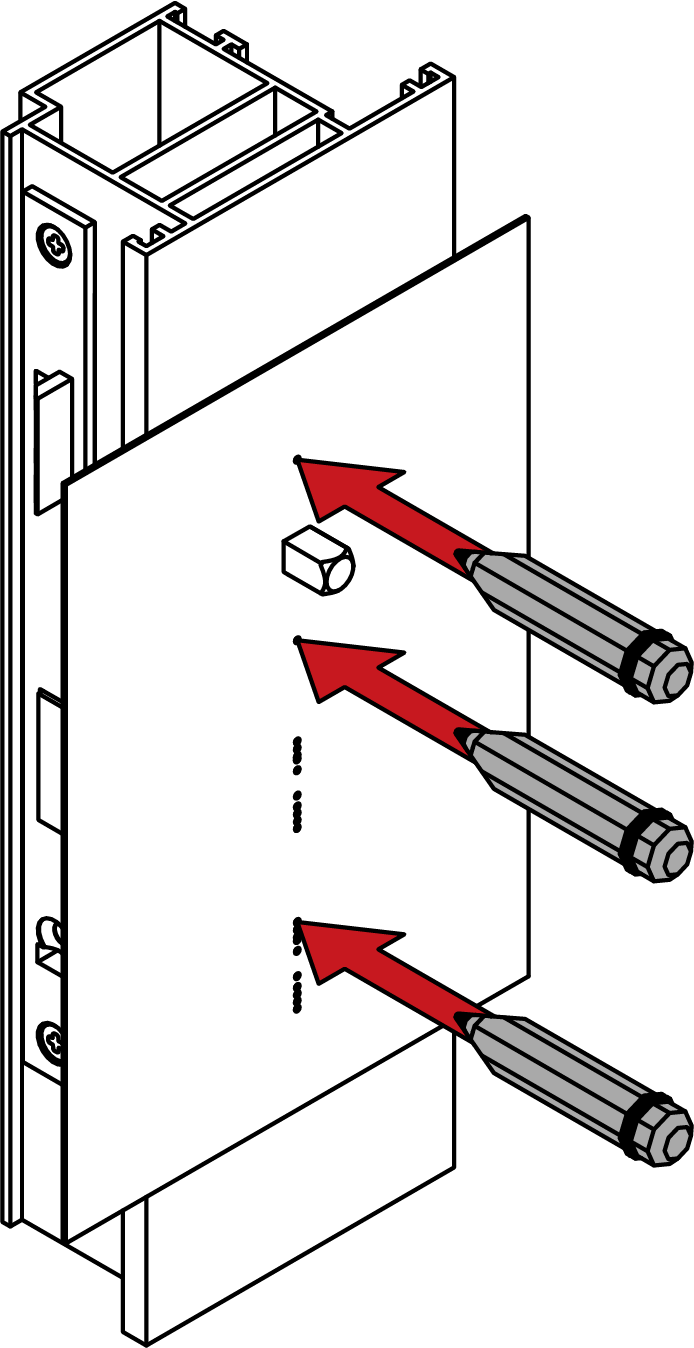

  12. Mark the points to be drilled on the inner side of the door.

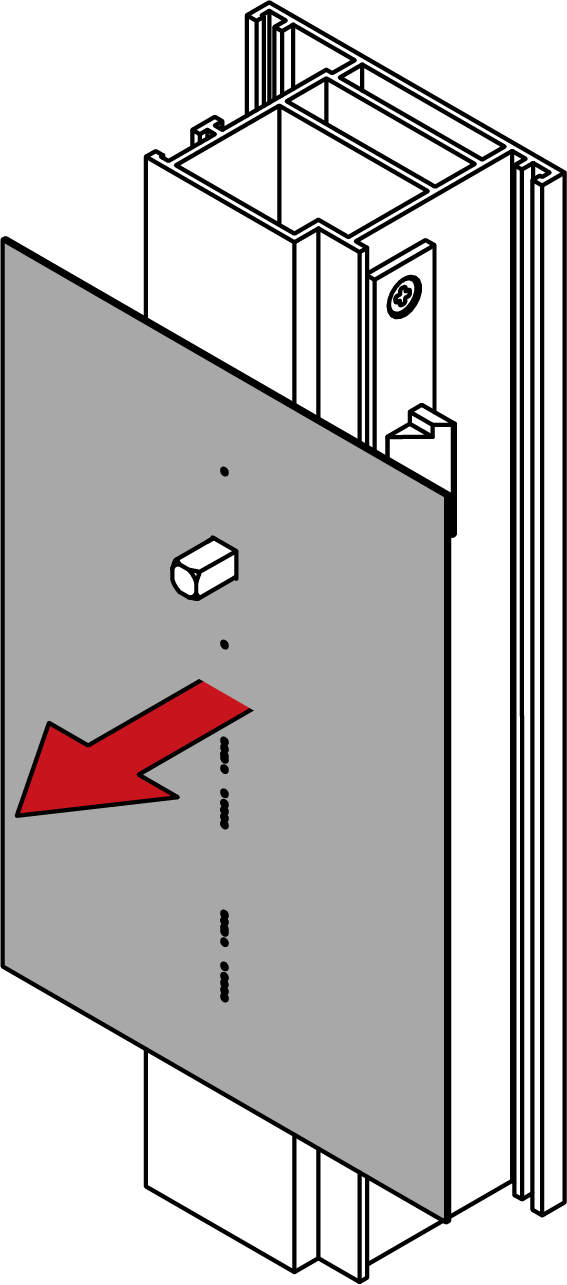

  14. Remove the drilling template.
  16. Place the drilling template onto the square from the outside.
  18. Align the drill template vertically using the printed scale.

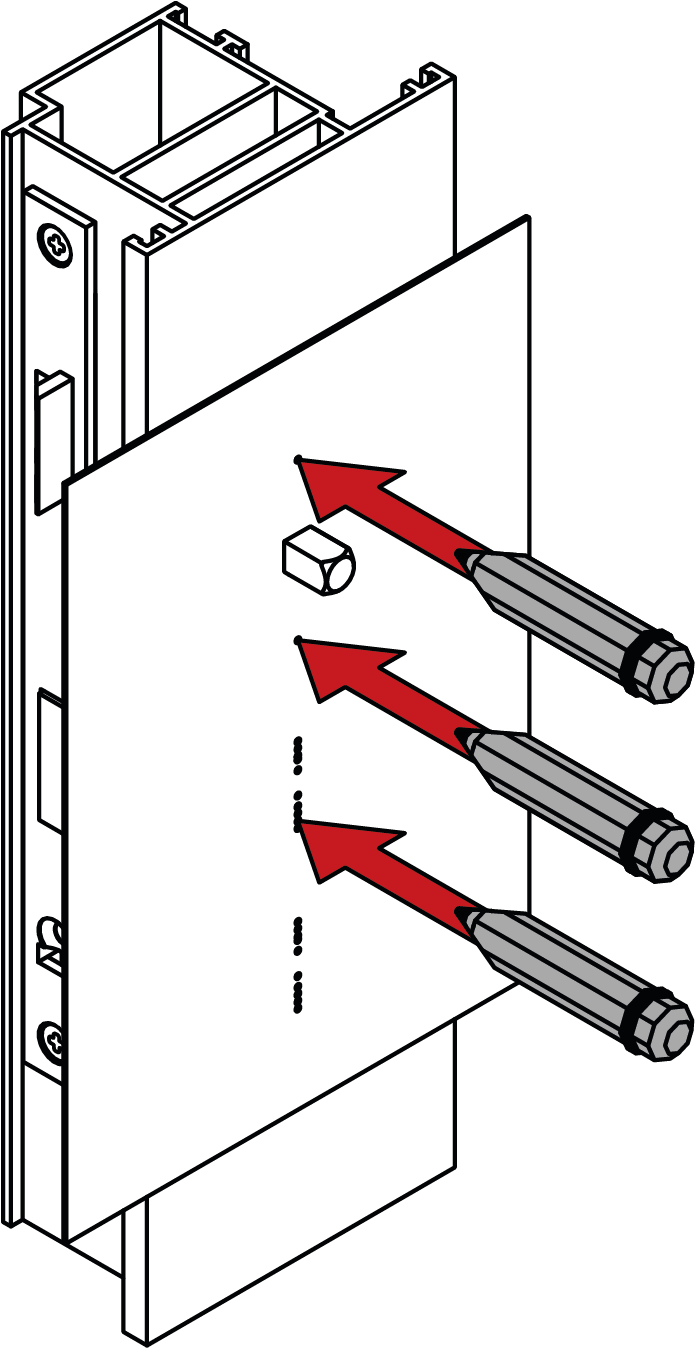

  19. Mark the points where the door is to be drilled on the door.
  22. Remove the drilling template and spindle.
  24. Remove the mortise lock.

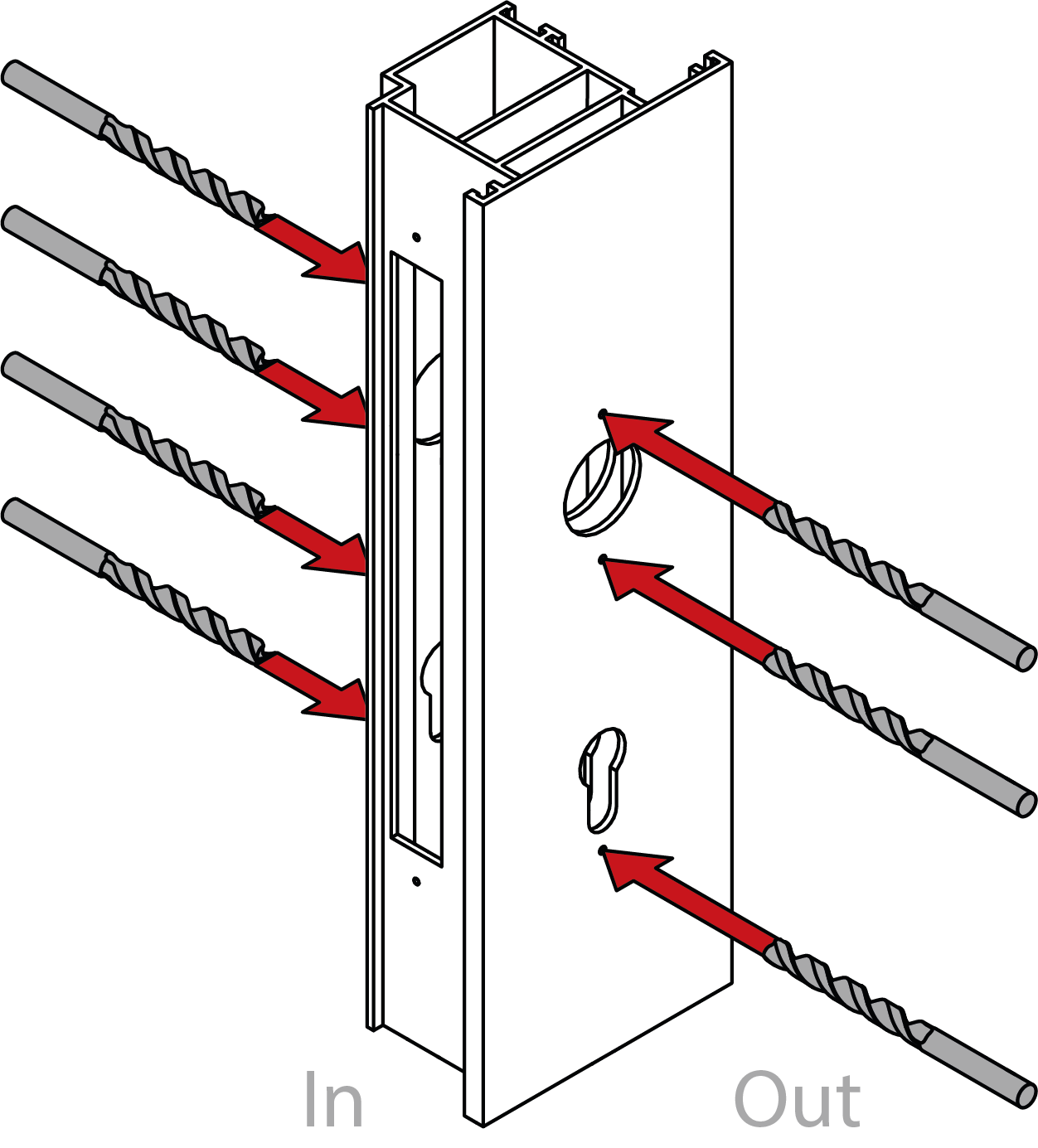

  26. Drill the required holes.

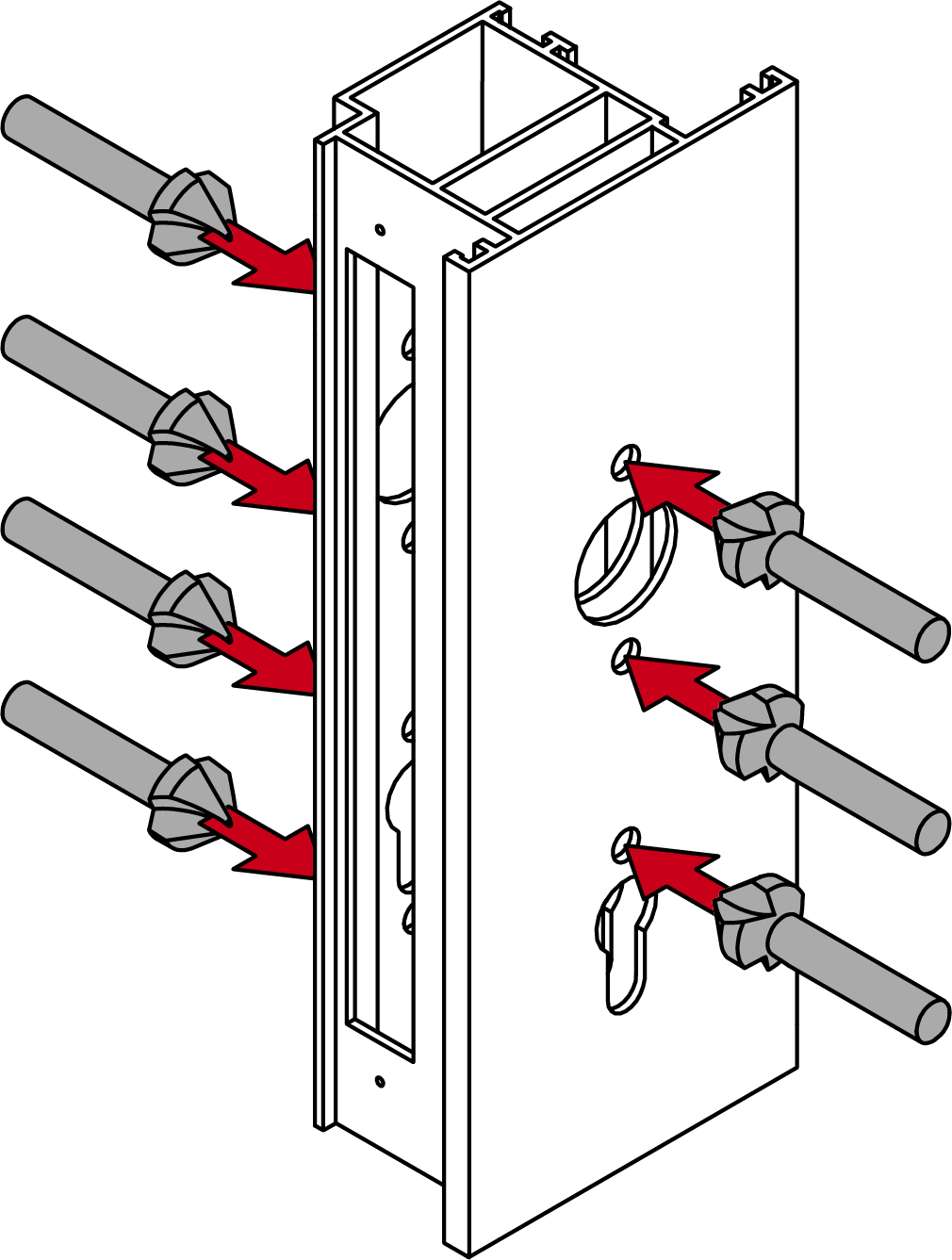

  29. Deburr drilled holes with a countersink.
  31. Fit the mortise lock.
