Installing the fitting - SmartHandle AX Advanced SmartIntego

NOTE

notice

Fastening in the centre is optional

Fastening in the centre is optional. The SI SmartHandle AX Advanced can also be installed without this fastening system.

  1. Use the middle fastener if you require greater stability.
  1. Door pre-drilled.
  2. PH2 screwdriver at hand.
  3. TX15 screwdriver at hand.
  4. Caliper gauge at hand.

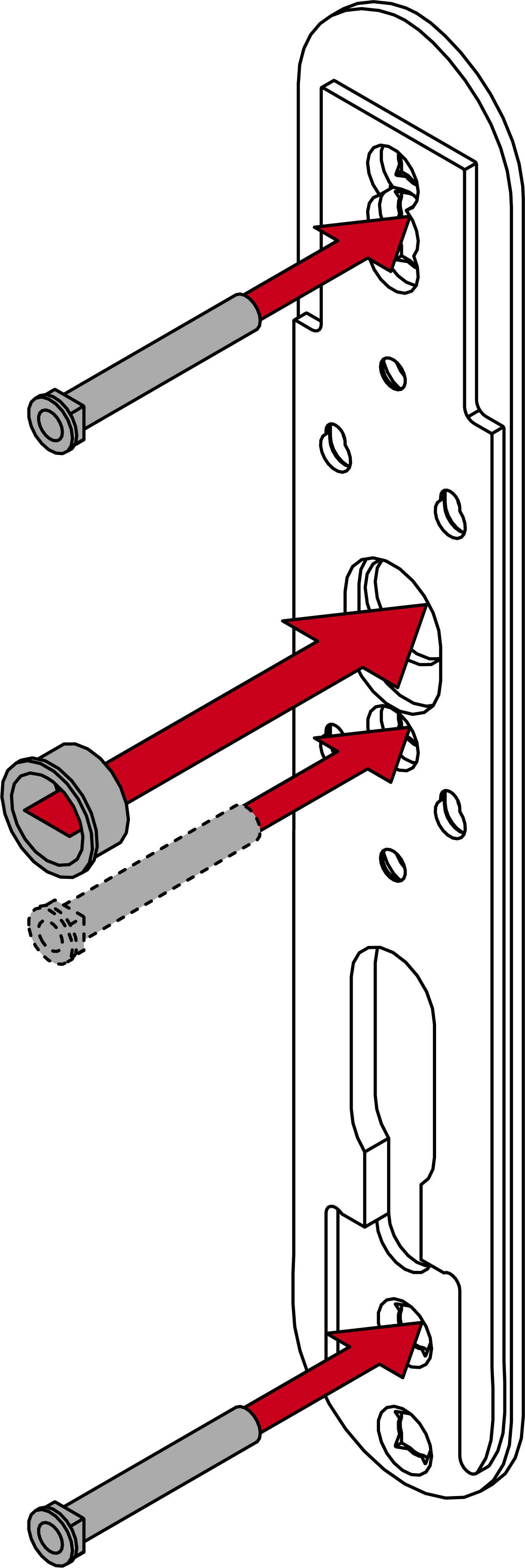

  1. Insert the spindle protective tube and the sleeve nuts into the fastening plate.

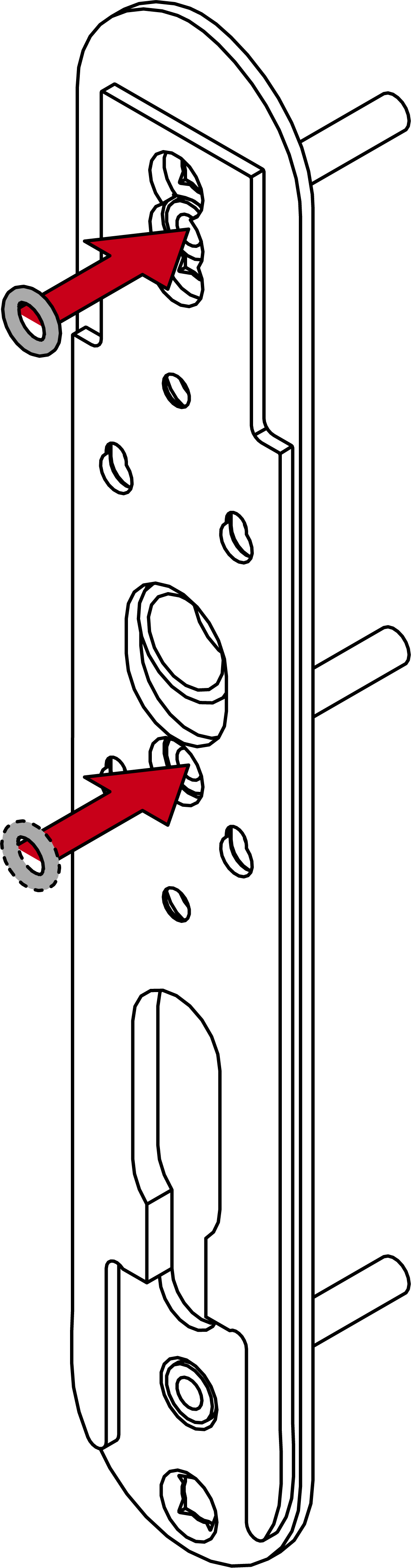

  2. Insert a spacer ring into the openings in the middle and top sleeve nuts.
  3. For 7 mm spindle: Insert the adapter shoe into the spindle mount on the module support.

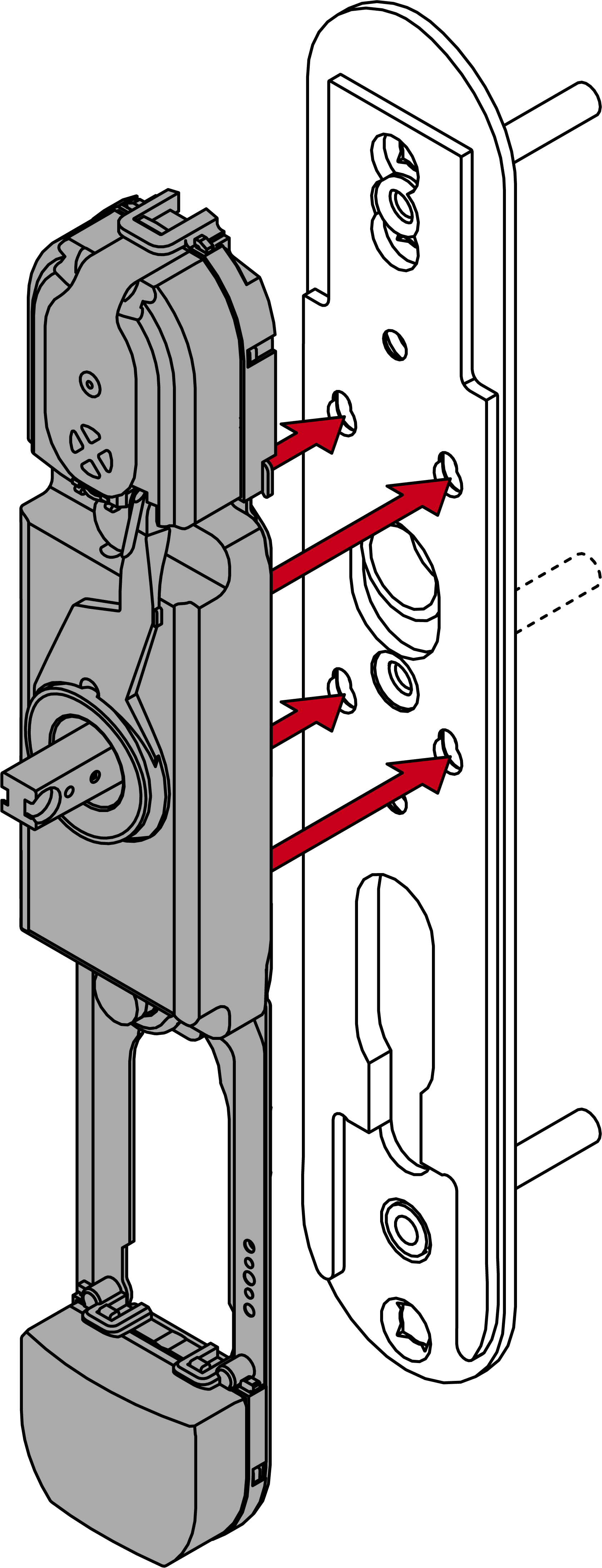

  4. Insert the module support into the fastening plate.

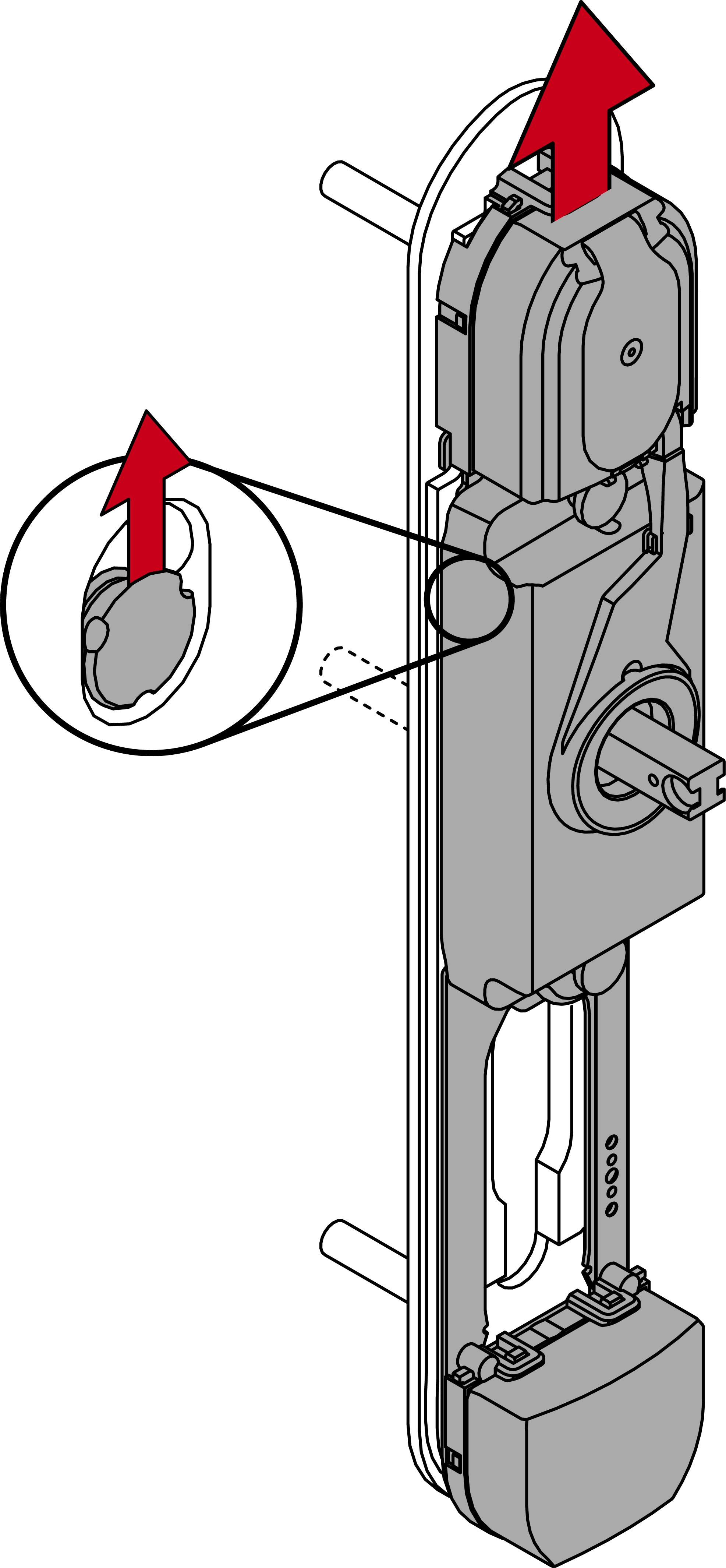

  5. Slide the module support upwards.
  6. Module support snaps into place.
  7. Fasten the module support to the fastening plate with the 12 mm screws (PH2, torque 3.0 Nm).
  8. For non-MO: insert the blank cylinder.
  9. NOTE

    notice

    Feed the blank cylinder into the hole using a screwdriver

    It is difficult to position the blank cylinder correctly, especially in thick doors.

    1. Insert a screwdriver into the hole in the blank cylinder.
    2. Position the blank cylinder using the screwdriver.

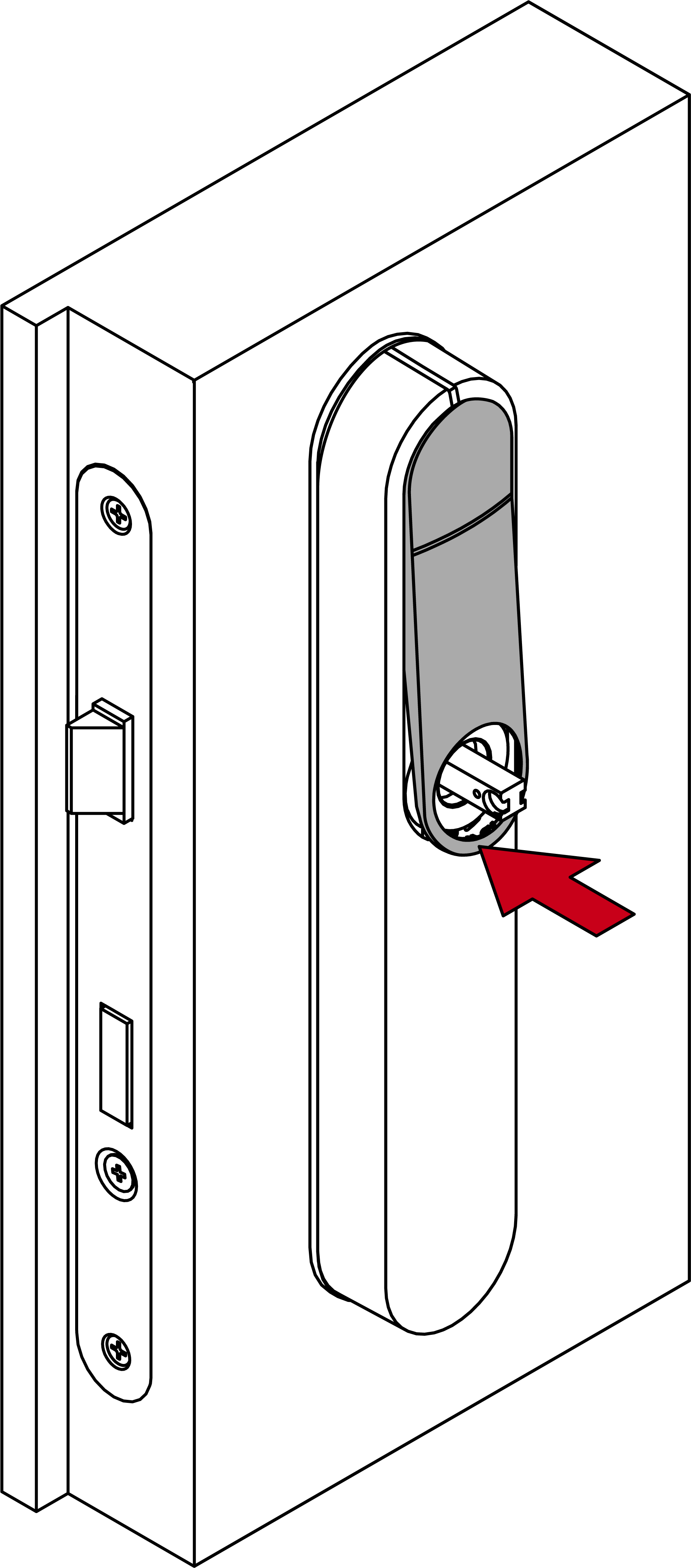

  10. For non-MO: screw the dummy cylinder firmly into place (PH2; torque: 1.1 Nm).
  11. Measure the door thickness.
  12. Size

    Door thickness (mm)

    Screws

    S

    36 - 42

    M5×35

    S

    41 - 50

    M5×35

    S

    49 - 57

    M5×45

    M

    56 - 67

    M5×50

    M

    66 - 77

    M5×60

    L

    76 - 87

    M5×70

    L

    87 - 97

    M5×80

    X

    96 - 180

    M5 X

  13. Determine what screws are required for the door thickness measured.
  14. Measure the total length of the spindle.
  15. Locate the inside of the spindle (four-edge end up to the centre of the first groove = 26 mm).
  16. Use the table to determine the position of the O-ring.
  17. Size

    Door thickness (mm)

    Spindle length (mm)

    Ring position

    S

    36 - 38

    94

    3

    S

    36 - 38

    104

    5

    S

    39 - 43

    94

    2

    S

    39 - 43

    104

    4

    S

    44 - 48

    94

    1

    S

    44 - 48

    104

    3

    S

    49 - 53

    104

    2

    S

    54 - 57

    104

    1

    M

    56 – 58

    114

    3

    M

    56 – 58

    124

    5

    M

    59 - 63

    114

    2

    M

    59 - 63

    124

    4

    M

    64 - 68

    114

    1

    M

    64 - 68

    124

    3

    M

    69 - 73

    124

    2

    M

    74 - 77

    124

    1

    L

    76 – 78

    134

    3

    L

    76 – 78

    144

    5

    L

    79 - 83

    134

    2

    L

    79 - 83

    144

    4

    L

    84 - 88

    134

    1

    L

    84 - 88

    144

    3

    L

    89 - 93

    144

    2

    L

    94 - 97

    144

    1

    XL

    96 - 180

    O-ring is located 30–35 mm from the cut end of the spindle.

  18. For 8.5 mm and 10 mm spindle: slide the adapter sleeve into the centre of the spindle. Use a punch and hammer to make an indent in the adapter sleeve to prevent it from slipping.
  19. Insert the outer side of the spindle into the fitting.
  20. When using X: insert the screws through the inner fastening plate and screw them together with the threaded sleeve and threaded rod.
  21. Place the inner fastening plate and the mounting disc on the spindle.
  22. The mounting disc is used to align the fastening plate and the spindle with one another.
  23. After aligning, use the screws provided to securely fasten the inner fastening plate (PH2; torque 1.1 Nm).
  24. Remove the mounting disc from the spindle again.
  25. Slide the O-ring onto the calculated groove.
  26. For 7 mm spindle: Place the adapter sleeve in the inside handle in such a way that the recess faces the grub screw.
  27. Determine the required direction of rotation for your inside handle.
  28. Insert the spring element appropriately.
  29. When using rectangular or offset inside handles (*B, *D, *E, *F): slide the cover onto the inside handle before screwing it into place.
  30. Use the 12 mm screws to fix the module support onto the fastening plate (PH2; torque: 3.0 Nm).
  31. Fasten the handle firmly with the grub screw (TX15; torque: 5.0 Nm).
  32. When using rectangular or offset inside handles (*B, *D, *E, *F): straighten the cover by turning it back into place.

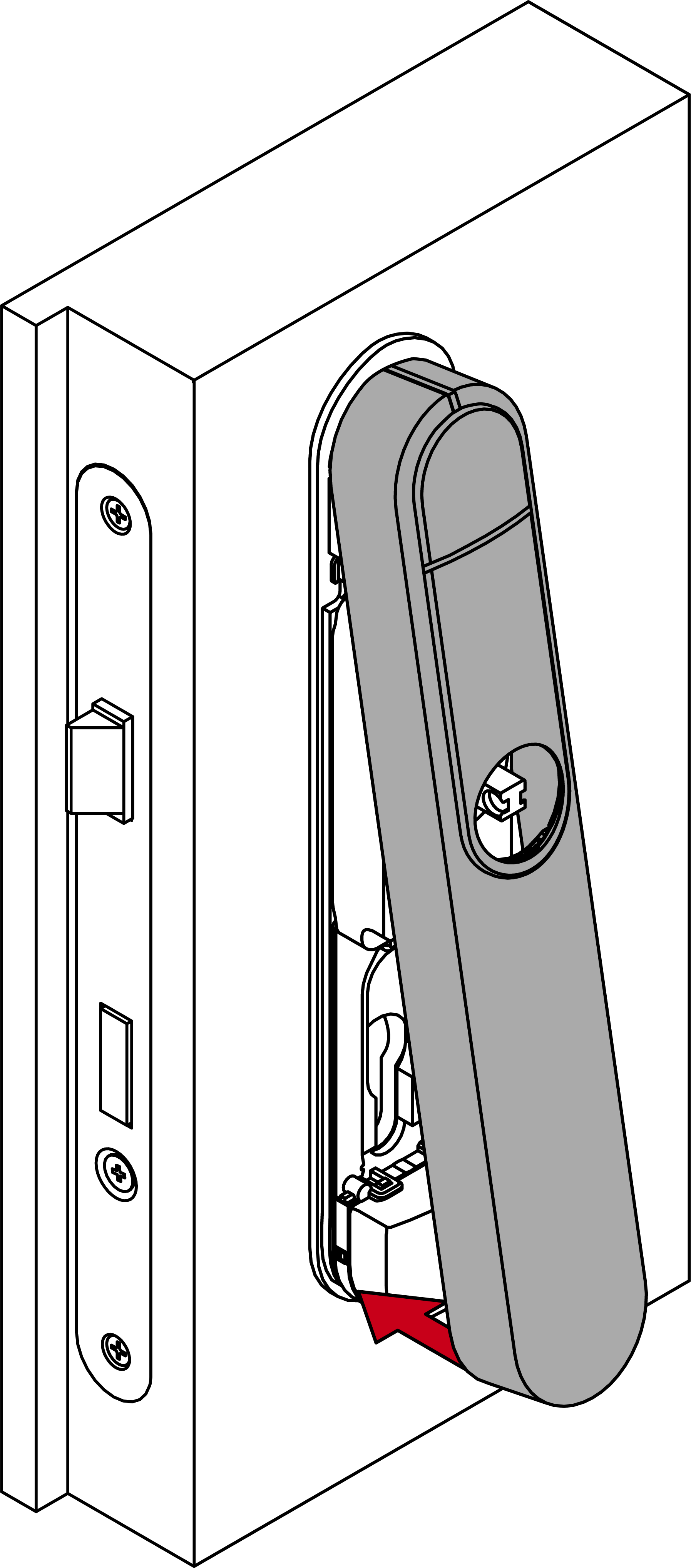

  33. Attach the cover at the top and press it firmly until it clicks into place.

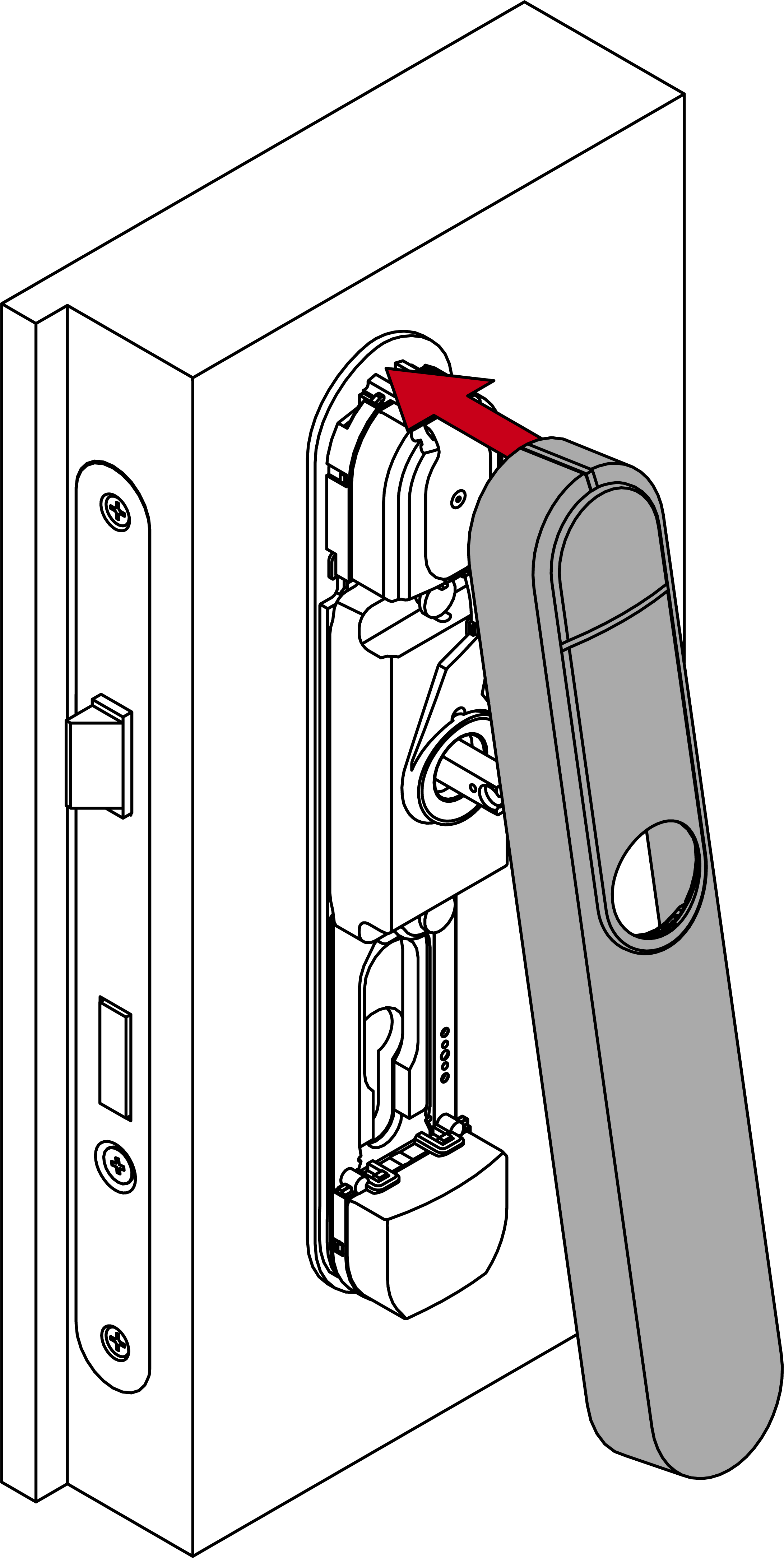

  34. Press the bottom of the cover to close it.
  35. Screw the inner fastening plate to the outer part with the screws provided (PH2; torque 1.1 Nm).
  36. Place the cover on top of the fastening plate.
  37. Fold down the cover.
  38. Slide the cover upwards.

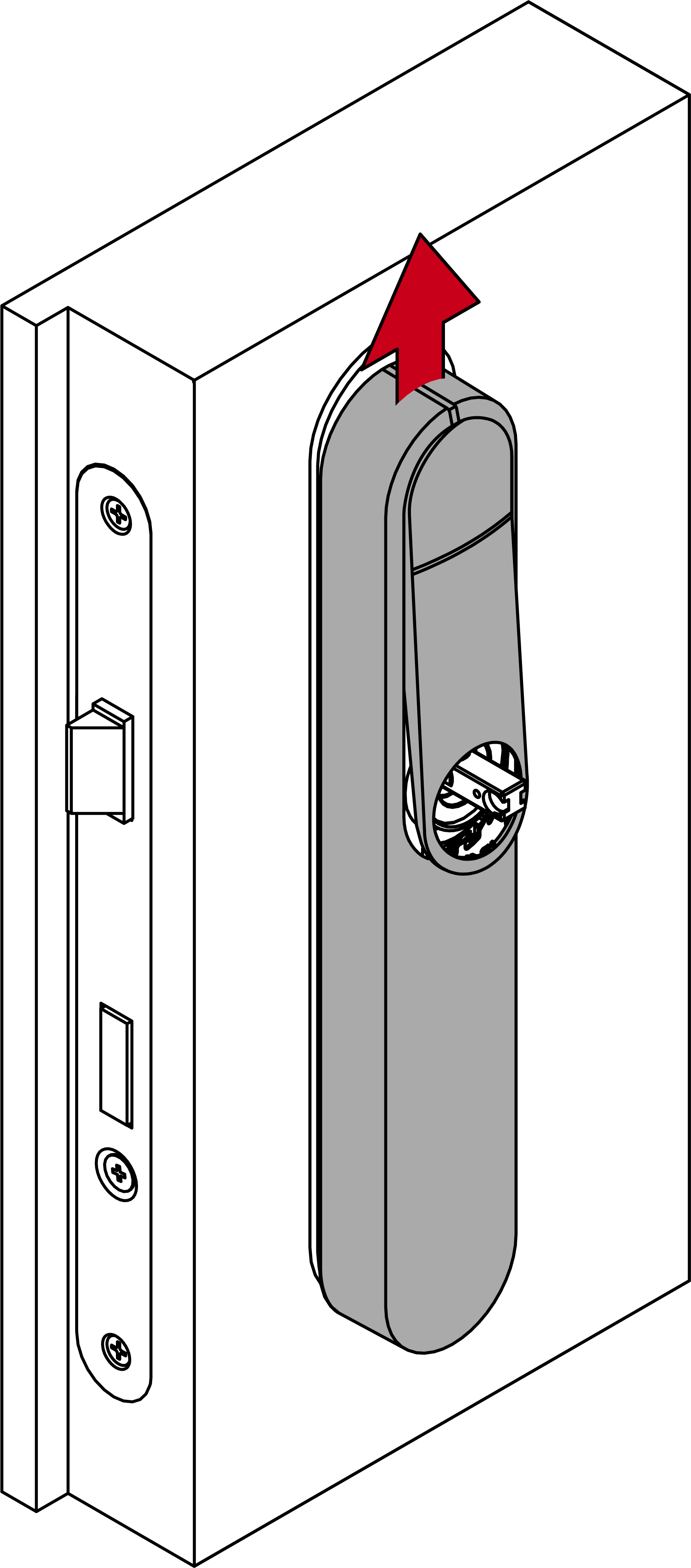

  39. Press the inlay into place.

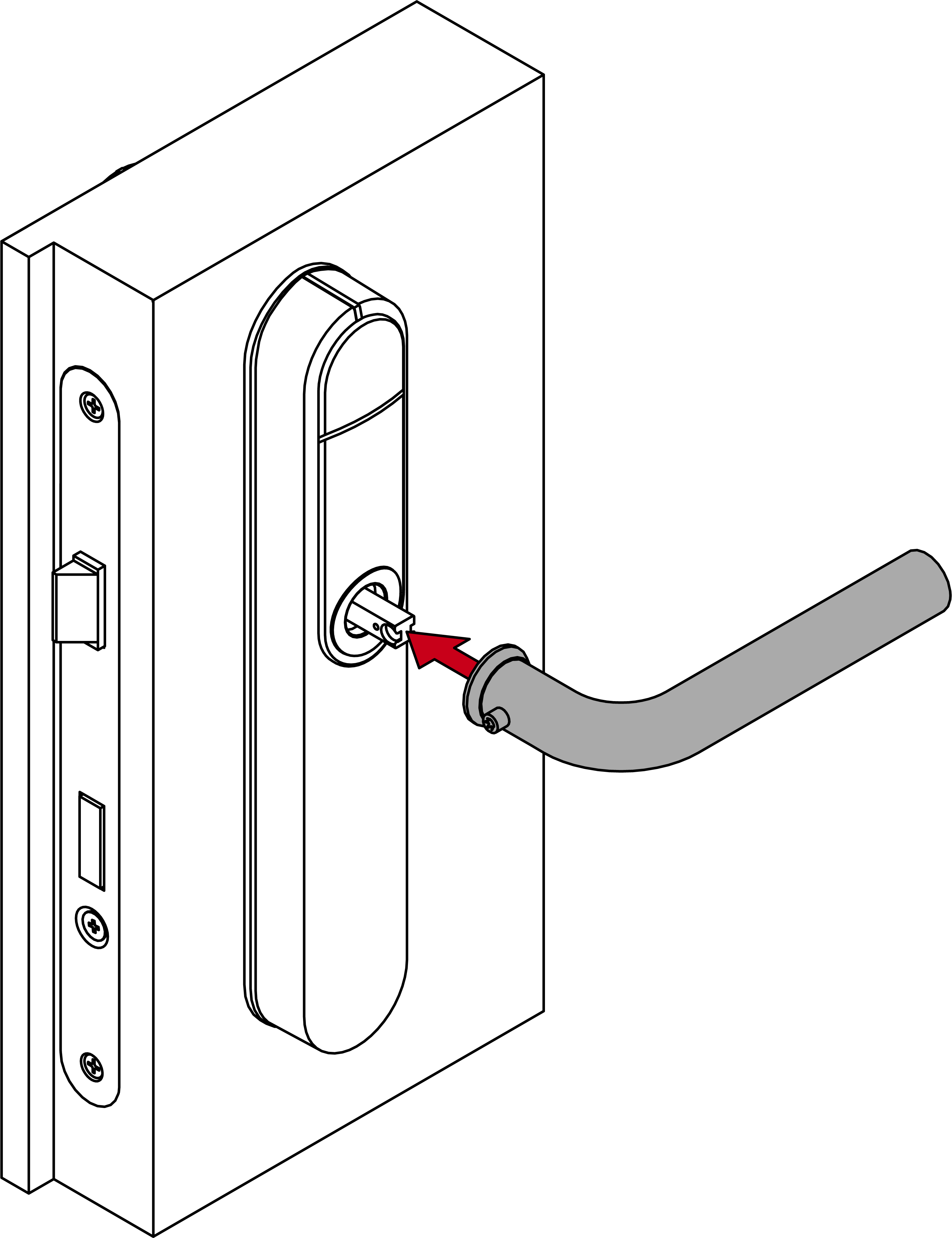

  40. Fit the outside handle.
  41. Use the grub screw to fasten the outer handle (TX15, torque 5.0 Nm) into position.

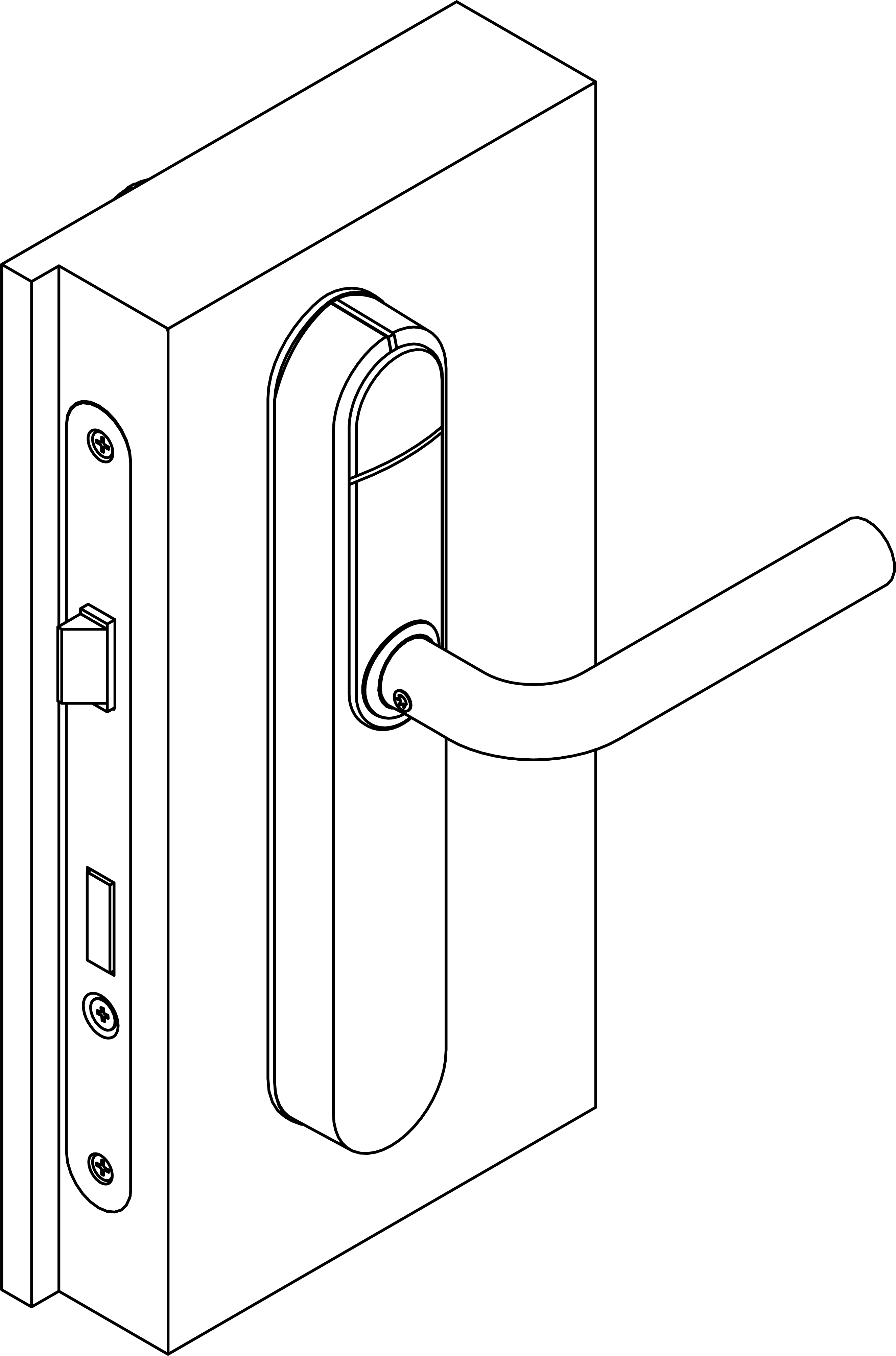

  1. SI SmartHandle AX Advanced fully installed.
