Installing the fitting - SmartHandle AX Advanced SmartIntego

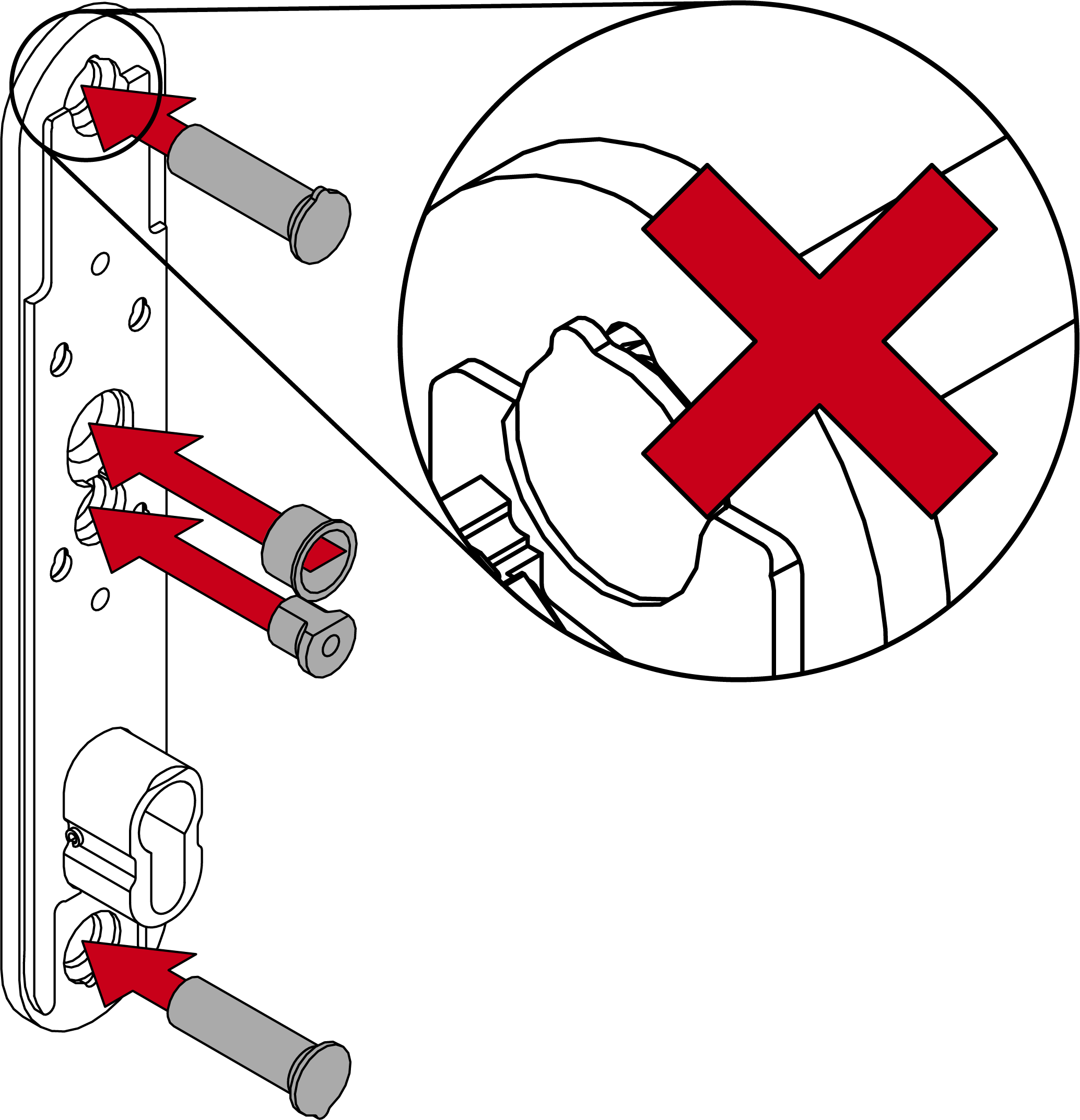

Insert the spindle protective tube and the sleeve nuts into the fixing plate (short sleeve nut in the middle).
For 7 mm spindle: Insert the adapter shoe into the spindle mount on the module support.
Insert the module support into the fastening plate.
IMPORTANT

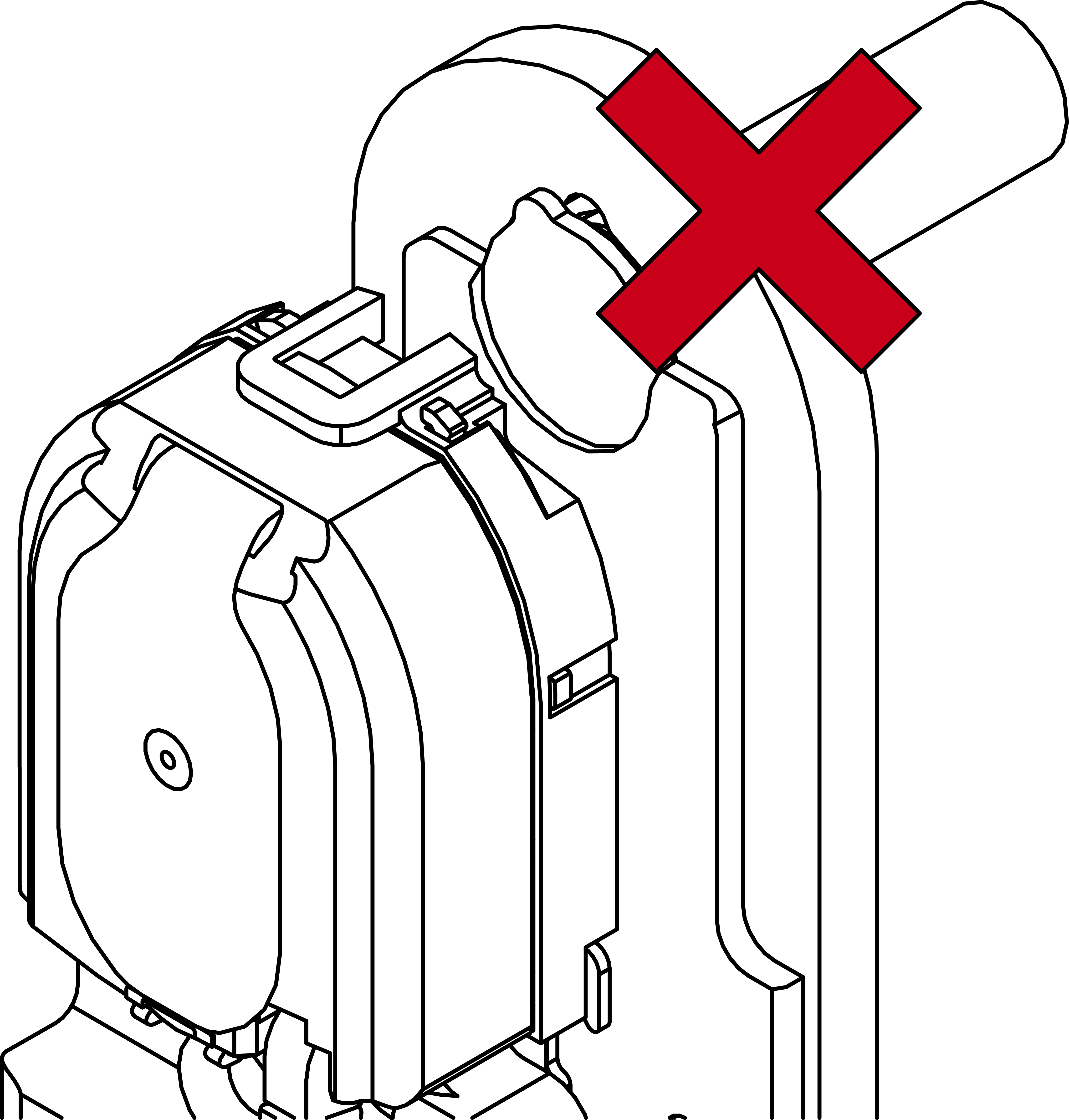

Damage to the sleeve nuts due to improper insertion
If the sleeve nut tabs are not located in the recesses, they can be damaged during further installation. In such cases, the sleeve nut can rotate unintentionally, which makes installation/removal difficult.
1. Ensure that the sleeve nut tabs are located in the recesses.

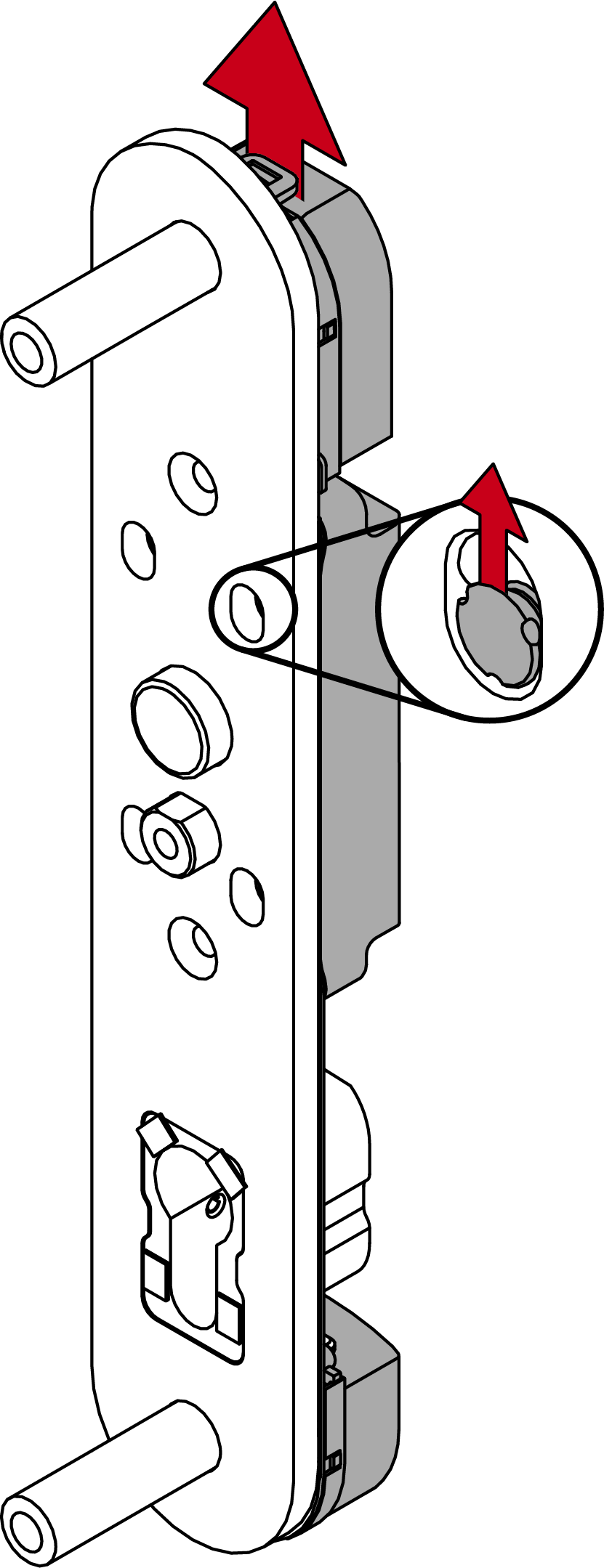

Slide the module support upwards.
Module support snaps into place.

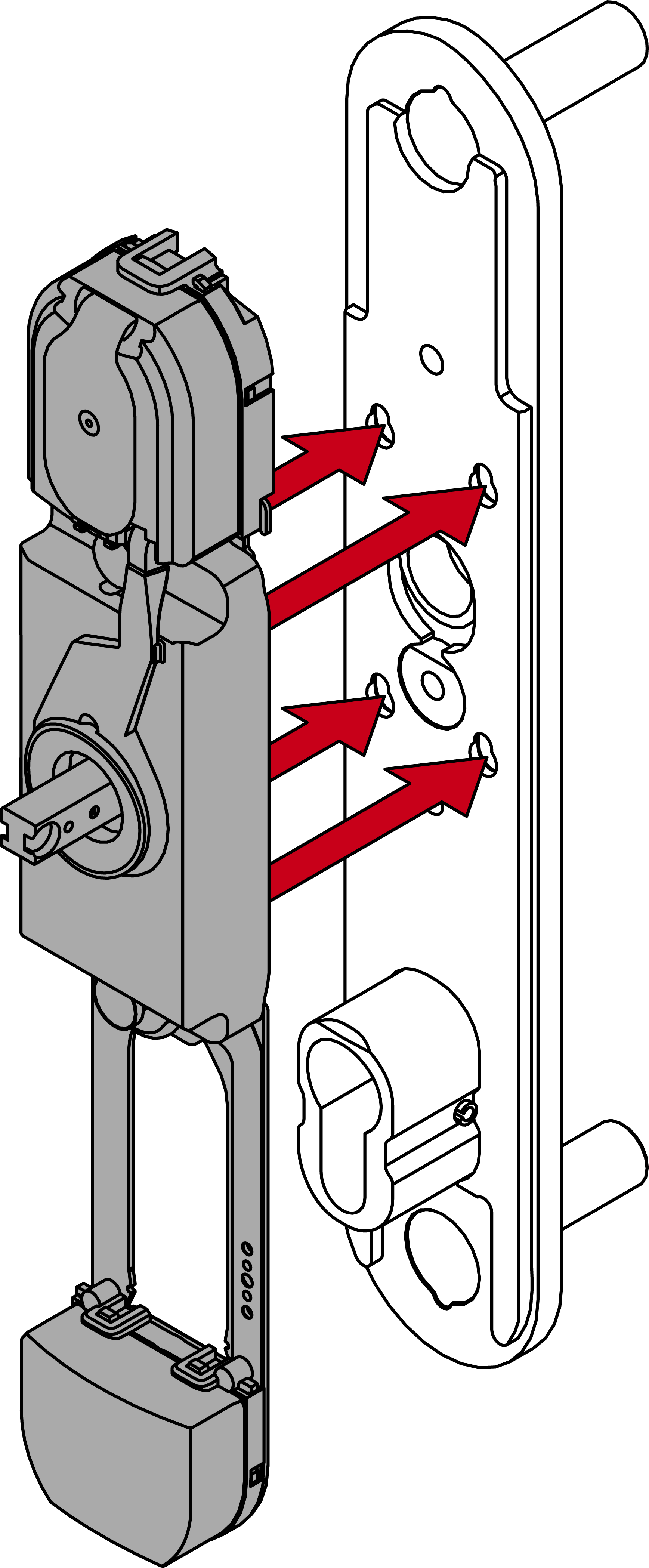

Fasten the module support to the fixing plate with the 16 mm screws (PH2, torque 3.0 Nm).

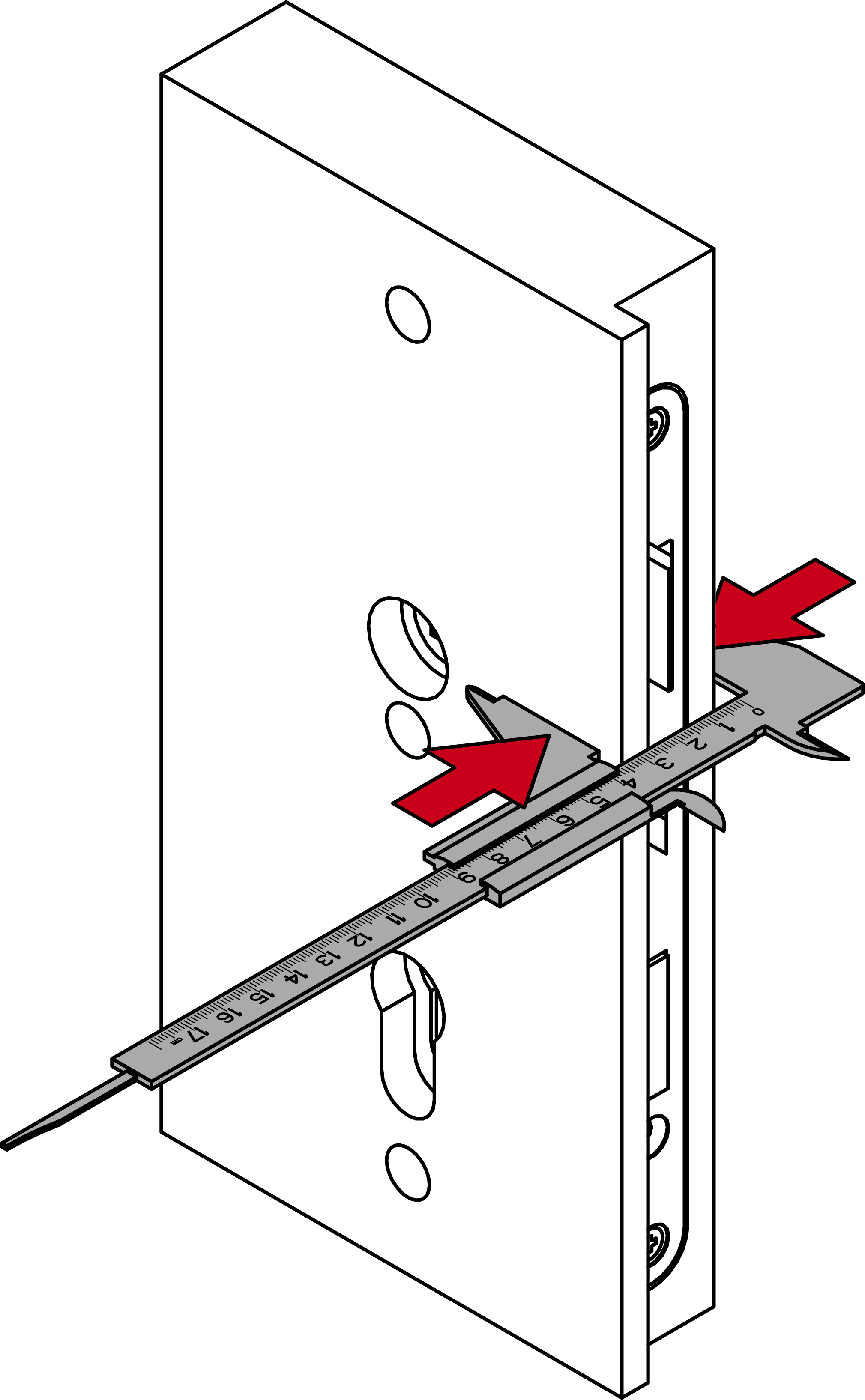

Measure the door thickness.

Size	Door thickness (mm)	Screws (M8)	Screw (M6)
S	39 – <43	25	50
S	43 - <45	25	55
S	45 - <47	35	55
S	47 – <52	35	60
S	52 - <55	35	65
M	54 - <58	45	65
M	58 - <63	45	70
M	63 - <65	45	75
M	65 - <67	55	75
M	67 – <72	55	80
M	72 - <75	55	85
L	74 - <78	65	85
L	78 - <83	65	90
L	83 - <85	65	95
L	85 - <87	75	95
L	87 – <92	75	100
L	92 - <95	75	105

Determine what screws are required for the door thickness measured.

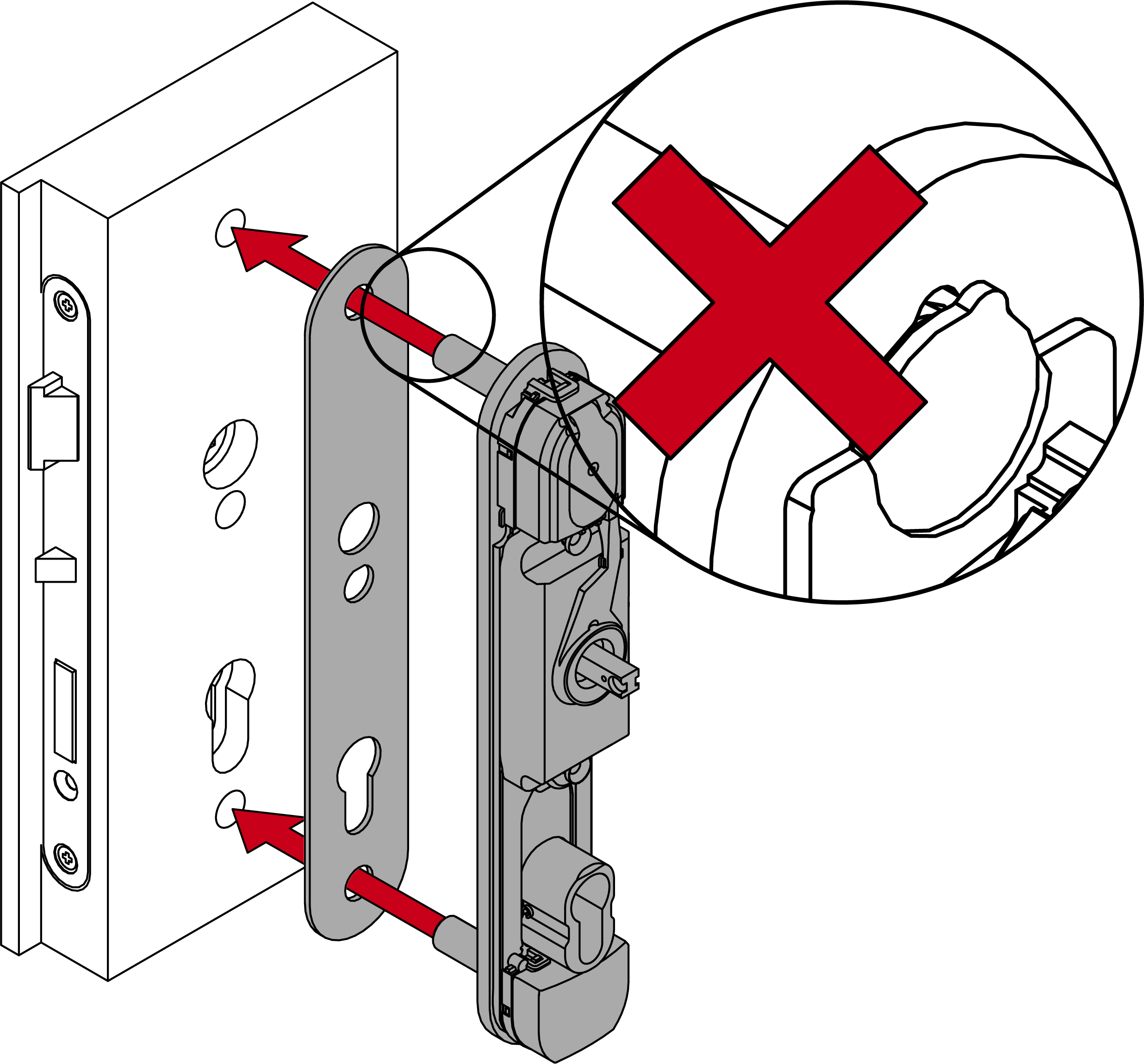

Insert the module support with the fastening plate and the drill protection plate into the outer side of the door.
IMPORTANT
Damage to the sleeve nuts due to improper insertion
If the sleeve nut tabs are not located in the recesses, they can be damaged during further installation. In such cases, the sleeve nut can rotate unintentionally, which makes installation/removal difficult.
1. Ensure that the sleeve nut tabs are located in the recesses.

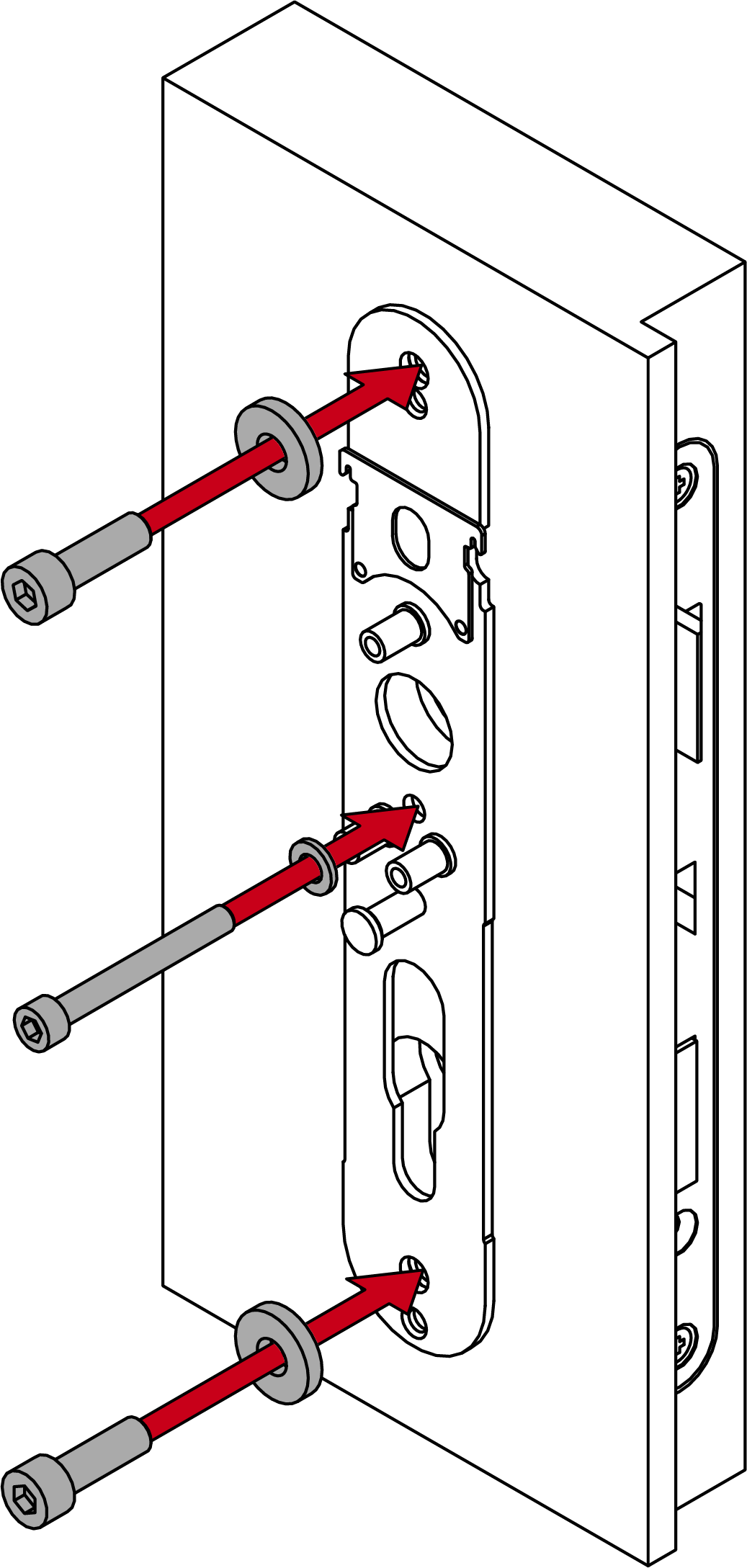

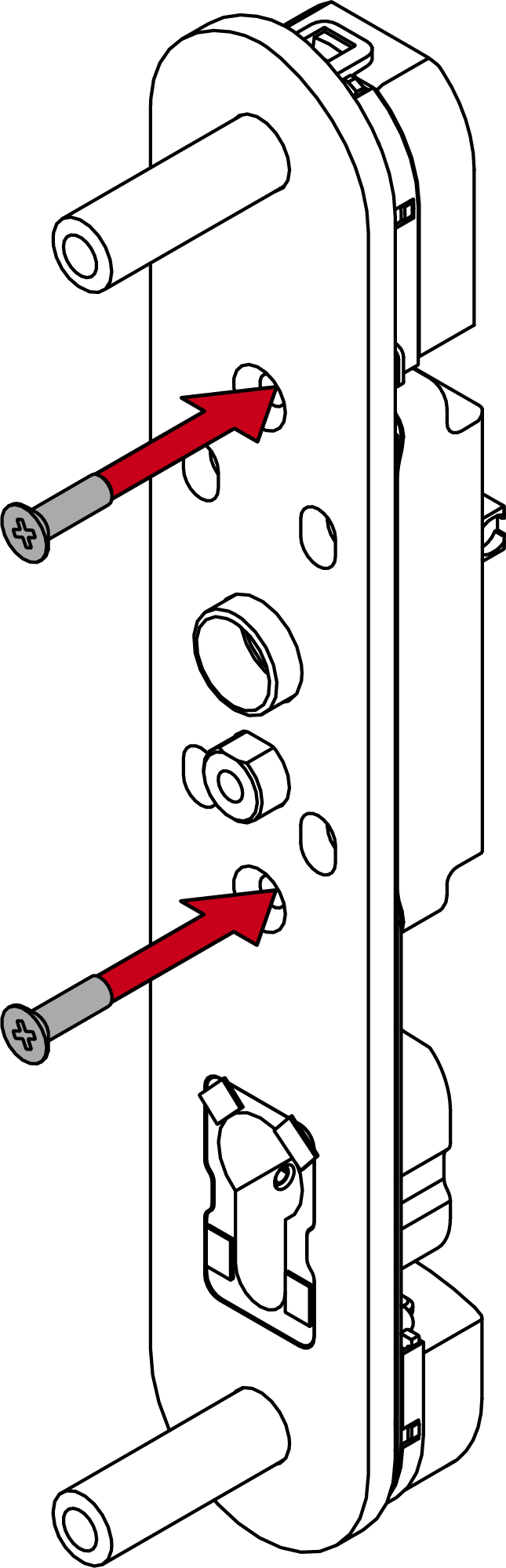

Screw the washers and the inner plate firmly onto the module support (SW6 short screws with torque 5.0 Nm, SW5 long screw in the centre with torque 2.0 Nm).

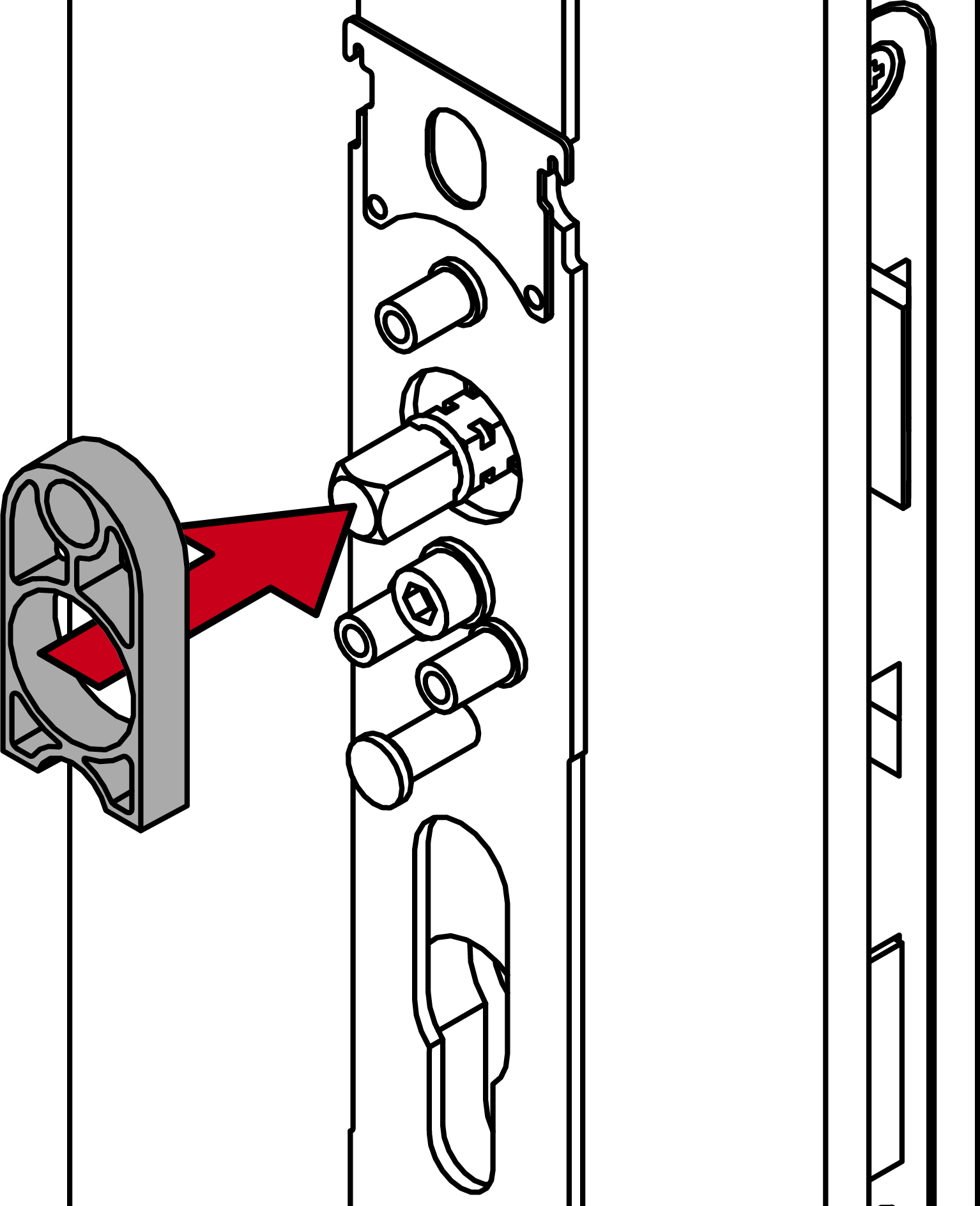

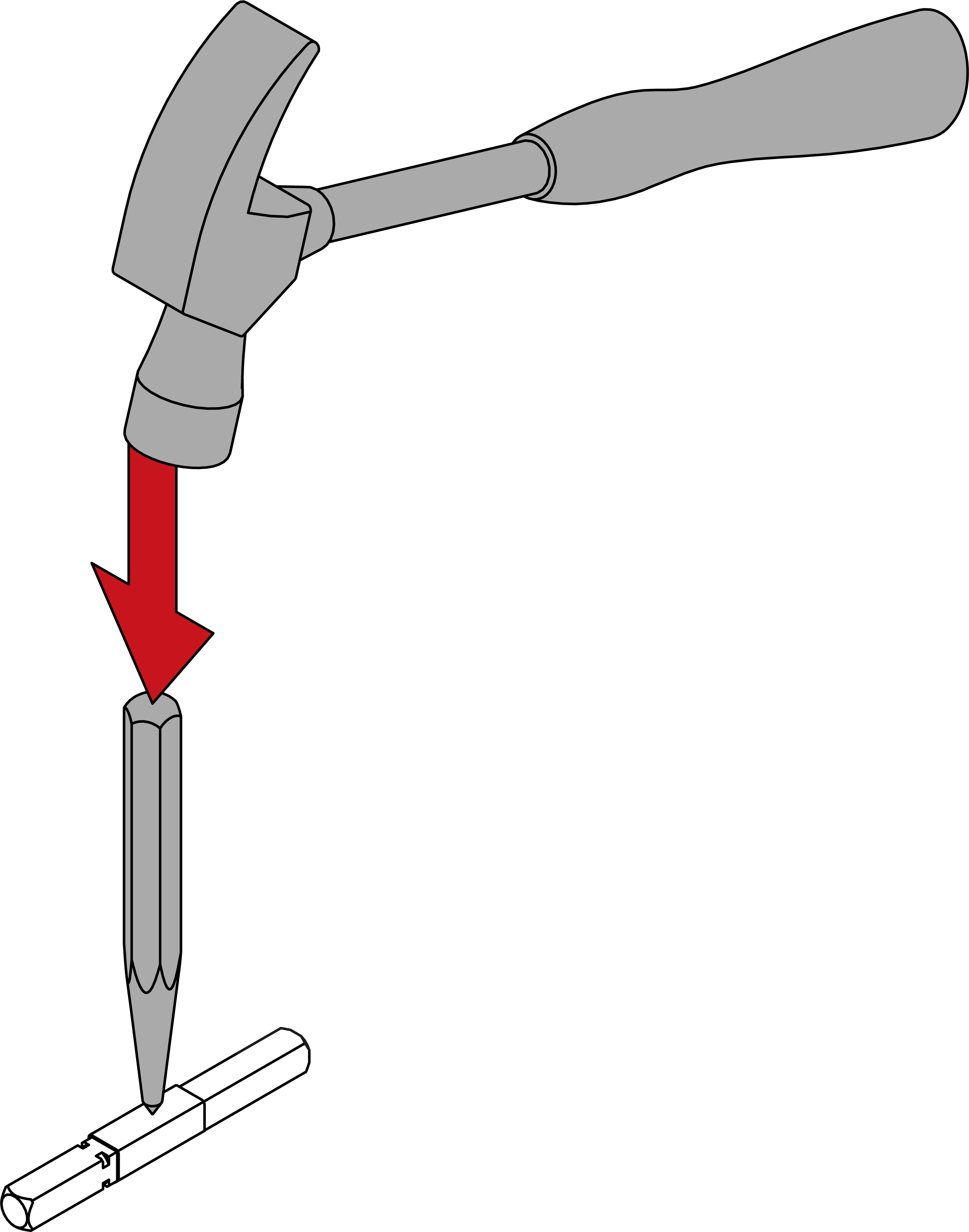

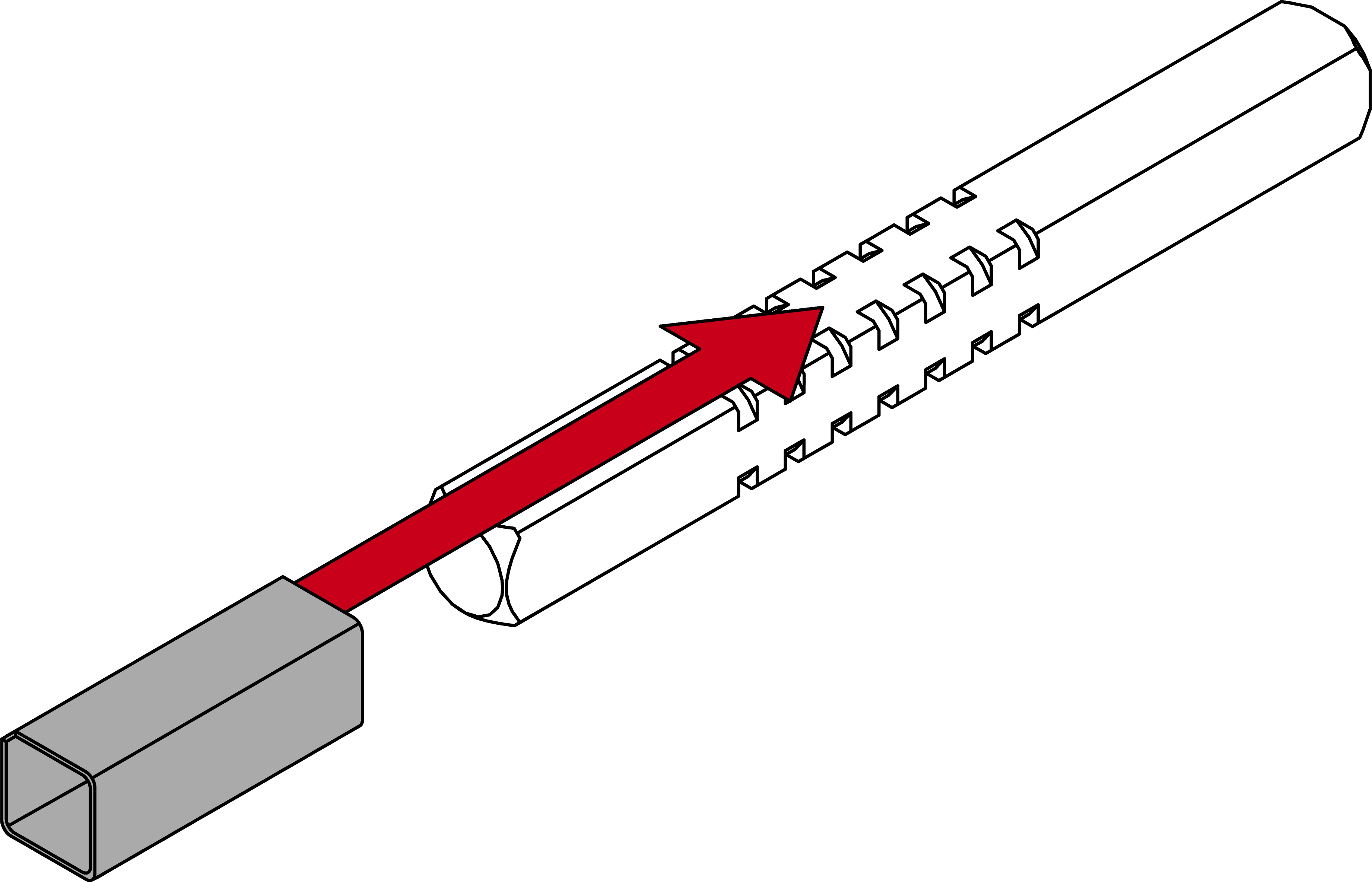

For 8.5 mm and 10 mm spindle: slide the adapter sleeve into the centre of the spindle. Use a punch and hammer to make an indent in the adapter sleeve to prevent it from slipping.

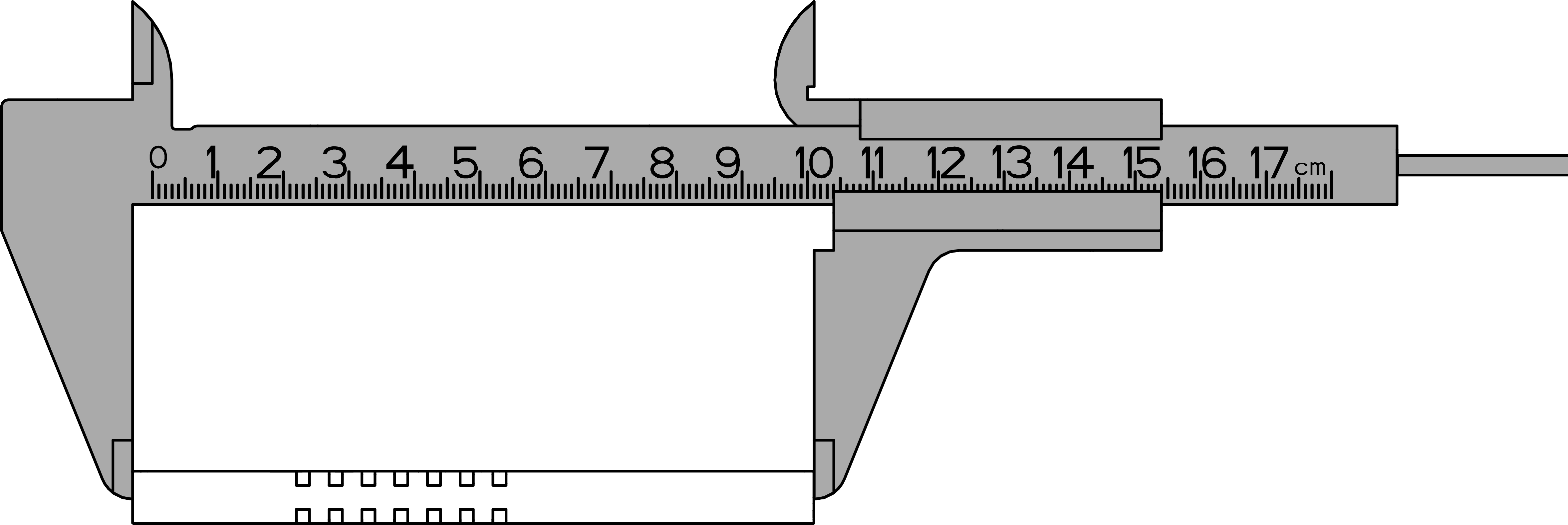

Measure the total length of the spindle.

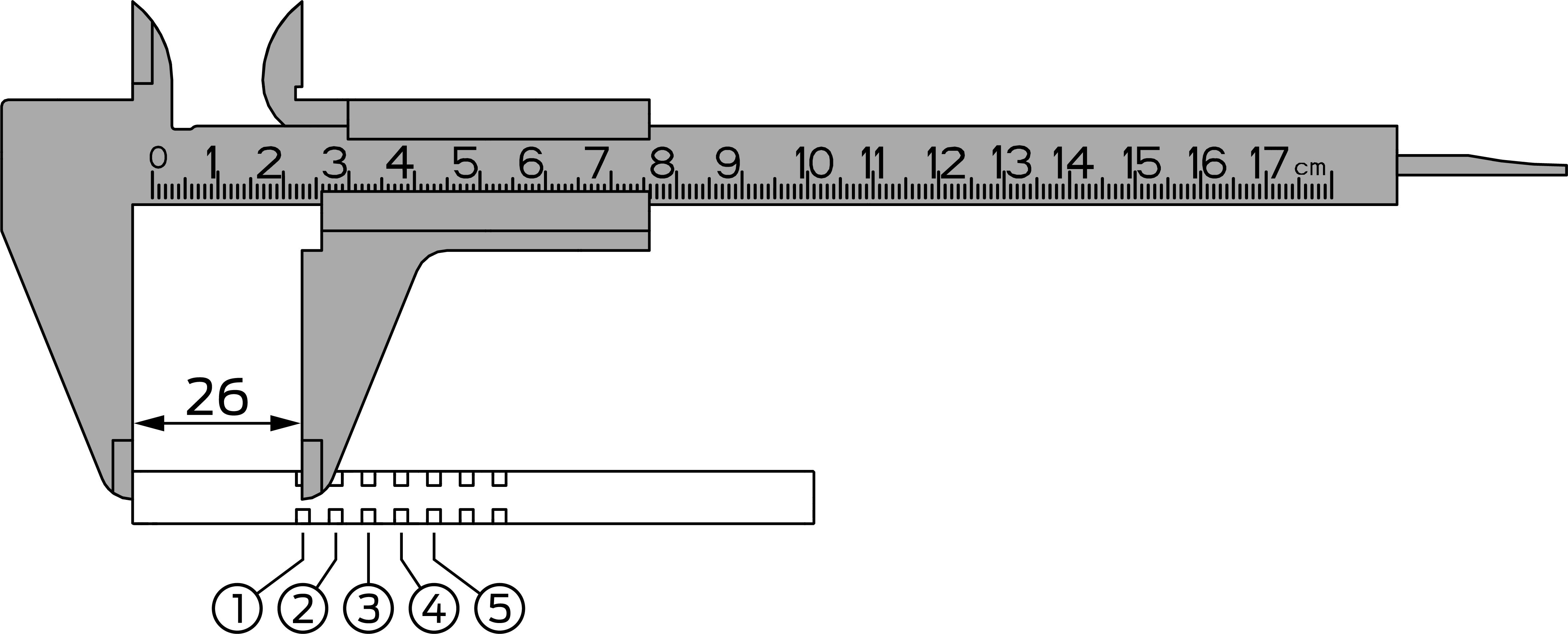

Locate the inside of the spindle (four-edge end up to the centre of the first groove = 26 mm).
Use the table to determine the position of the O-ring.

Size	Door thickness (mm)	Spindle length (mm)	Ring position
S	39 - <41	104	2
S	39 - <41	114	4
S	41 – <46	104	1
S	41 – <46	114	3
S	46 - <50	114	2
S	50 - 55	114	1
M	54 - <56	124	3
M	54 - <56	134	5
M	56 – <61	124	2
M	56 – <61	134	4
M	61 – <66	124	1
M	61 – <66	134	3
M	66 – <71	134	2
M	71 - 75	134	1
L	74 - <76	144	3
L	74 - <76	154	5
L	76 – <81	144	2
L	76 – <81	154	4
L	81 – <86	144	1
L	81 – <86	154	3
L	86 – <91	154	2
L	91 - 95	154	1

Slide the O-ring onto the calculated groove.

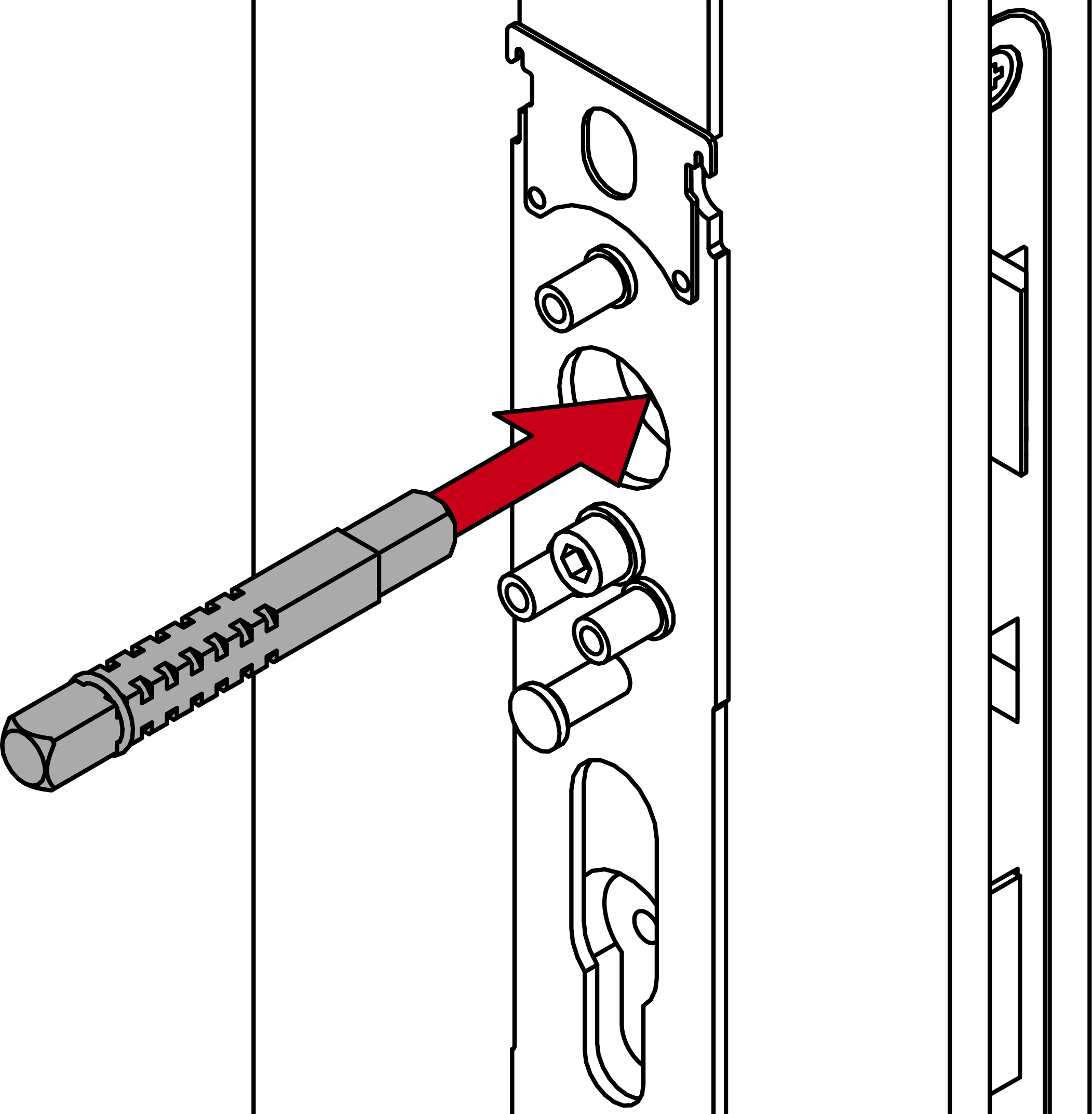

Insert the spindle into the door with the ring-free side as far as it will go.
Insert the filling profile onto the inner fixing plate.
For 7 mm spindle: Place the adapter sleeve in the inside handle in such a way that the recess faces the grub screw.

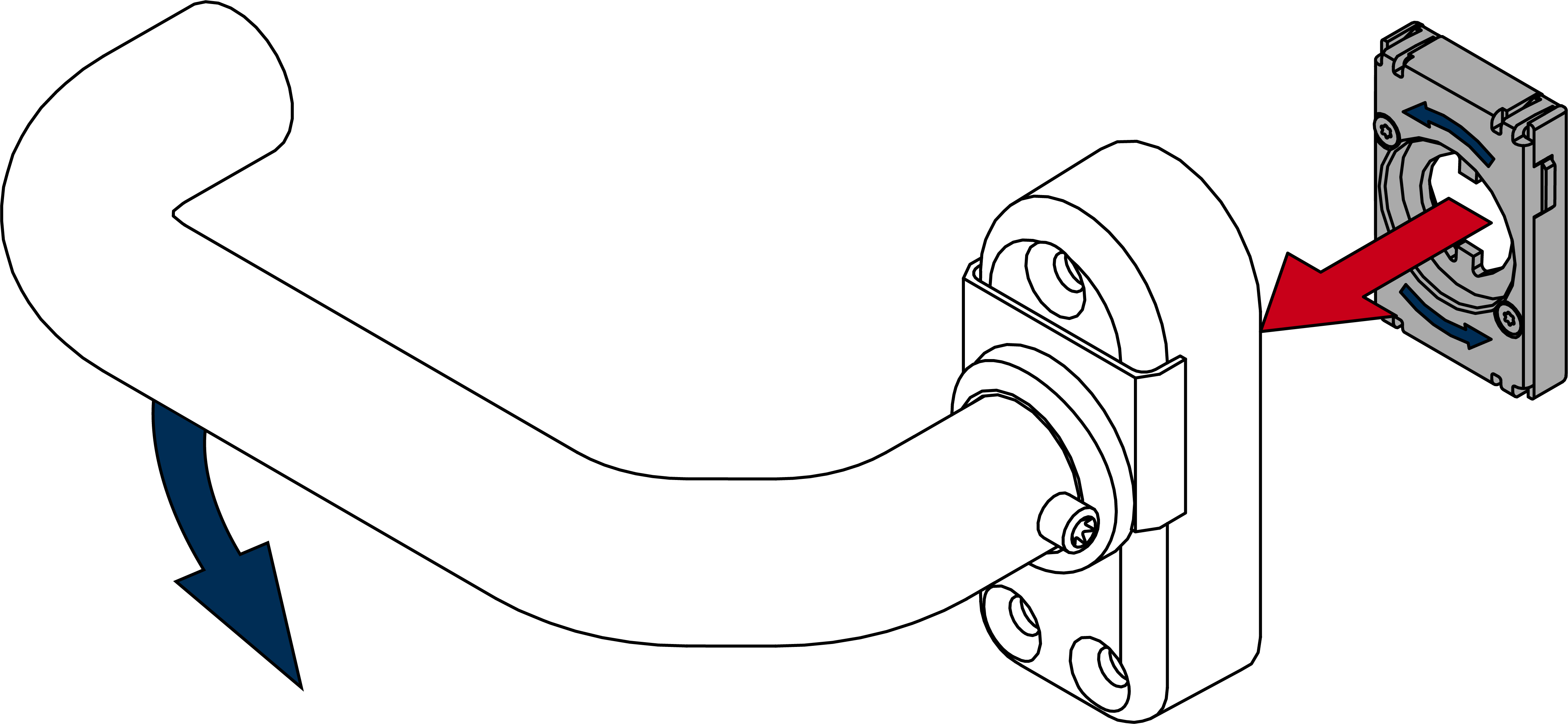

Determine the required direction of rotation for your inside handle.

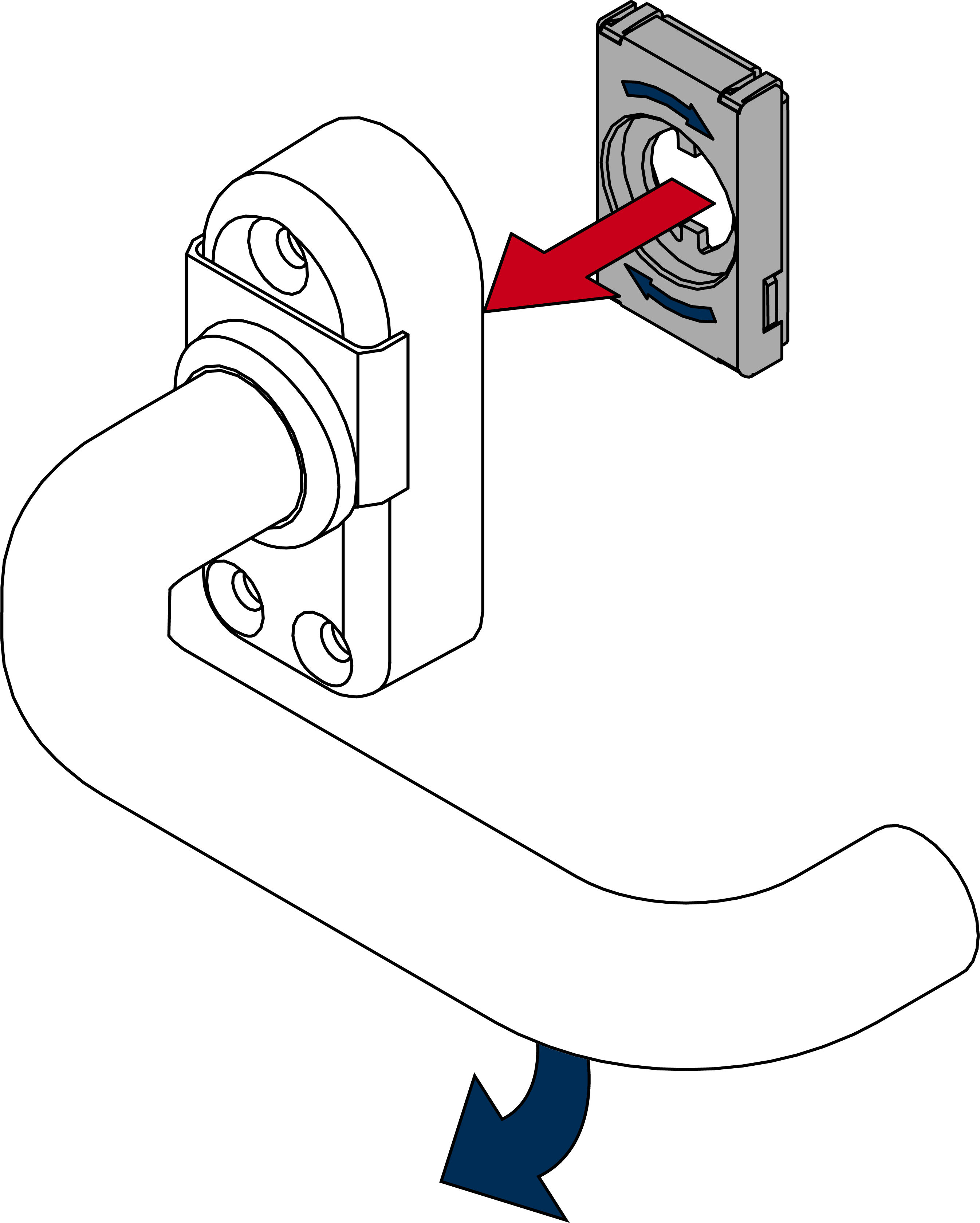

Insert the spring element appropriately.

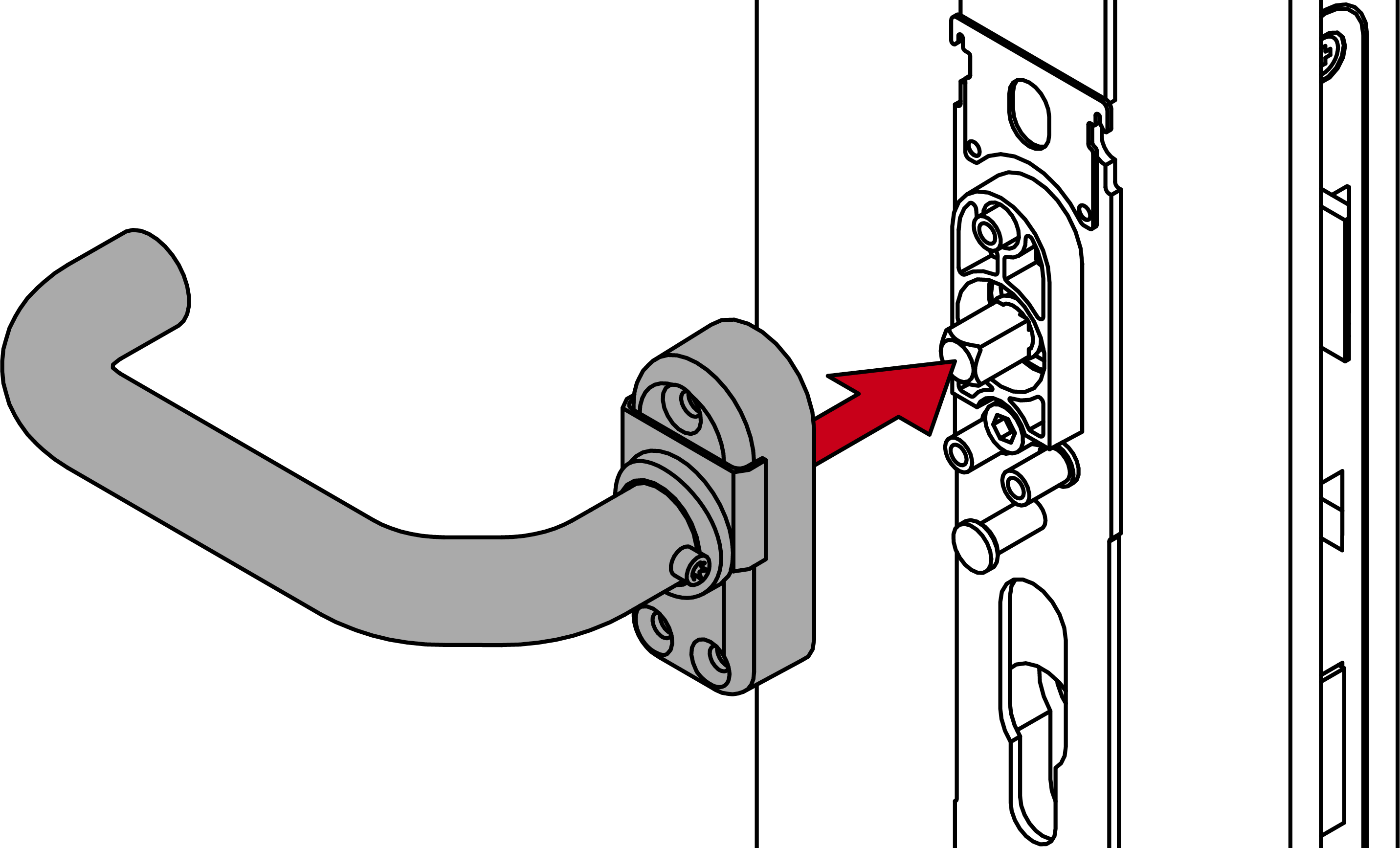

Place the inside handle unit on the spindle.

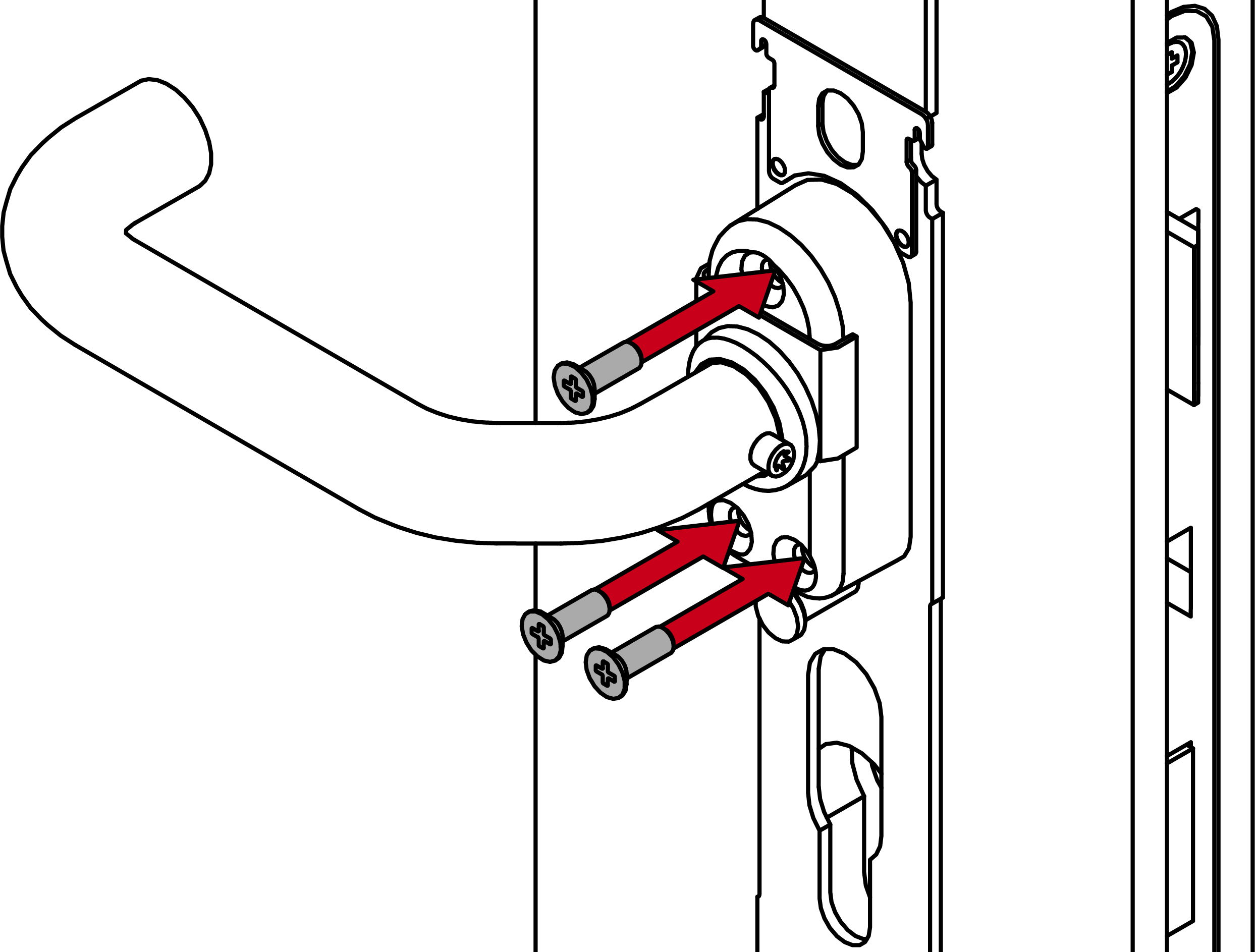

Use the 12 mm screws to fasten the inner handle unit onto the fixing plate (PH2, torque 3,0 Nm).

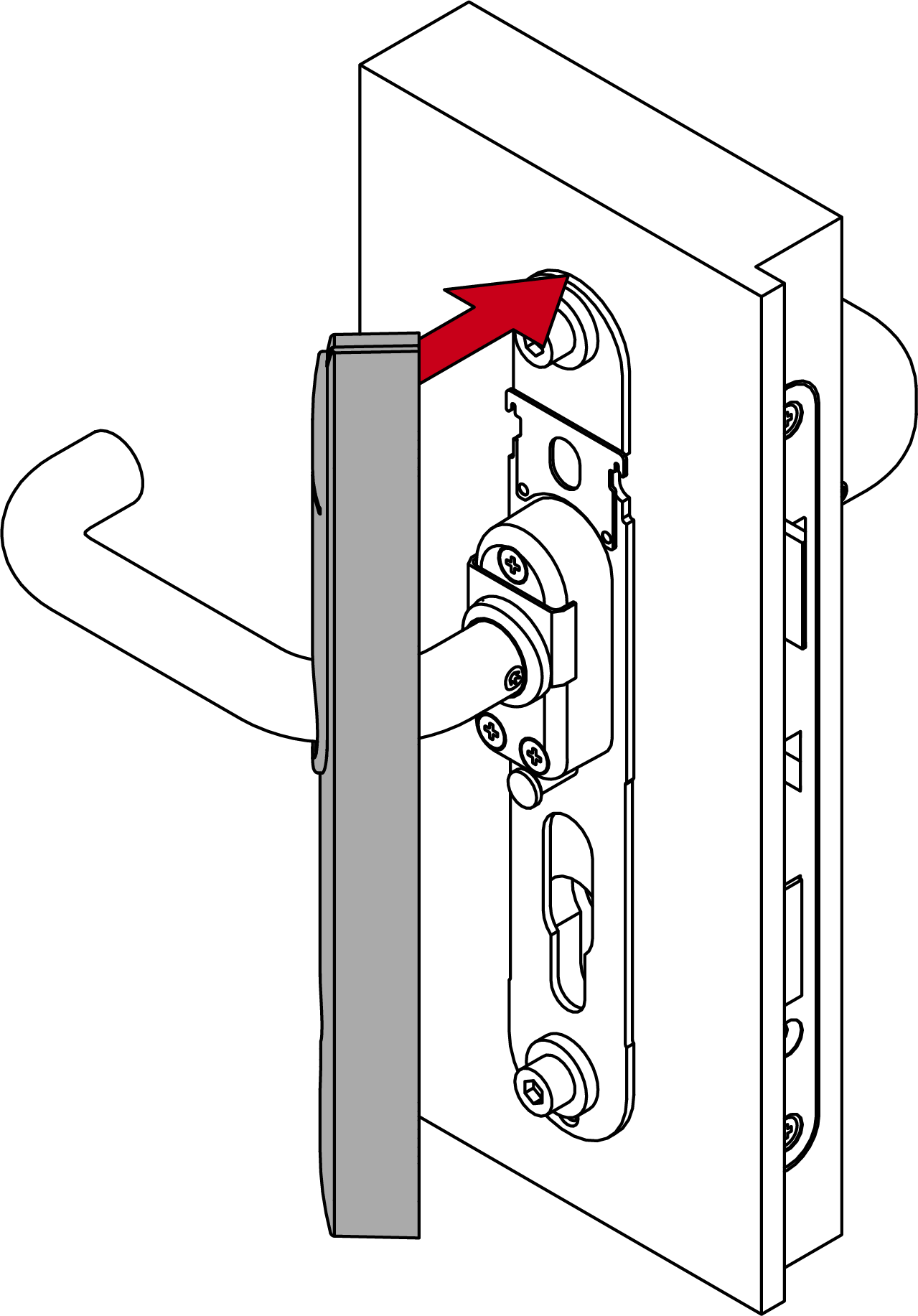

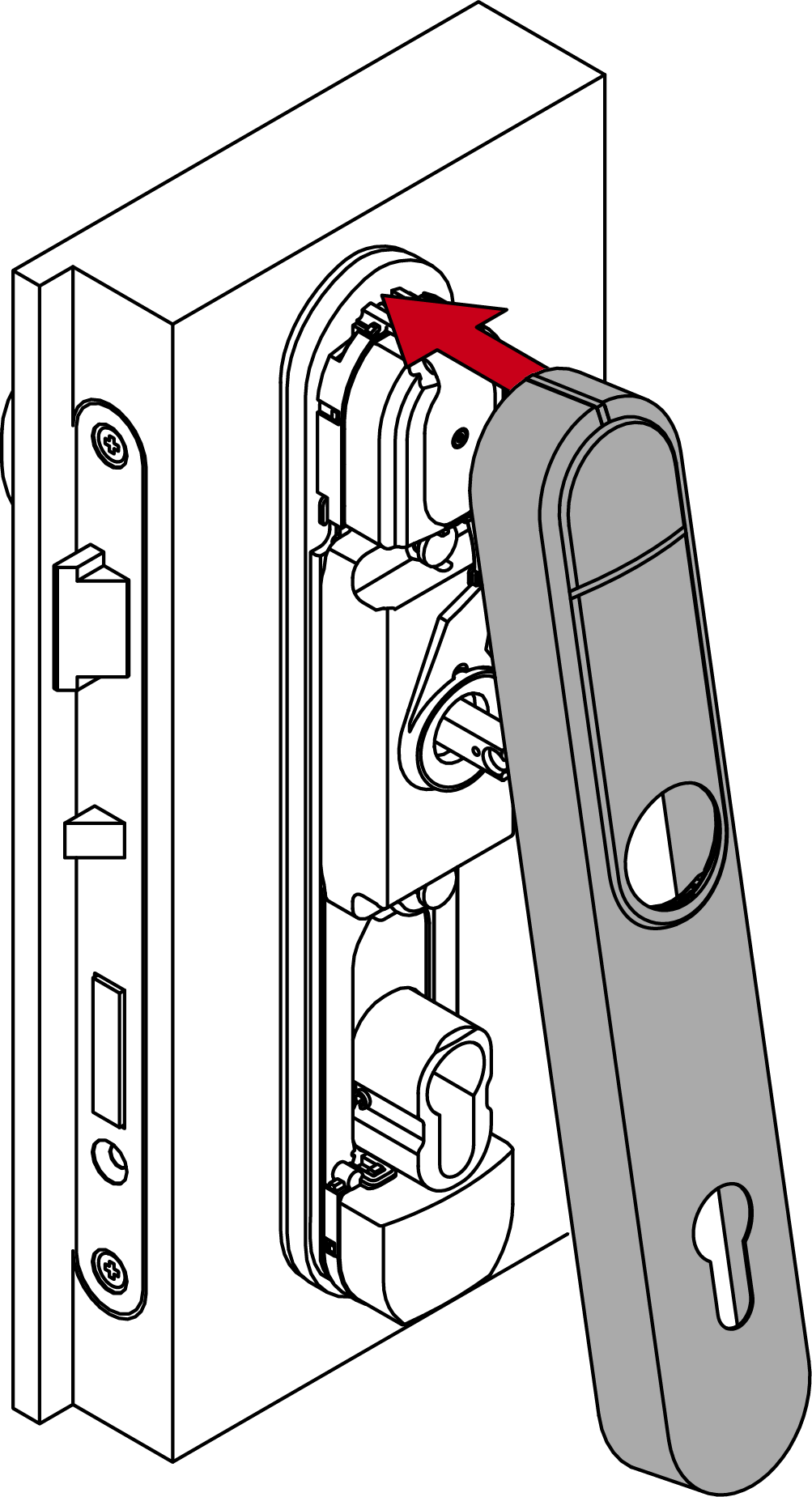

Place the cover on top of the fastening plate.
Fold down the cover.

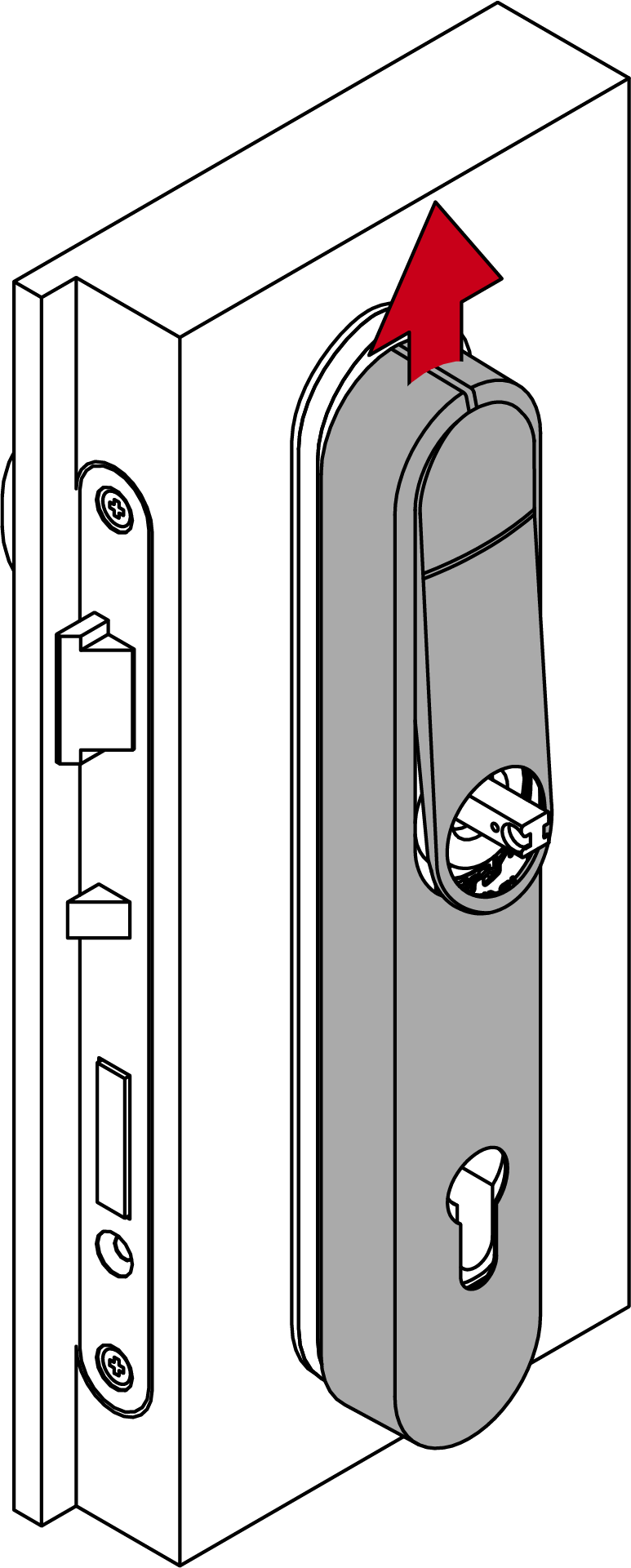

Slide the cover upwards.
Press the inlay into place.

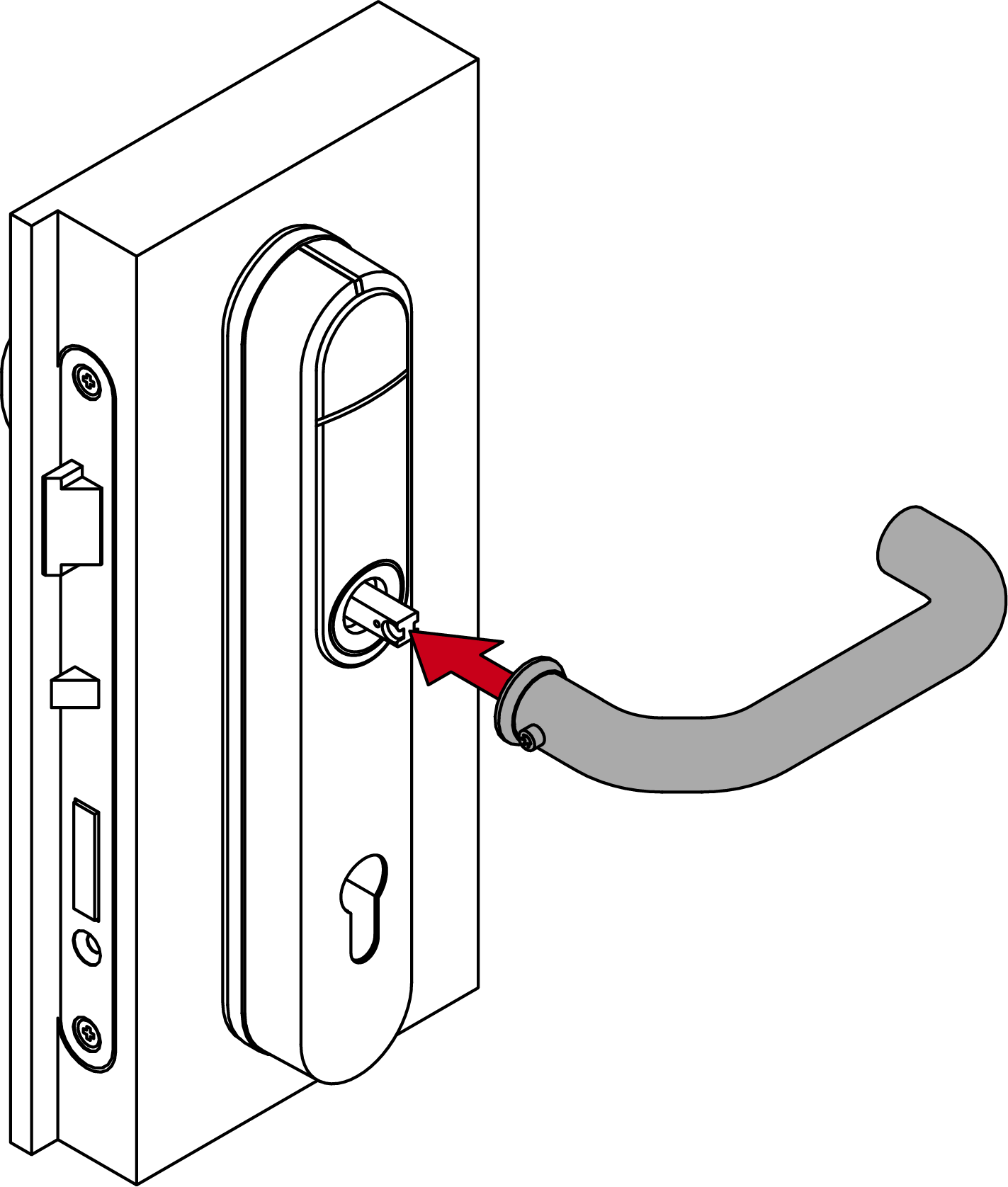

Fit the outside handle.

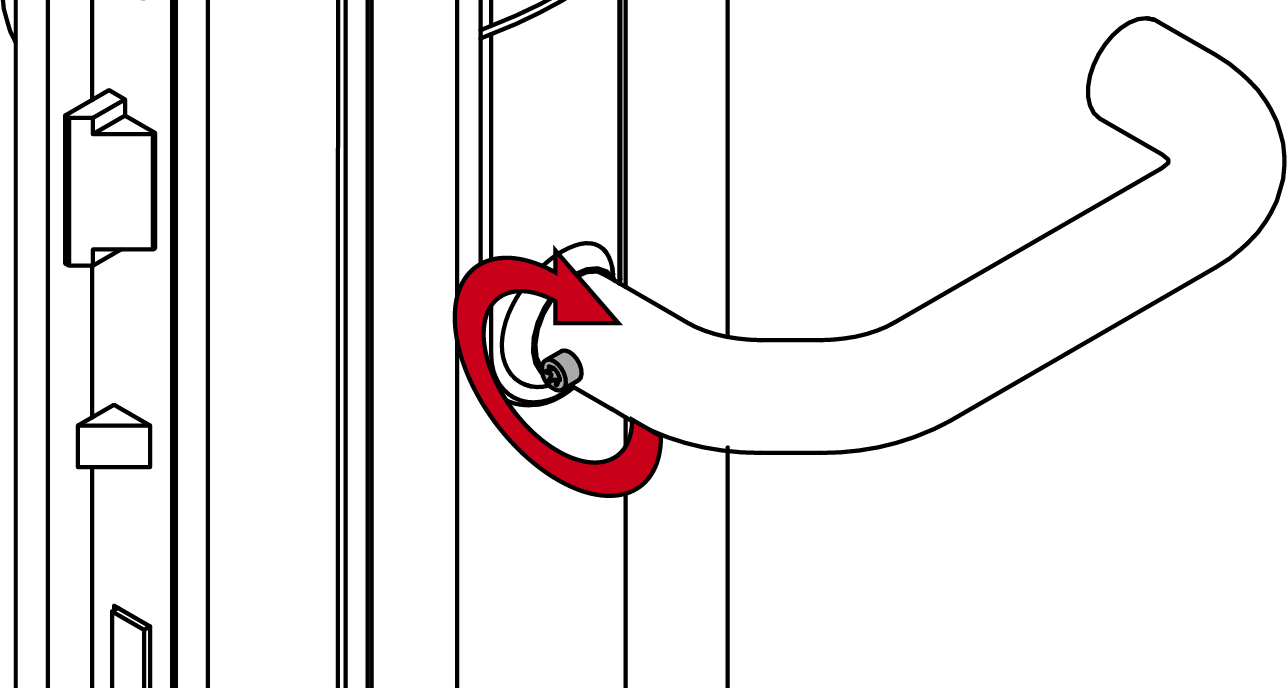

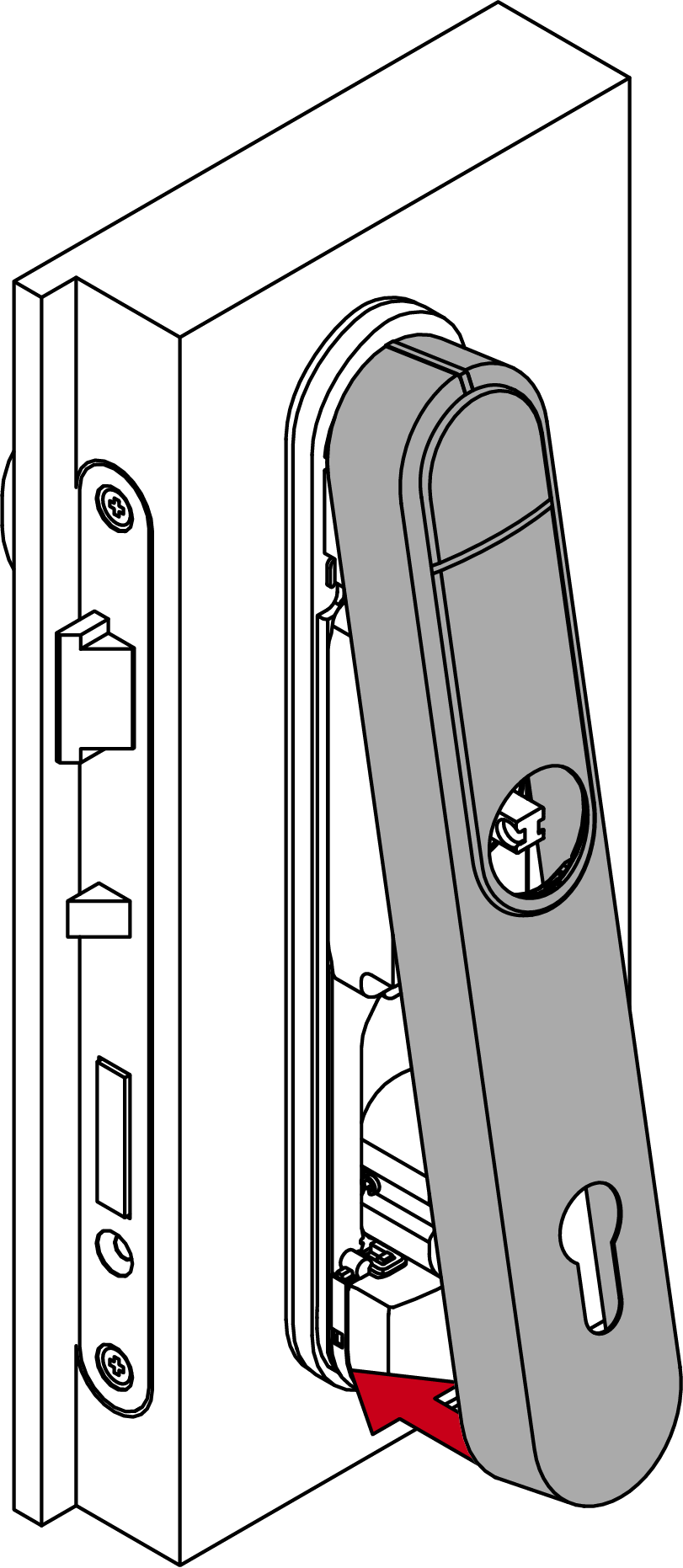

Use the grub screw to fasten the outer handle (TX15, torque 5.0 Nm) into position.

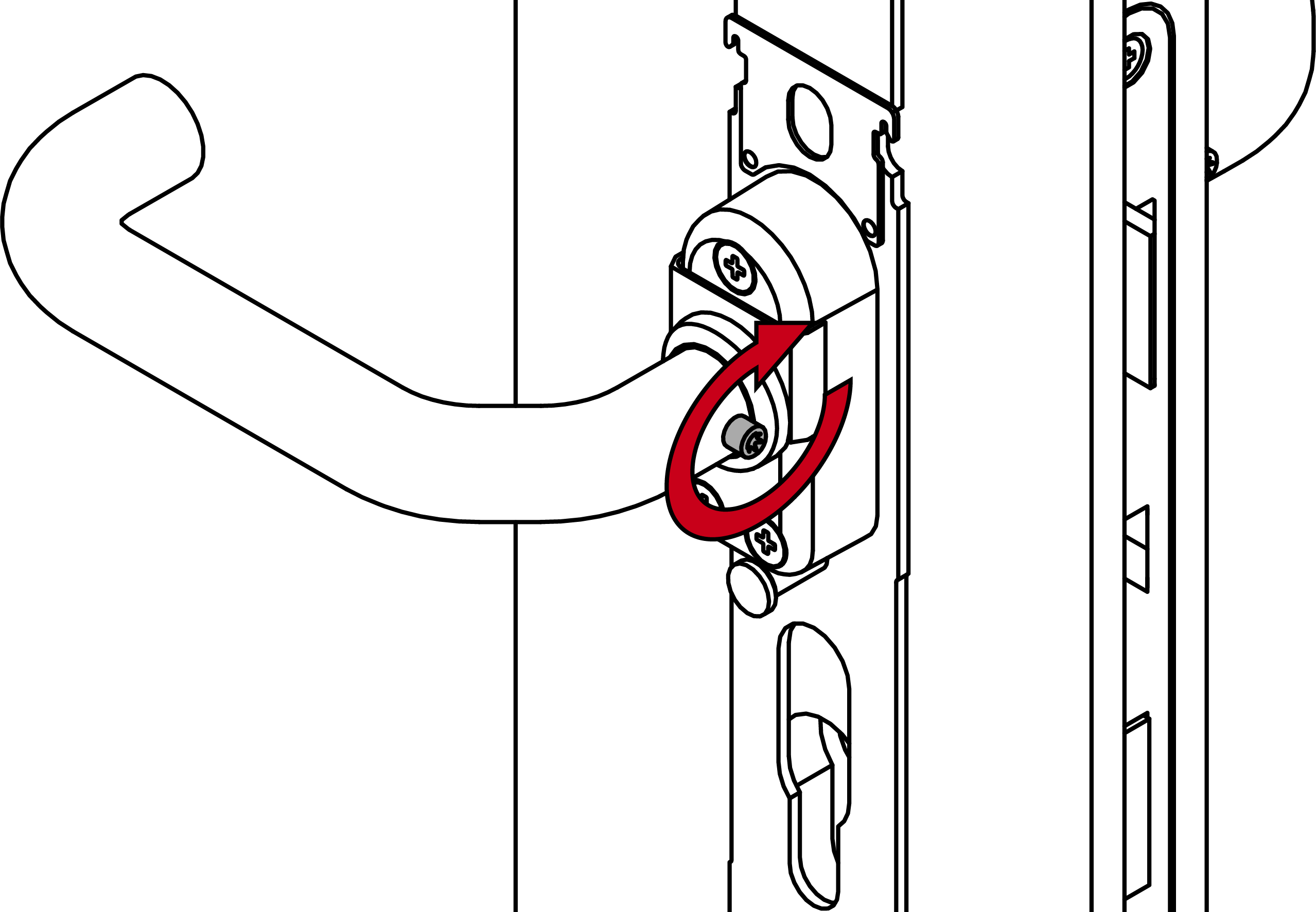

Use the grub screw to fasten the inner handle (TX15, torque 5.0 Nm) into position.
Fit the cover for the inner side as well.

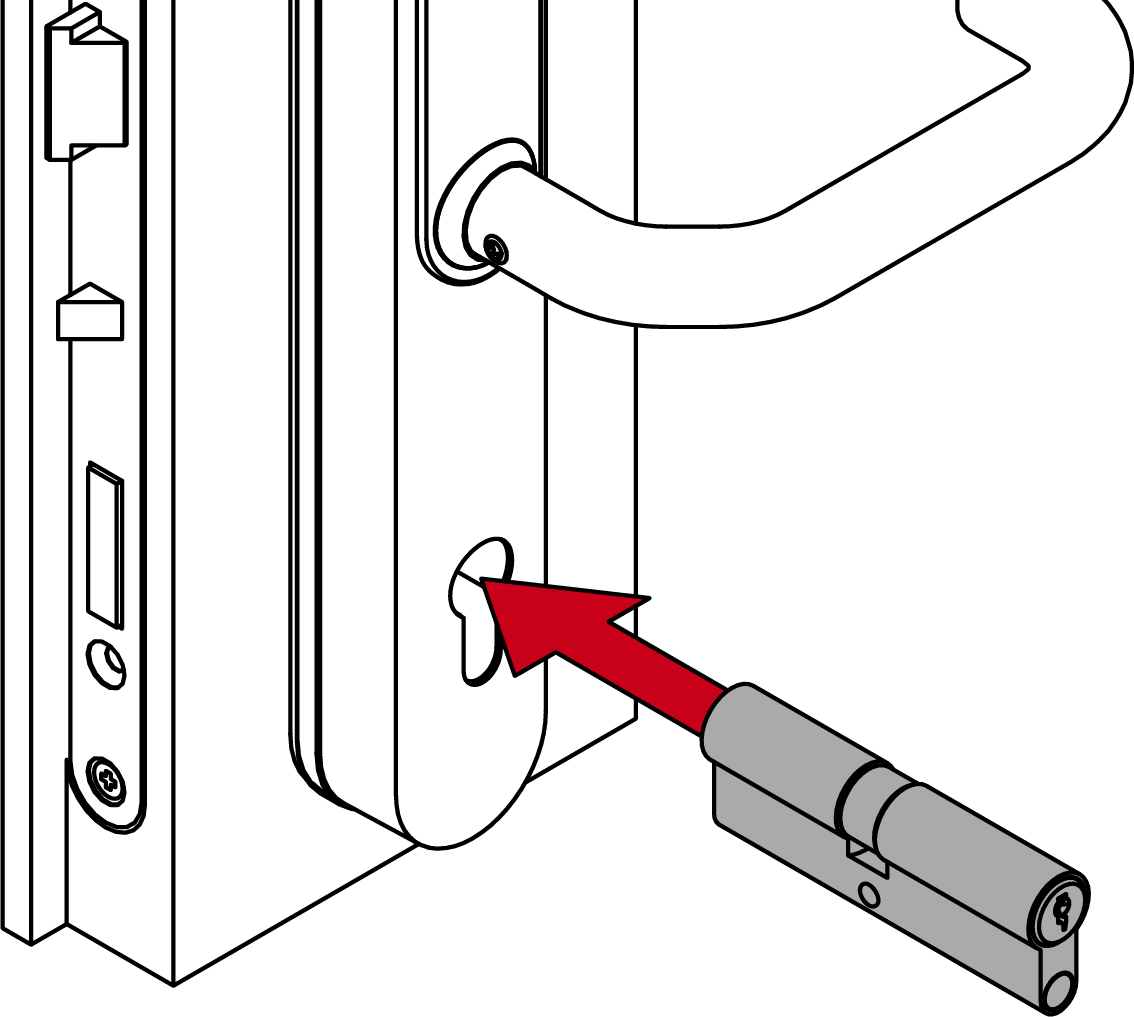

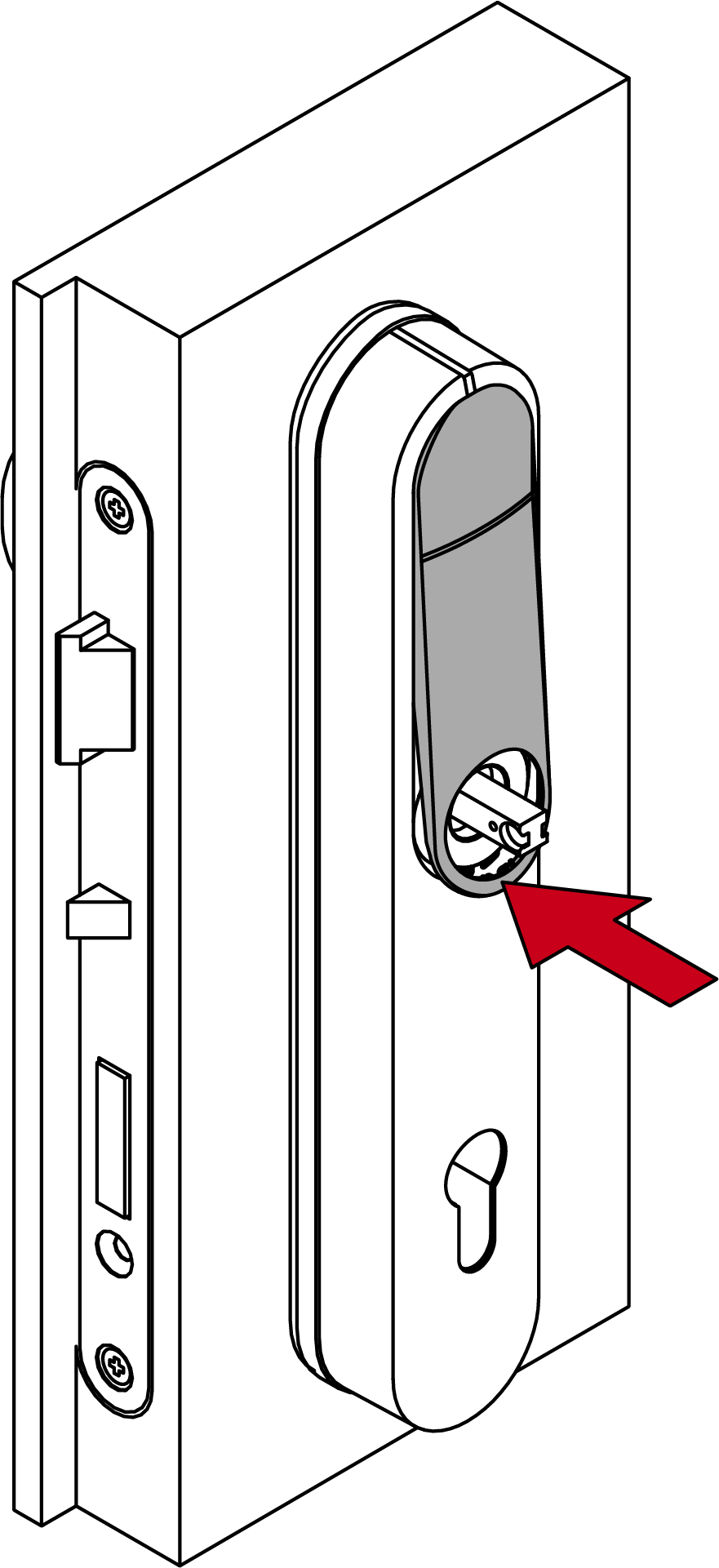

Insert a locking cylinder.
NOTE
Requirements for the security fitting approval
The approval for the SI SmartHandle AX Advanced is subject to conditions:
1. Observe the locking cylinder’s protection class.

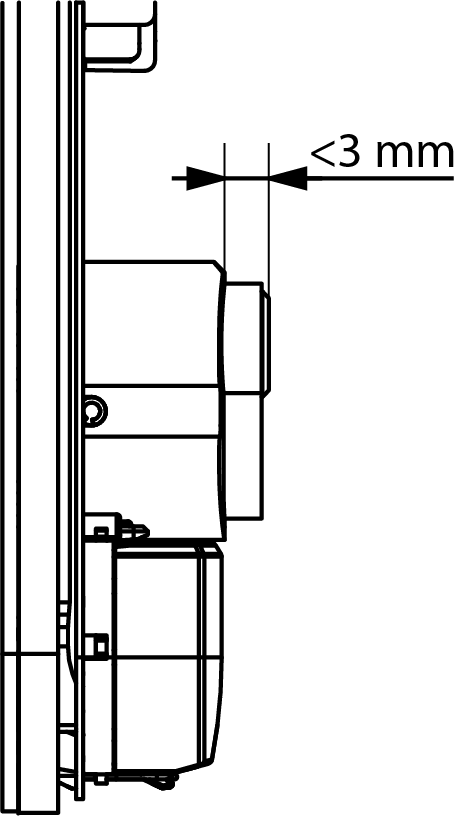

2. The locking cylinder’s housing may protrude a maximum of 3 mm above the cylinder protection profile.

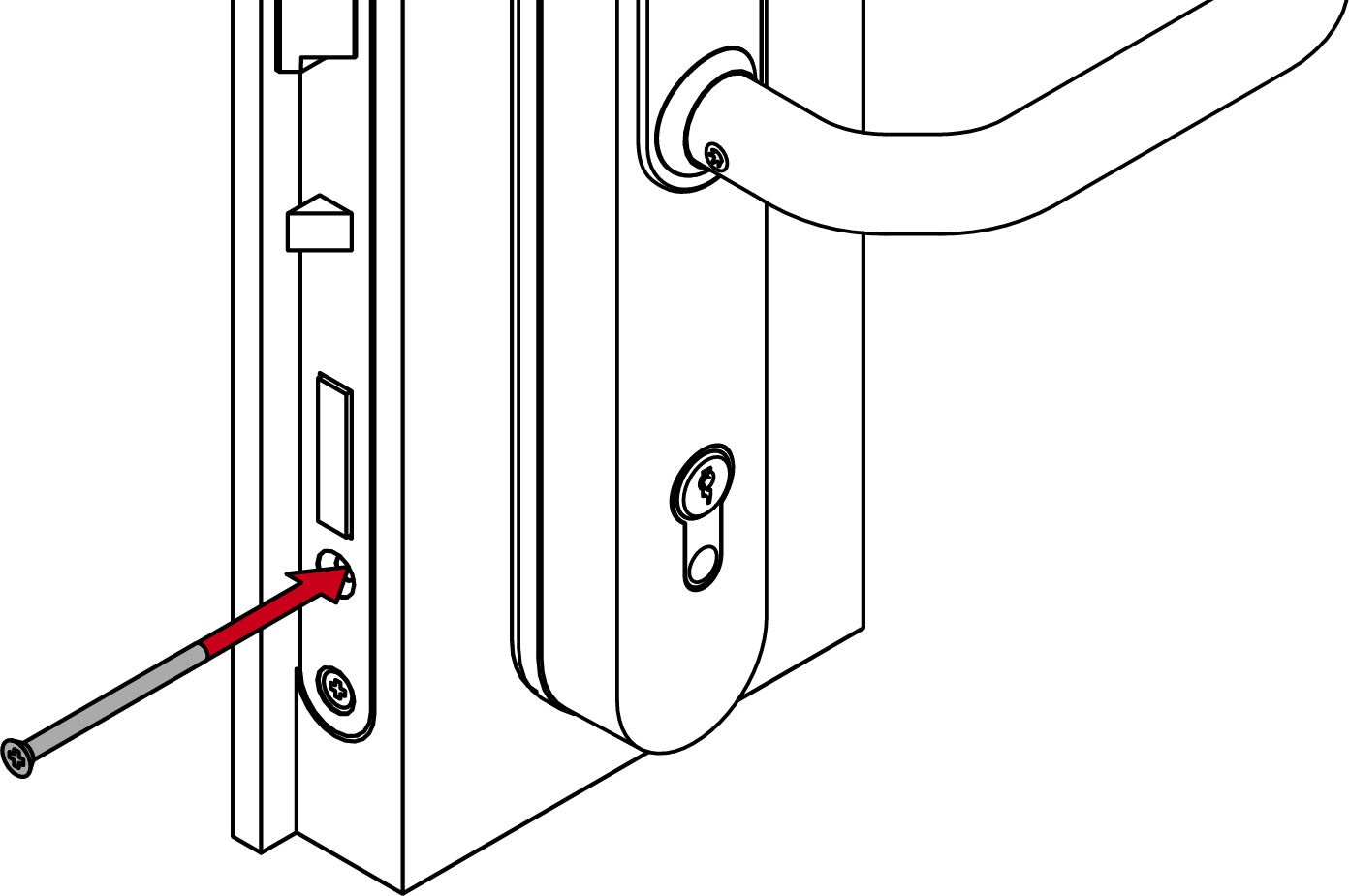

Fasten the locking cylinder with a fastening screw (PH2, torque 1.1 Nm).
