Replacing batteries starting in 03/2026 - SmartHandle AX Advanced SmartIntego

NOTE

notice

Malfunctions due to poor contact or different discharge

Contact surfaces that are too small/contaminated or different discharged batteries can lead to malfunctions.

  1. Only use batteries that are approved by SimonsVoss.
  2. Do not touch the contacts of the new batteries with your hands.
  3. Use clean and grease-free gloves.
  4. Always replace all batteries at the same time.
  1. Special tool at hand.
  2. Gloves at hand.
  1. Insert the special tool into the cover inlay on the electronics side.
  3. Use the special tool to carefully bend the cover inlay upwards.

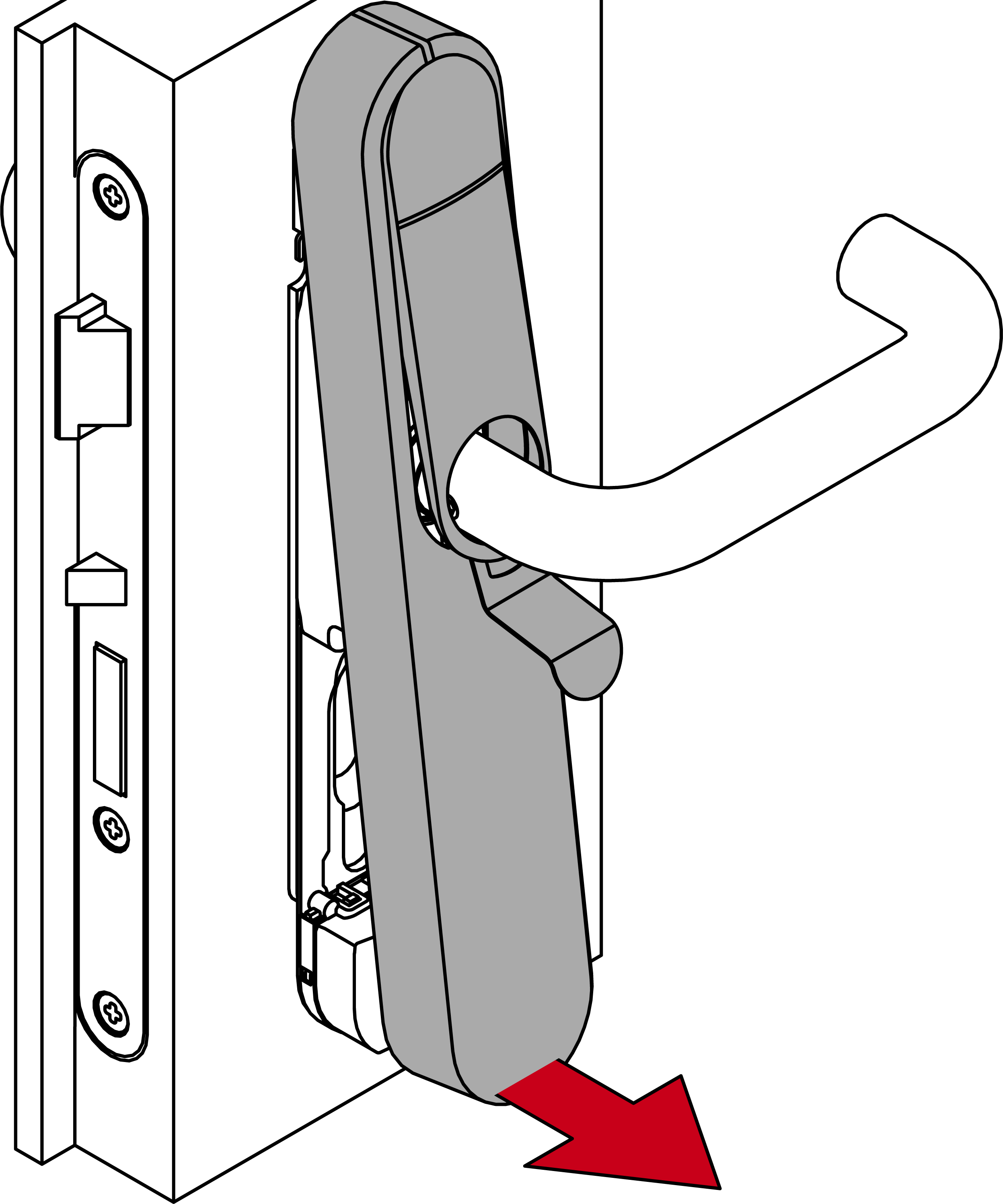

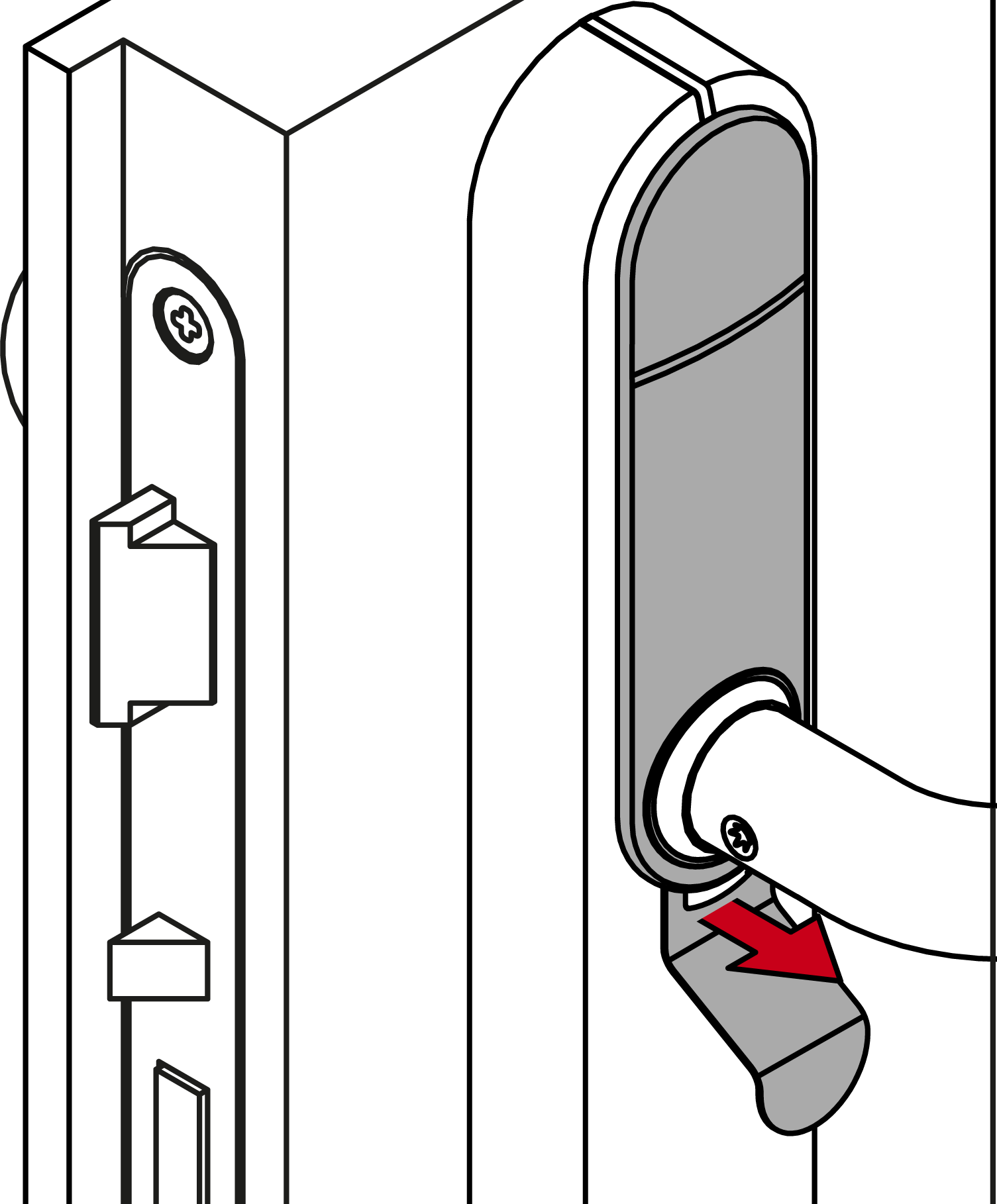

  5. Slide the cover downwards.
  7. Cover unlocked.
  8. Remove the cover.

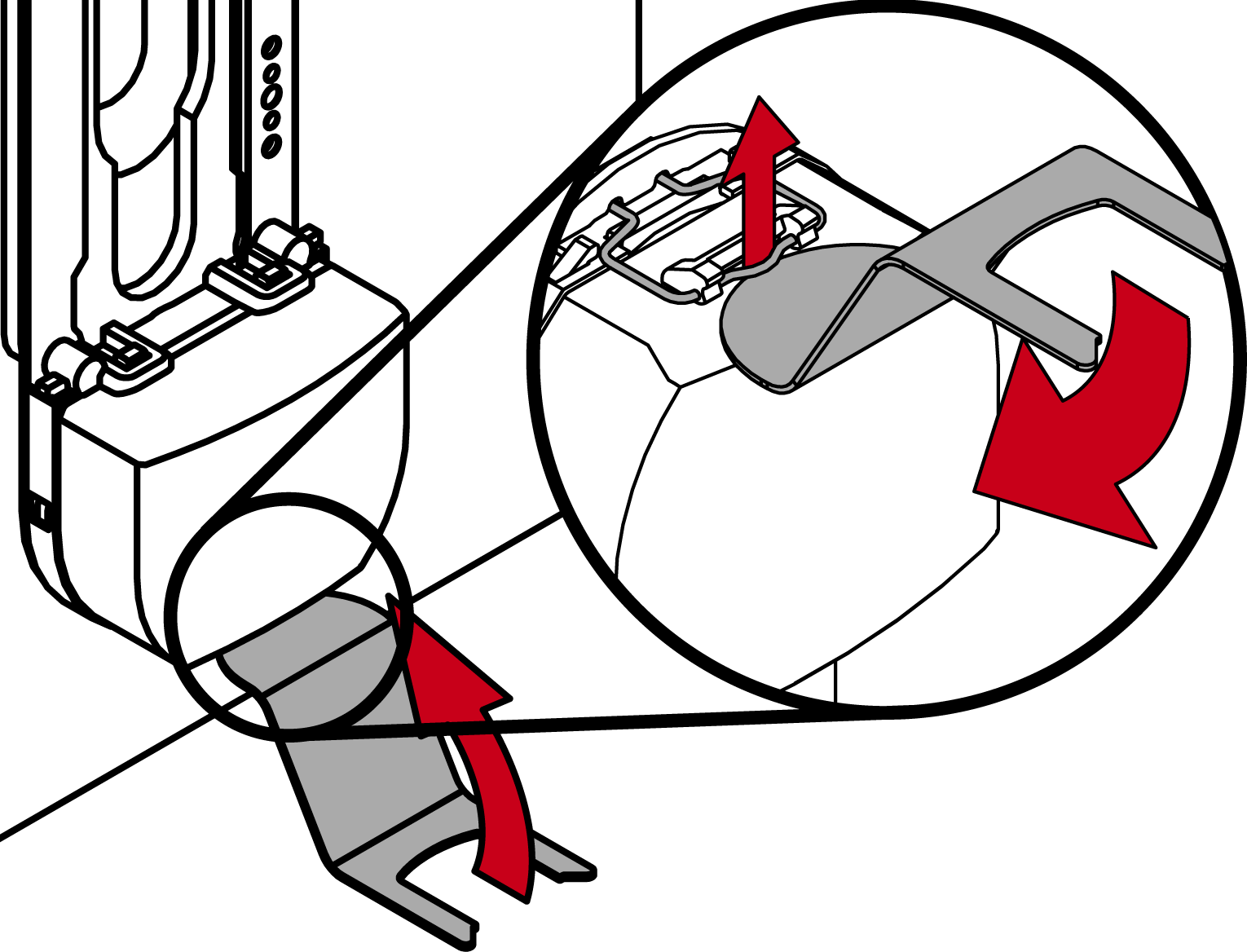

  10. Use the special tool to detach the battery module clip.

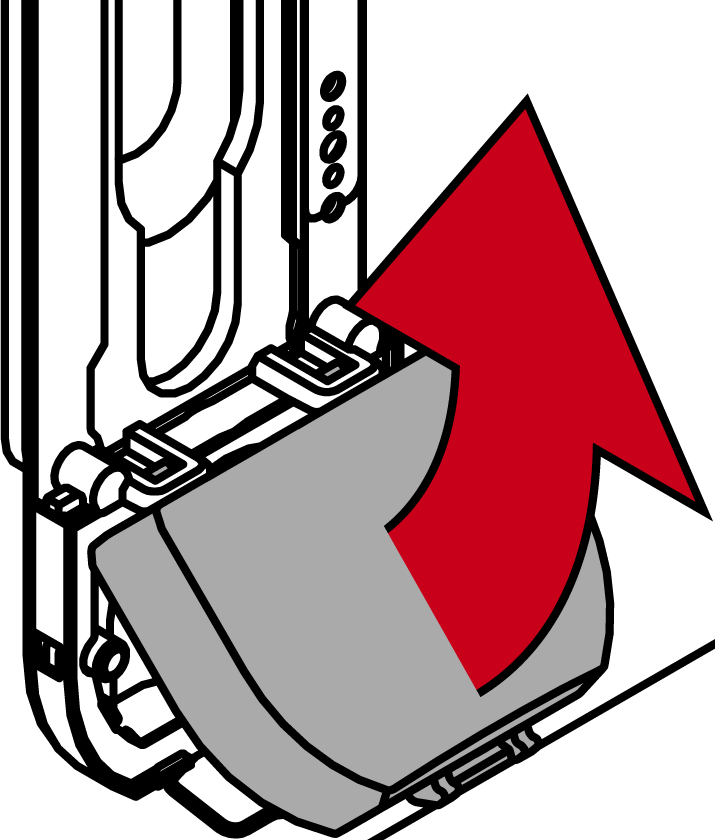

  12. Remove the battery module.

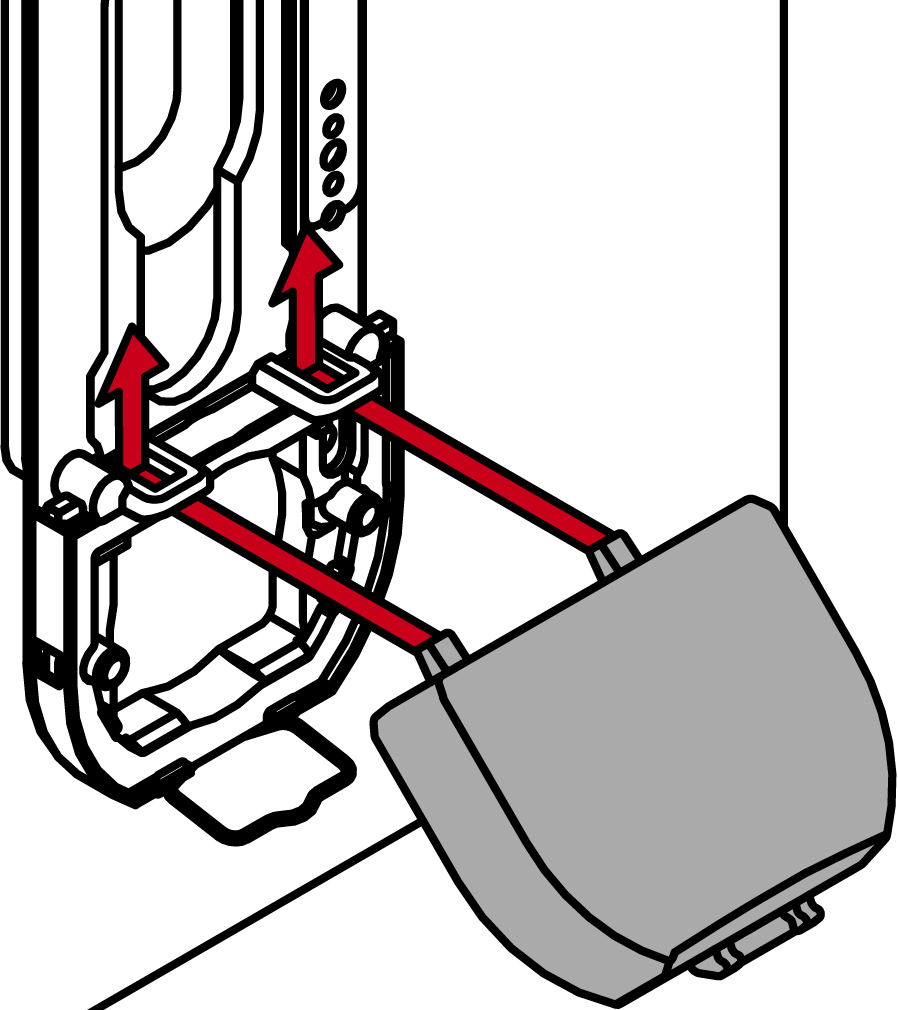

  14. Pull the battery carrier out of the battery module.
  16. Remove the batteries.
  18. Insert the new batteries as shown. Slide the batteries into the battery carrier in pairs with the positive poles facing each other.
  22. Put the battery carrier back into the battery module.
    The batteries point towards the nose of the battery module and the spring contacts upwards.
  25. Put the battery module back into the module support.

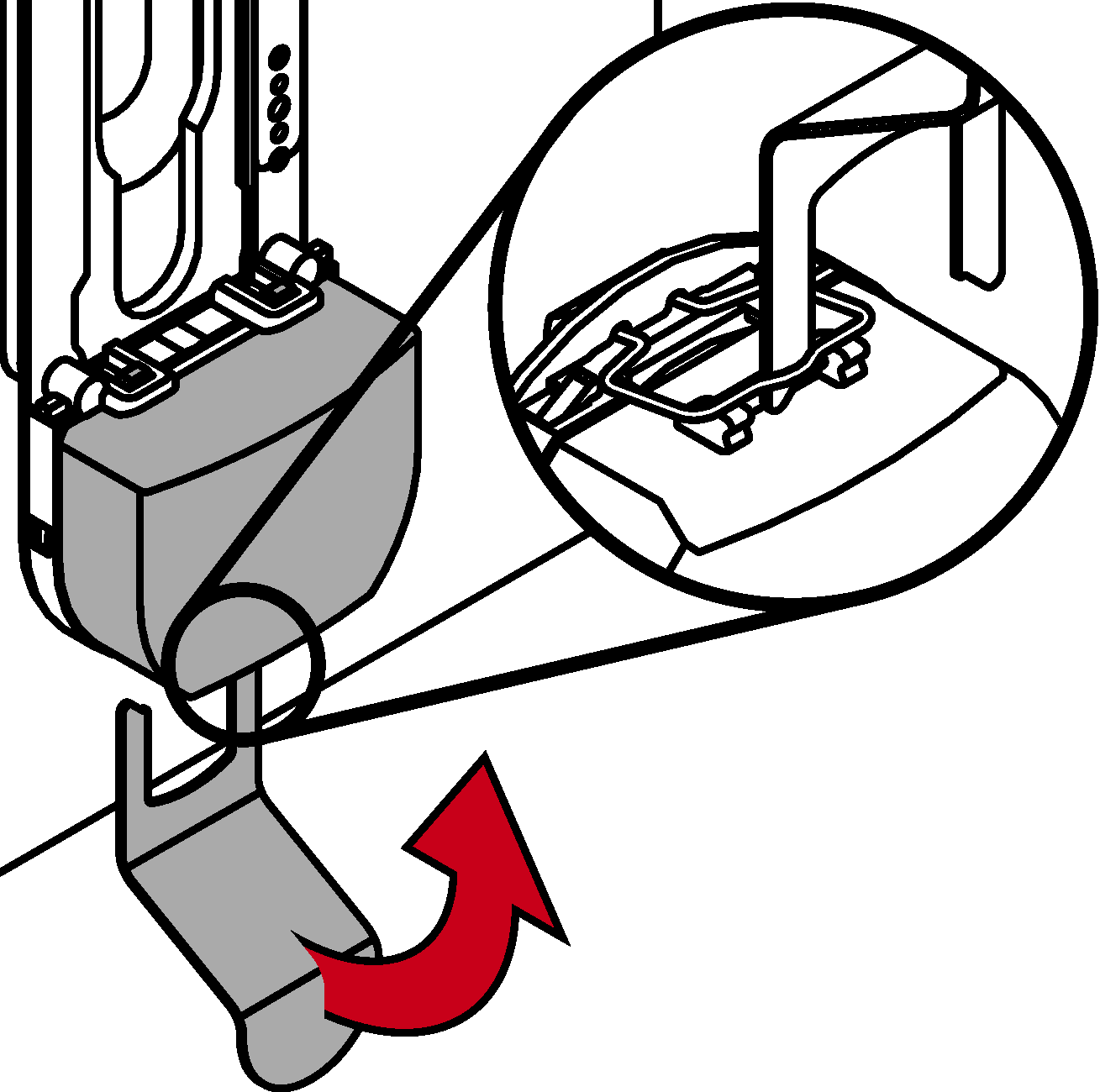

  27. Use the special tool to reattach the battery module clip.
  29. SI SmartHandle AX Advanced will beep three times.
  30. Place the cover on top of the fastening plate.
  32. Fold down the cover.

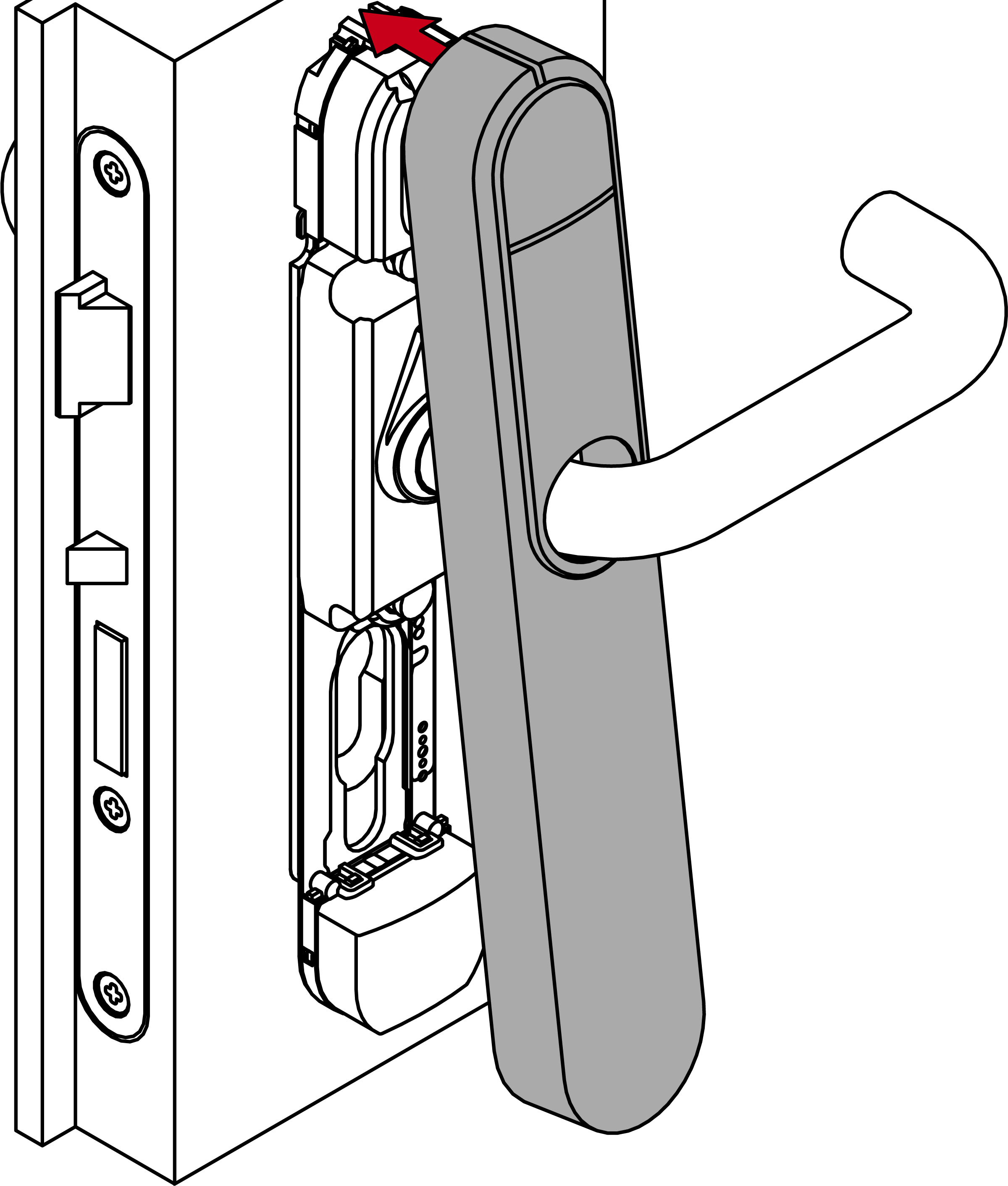

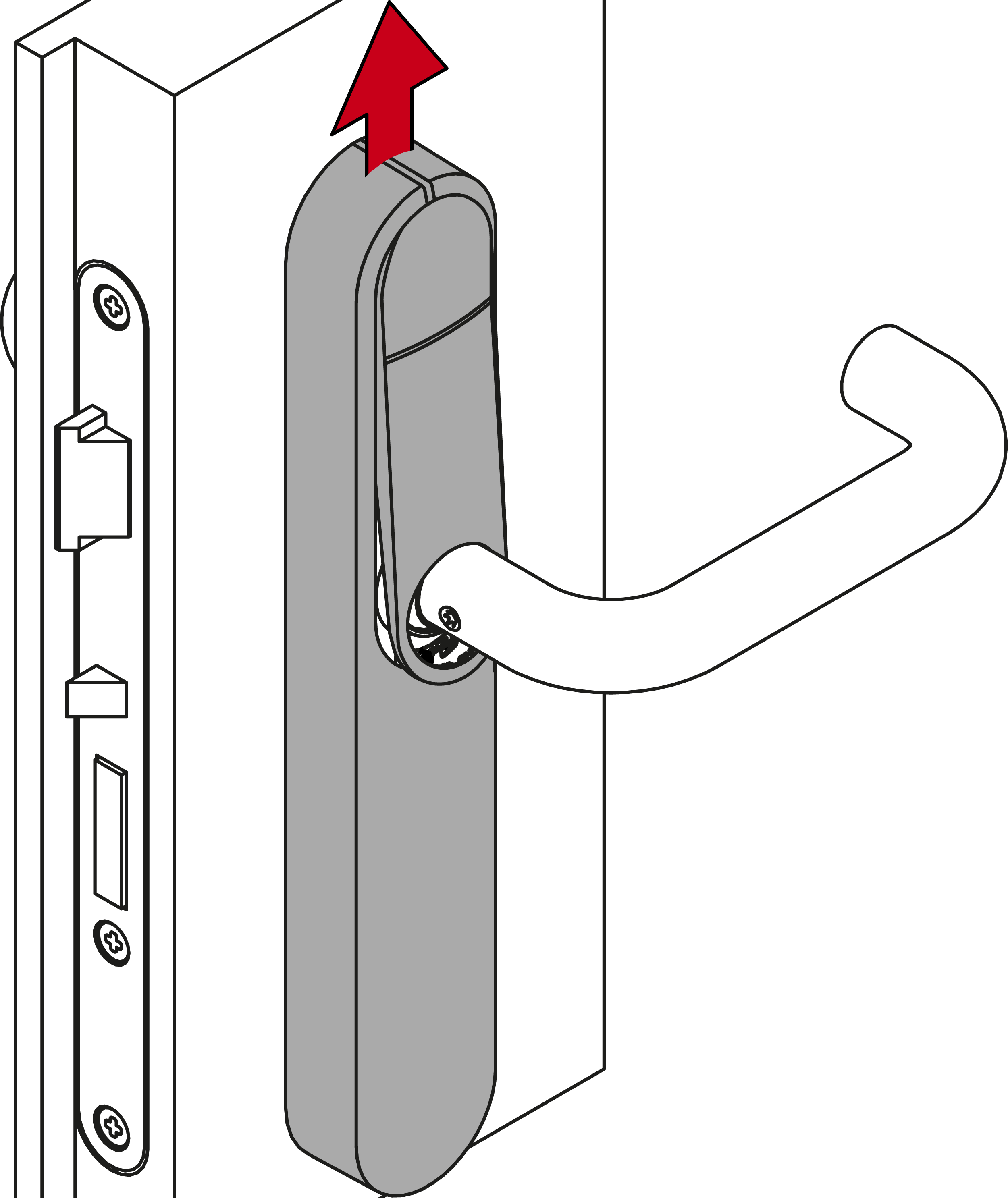

  34. Push the cover against the door, sliding it upwards at the same time.
  36. Cover snaps into place.

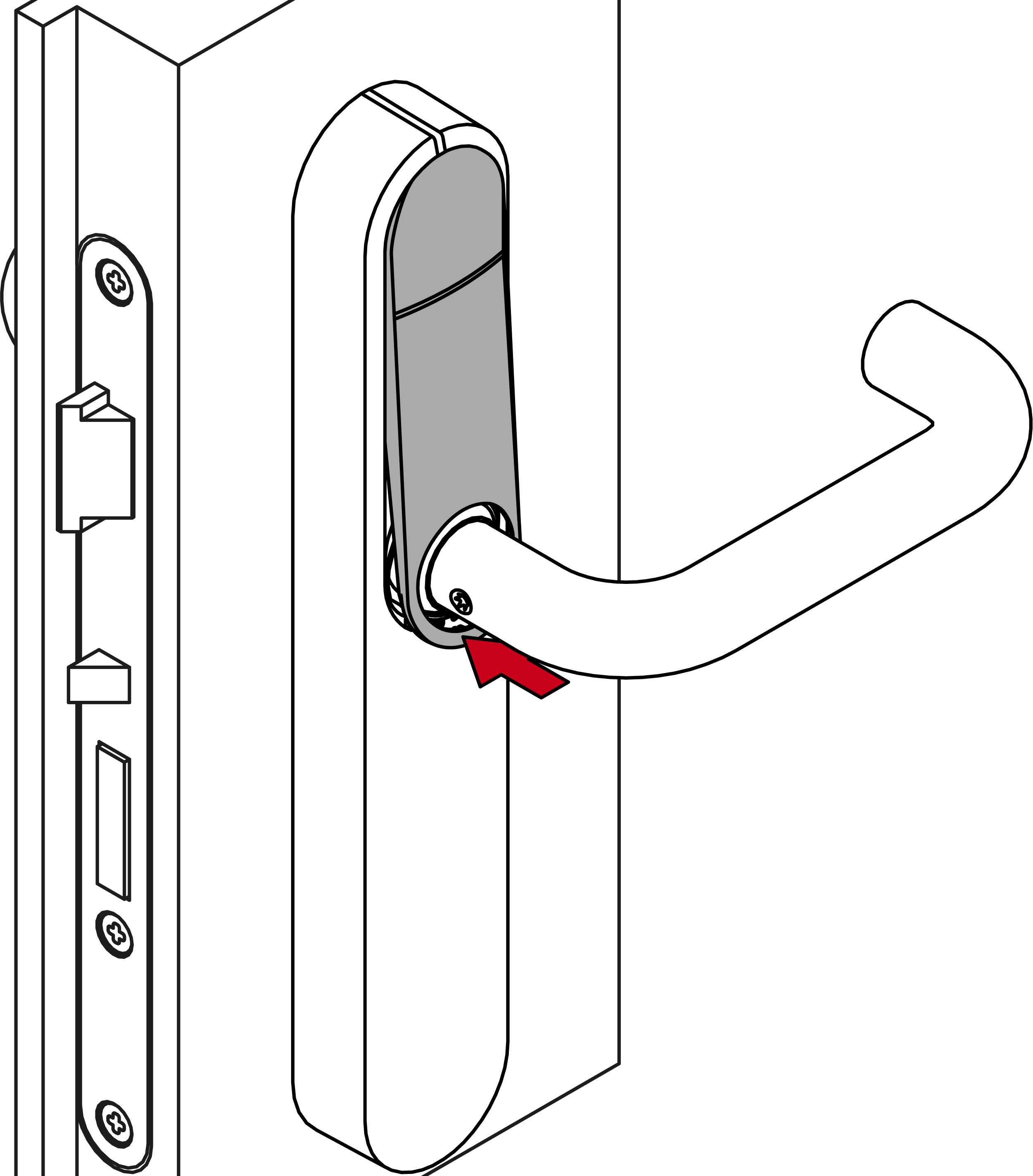

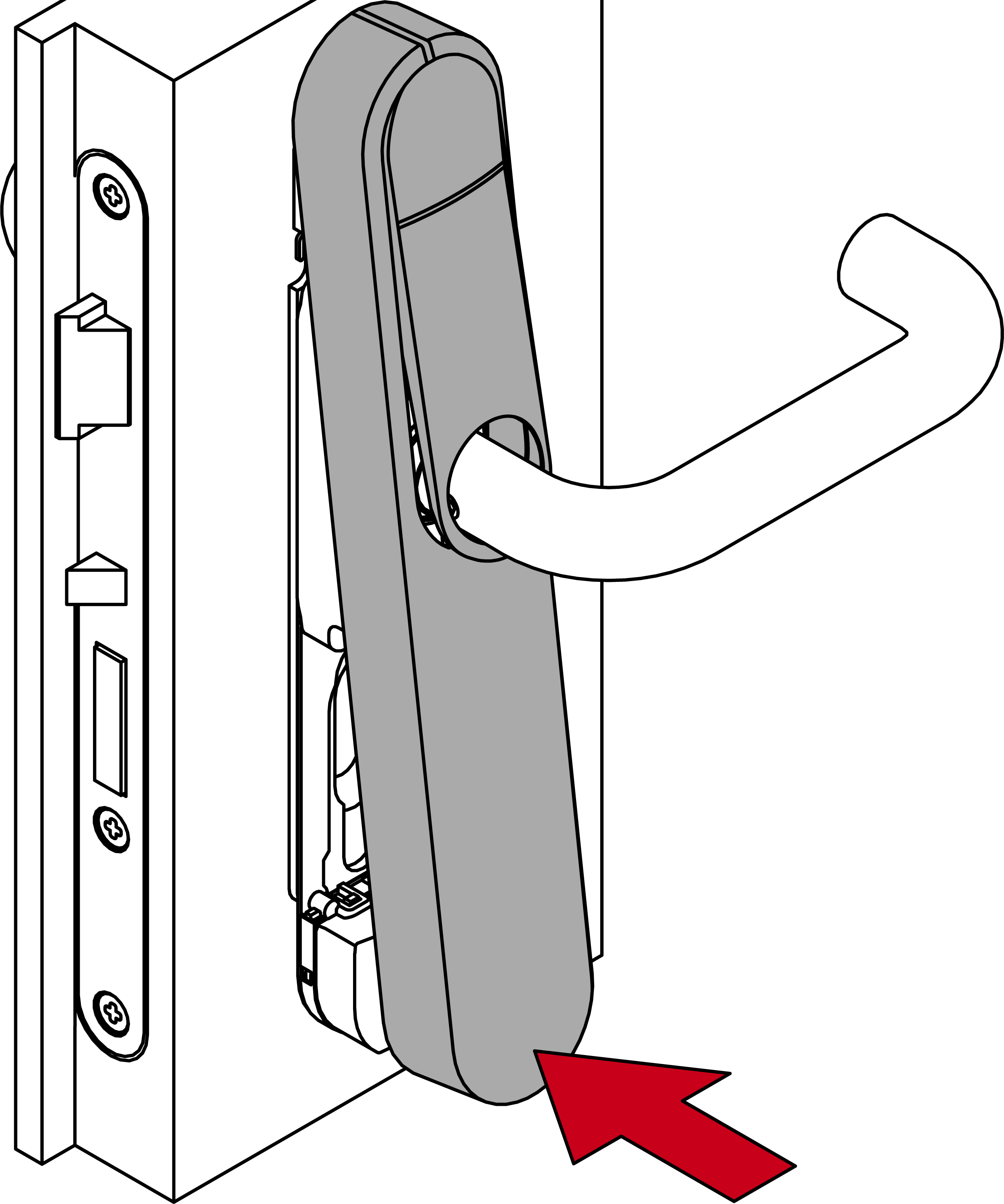

  37. Press the inlay into place.
  1. Batteries are now replaced.
