Installing the fitting - SmartHandle AX Advanced SmartIntego
- Door pre-drilled.
- PH2 screwdriver at hand.
- TX15 screwdriver at hand.
- Caliper gauge at hand.

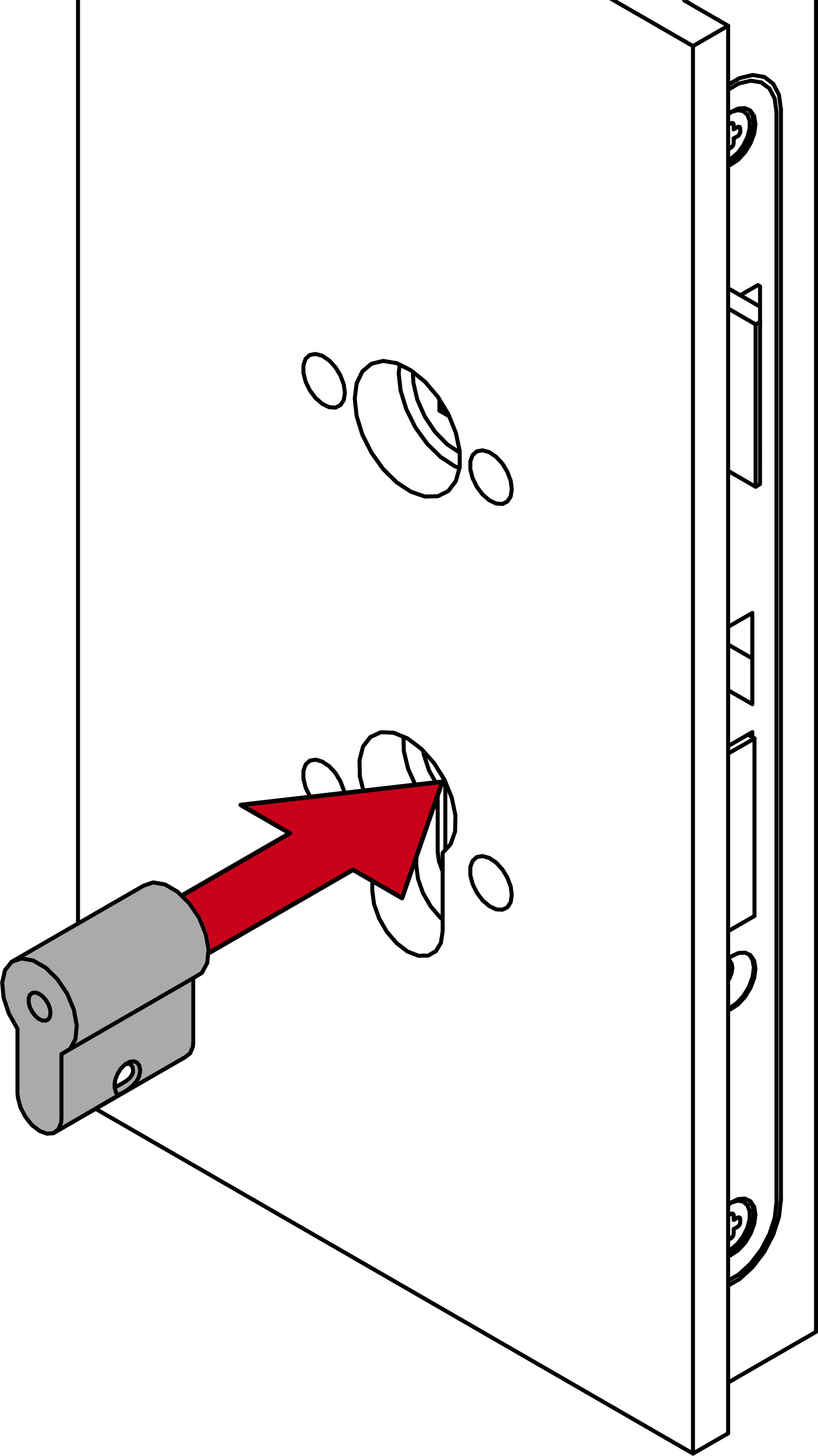

- For non-MO: insert the blank cylinder.
NOTE
Feed the blank cylinder into the hole using a screwdriver
It is difficult to position the blank cylinder correctly, especially in thick doors.

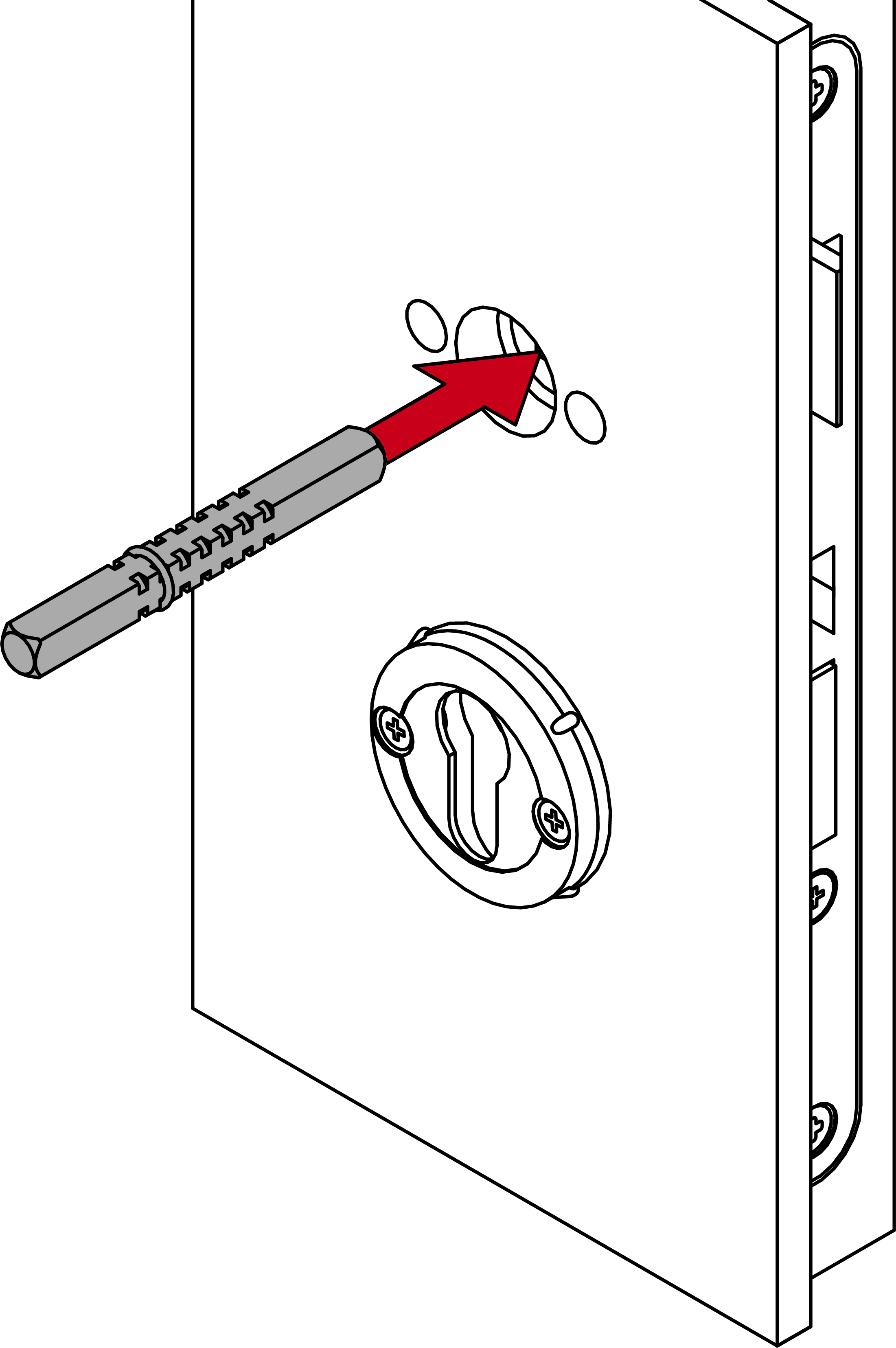

- Insert a screwdriver into the hole in the blank cylinder.
- Position the blank cylinder using the screwdriver.

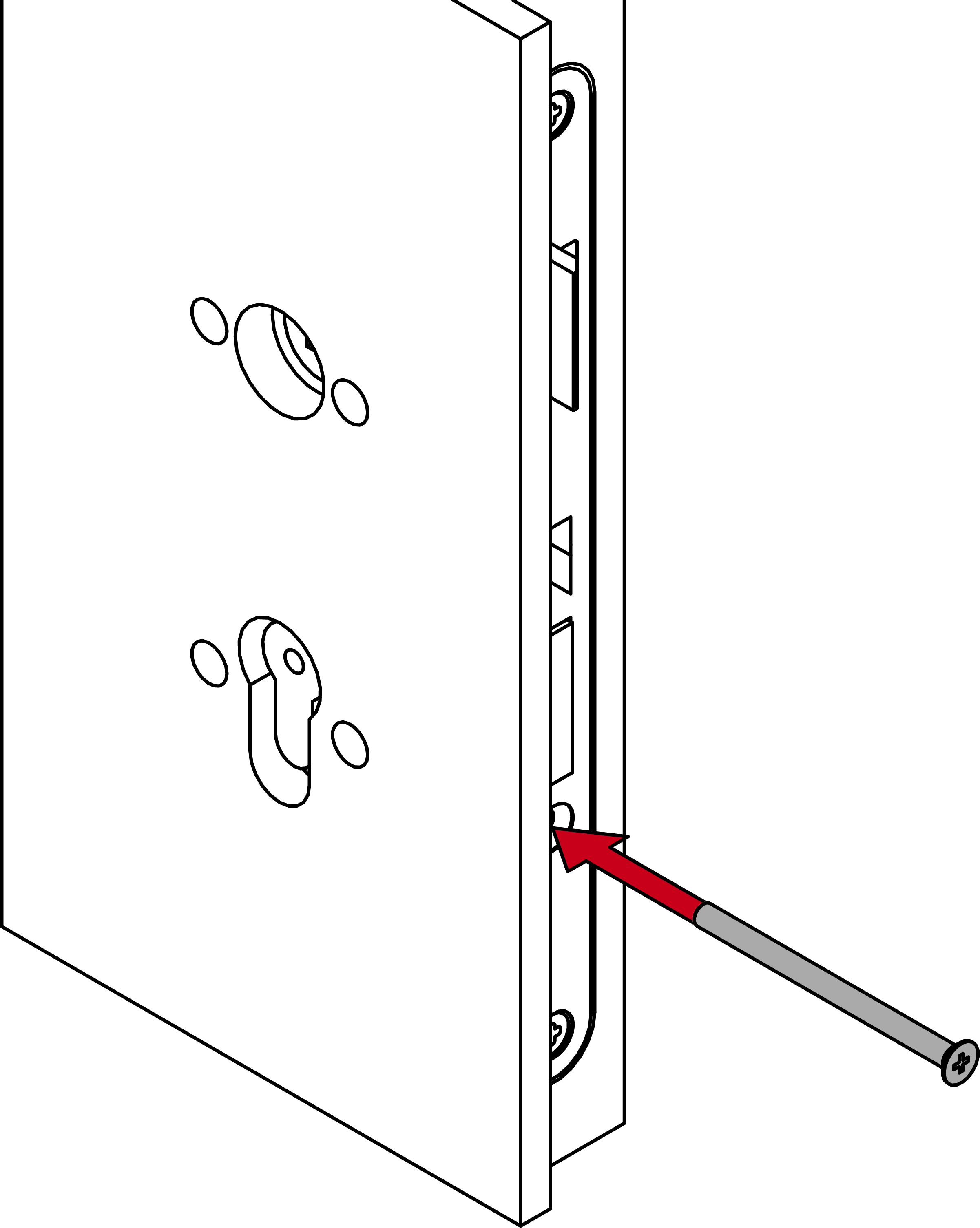

- For non-MO: screw the dummy cylinder firmly into place (PH2; torque: 1.1 Nm).

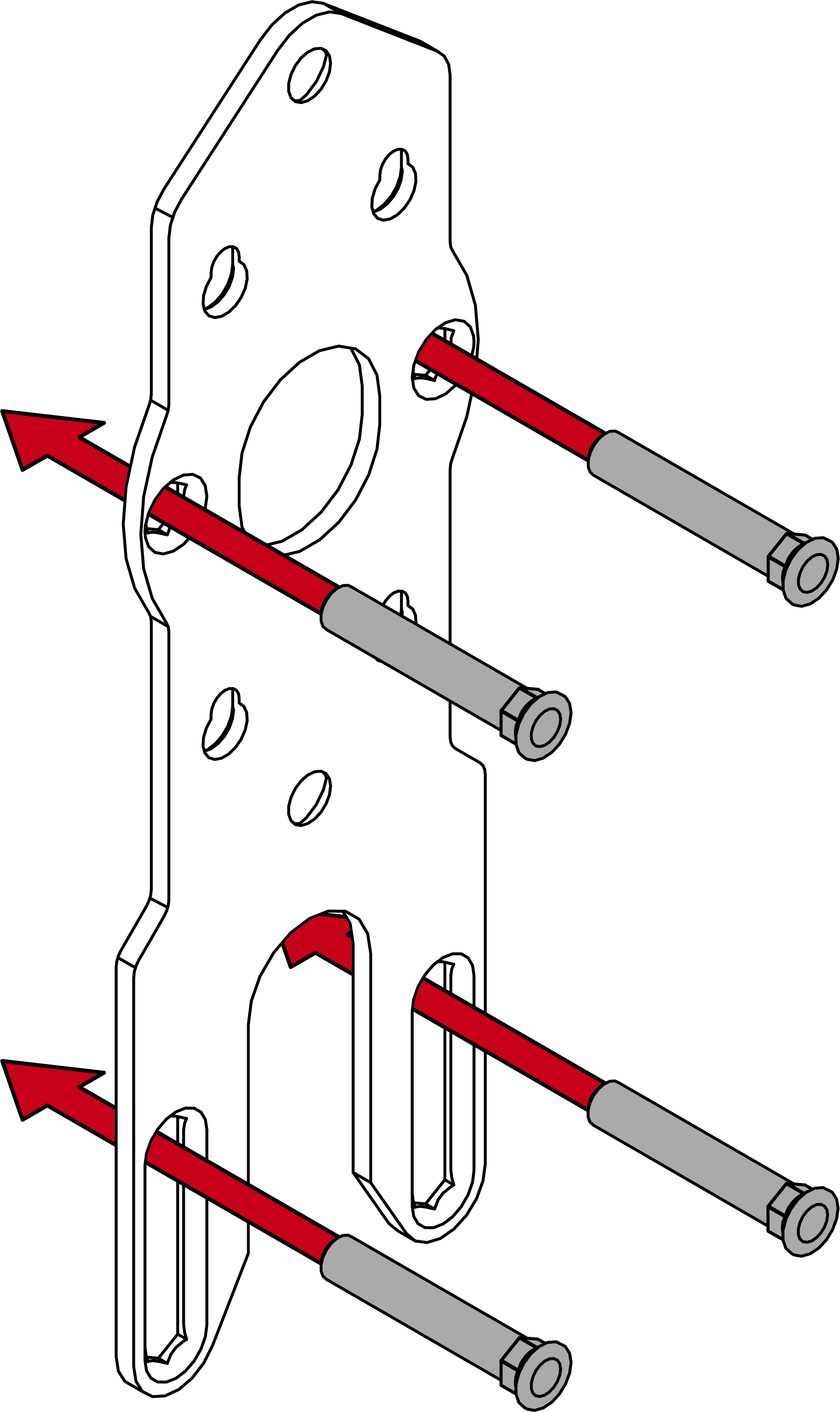

- Insert the sleeve nuts into the fastening plate.
- For 7 mm spindle: Insert the adapter shoe into the spindle mount on the module support.
- Insert the module support into the fastening plate.

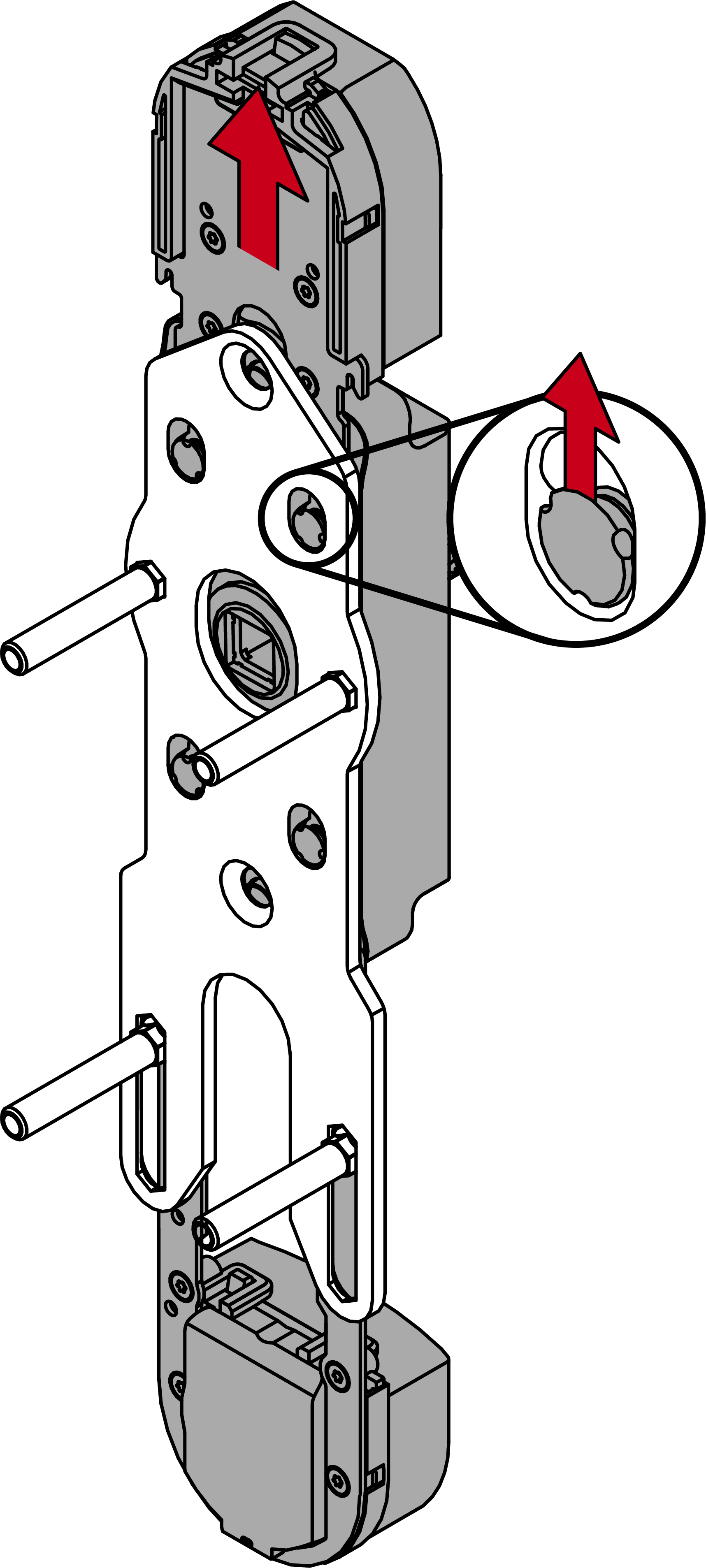

- Slide the module support upwards.
- Module support snaps into place.
- Fasten the module support to the fastening plate with the 12 mm screws (PH2, torque 3.0 Nm).
- Place the compshells on the sleeve nuts.

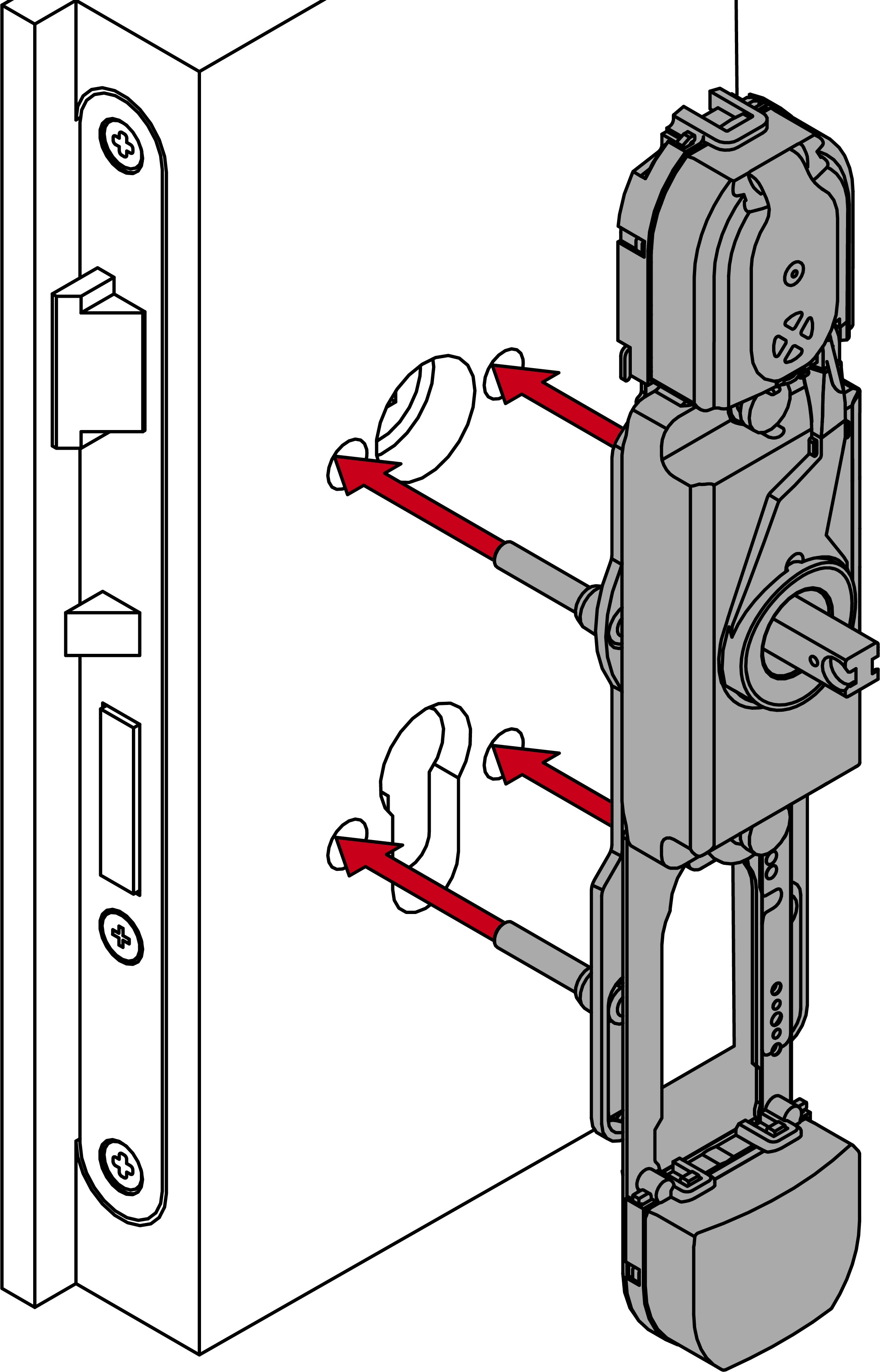

- Insert the module support with the fastening plate into the outer side of the door.

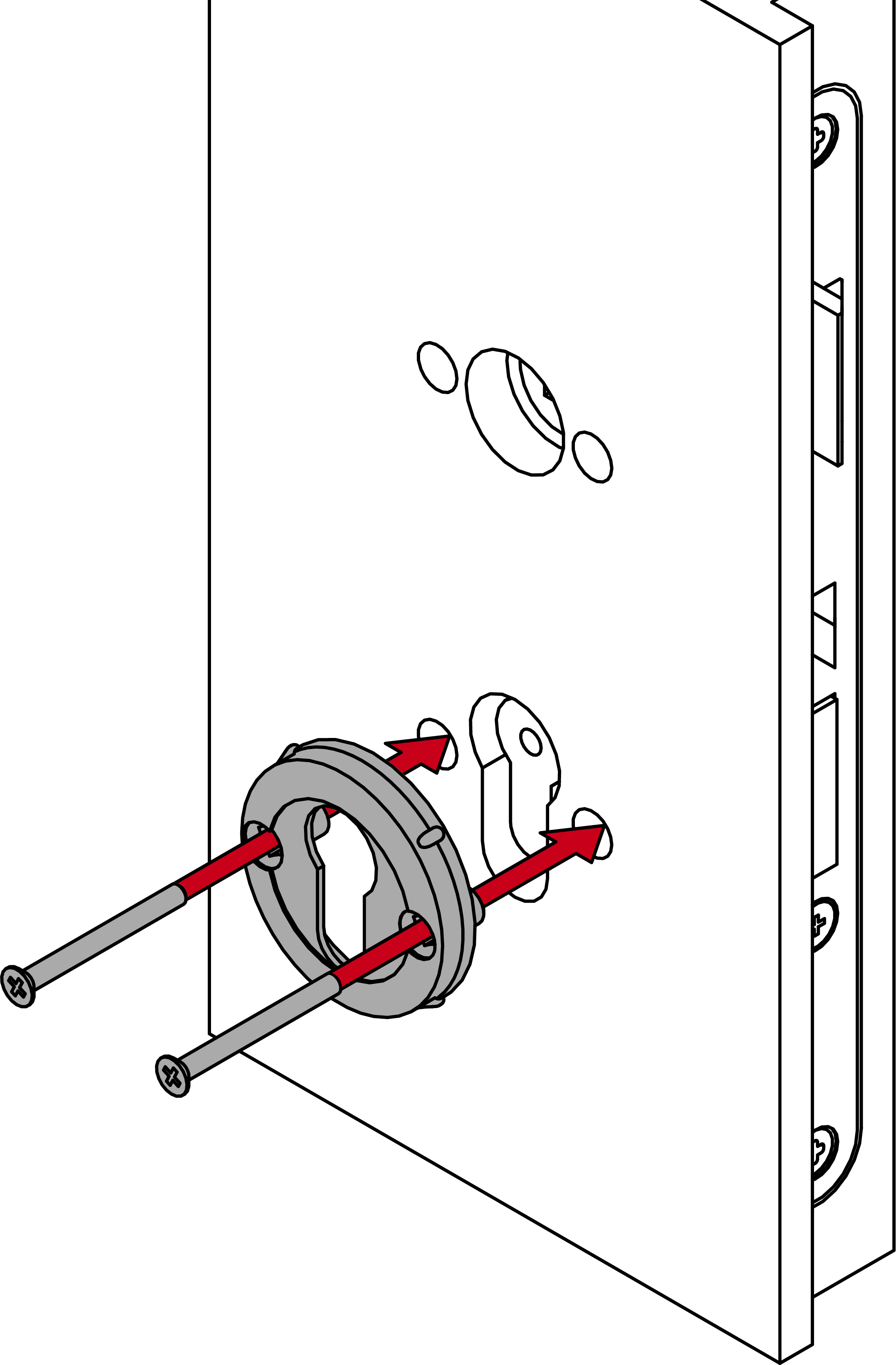

- Firmly fasten the cylinder escutcheon to the sleeve nuts (PH2, torque 1.1 Nm).

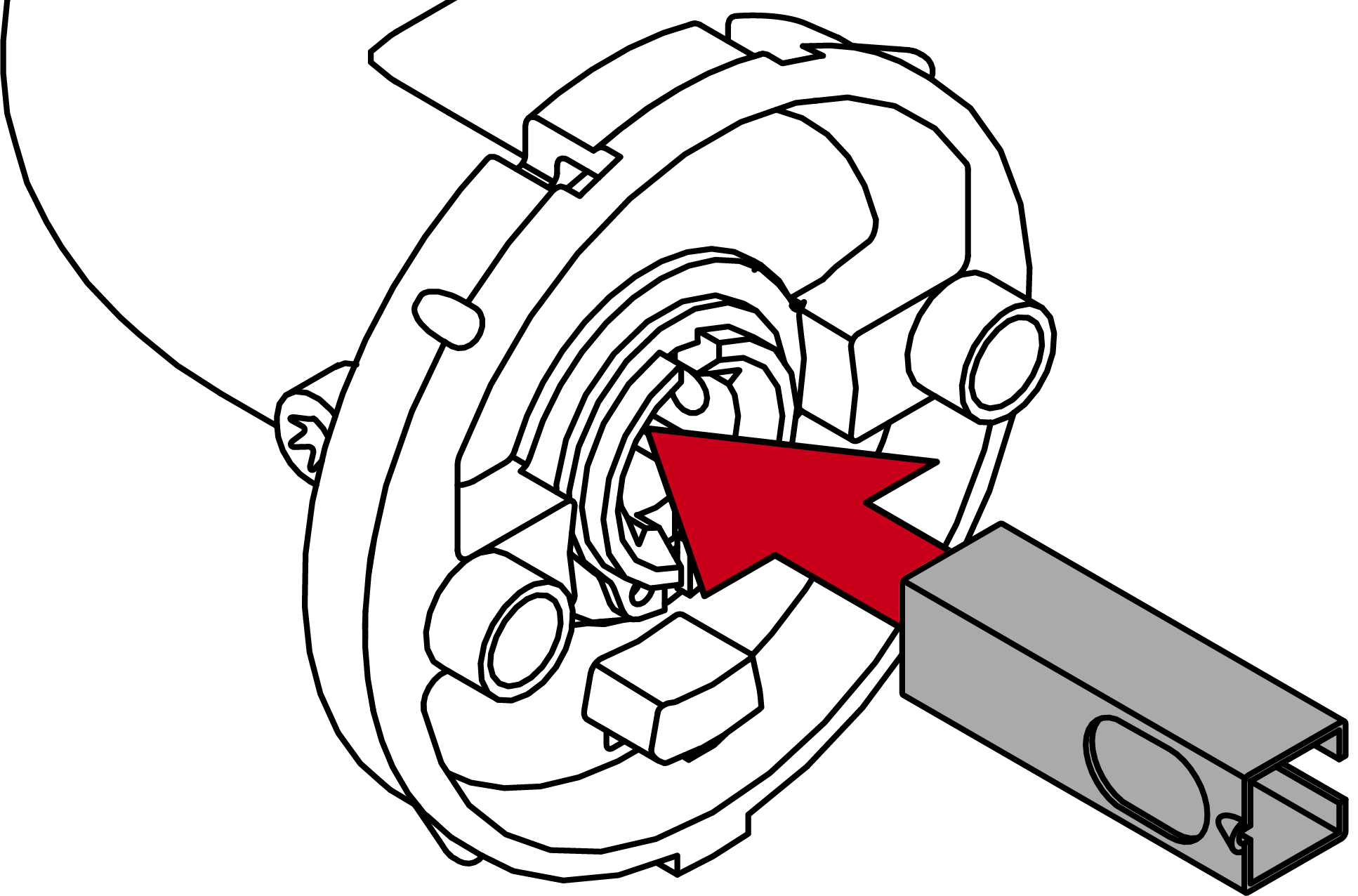

- For 7 mm spindle: Place the adapter sleeve in the inside handle in such a way that the recess faces the grub screw.

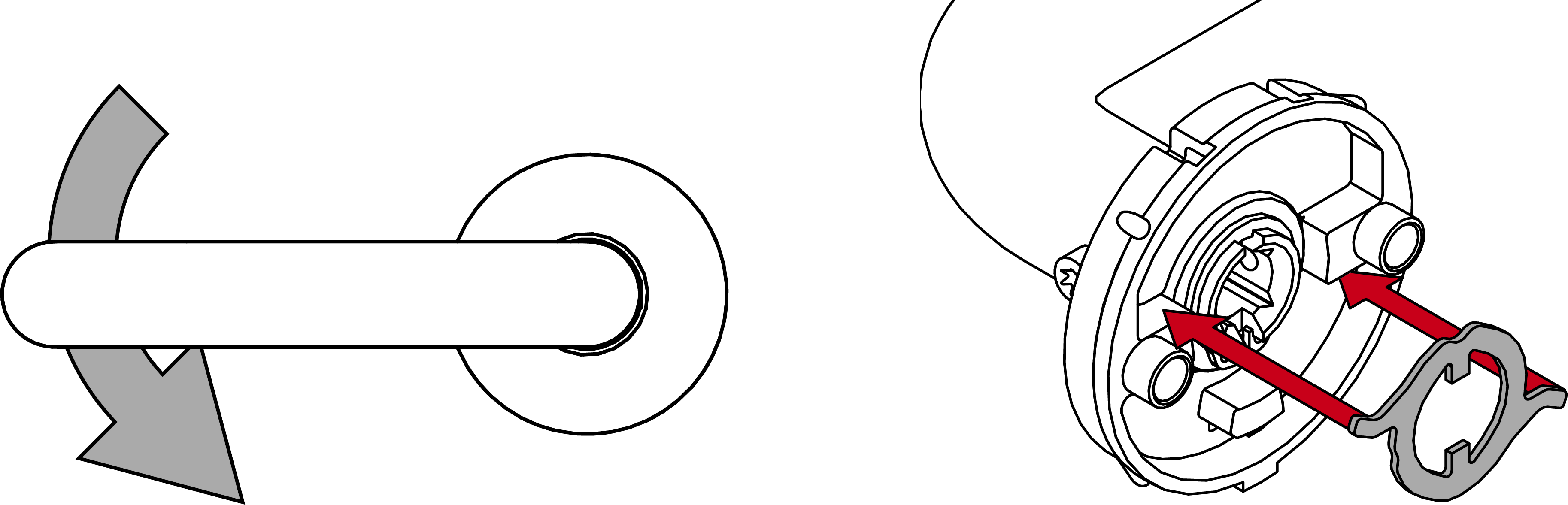

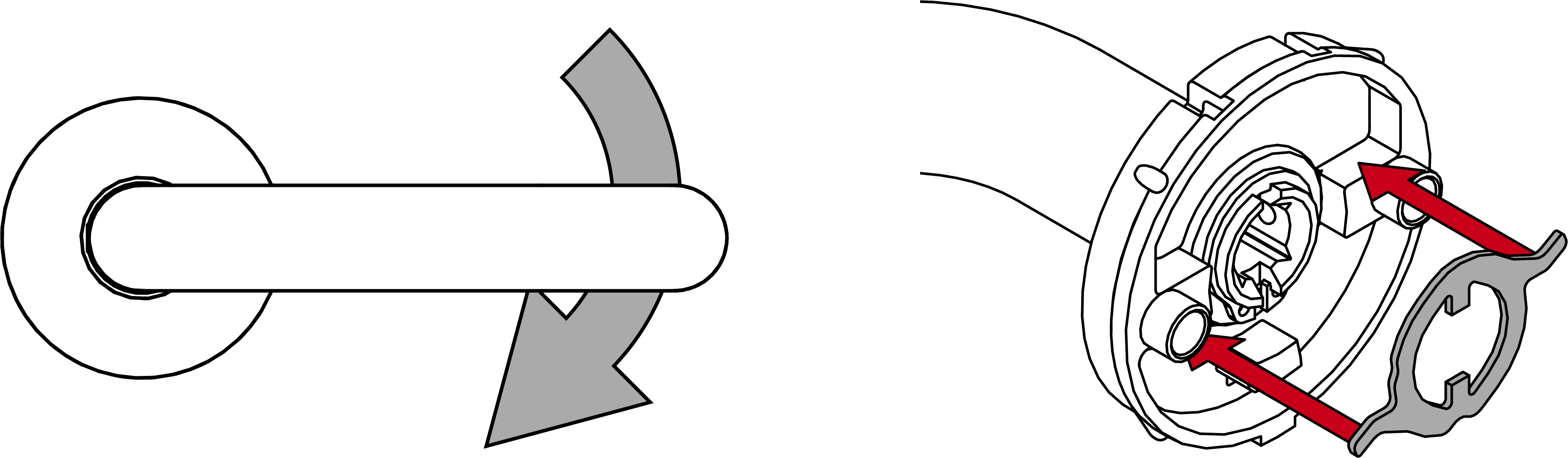

- Determine the required direction of rotation for your inside handle.
- Place the interchangeable plate into your inside handle escutcheon as required.

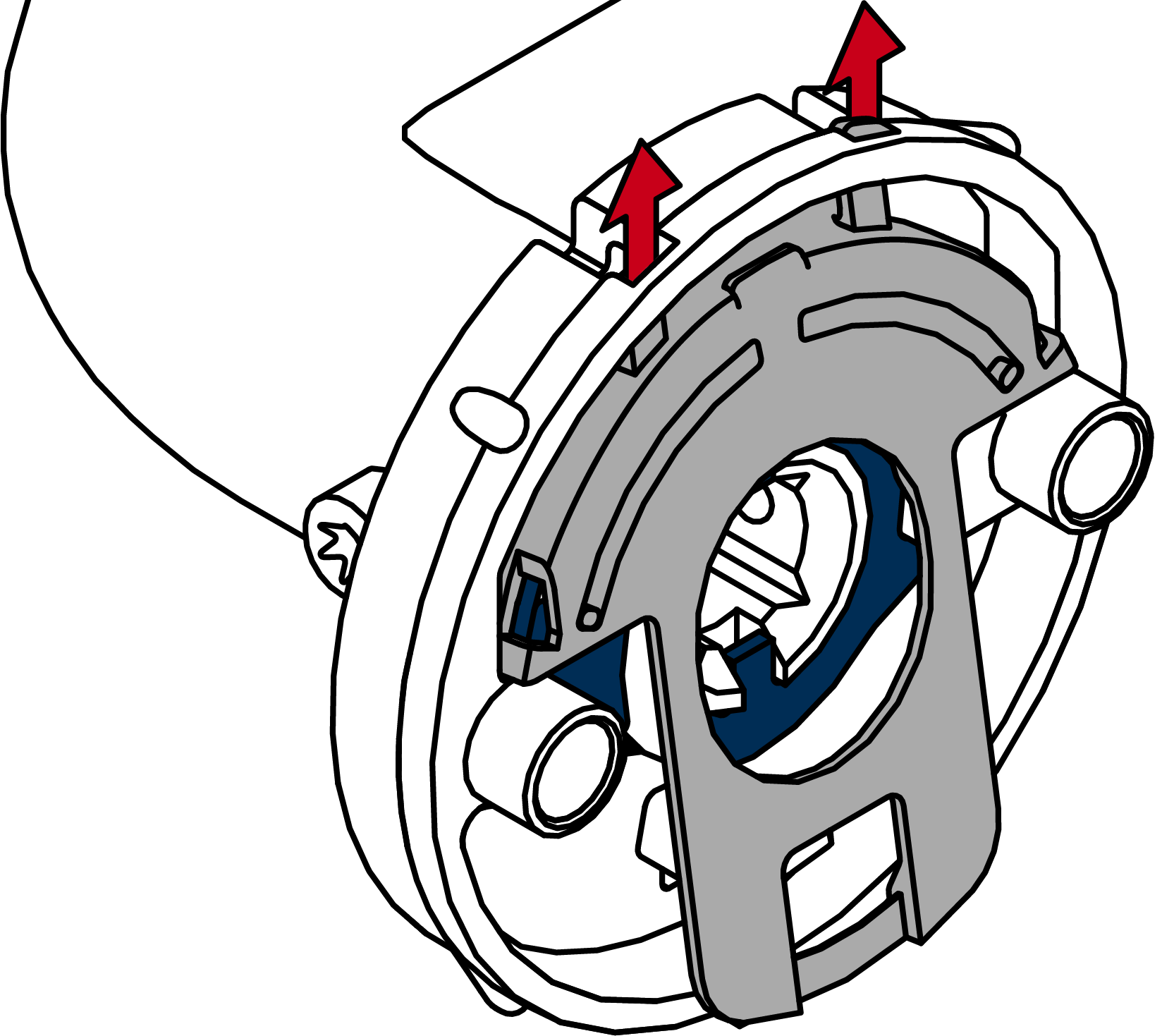

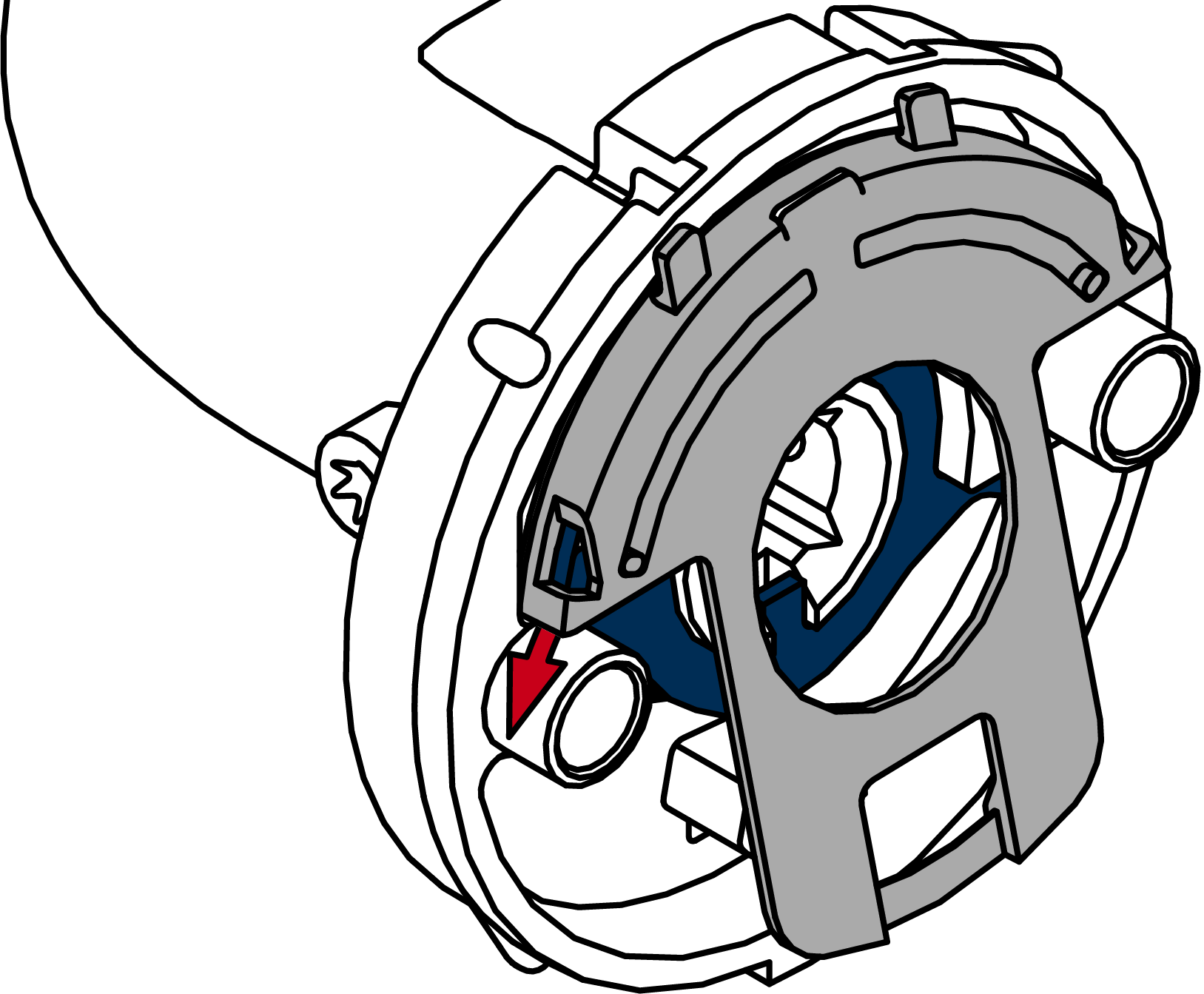

- Pre-tension the spring element on the interchangeable plate.
- Slide the spring element nose into the slot in the escutcheon.

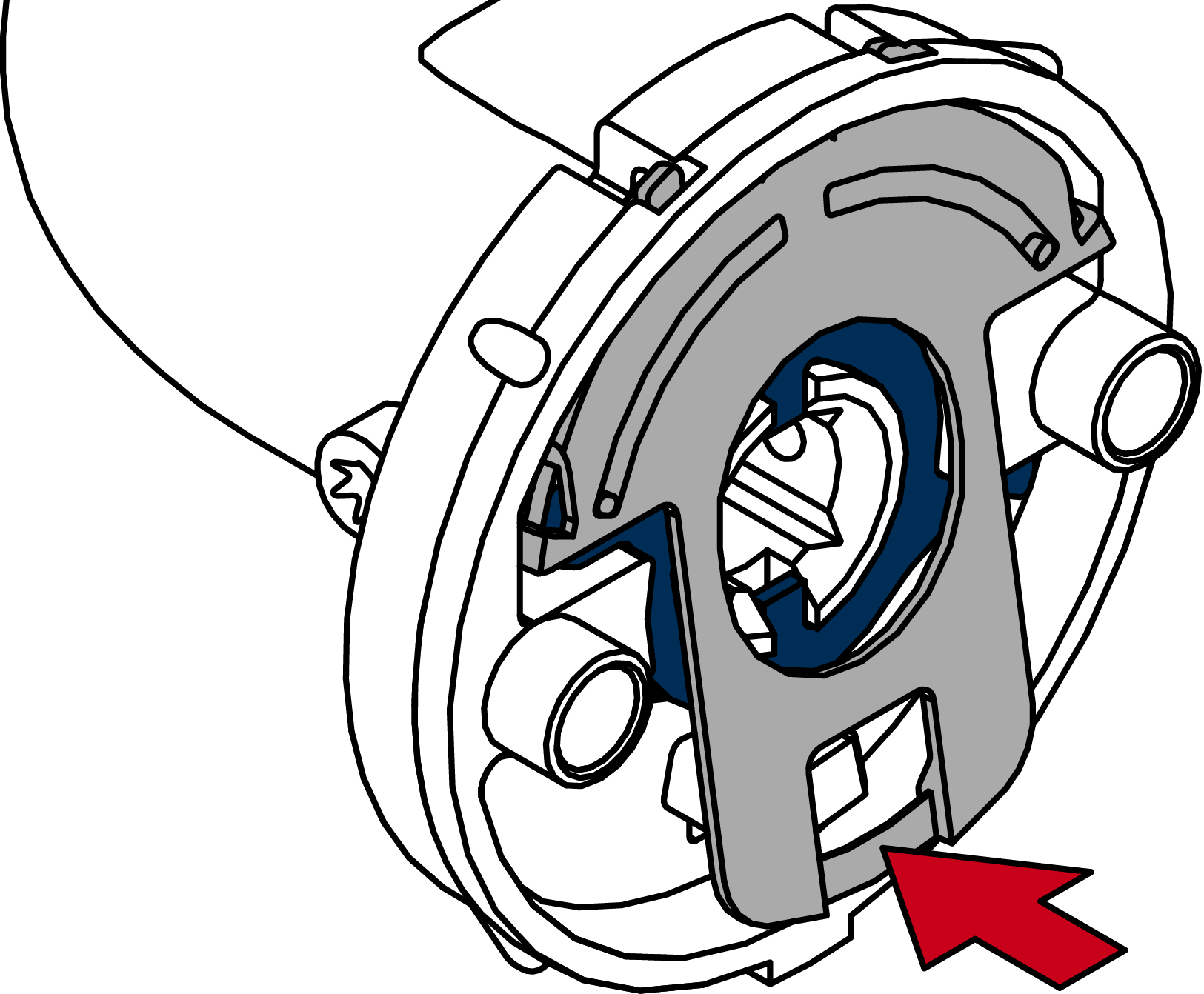

- Attach the end of the spring element into the slot in the escutcheon.
- For 8.5 mm and 10 mm spindle: slide the adapter sleeve into the centre of the spindle. Use a punch and hammer to make an indent in the adapter sleeve to prevent it from slipping.

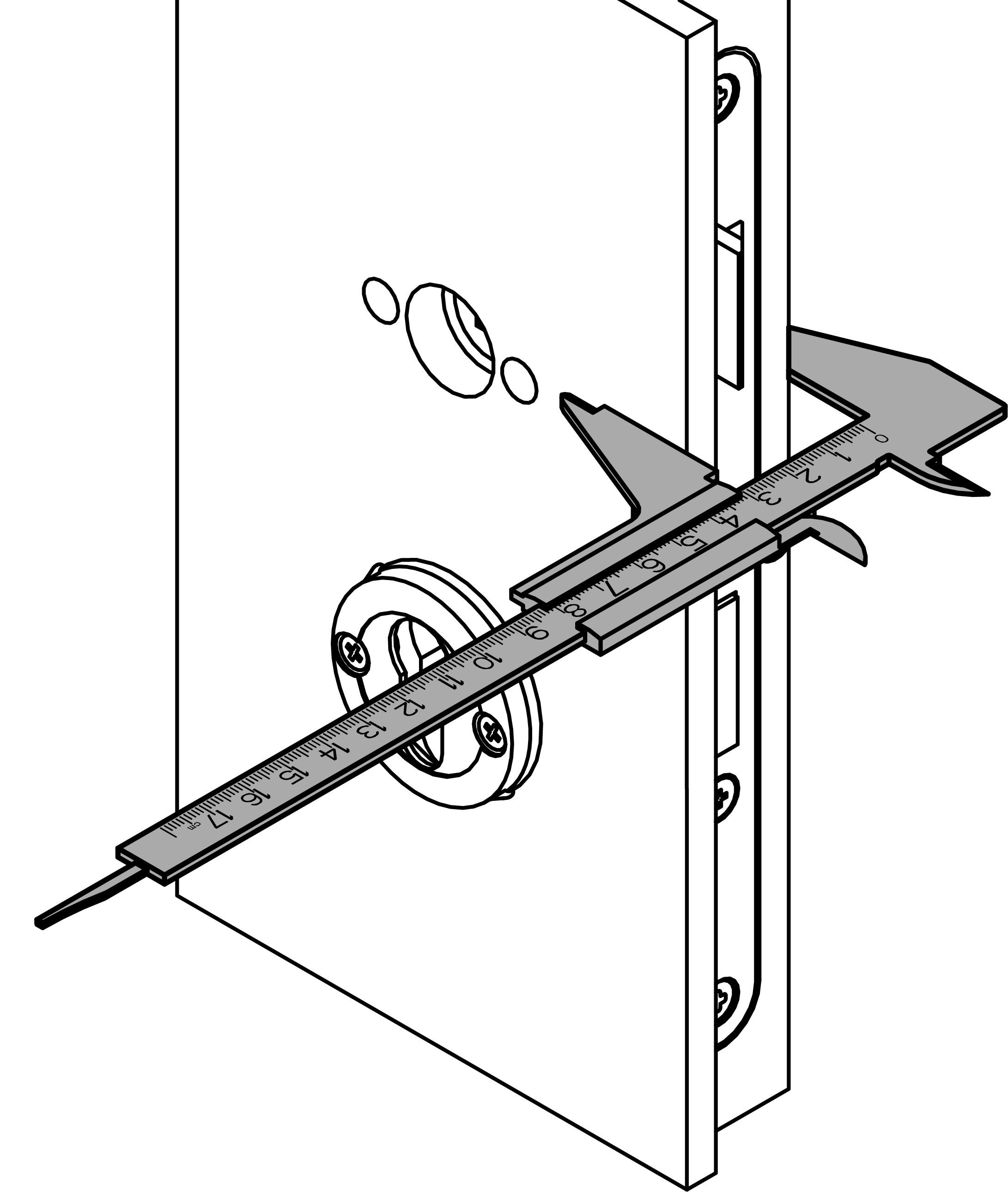

- Measure the door thickness.
- Measure the total length of the spindle.
- Locate the inside of the spindle (four-edge end up to the centre of the first groove = 26 mm).
- Use the table to determine the position of the O-ring.
Area
Door thickness (mm)
Spindle length (mm)
Ring position
S
32 – <36
84
3
S
32 – <36
94
5
S
36 – <41
84
2
S
36 – <41
94
4
S
41 – <46
84
1
S
41 – <46
94
3
S
46 – <51
94
2
S
51 – 54
94
1
M
52 – <56
104
3
M
52 – <56
114
5
M
56 – <61
104
2
M
56 – <61
114
4
M
61 – <66
104
1
M
61 – <66
114
3
M
66 – <71
114
2
M
71 – 74
114
1
L
72 – <76
124
3
L
72 – <76
134
5
L
76 – <81
124
2
L
76 – <81
134
4
L
81 – <86
124
1
L
81 – <86
134
3
L
86 – <91
134
2
L
91 – 94
134
1
XL
92 – 184
O-ring is 30–35 mm from the cut end of the spindle.
- Insert the spindle into the door with the ring-free side as far as it will go.
- Place the inside handle unit on the spindle.

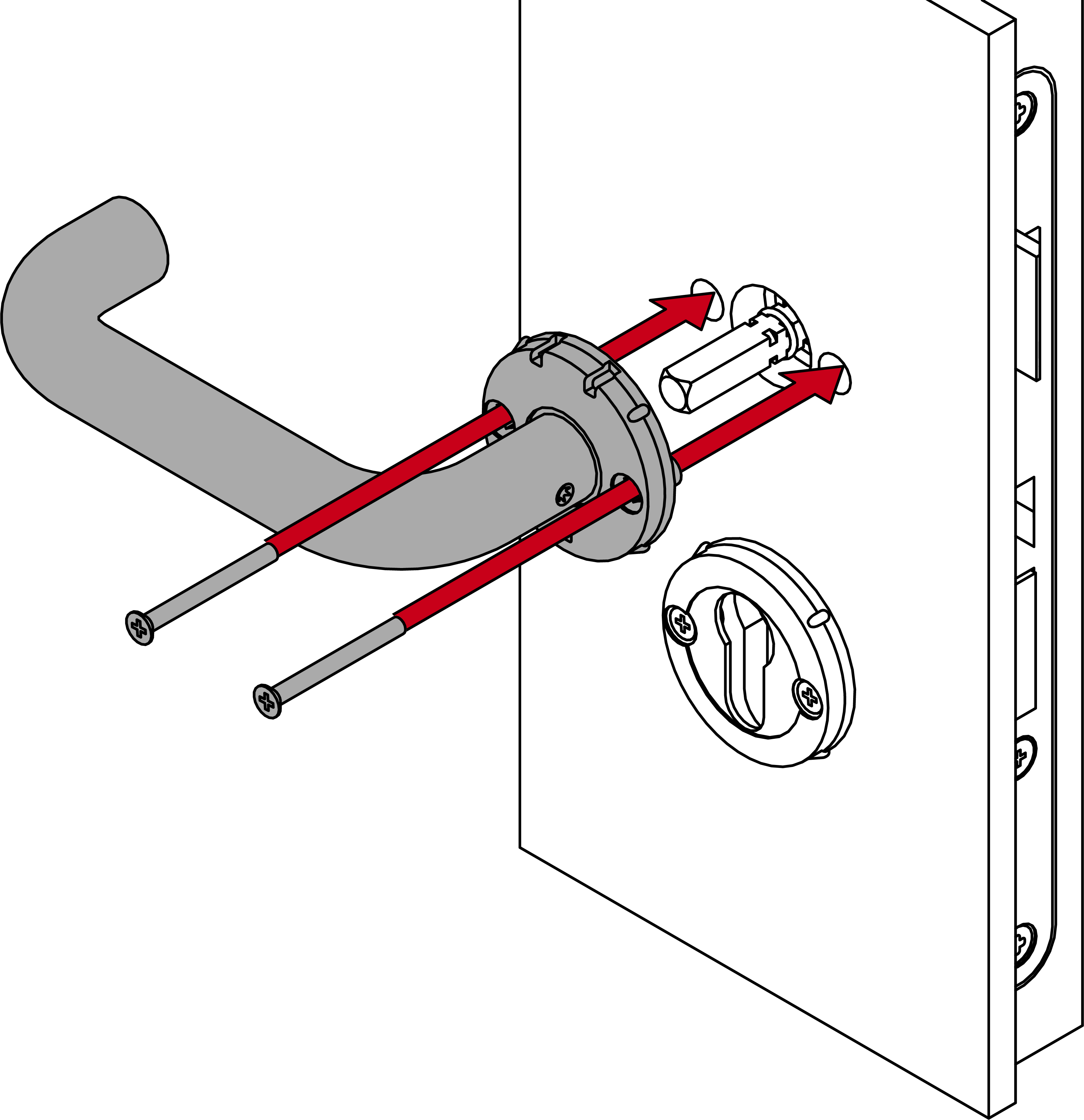

- Firmly screw the inside handle unit onto the sleeve nuts (PH2, torque 1.1 Nm).
- Place the cover on top of the fastening plate.
- Fold down the cover.

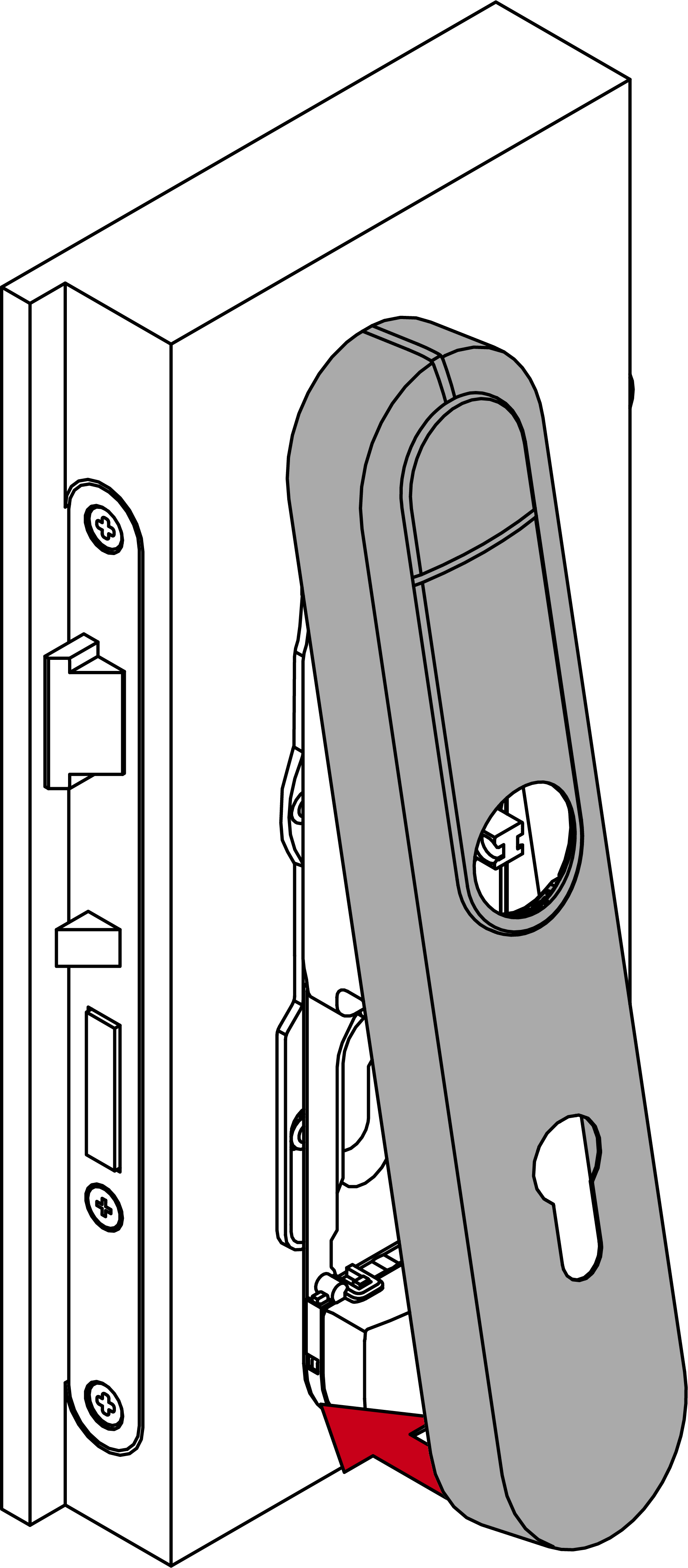

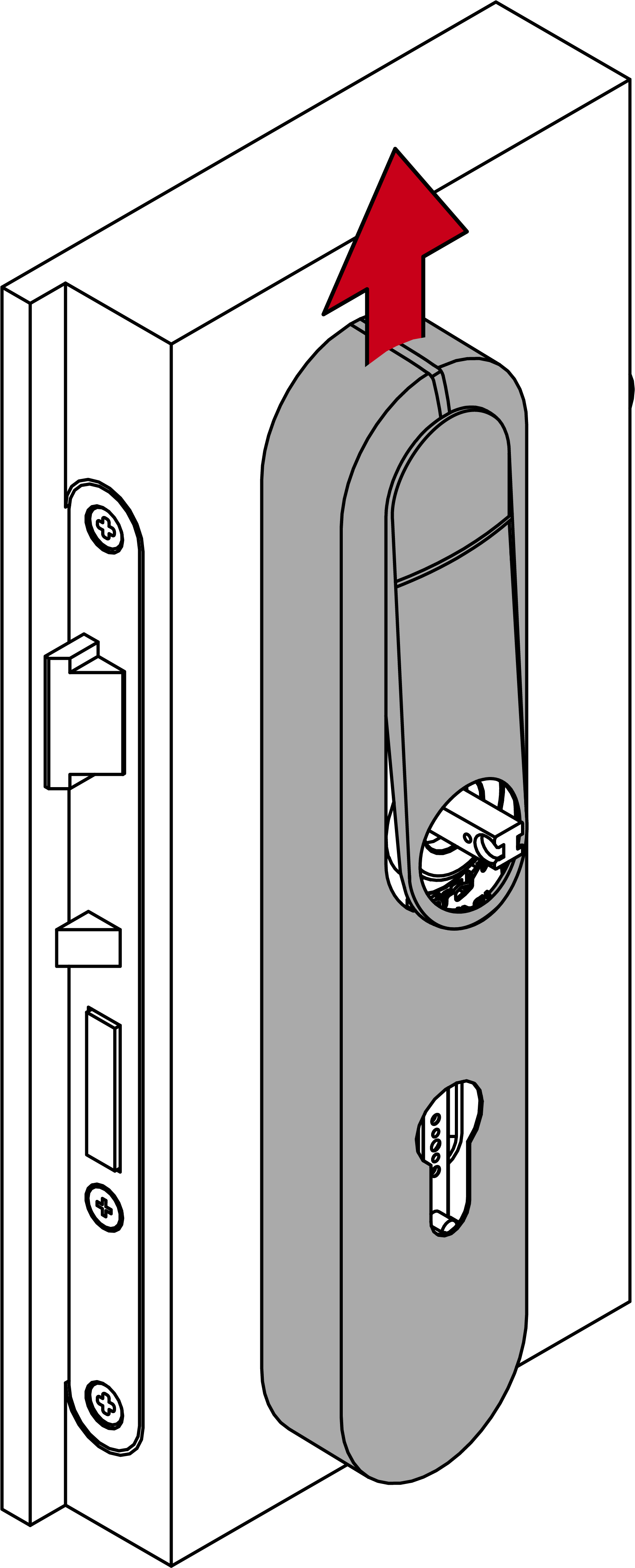

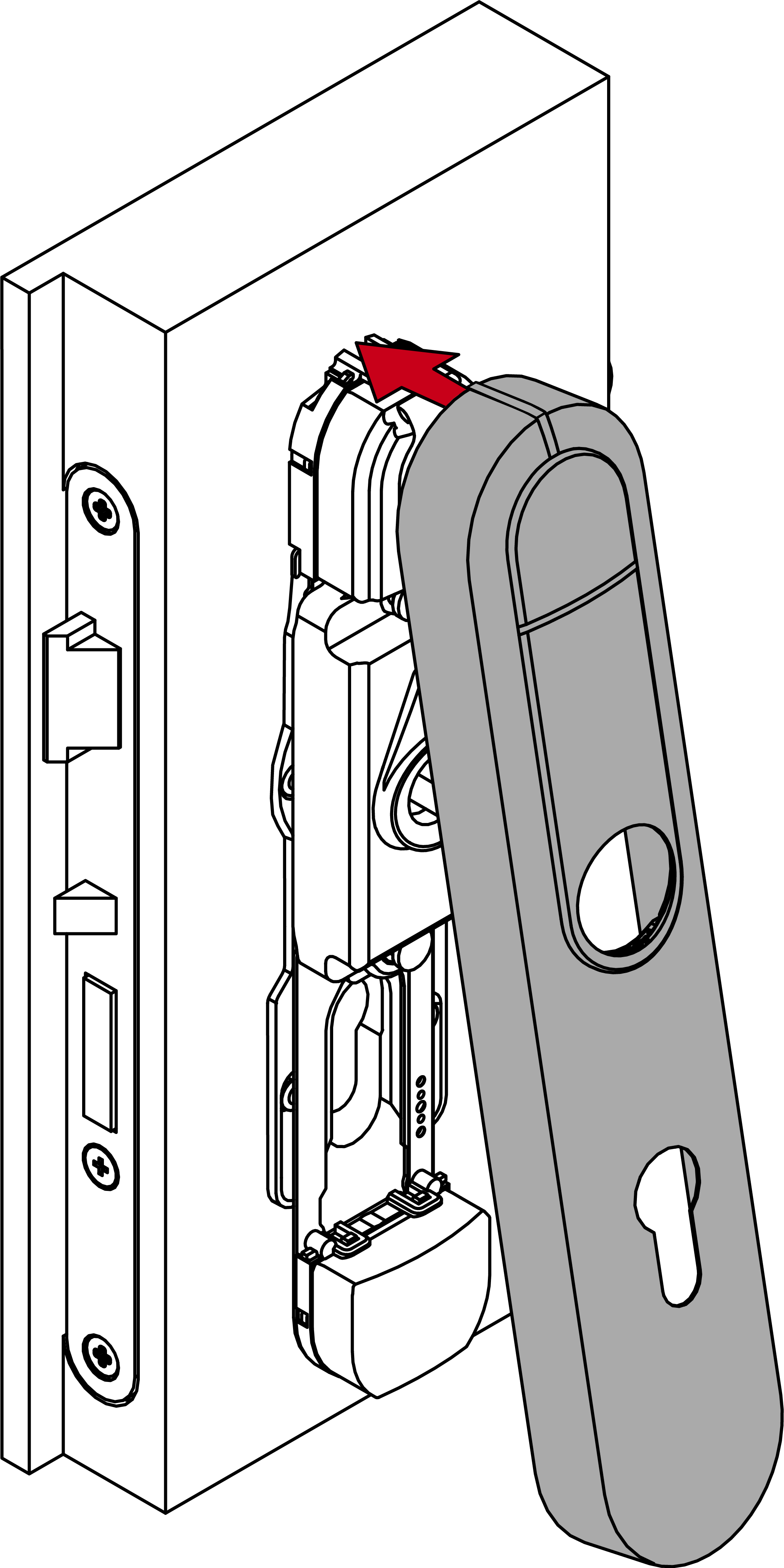

- Push the cover against the door, sliding it upwards at the same time.
- Cover snaps into place.

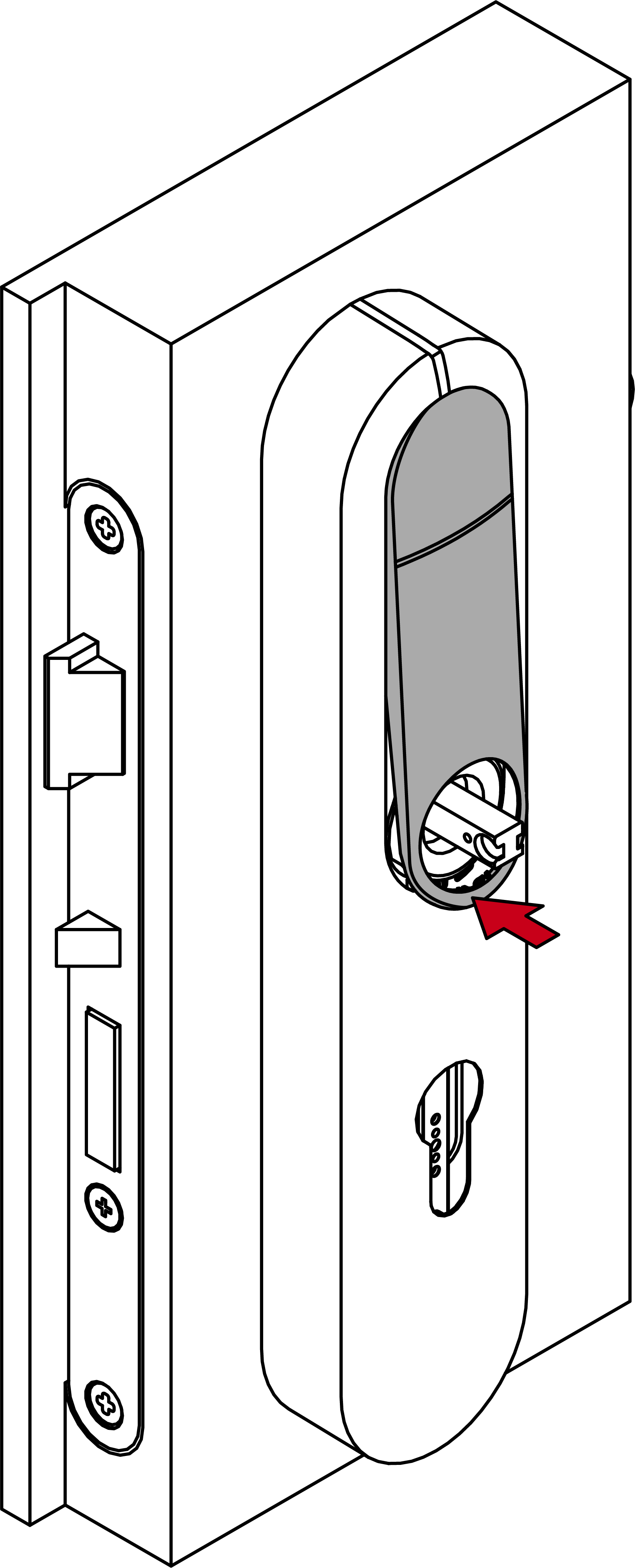

- Press the inlay into place.

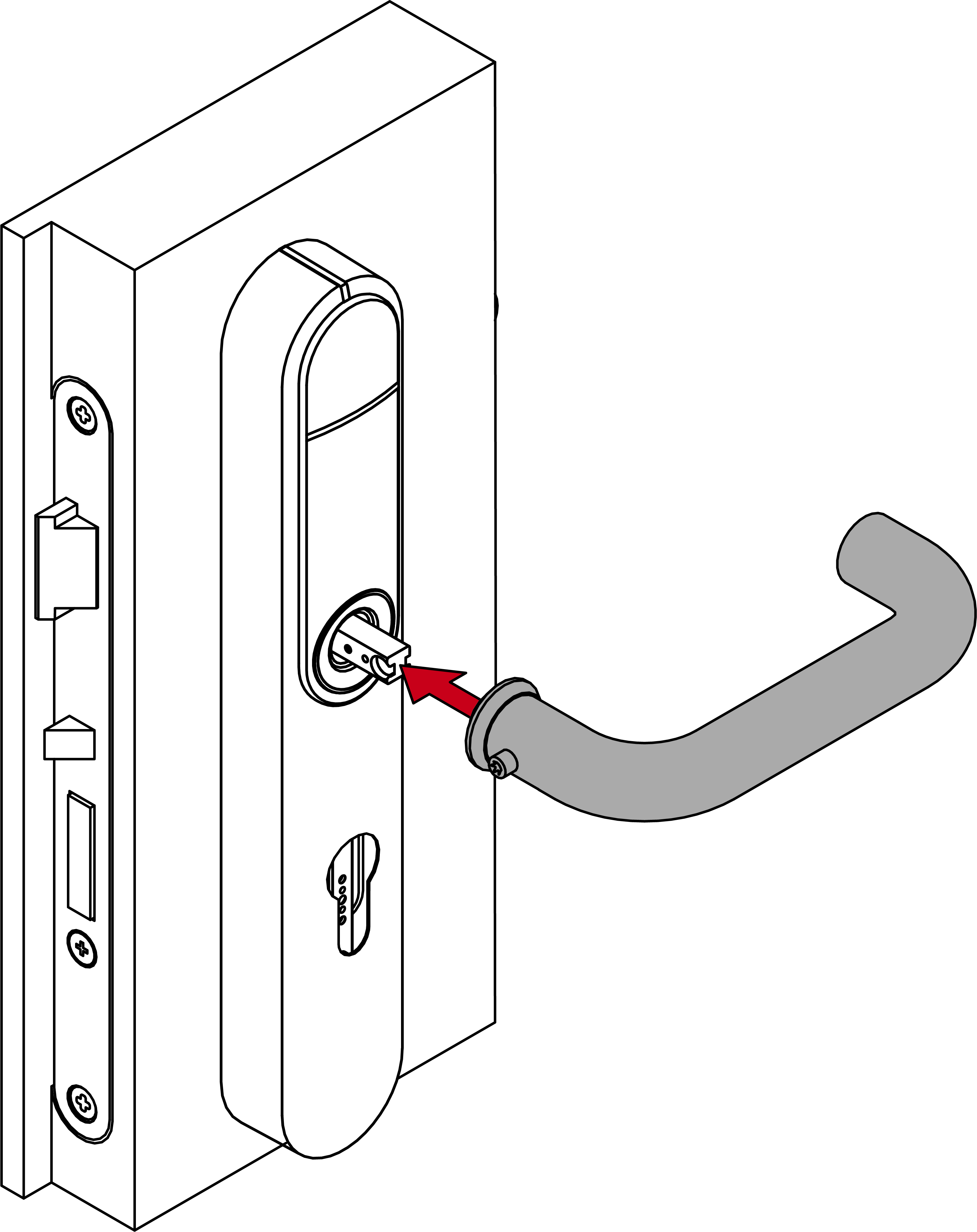

- Fit the outside handle.
- Use the grub screws to tighten both handles (TX15, torque 5.0 Nm).

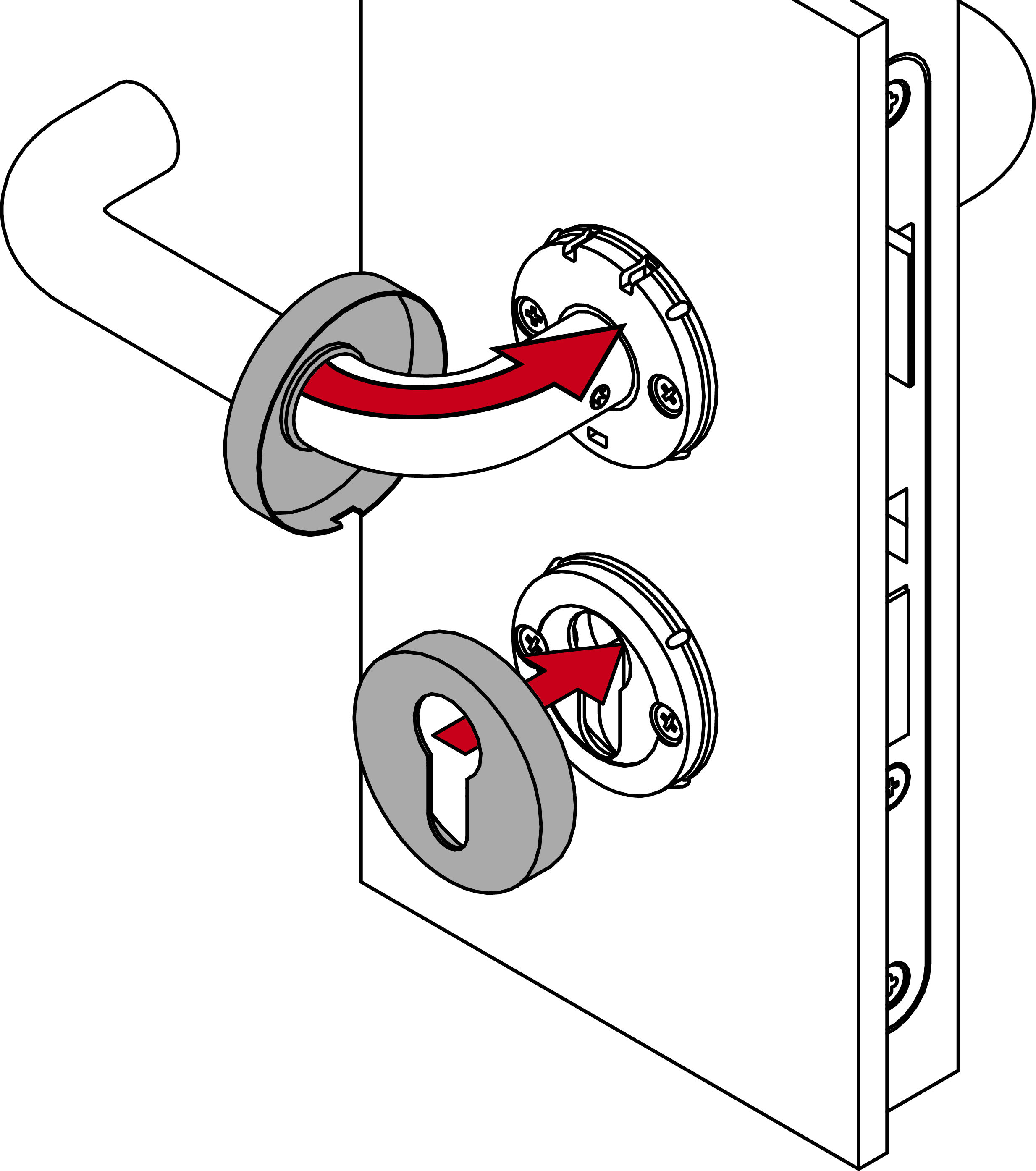

- Place both rosette covers on their respective rosettes.

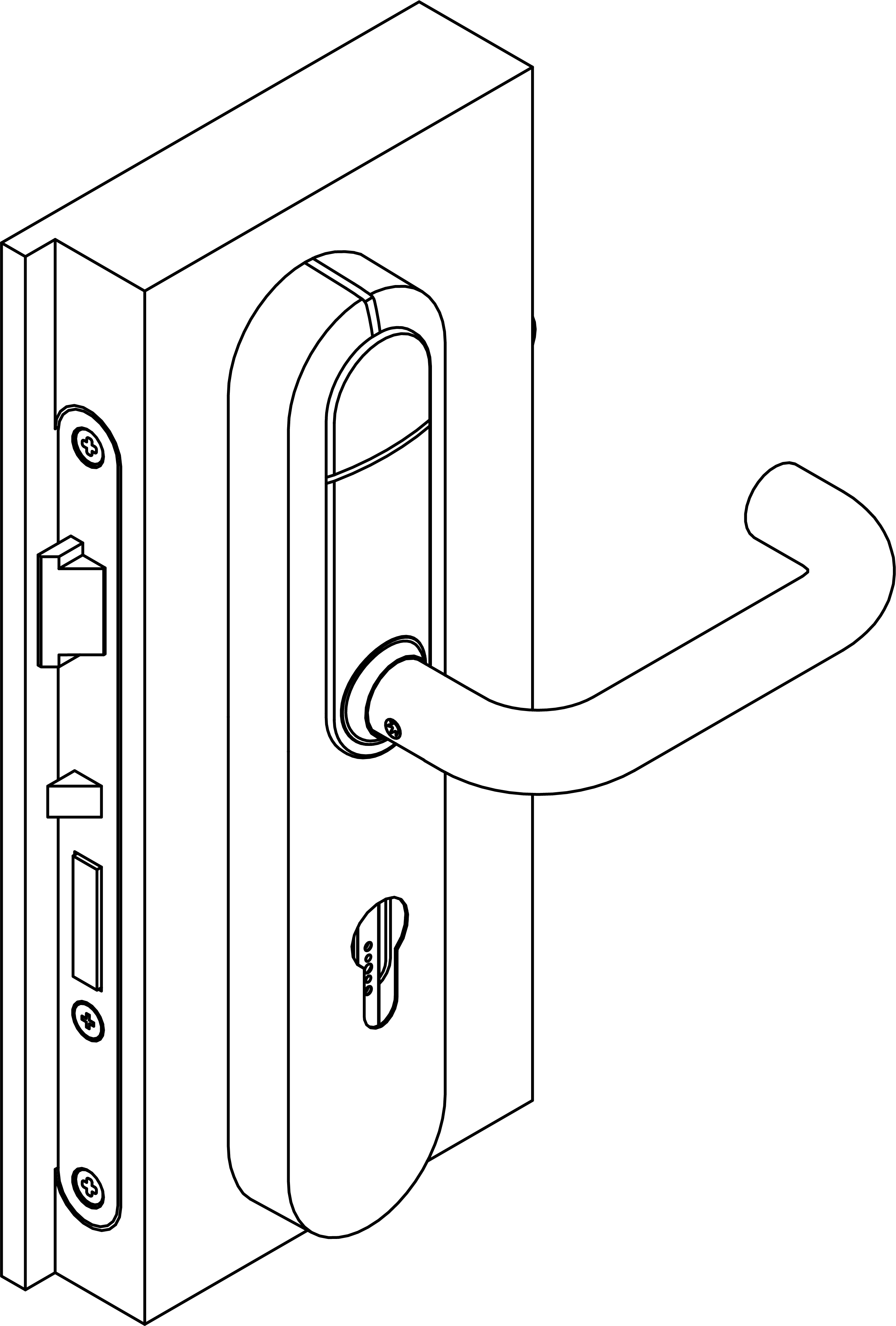

- SI SmartHandle AX Advanced fully installed.
