Installing the fitting - SmartHandle AX Advanced SmartIntego
- Door pre-drilled.
- PH2 screwdriver at hand.
- TX15 screwdriver at hand.
- Caliper gauge at hand.

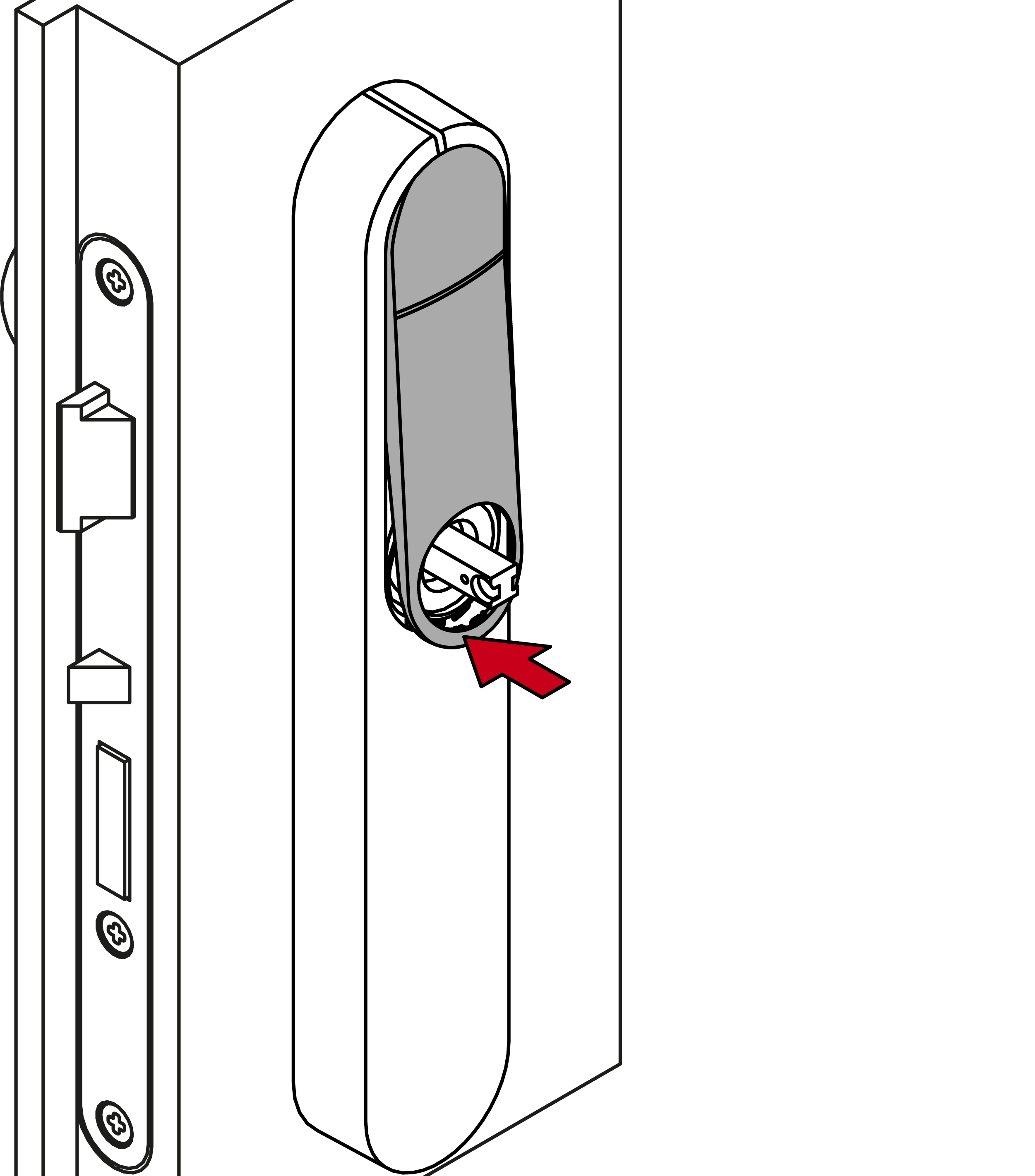

- For non-MO: insert the blank cylinder.
NOTE

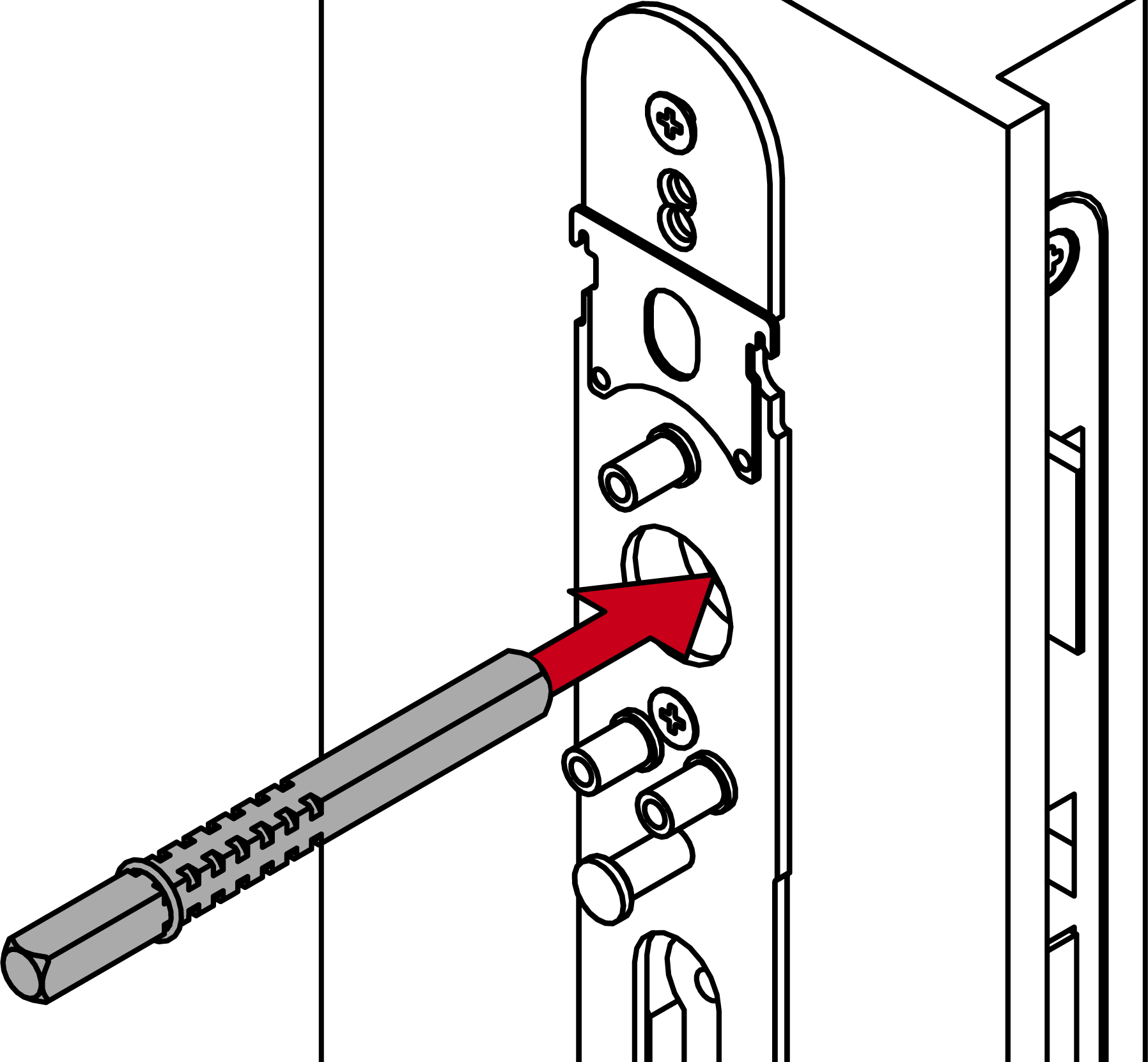

Feed the blank cylinder into the hole using a screwdriver
It is difficult to position the blank cylinder correctly, especially in thick doors.
- Insert a screwdriver into the hole in the blank cylinder.
- Position the blank cylinder using the screwdriver.
- For non-MO: screw the dummy cylinder firmly into place (PH2; torque: 1.1 Nm).
- When using a short backplate: insert the mounting disc into the smaller fastening plate.
- Insert the sleeve nuts into the smaller fastening plate (long backplate: middle/top; short backplate: middle/bottom).
- For 7 mm spindle: Insert the adapter shoe into the spindle mount on the module support.

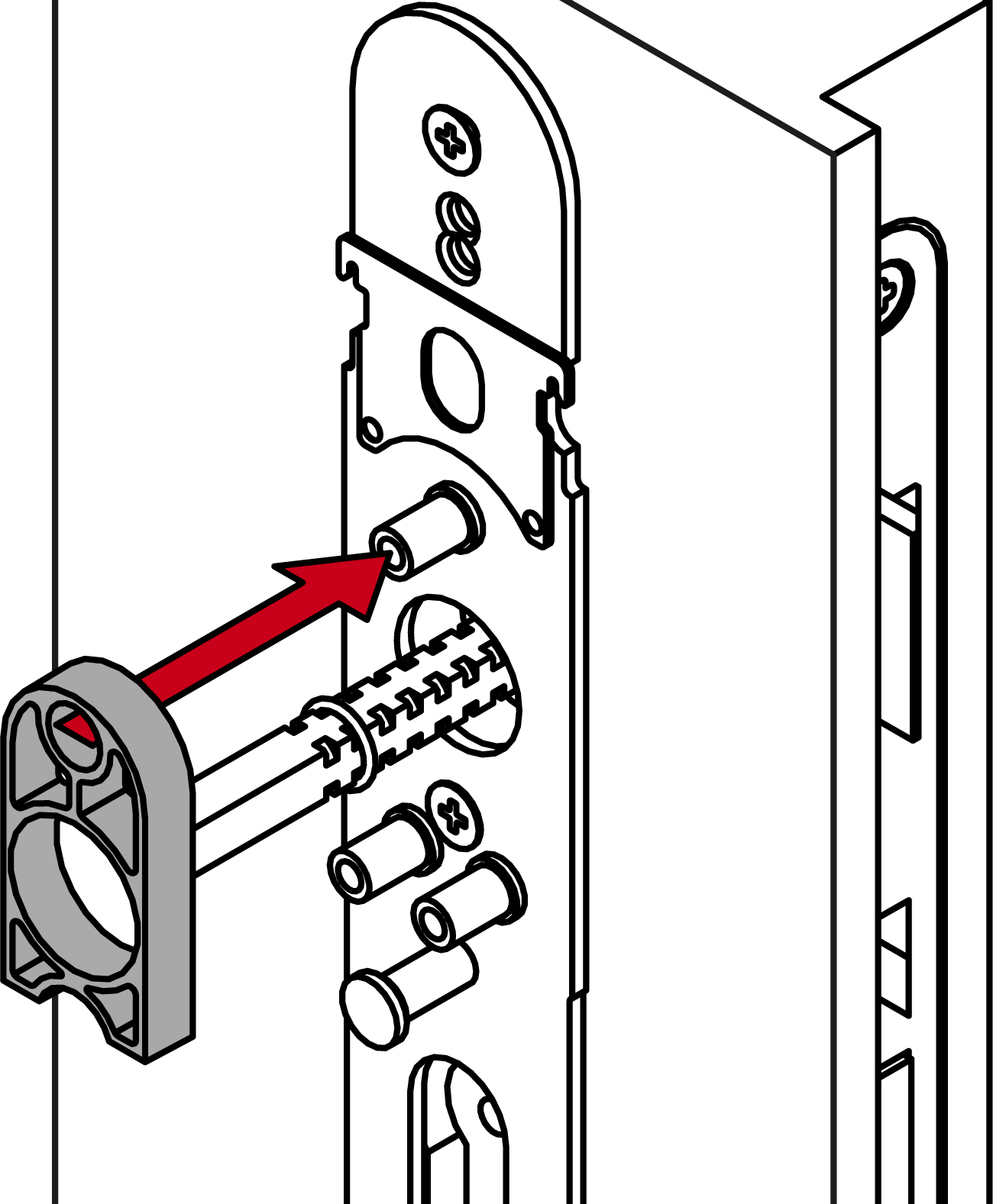

- Insert the module support into the fastening plate.

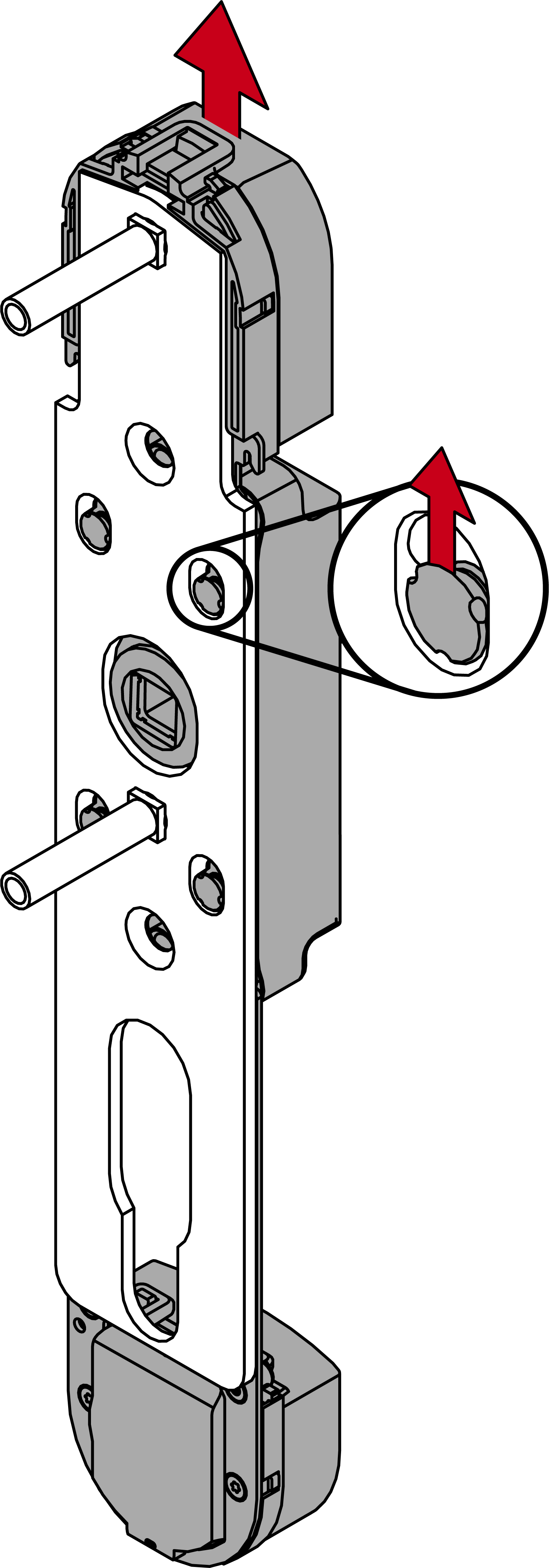

- Slide the module support upwards.
- Module support snaps into place.
- Fasten the module support to the fastening plate with the 12 mm screws (PH2, torque 3.0 Nm).

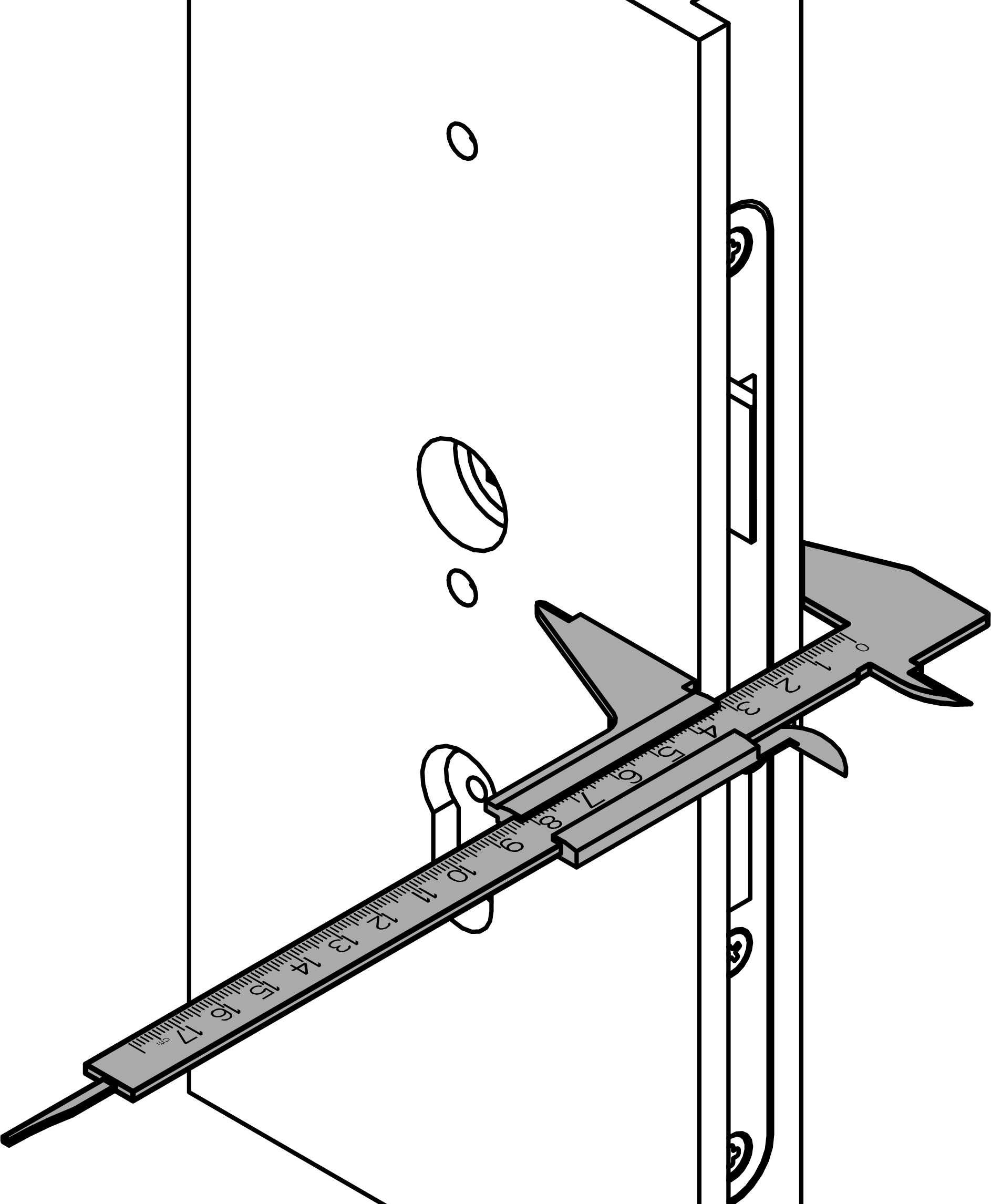

- Measure the door thickness.
Area
Door thickness (mm)
Screws
S
39 – <51
M5×35
S
51 – 61
M5×45
M
59 – <70
M5×50
M
70 – 81
M5×60
L
79 – <90
M5×70
L
90 – 101
M5×80
X
99 – 174
M5 X
- Determine what screws are required for the door thickness measured.

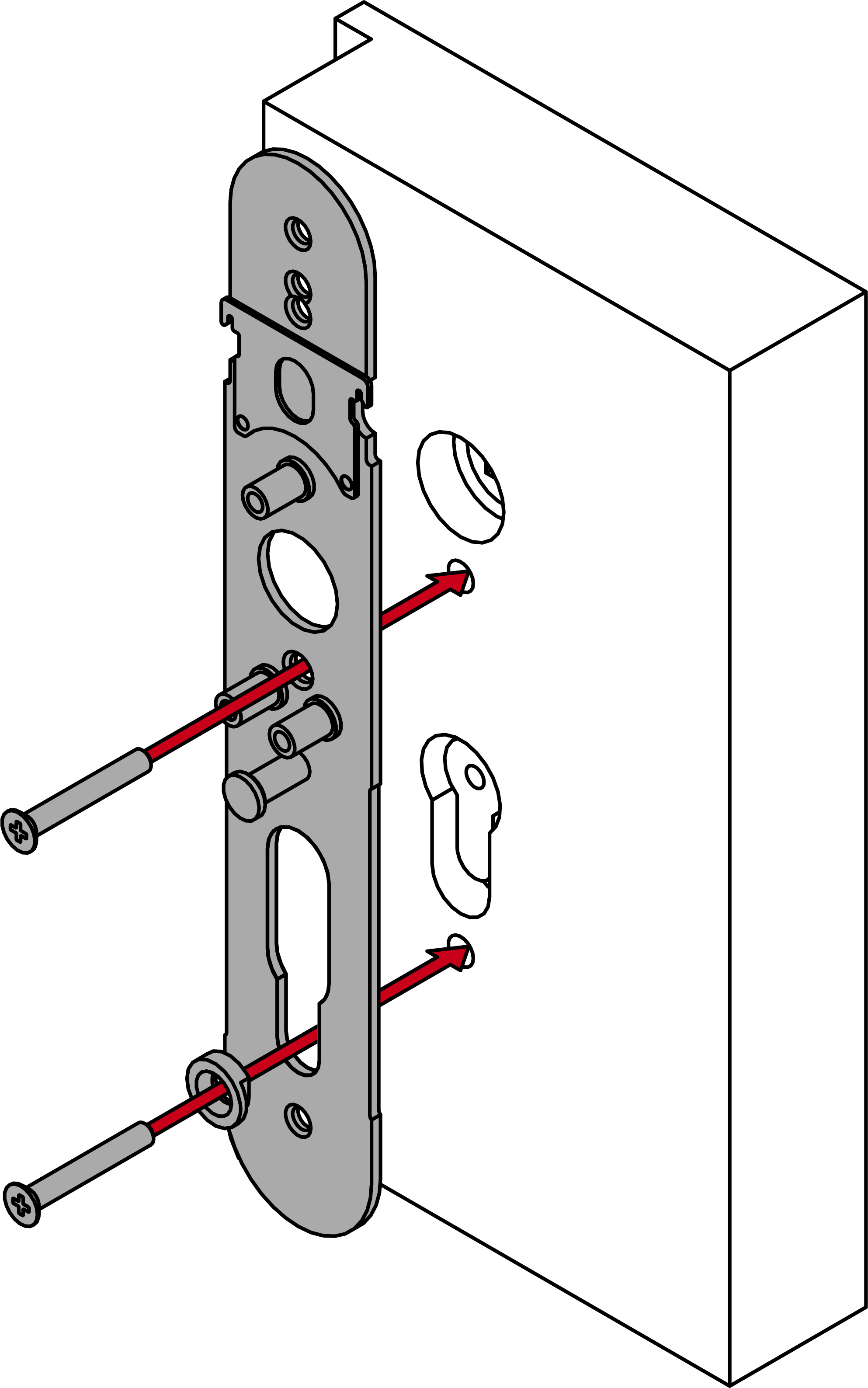

- Insert the module support with the fastening plate into the outer side of the door.
- When using a short backplate: insert the mounting disc into the larger fastening plate.

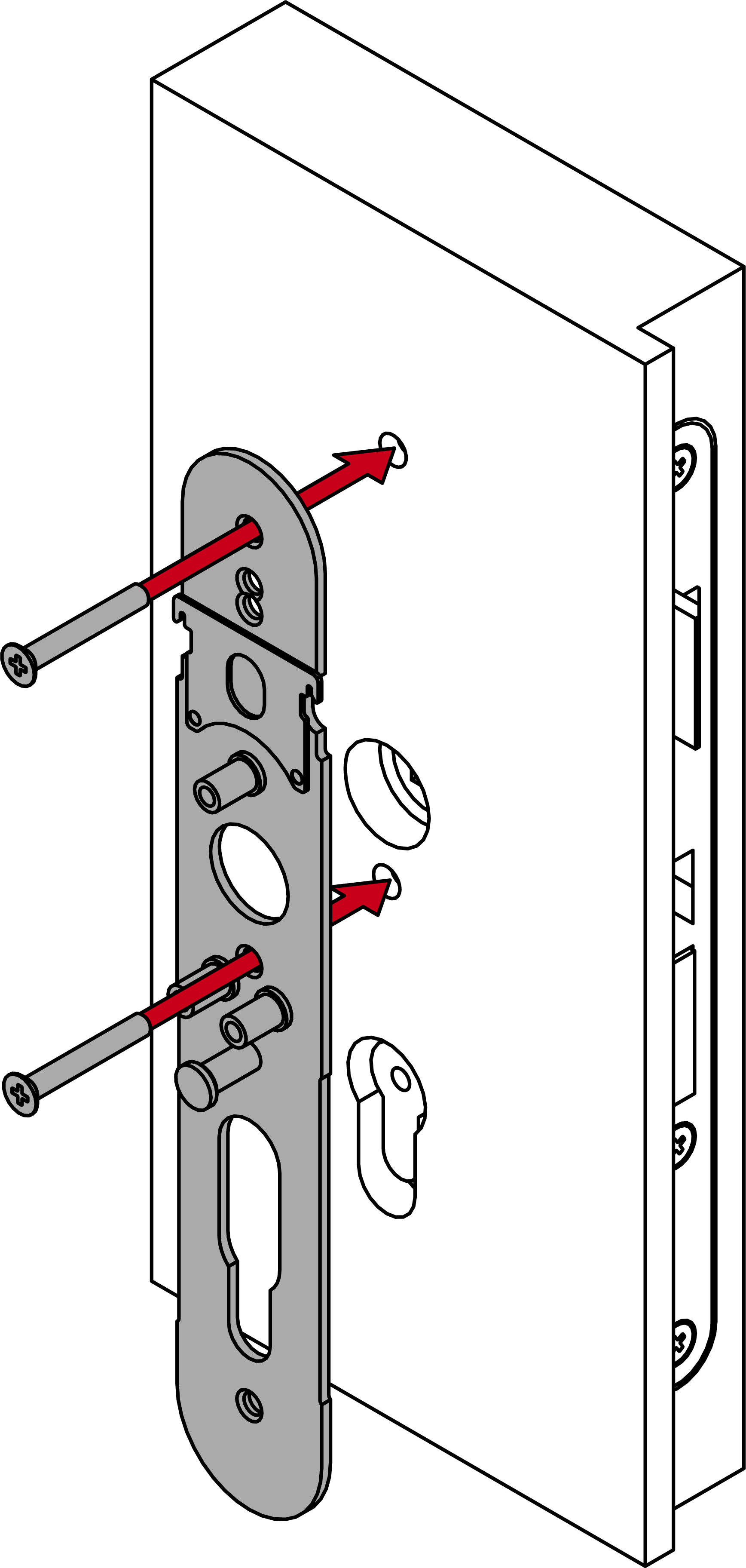

- When using X: insert the screws through the larger fastening plate and screw them together with the threaded sleeve and threaded rod.
- Use the screws provided to fix the larger fastening plate onto the module support with the smaller fastening plate (PH2; long backplate: middle/top; short backplate: middle/bottom; torque: 1.1 Nm).
- For 7 mm spindle: Place the adapter sleeve in the inside handle in such a way that the recess faces the grub screw.
- Determine the required direction of rotation for your inside handle.
- Insert the spring element appropriately.
- For 8.5 mm and 10 mm spindle: slide the adapter sleeve into the centre of the spindle. Use a punch and hammer to make an indent in the adapter sleeve to prevent it from slipping.
- Measure the total length of the spindle.
- Locate the inside of the spindle (four-edge end up to the centre of the first groove = 26 mm).
- Use the table to determine the position of the O-ring.
Area
Door thickness (mm)
Spindle length (mm)
Ring position
S
39 – <43
104
3
S
39 – <43
114
5
S
43 – <48
104
2
S
43 – <48
114
4
S
48 – <53
104
1
S
48 – <53
114
3
S
53 – <58
114
2
S
58 – 61
114
1
M
59 – <63
124
3
M
59 – <63
134
5
M
63 – <68
124
2
M
63 – <68
134
4
M
68 – <73
124
1
M
68 – <73
134
3
M
73 – <78
134
2
M
78 – 81
134
1
L
79 – <83
144
3
L
79 – <83
154
5
L
83 – <88
144
2
L
83 – <88
154
4
L
88 – <93
144
1
L
88 – <93
154
3
L
93 – <98
154
2
L
98 – 101
154
1
XL
99 – 174
O-ring is 30–35 mm from the cut end of the spindle.
- Slide the O-ring onto the calculated groove.
- Insert the spindle into the door with the ring-free side as far as it will go.
- Place the filling profile on the larger fastening plate.

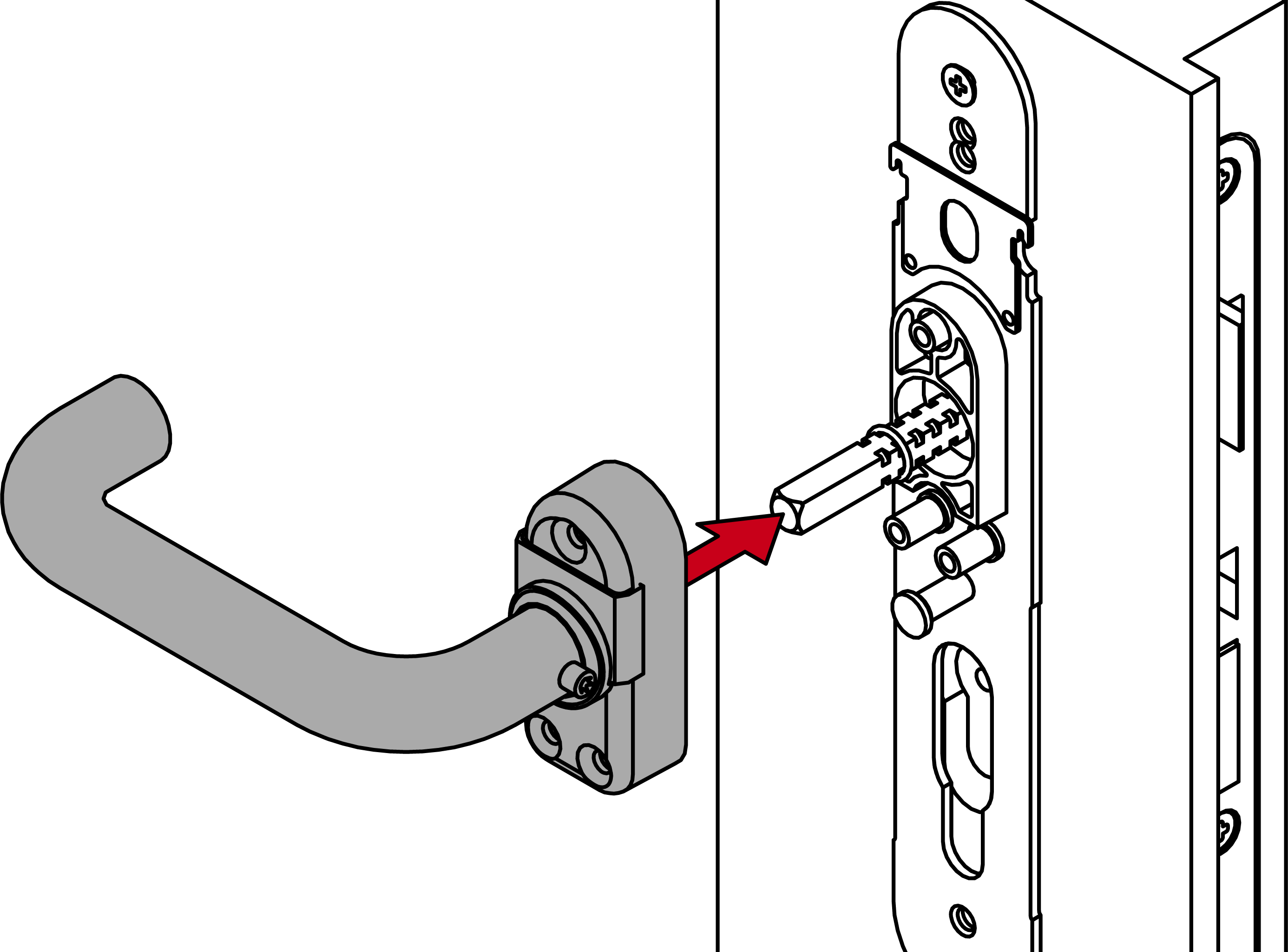

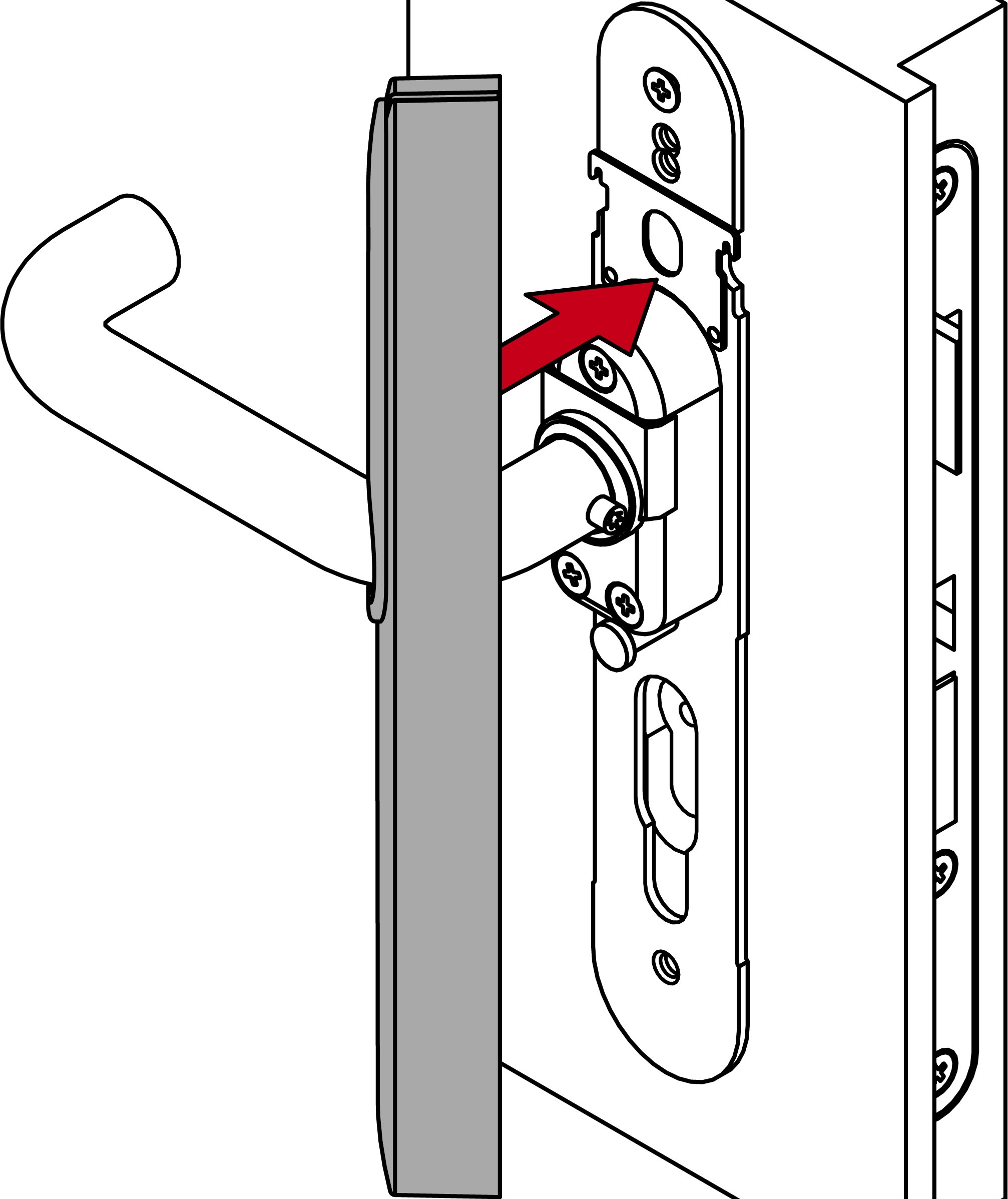

- Place the inside handle unit on the spindle.

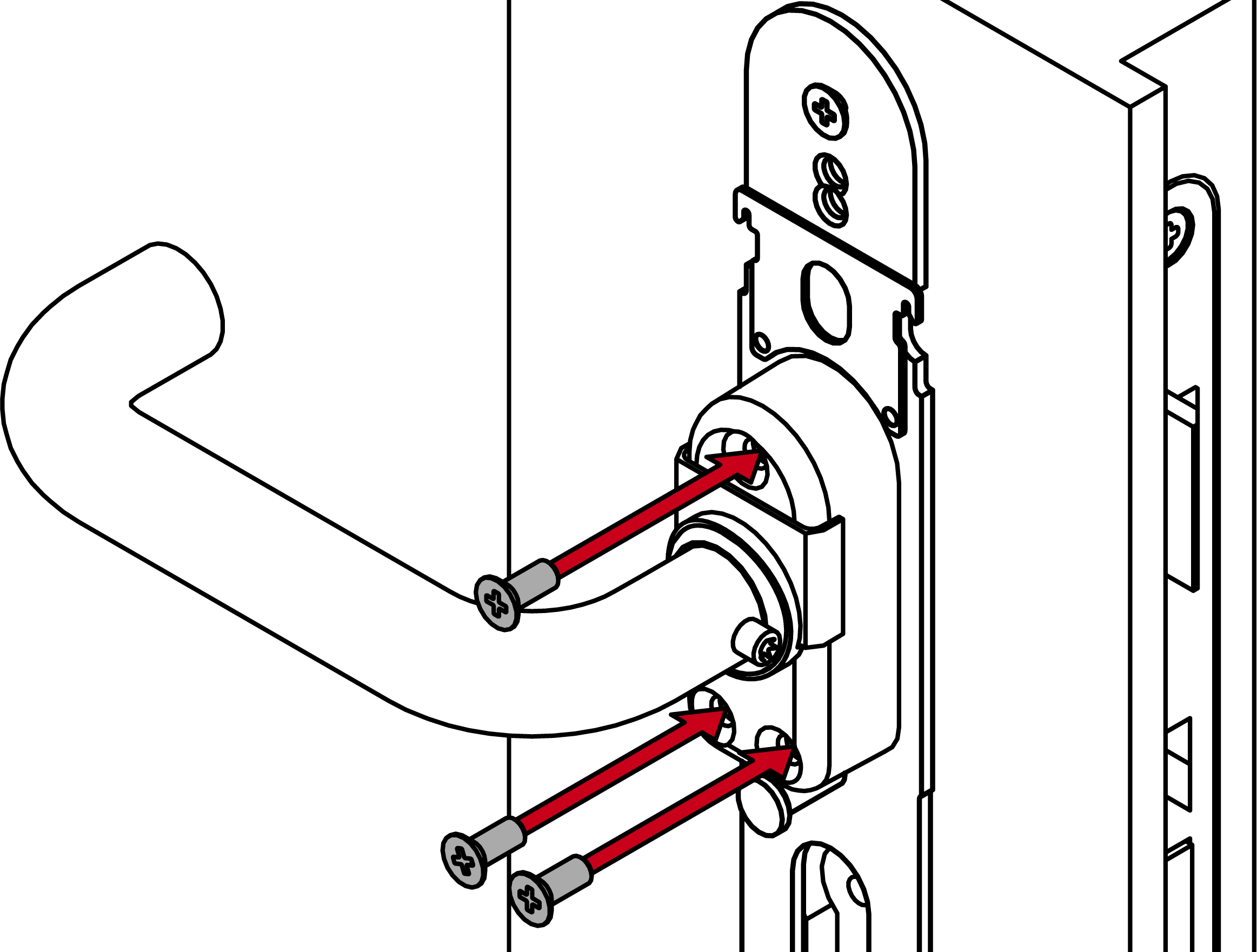

- Use the 12 mm screws to fix the inner handle unit onto the fastening plate (PH2; torque: 3.0 Nm).
- Fit the cover for the outer side as follows:
- Place the cover on top of the fastening plate.
- Fold down the cover.
- Push the cover against the door, sliding it upwards at the same time.
- Cover snaps into place.
- Press the inlay into place.
- Fit the cover for the inner side as well.
- Fit the outside handle.
- Use the grub screws to tighten both handles (TX15, torque 5.0 Nm).

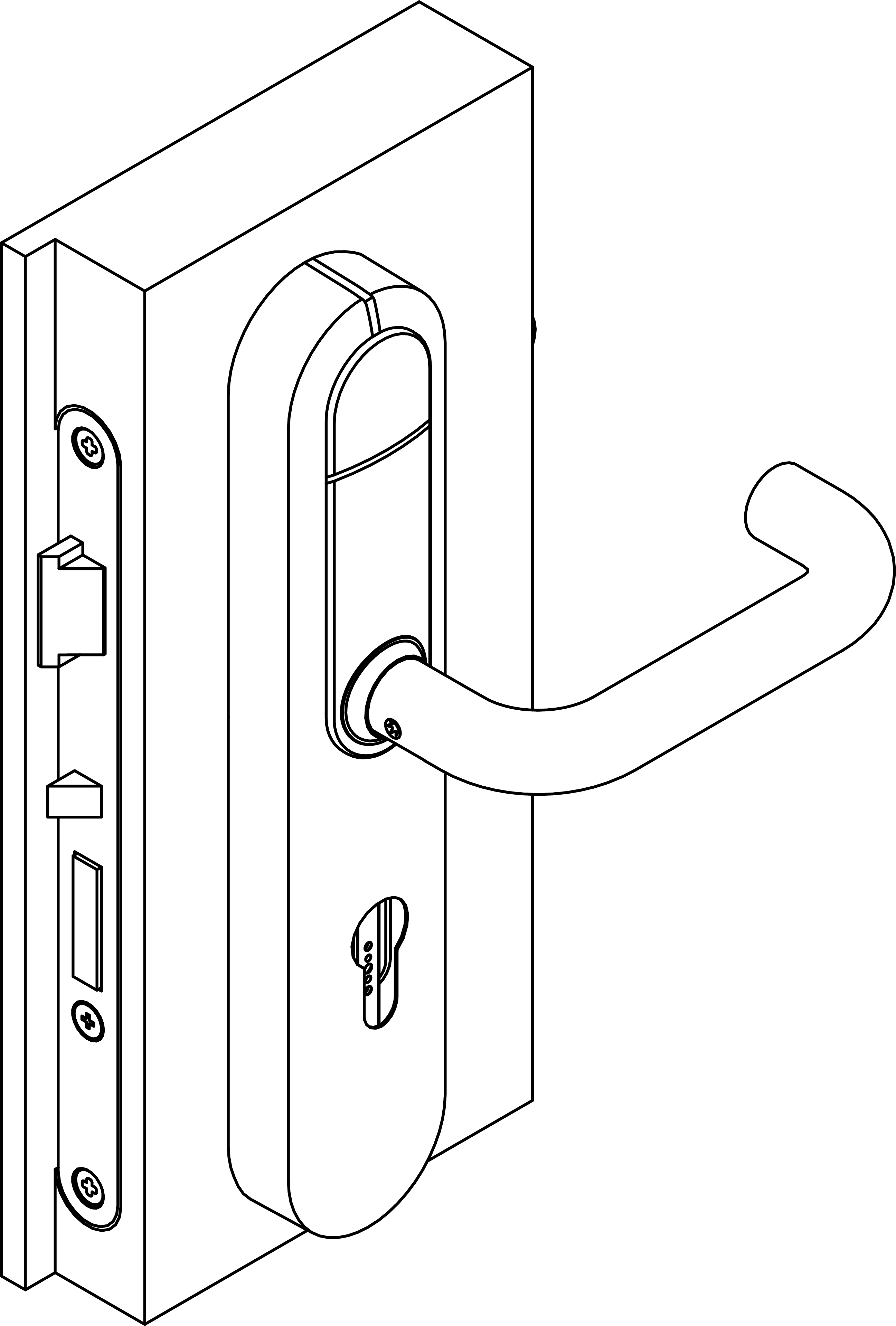

- SI SmartHandle AX Advanced fully installed.
