Tool - System description SVCN

Installation

Battery replacement

Tools required:

  • Initial installation of Comfort variant without special tool
  • Further installation of the Comfort variant with special tool (in photo)
  • Installation of other variants with special tool
  • Always remove with special tool

Tools required:

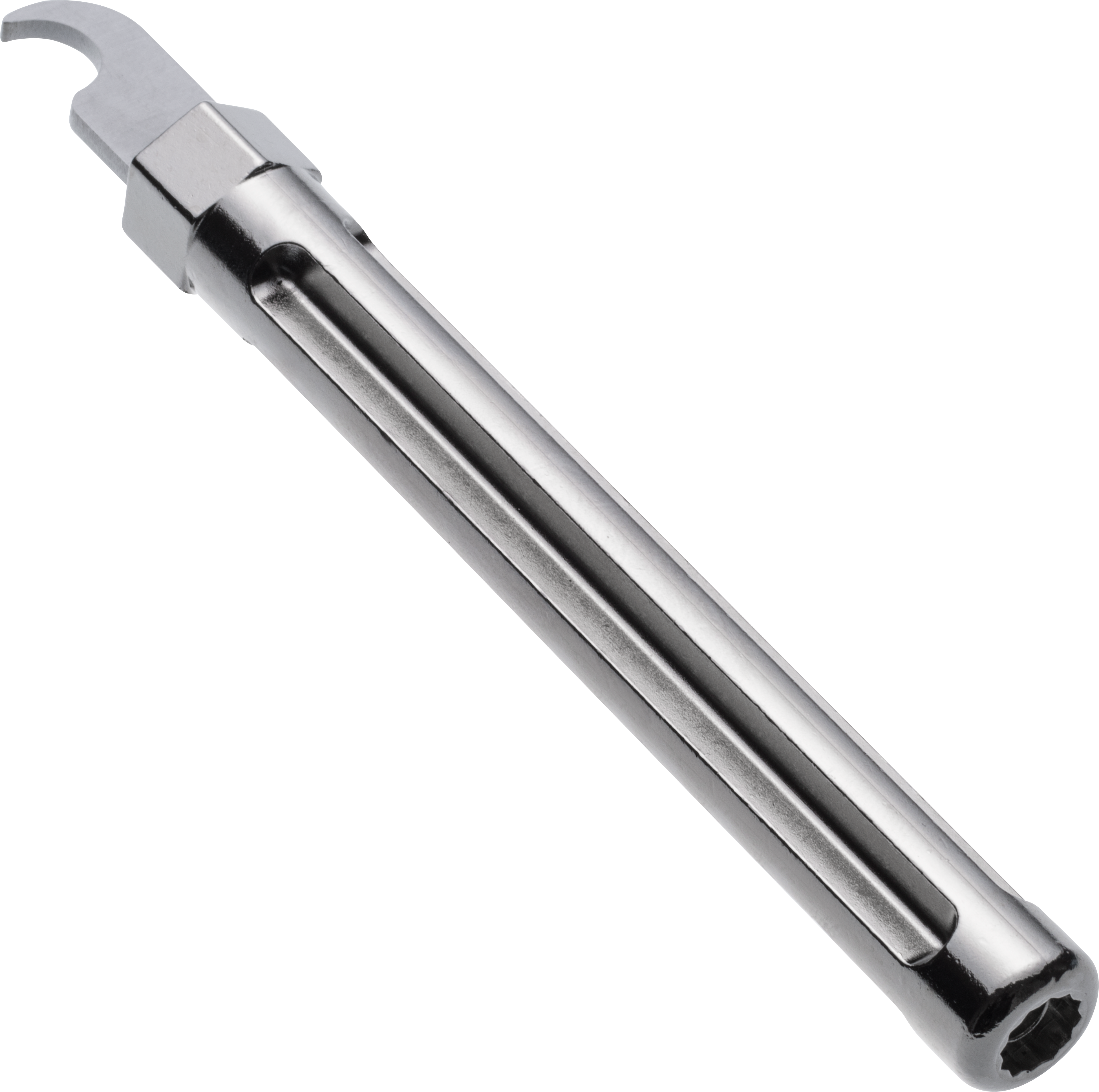

  • Special tool (in photo)

The special tool shown can be obtained using order code Z5.TOOL.

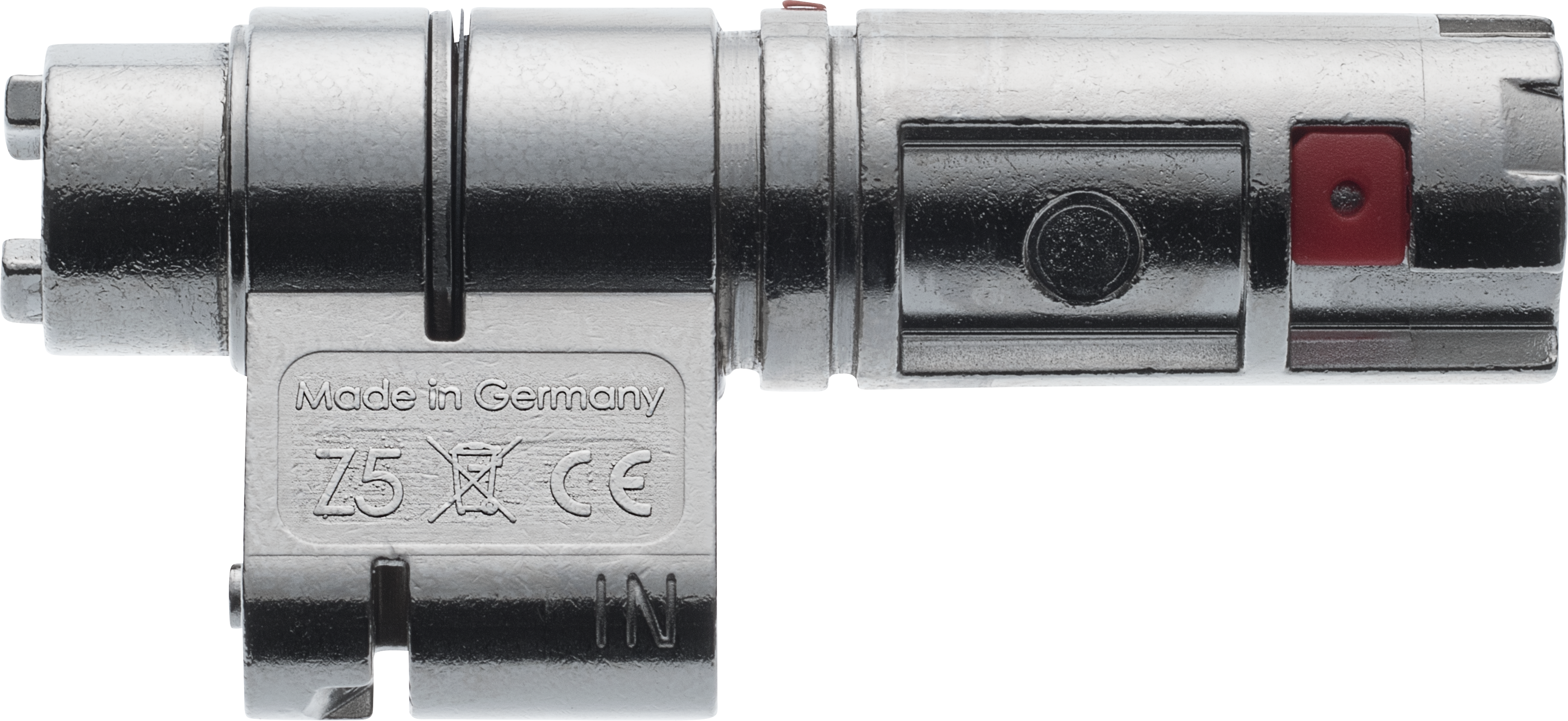

The Euro Profile cylinder is modular (length modularity). Additional tools and components are required to change its length (for details see manual on length modularity):

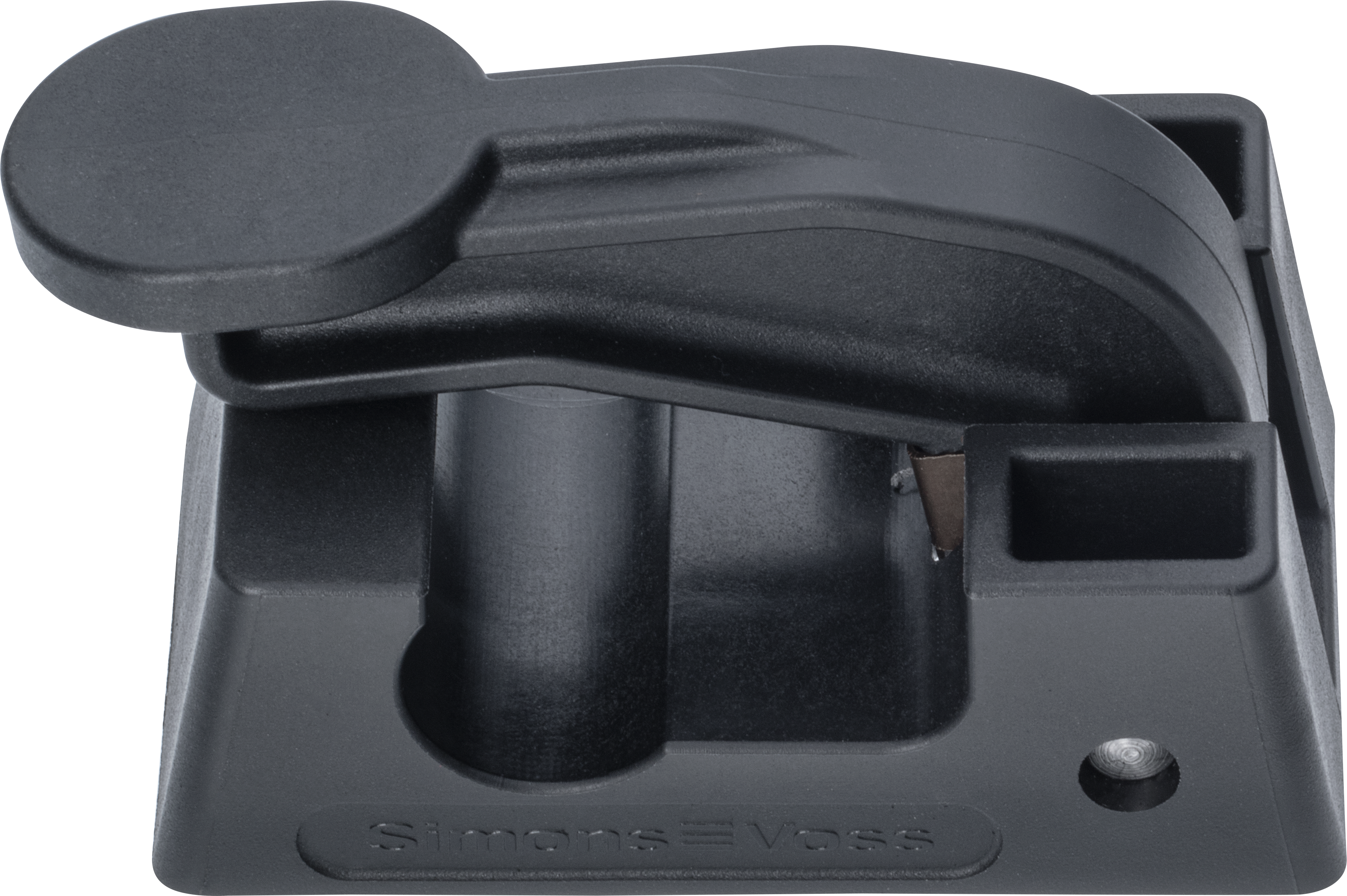

Lifter (Z5.LIFTER)

Spacer (Z5.SPACER)

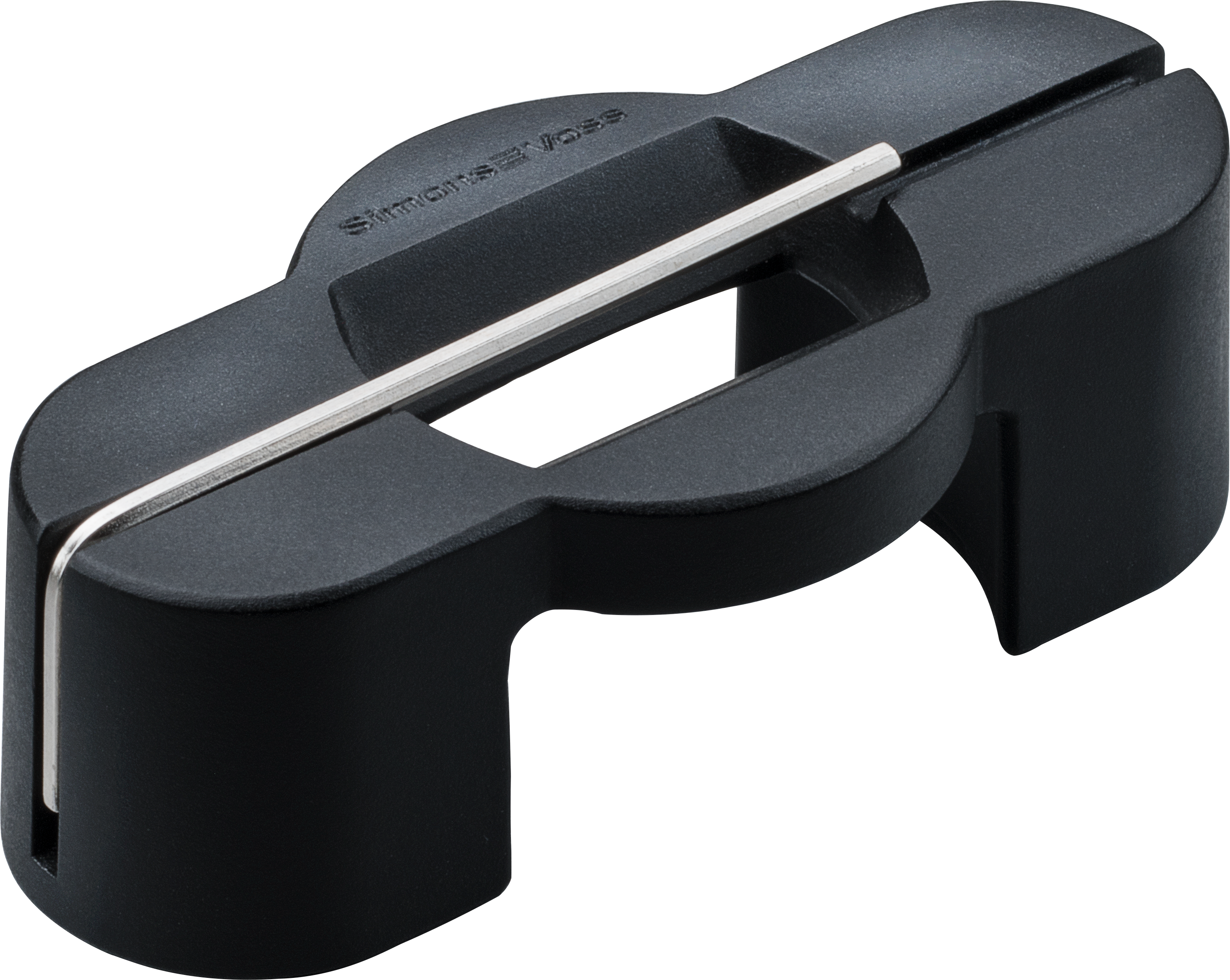

Terminal block (Z5.BLOCK)

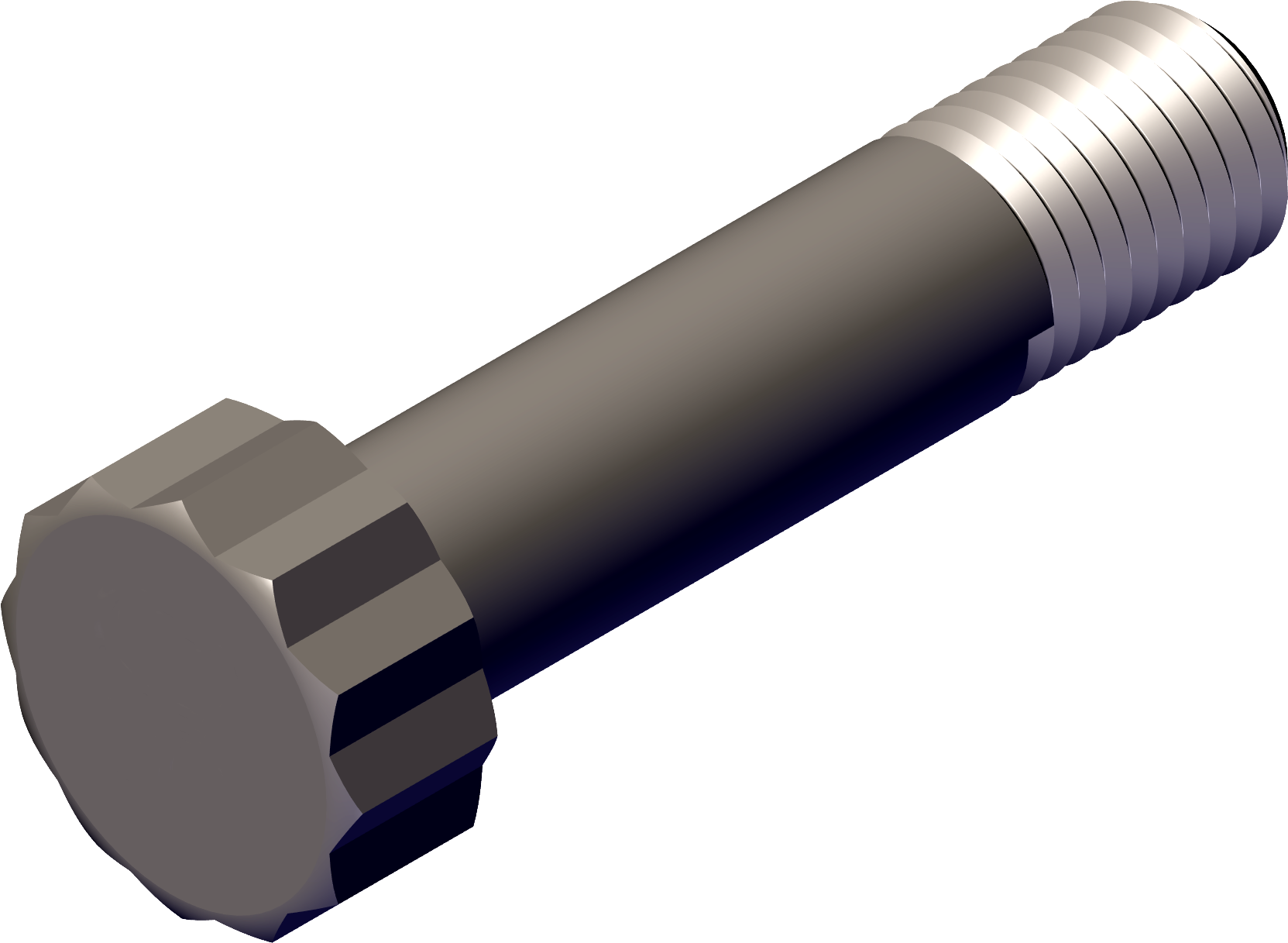

Extension bolt

Core extension for the profile

Profile extension

  • Z5.BOLT.XX (XX = required basic length)

  • Z5.CORE.05: 5 mm
  • Z5.CORE.10: 10 mm
  • Z5.CORE.20: 20 mm

  • Z5.PROFILE.05: 5 mm
  • Z5.PROFILE.10: 10 mm
  • Z5.PROFILE.20: 20 mm

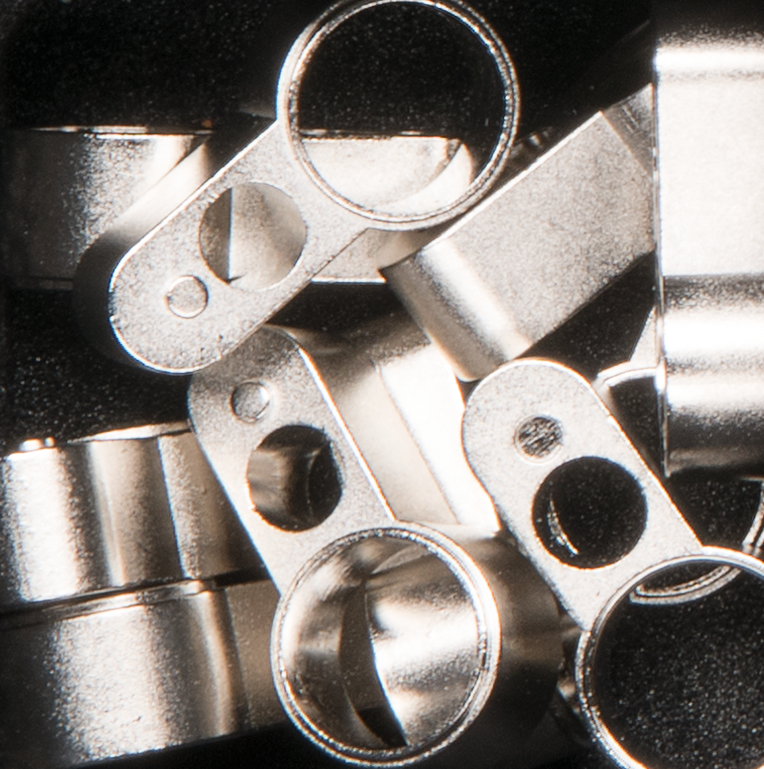

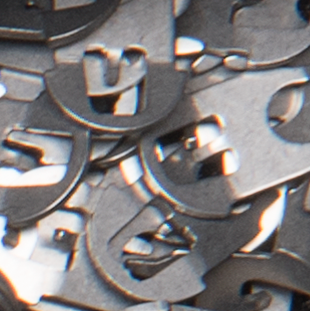

Clamps

  • Z5.CLAMPS

Set contains 50 units.

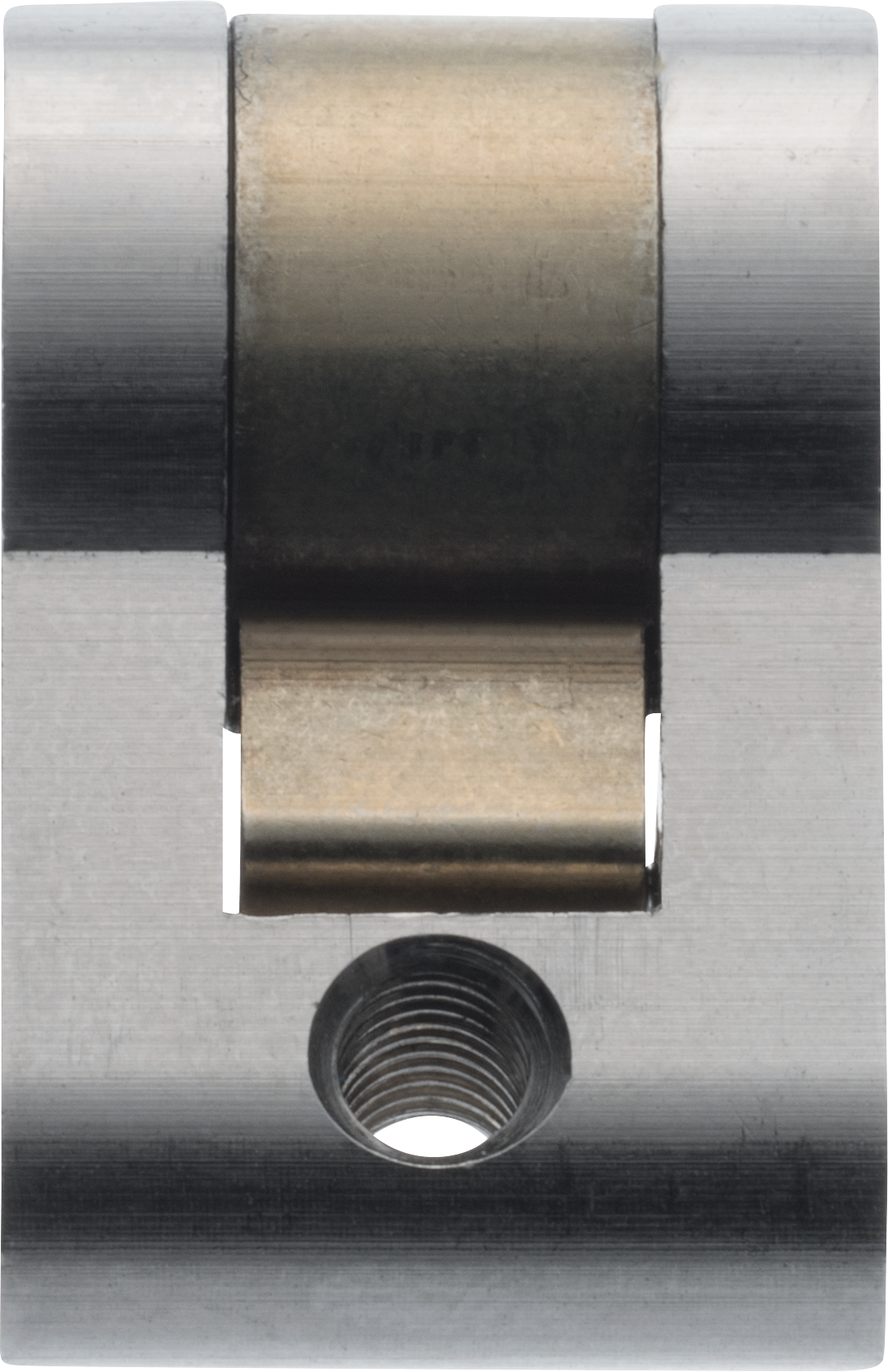

Cylinder centre piece

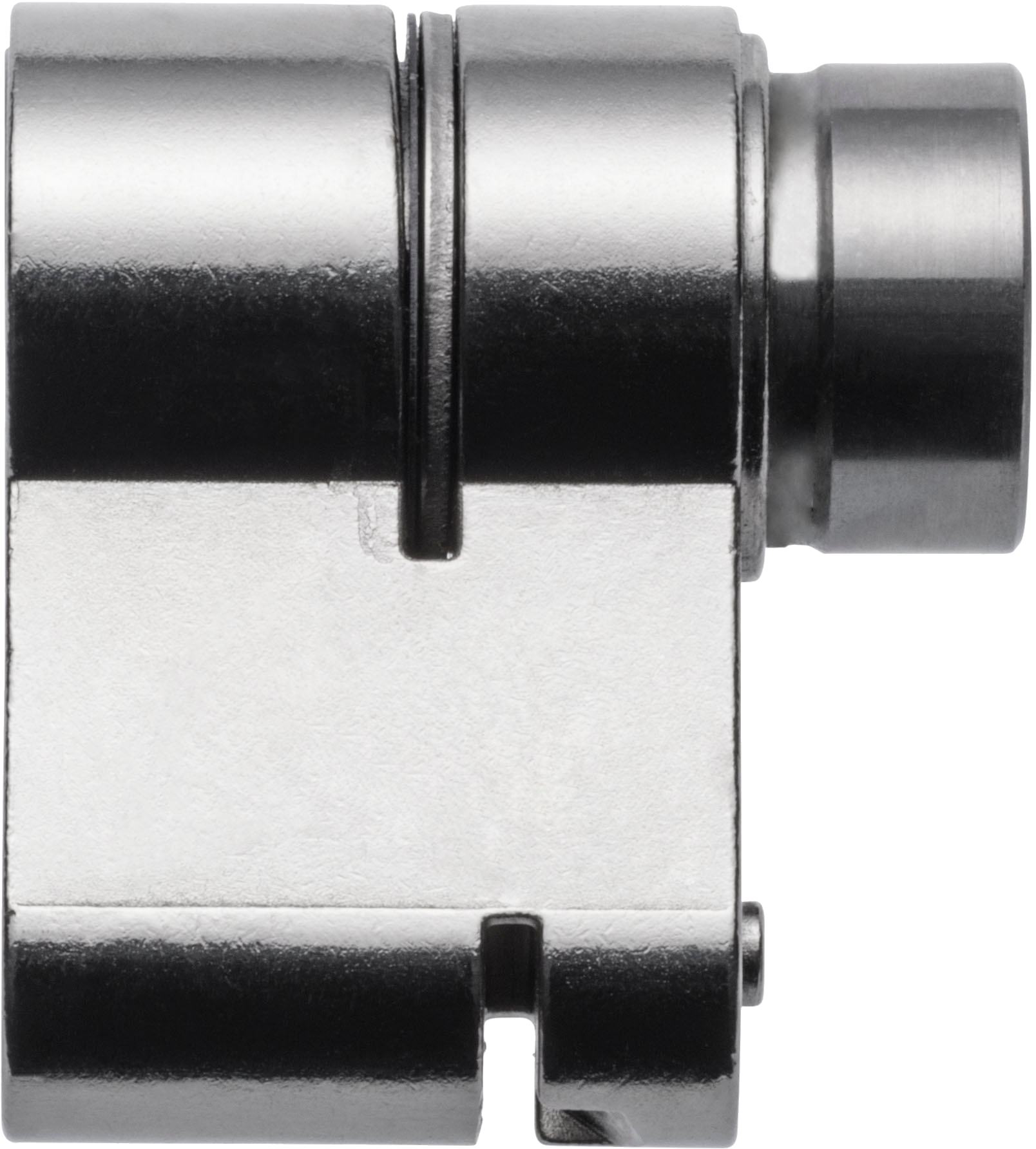

Half cylinder centre piece

Half cylinder centre section with multi-point

  • Z5.CNT.EU

  • Z5.CNT.HZ

  • Z5.CNT.HZ.MR

Inner thumb-turn mount

Inside blank profile without thumb-turn

Thumb-turn mount for glass door thumb-turn

  • Z5.PR.IN

For .OK variant

  • Z5.PR.OK

Profile length 30 mm (extensible)

  • Z5.PR.GD
