Structure - System description SVCN
Locking cylinders basically consist of two halves:
Master (Central Unit = CU) | Slave |
|---|---|
Thumb-turn cannot be removed. | Knob can be removed for installation. |
Identifier: Black ring between thumb-turn and profile cylinder. |
Locking cylinders consist of several parts:

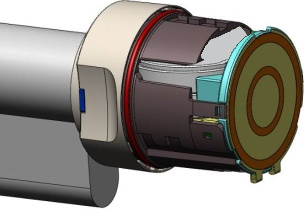

| Control Unit (CU): Assembly under the battery compartment of the master knob |

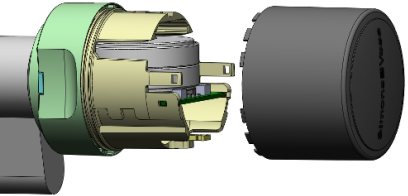

| Card reader (Card Reader = CR): Master reader (for cylinders which can be read on both sides (FD and BL): additional slave reader) |

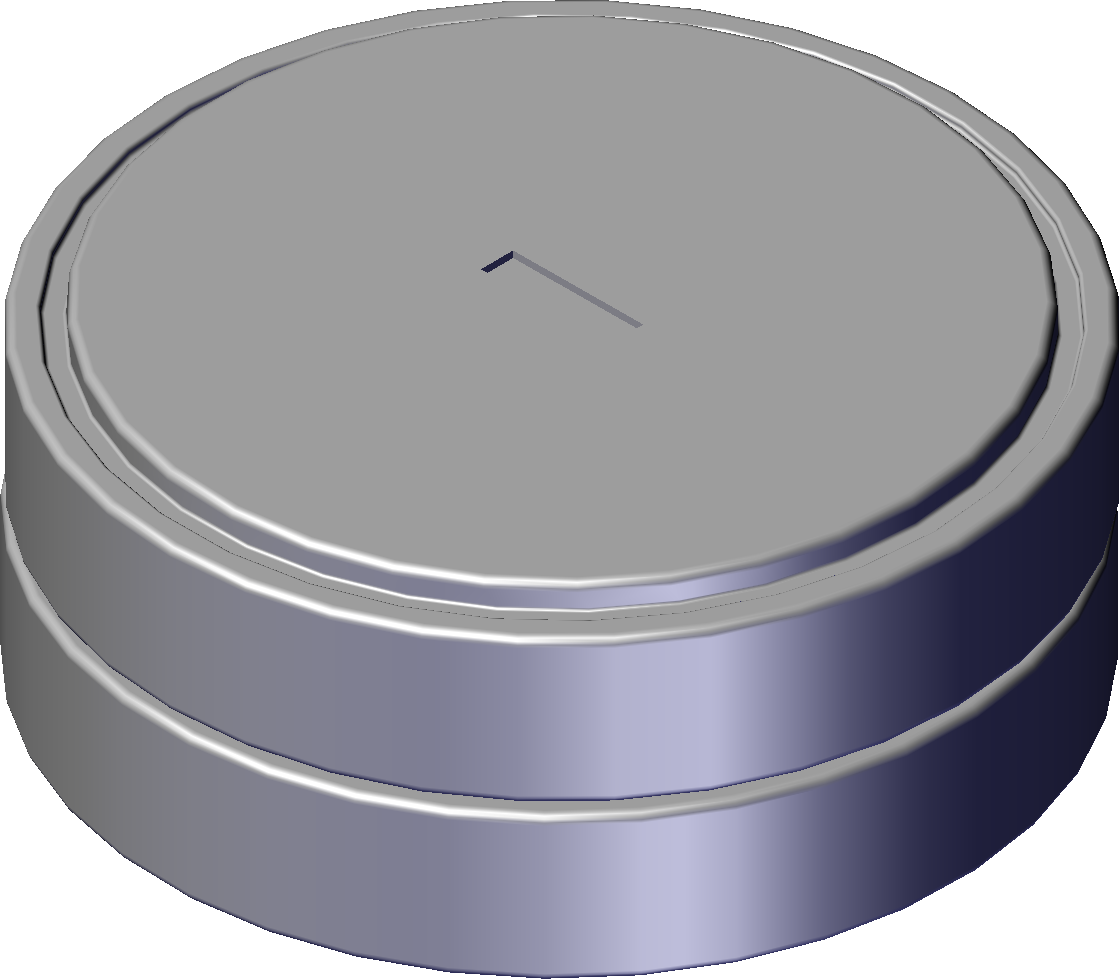

| Batteries in the battery compartment of the master knob |
The locking cylinder should always be installed with the inner side inside. You will find the marking on the inside:
- In the dimensional drawings (see Dimensional drawings cylinder)
- On the profile housing (IN)
Comfort (CO) | Page | Behaviour (disengaged state) | Components | Batteries |
|---|---|---|---|---|
Master | Outside | Freely rotating |
| 2 |
Slave | Inside | Permanently engaged | No electronics | None |
Anti-panic freely rotating (AP2 FD) | Page | Behaviour (disengaged state) | Components | Batteries |
|---|---|---|---|---|
Master | Outside | Freely rotating |
| 2 |
Slave | Inside | Engage not possible | No electronics | None |
