Tasks - Locking cylinder (Z4) DoorMonitoring

A task is a pre-defined job within LSM which the system is to carry out automatically. Such a task can be defined for one or more locking devices. The system can be configured in such a way that the tasks should be performed at a specific time or on a periodical basis.

These functions require that the system can be reached at all times. That is why they are only available in LSM Business with the LSM.Online module.

The tasks are set with priorities, so urgent tasks are performed first. You can determine the performance modalities (times, periods and type of task) using the menu item on the user interface. You can find more information in the 'LSM online' manual.

Two different tasks can be configured for the DM Cylinder, which are described in detail below:

  • Configure DM Cylinder
  • Read DM Cylinder

Task: DM Cylinder configuration

  1. CommNode server installed and launched

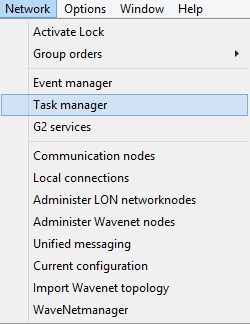

  2. Launch Task Manager by selecting 'Network' » 'Task manager'
  4. Create a task by clicking on [New]
  6. Assign a name to the tasks
  7. Select the type of task, e.g. 'Configure DoorMonitoring'
  8. Set the repeat interval

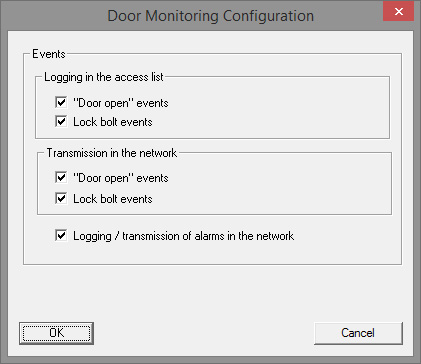

  10. Click on [Options] for other settings
  11. Logging 'Door open' events
  12. Logging of dead bolt events
  13. Forwarding of 'Door open' events
  14. Forwarding of dead bolt events
  15. Event logging/forwarding of alarms in the network
  17. Click on [Edit] in the 'Locking devices/network nodes' section

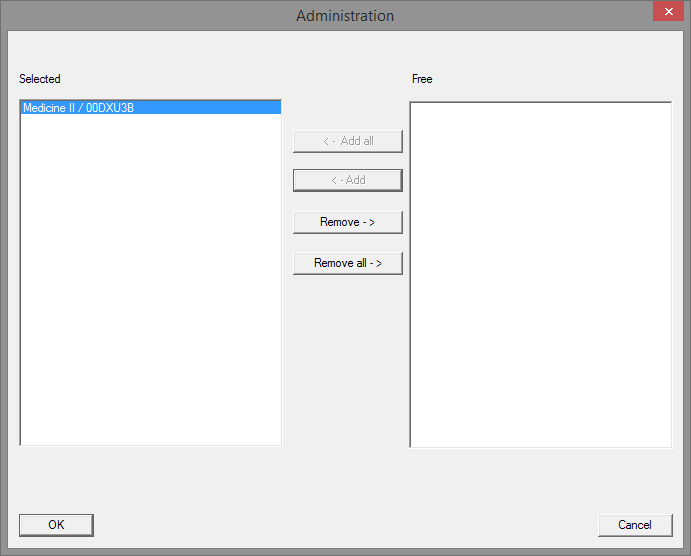

  18. Door administration will open. This is where you select the doors for the task
  19. Click on [OK] to exit the task menu
  20. Click on [Finish] to exit Task Manager
  21. Confirm the prompt by pressing 'Yes' if the configuration is to be forwarded directly
  22. Acknowledge the prompt by pressing 'No' if you would like to forward the configuration manually at a later stage using the 'Communication node' menu
  1. The task has been set up completely
