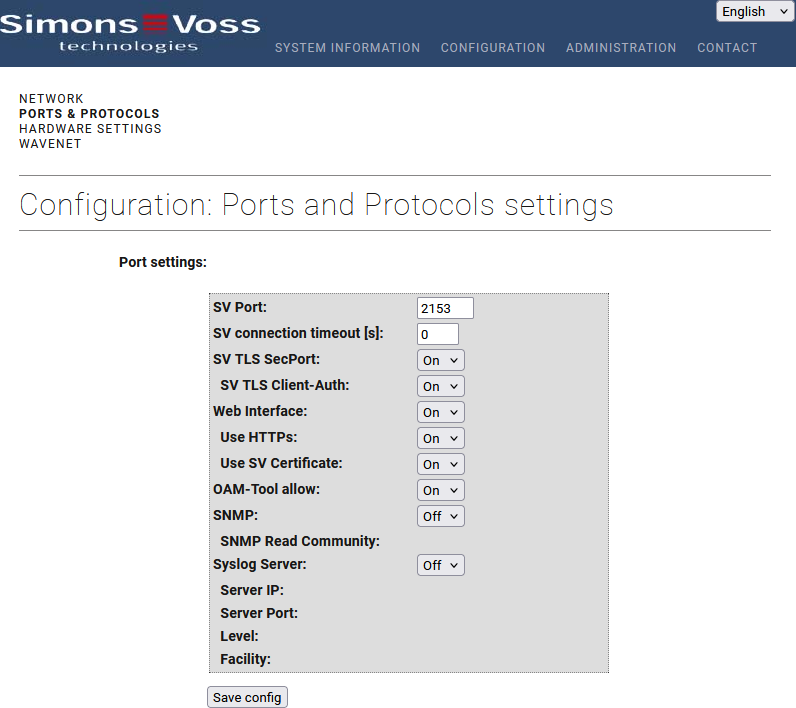

Port and protocol settings - GatewayNode 3

SV port:

TCP port through which the embedded WaveNet server may be addressed, for example by a client with WaveNet Manager.

Default value: 2101 (2153 with TLS SecPort enabled).

Do not change this setting; otherwise, the software on the client will no longer be able to communicate with GatewayNode 3.

SV time-out [s]

Timeout of the TCP connection to the embedded WaveNet server.

Default value: 0.

SV TLS SecPort

On/Off – Enables/disables TLS encryption for the embedded WaveNet server.

Default value: Off. For more information, see Enable TLS encryption.

SV TLS Client Authentication

On/Off – Enables/disables TLC client authentication for the embedded WaveNet server.

Default value: Off. For more information, see Enable TLS encryption.

Web Interface

On/Off - Enables/Disables the embedded web server GatewayNode 3that provides the configuration interface.

Default value: On.

Use HTTPS

On/Off - Enables/disables HTTPS for the GatewayNode 3 embedded web server. The configuration interface can then only be accessed with an HTTPS connection, depending on the setting.

Default value: On.

Use SV certificate

The 'On/Off' setting determines whether the connection to the embedded web server should use the GatewayNode 3 standard or a custom certificate.

Default value: Off. This is normally only enabled once the TLS connection to the software using your own certificates has been fully set up. This prevents lockout due to faulty certificates.

Enable OAM tool

On/Off - Enables/disables the protocols required for the GatewayNode 3 to be found on the local area network (LAN) using hostname.

More information; see Determine IP address with hostname.

SNMP

SNMP read community

On/Off - Enables/disables the GatewayNode 3 embedded SNMP agent.

Default value: Off. More information; see Enable SNMP.

Syslog server

Server IP

Server port

Level

Facility

On/Off – Enables/disables the GatewayNode 3 embedded Syslog agent.

Default value: Off. For more information, see Enable Syslog.
