WaveNet - GatewayNode 3

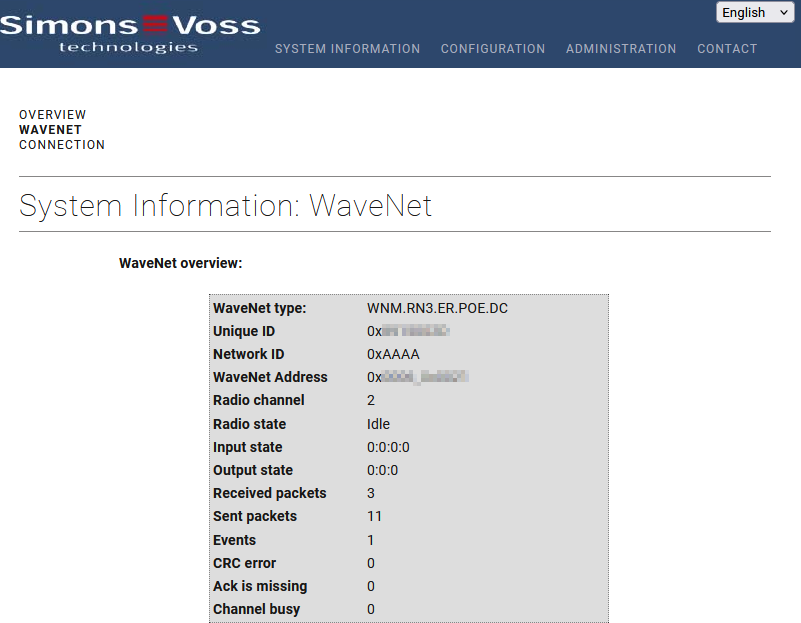

You will see the following WaveNet information for GatewayNode 3:
WaveNet type | Sales item number of the GatewayNode 3 |
Unique ID | Serial number of the GatewayNode 3 |
Network ID | WaveNet network address configured in GatewayNode 3. The address “0xDDDD” means that the GatewayNode 3 is not configured. |
WaveNet address | WaveNet network address configured in GatewayNode 3. The address “0x0000_0x0000” means that the GatewayNode 3 is not configured. |
Radio channel | Default WaveNet radio channel. |
WaveNet status | WaveNet radio network status. |
Input status | For GatewayNode 3 with IO connectors: status of IO input pins |
Initial status | For GatewayNode 3 with IO connectors: status of IO output pins |
Received packets | WaveNet statistics |
Sent packages | |
Events: | |
CRC error | |
missing confirmation | |
Channel in use |
