Overview - GatewayNode 3

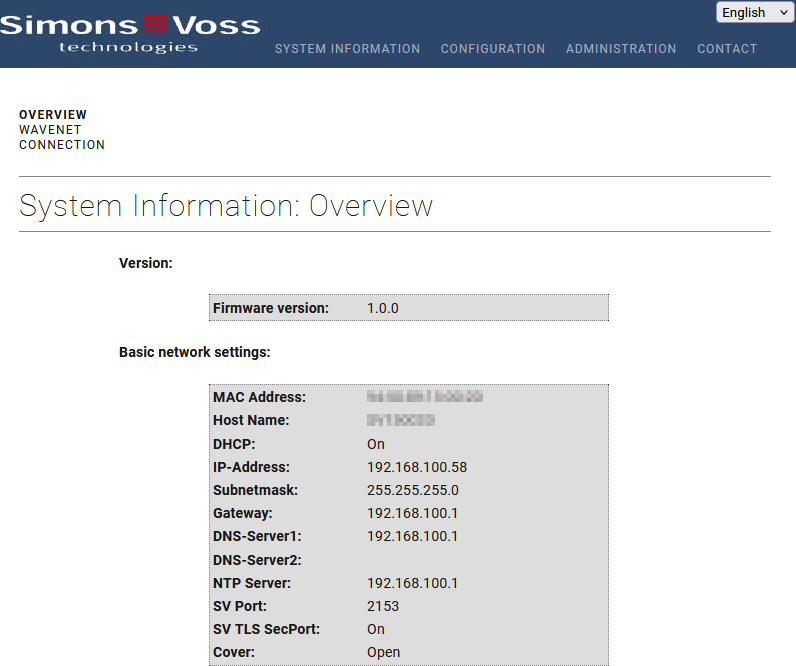

This is the start page of the configuration interface. You will see a brief overview of the GatewayNode 3 with the following information:
Firmware version | Firmware version of the GatewayNode 3. |
MAC address: | MAC address of the GatewayNode 3. |
Hostname | Hostname of the GatewayNode 3. |
DHCP | On/Off – depends on if DHCP is configured. |
IP address | IP address of the GatewayNode 3. |
Subnet mask | IP address subnet mask of GatewayNode 3. |
Gateway | If configured/assigned: IP address of the gateway. |
DNS server1 | If configured/assigned: IP address of the primary DNS server. |
DNS server2 | If configured/assigned: IP address of the secondary DNS server. |
NTP server | If configured/assigned: IP address of the NTP server. An asterisk (*) after the IP address indicates that the has successfully synchronised GatewayNode 3 the time with the NTP server. |
SV port: | TCP port number used by the embedded web server of the GatewayNode 3 to communicate. If the web server cannot be started during the boot process, port number 0 is displayed. |
SV TLS SecPort | On/Off - depending on whether the embedded web server uses GatewayNode 3 TLS security and encryption. |
Cover | Open/Closed - depending on whether the cover is removed or not. Refresh the page (F5) to show the current status. |
