Length modularity - Digital Cylinder AX (Z5) SmartIntego

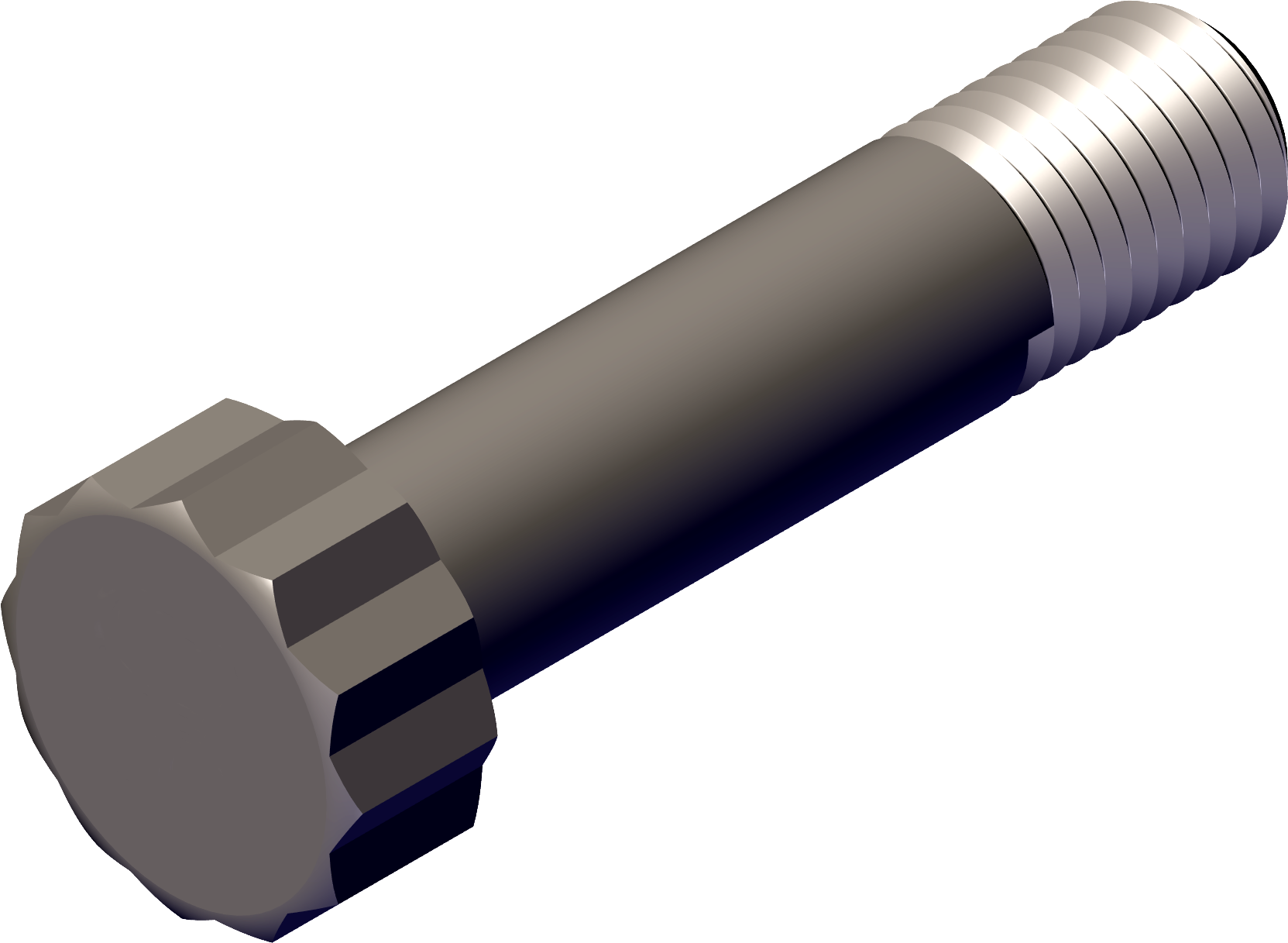

Extension bolt

Core extension of the profile

Profile extension

  • Z5.BOLT.XX (XX=Desired base length)

  • Z5.CORE.05: 5 mm
  • Z5.CORE.10: 10 mm
  • Z5.CORE.20: 20 mm

  • Z5.PROFILE.05: 5 mm
  • Z5.PROFILE.10: 10 mm
  • Z5.PROFILE.20: 20 mm

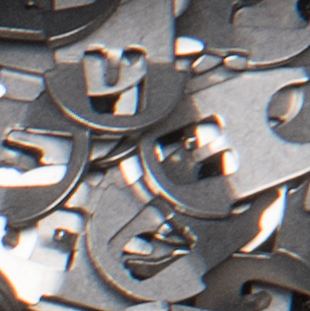

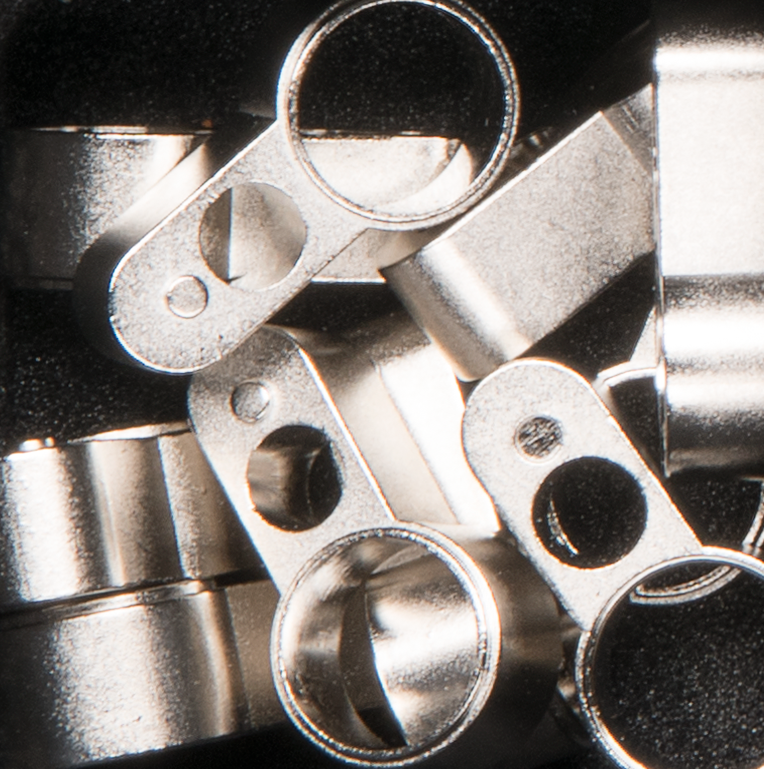

Bracket

  • Z5.CLAMPS

One set contains 50 pieces.

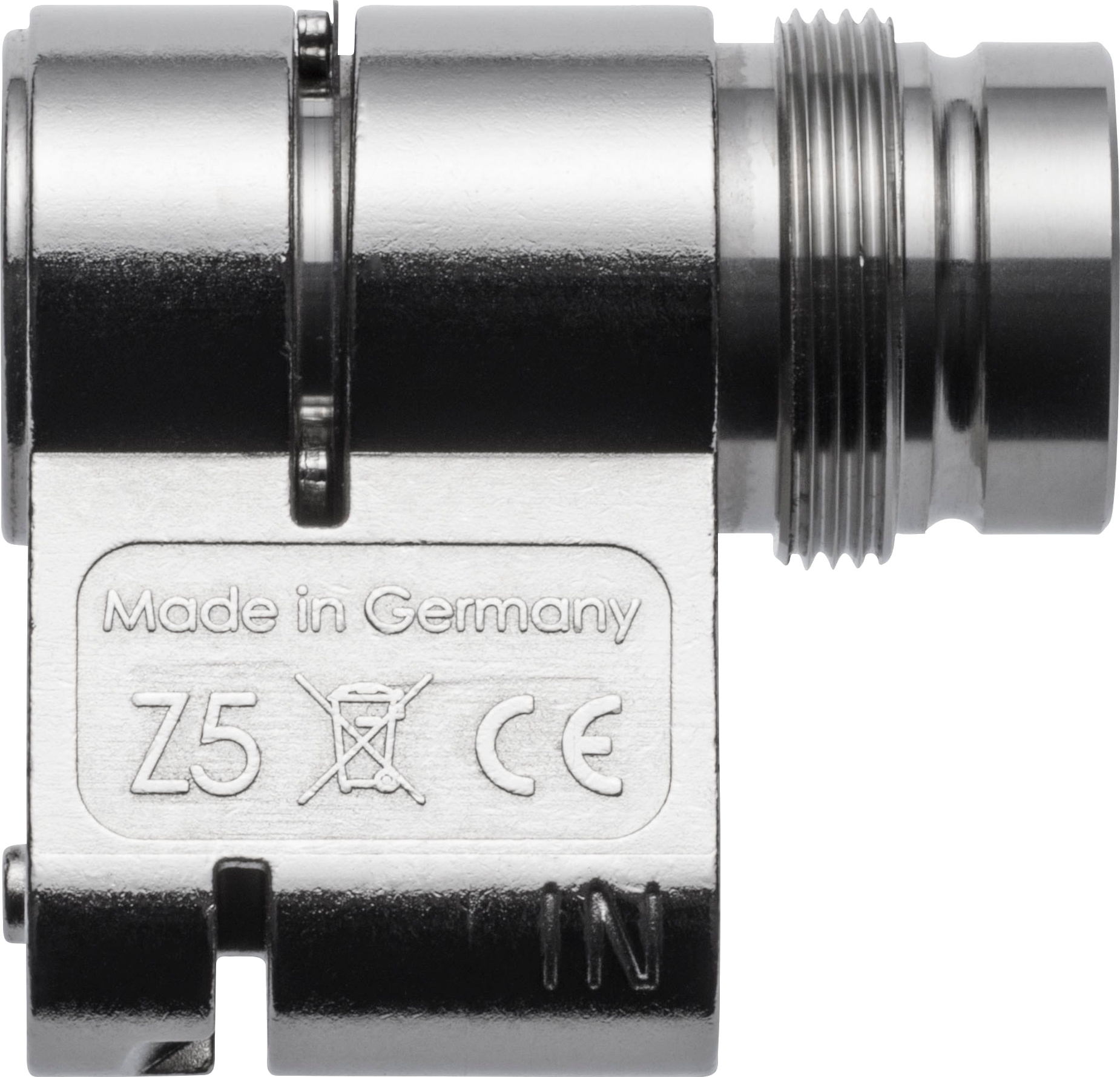

Cylinder centre piece

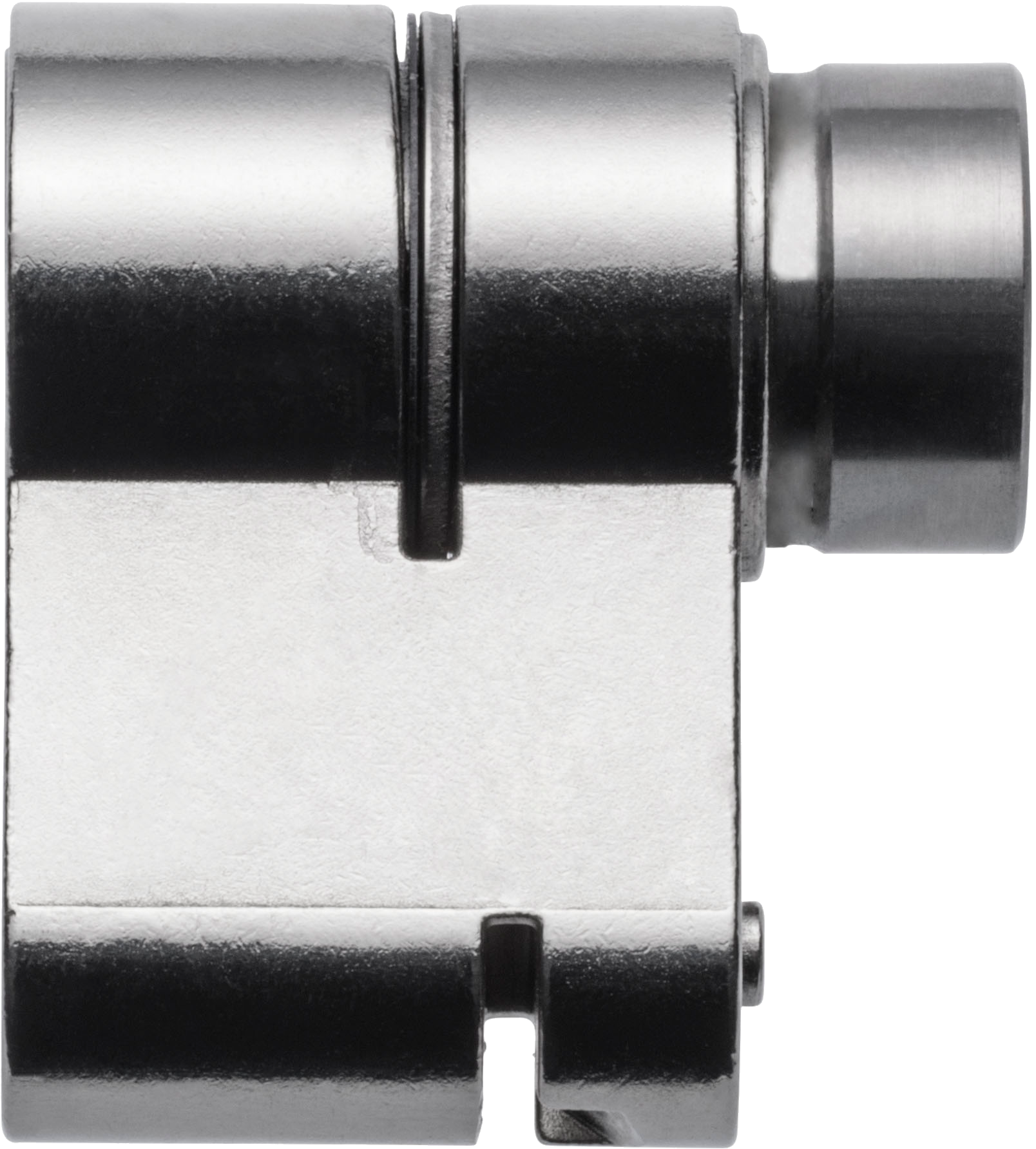

Half-cylinder centre piece

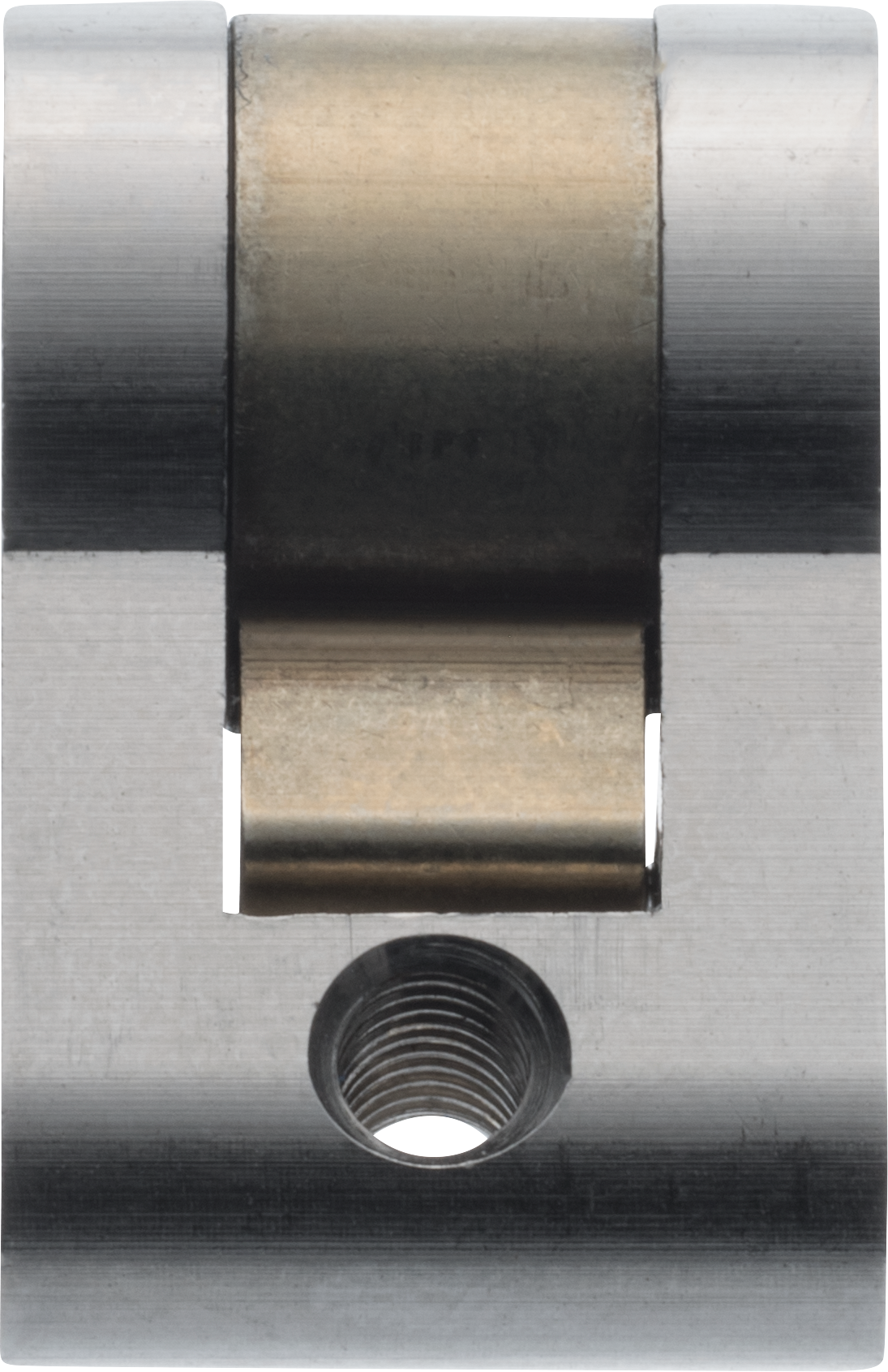

Half-cylinder centre piece with bores

  • Z5.CNT.EU

  • Z5.CNT.HZ

  • Z5.CNT.HZ.RB.XX.XX.WP

Example: Z5.CNT.HZ.RB.12.21.WP

Half-cylinder centre piece with multi-detent

Half-cylinder centre piece with self-locking mechanism

Half-cylinder centre piece with rear bore

  • Z5.CNT.HZ.MR

  • Z5.CNT.HZ.SL (incl. driver with chamfer)

  • Z5.CNT.HZ.RB (including driver with chamfer)

Internal knob mount

Internal blind profile without knob

Knob holder for glass door knobs

  • Z5.PR.IN

For variant .OK

  • Z5.PR.OK

Profile length 30 mm (extendable)

  • Z5.PR.GD
