Combine CO cylinders to FD - Digital Cylinder AX (Z5) SmartIntego

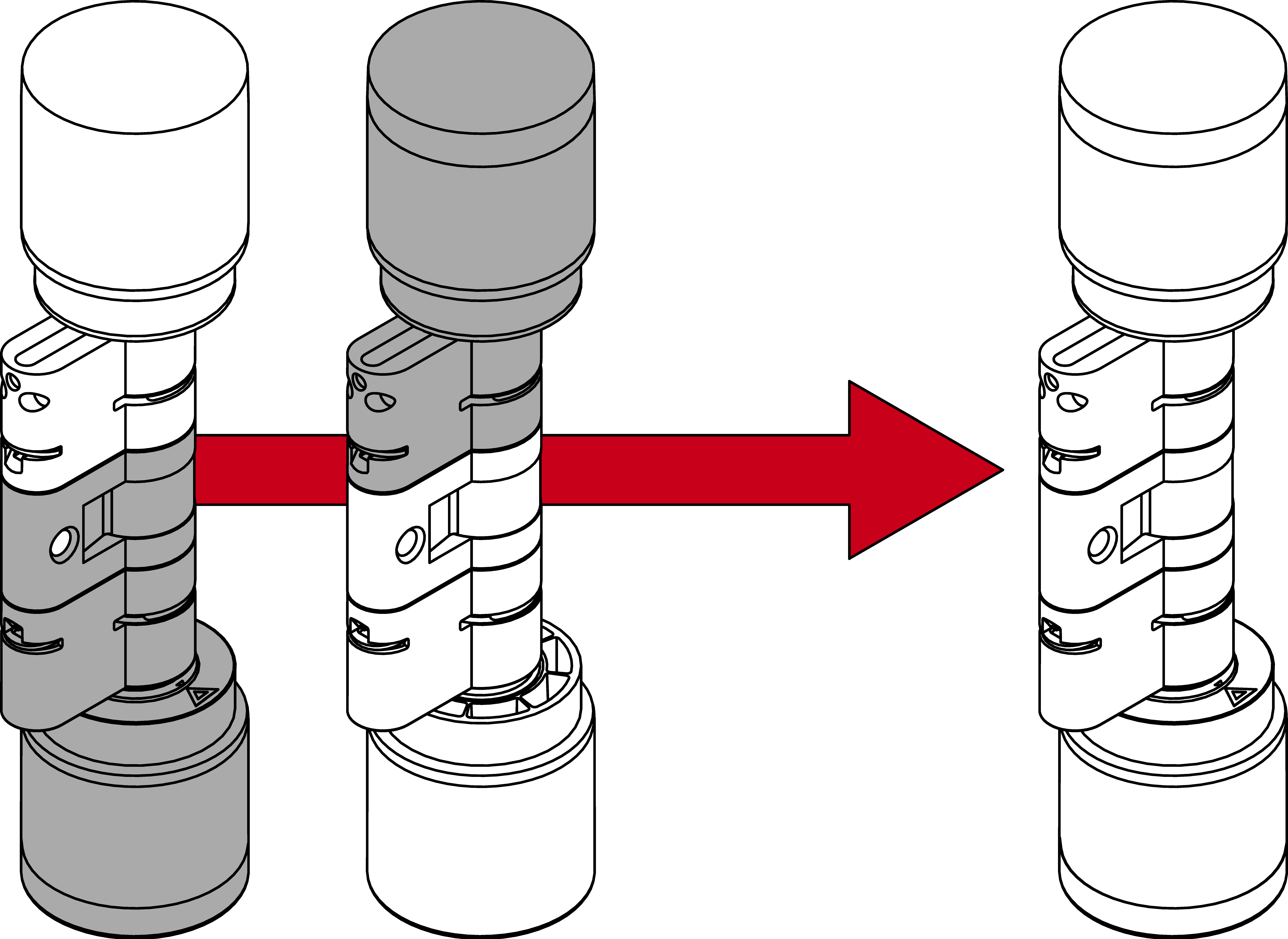

You can assemble a freely rotating AX cylinder from two AX comfort cylinders.

  1. Extractor for releasing the clamp
  2. Spacer for aligning the extension bolt
  3. Clamp block for pressing in the clamp

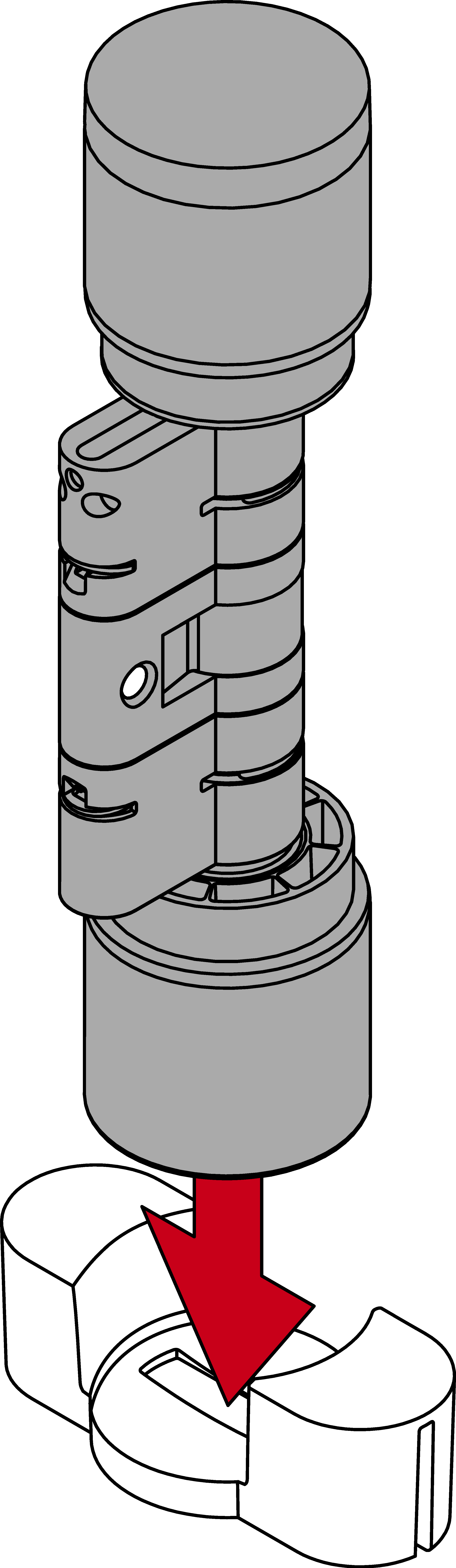

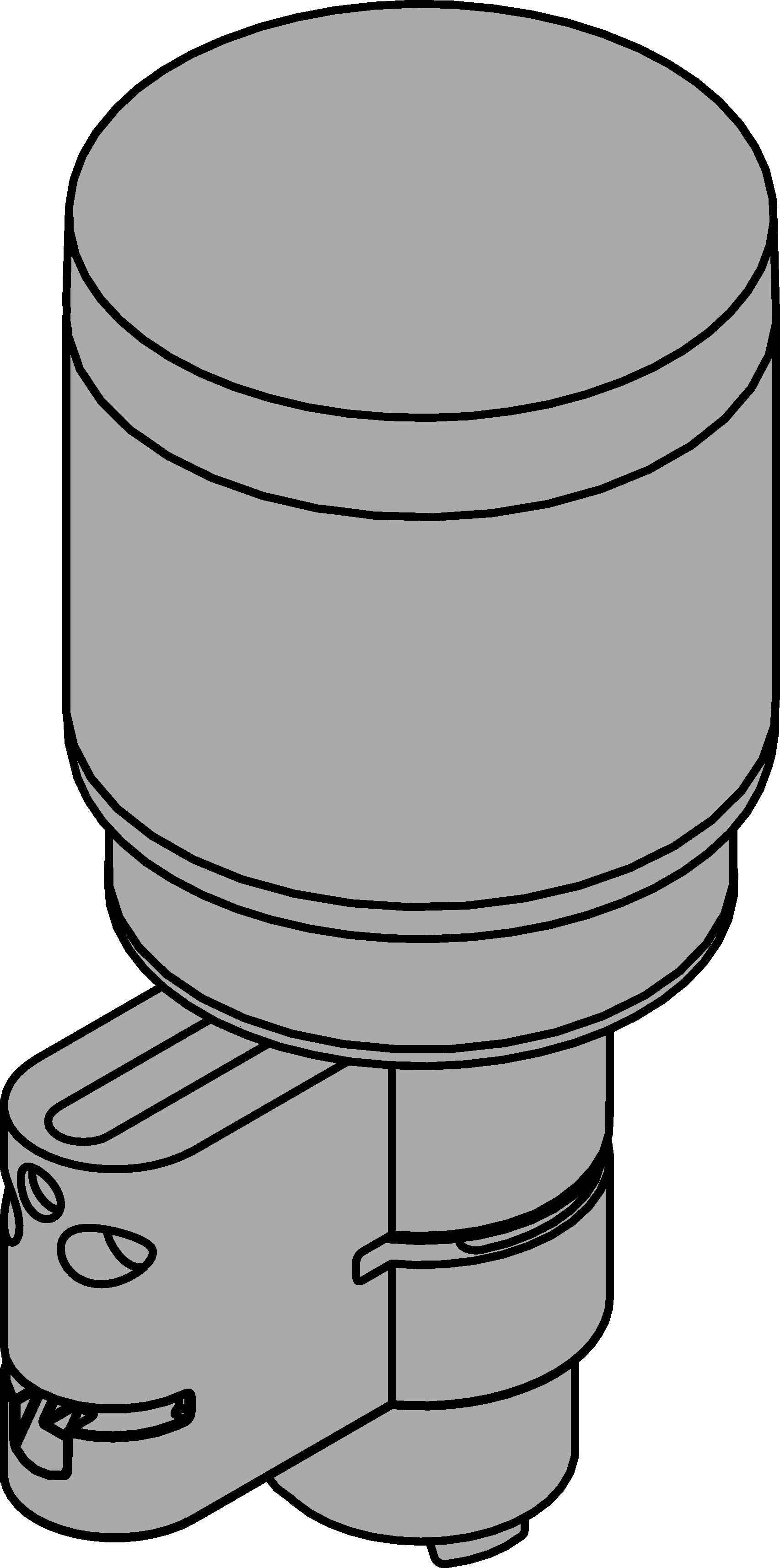

  1. Place the first comfort cylinder AX in the thumb-turn assembly tool with the mechanical thumb-turn facing upwards.

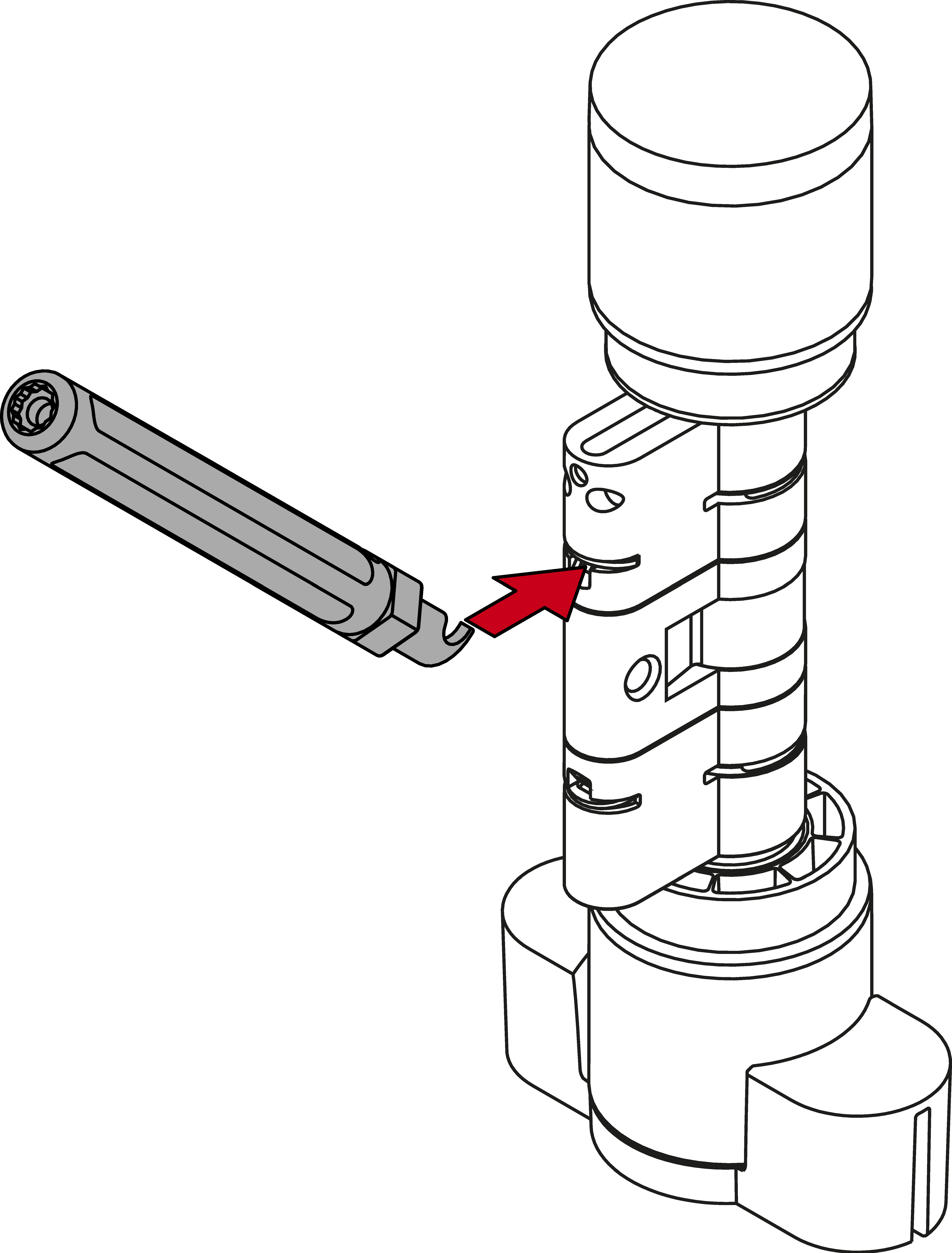

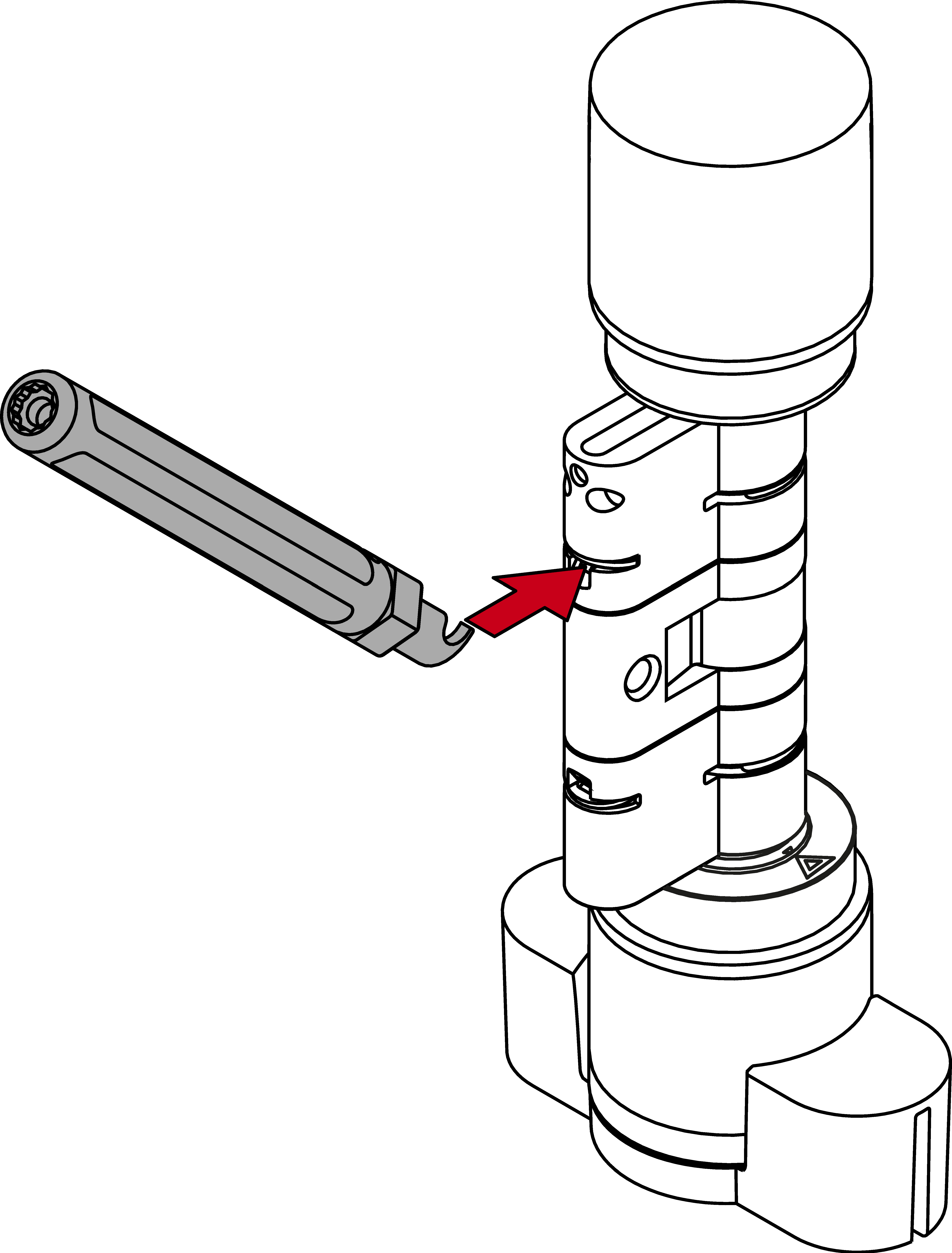

  3. Hook the tip of the extractor into the clamp.

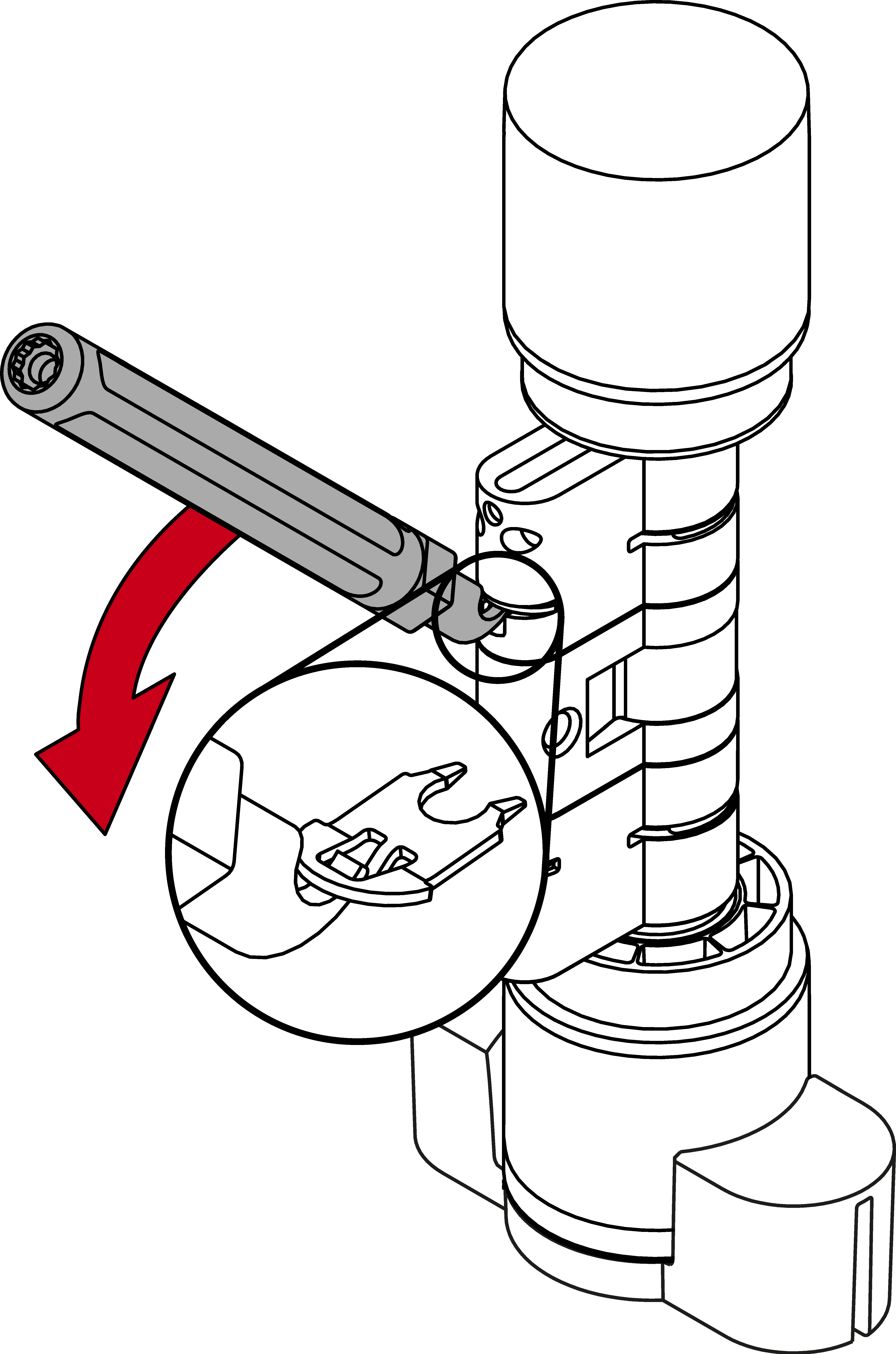

  5. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.

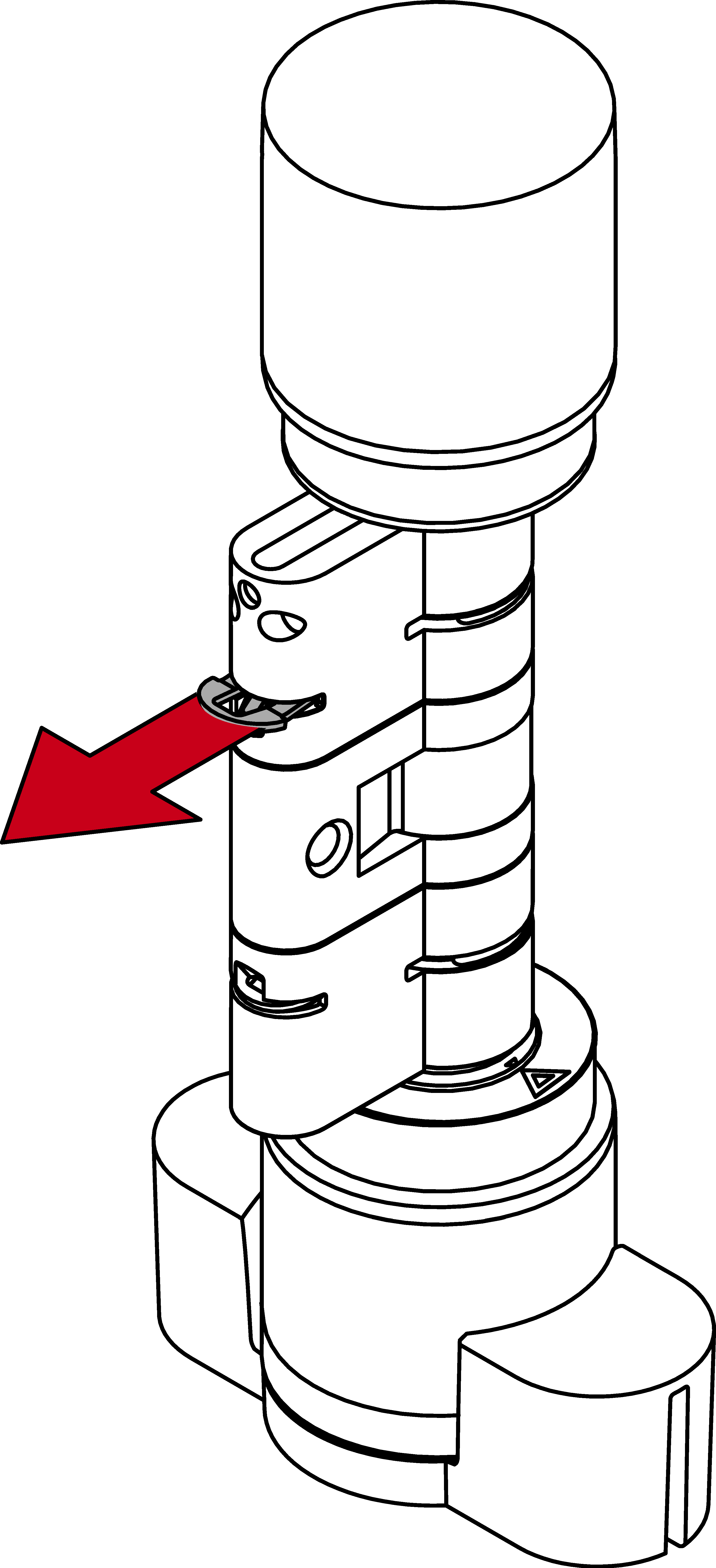

  7. Pull the clamp completely out of the profile cylinder.

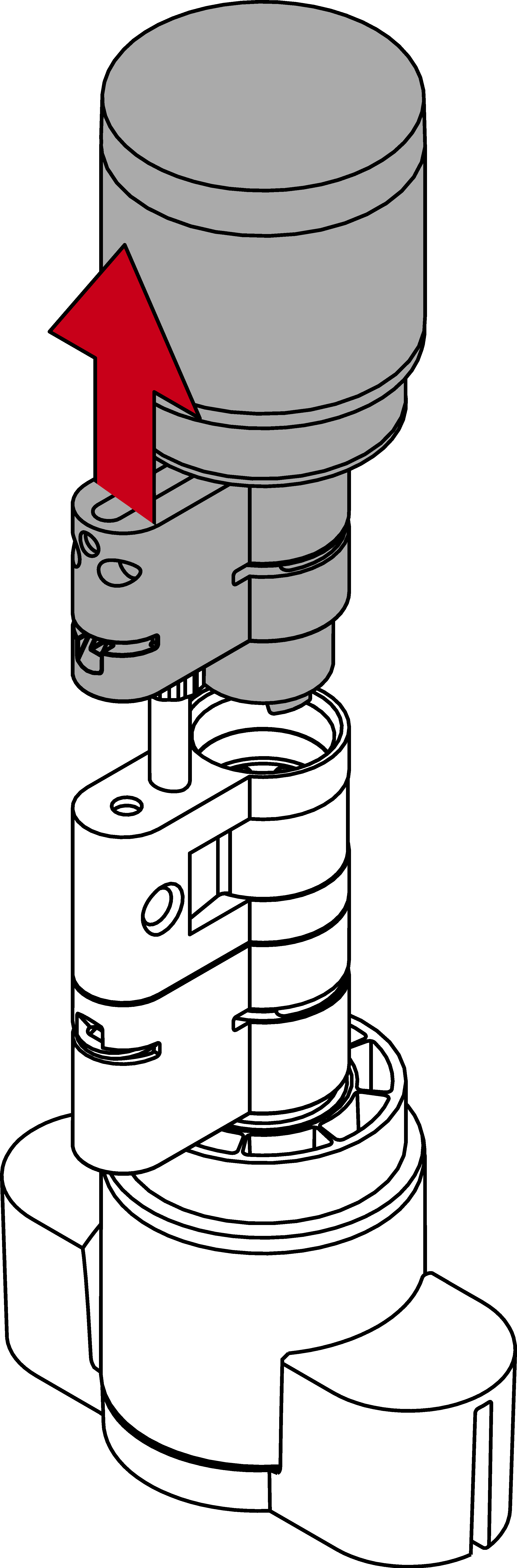

  9. Disassemble the two cylinder halves.

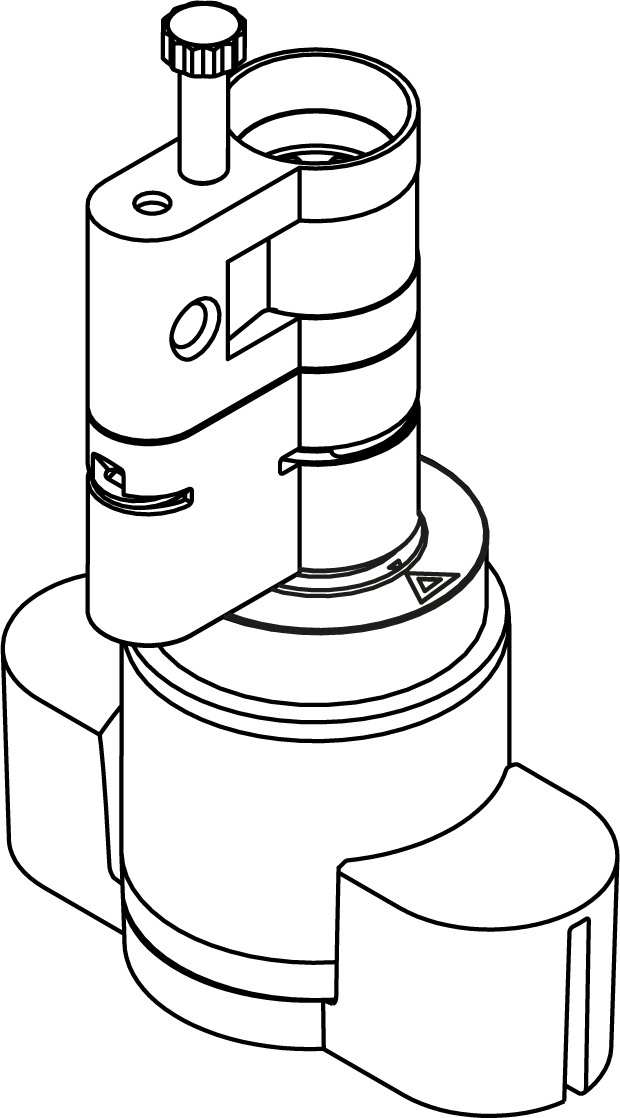

  11. First cylinder half prepared with centre piece and tappet piece.
  13. Place the second comfort cylinder AX in the thumb-turn assembly tool with the electronic thumb-turn facing upwards.
  15. Hook the tip of the extractor into the clamp.
  17. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  19. Pull the clamp completely out of the profile cylinder.

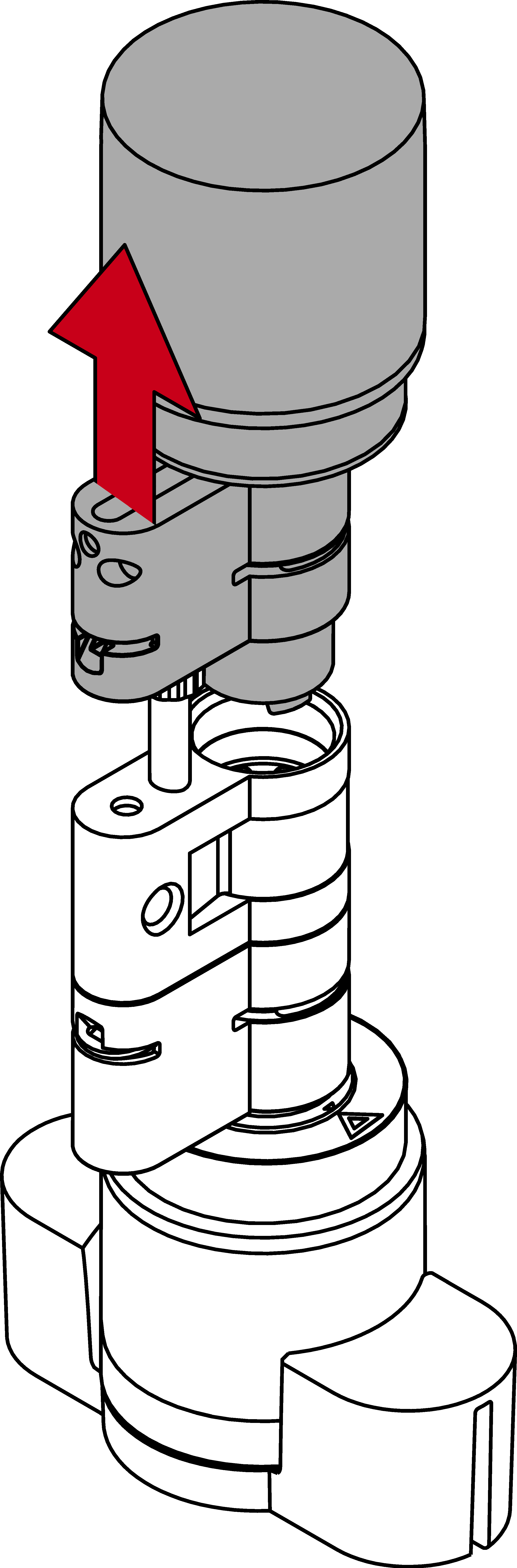

  20. Disassemble the two cylinder halves.
  22. Second cylinder half prepared without centre piece.
  24. Place the first cylinder half on the second cylinder half.

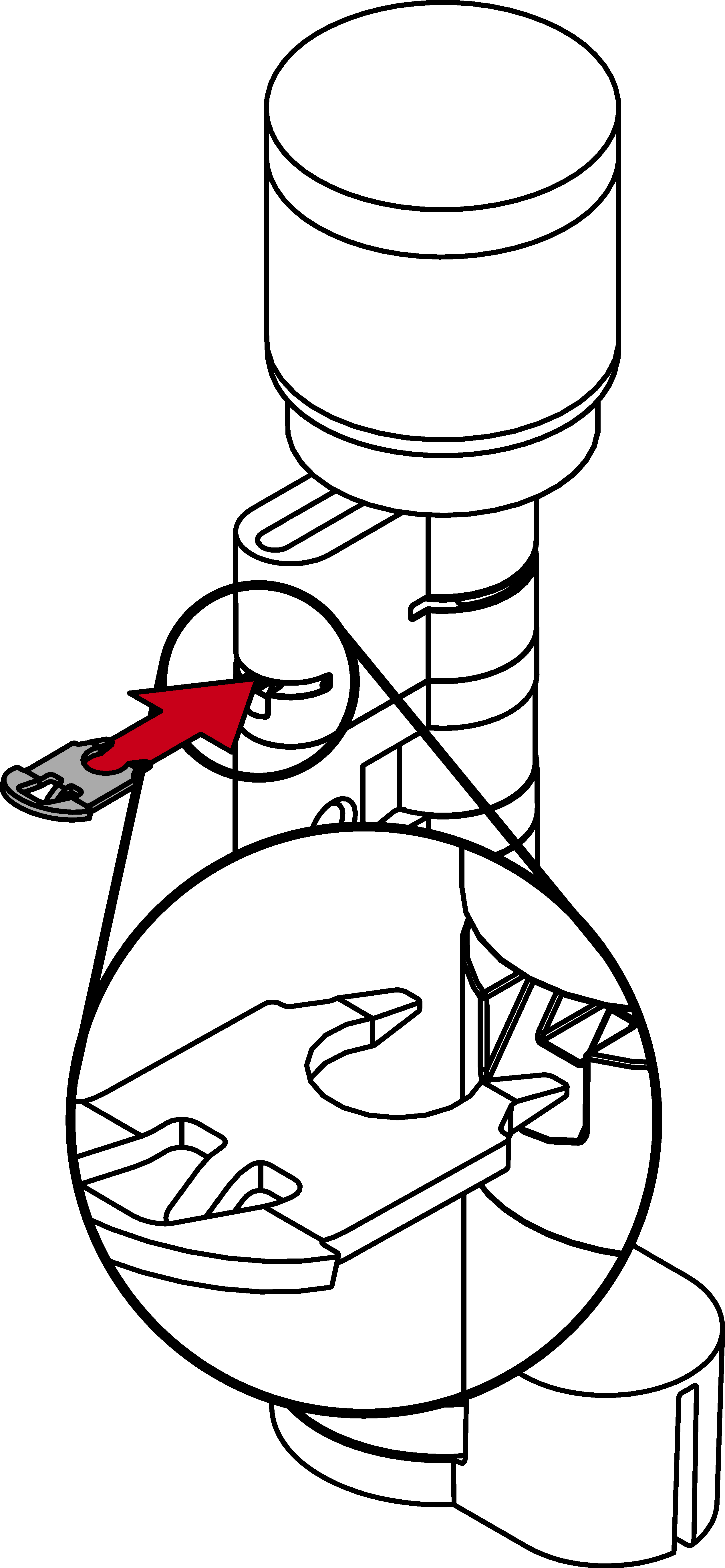

  26. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw.

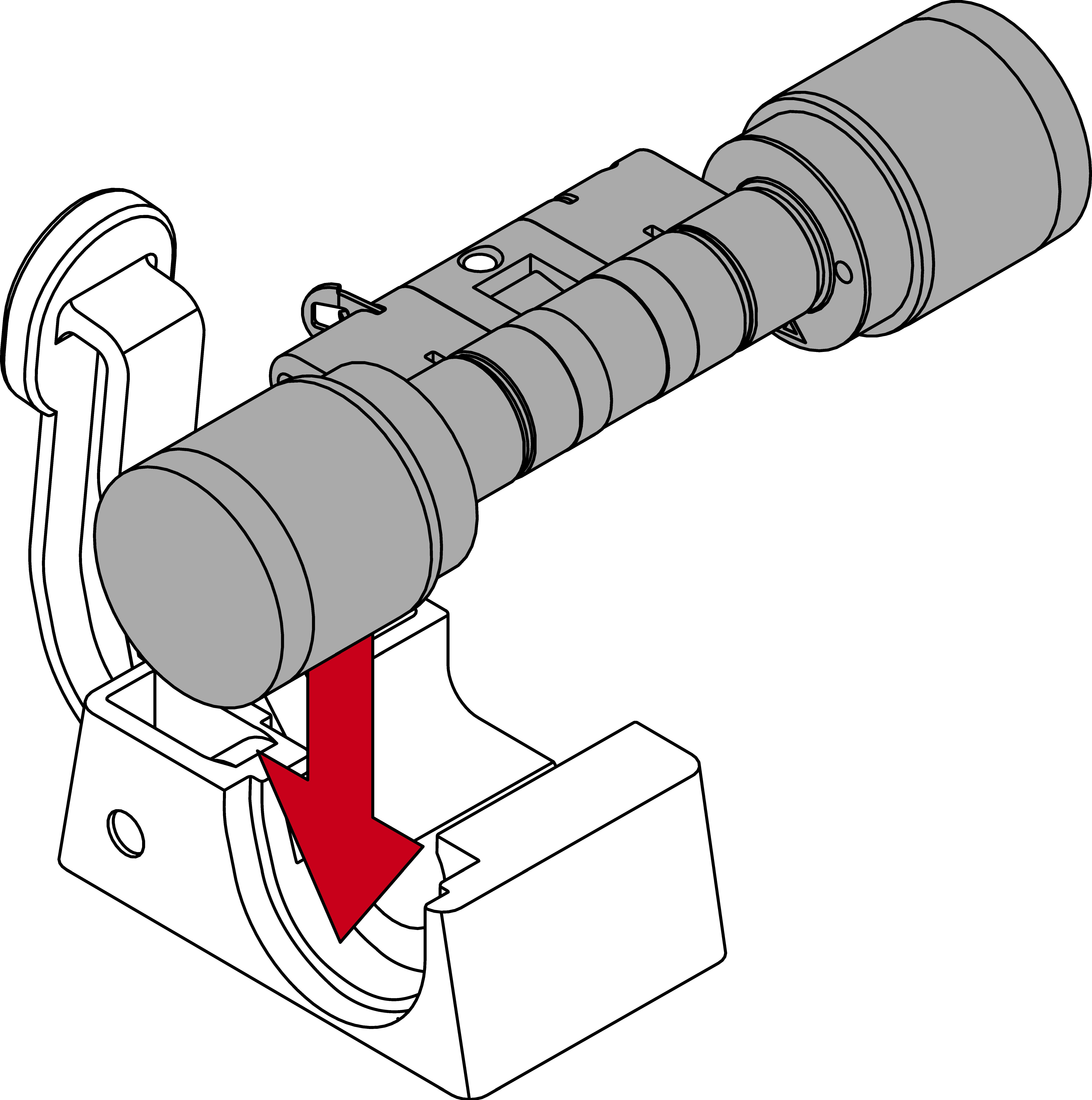

  28. Insert the cylinder into the clamping block so that the profile cylinder and the thumb-turn lie flush in the recesses.
  30. The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate.

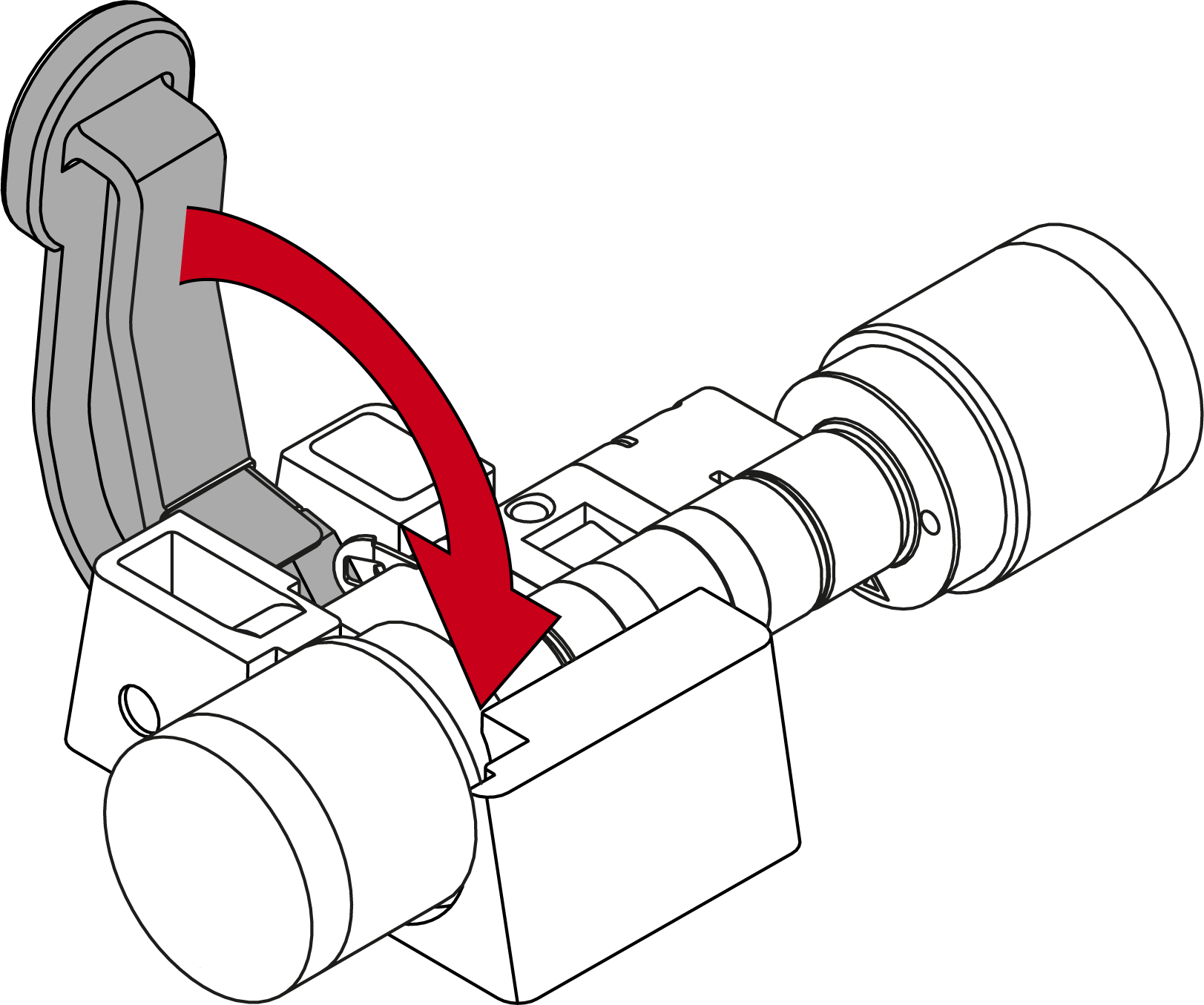

  31. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.

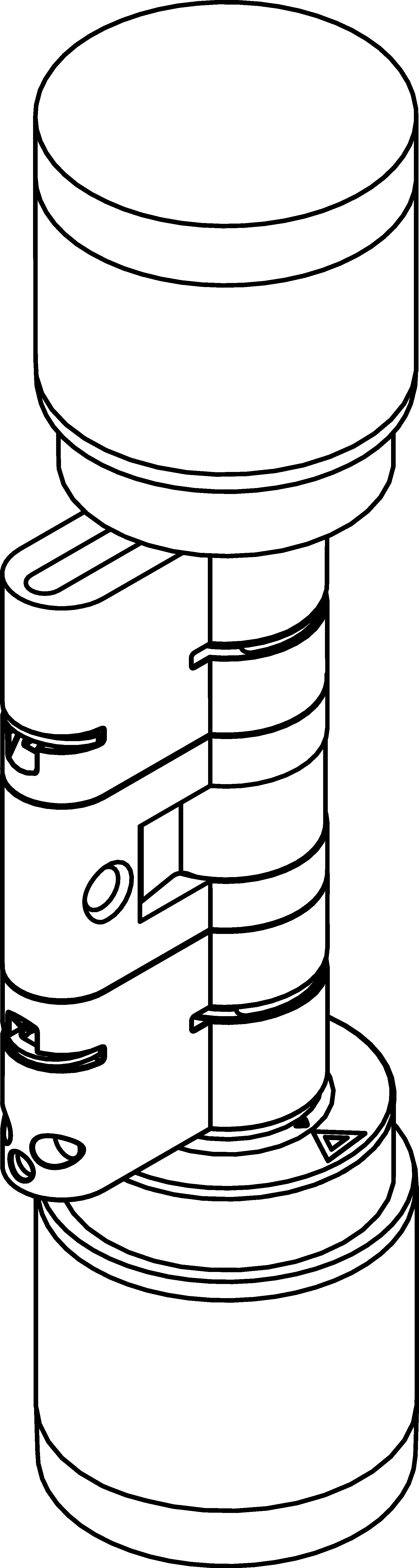

  1. Freely rotating cylinder fully assembled.
