Reduce CO cylinders to HZ - Digital Cylinder AX (Z5) SmartIntego

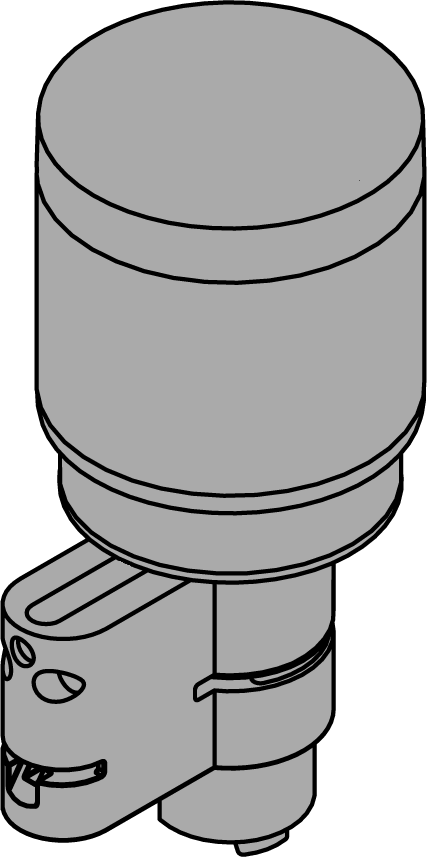

You can assemble a half-cylinder from a SI Digital Cylinder AX or a free-rotating cylinder using a special centre piece.

  1. Extractor for releasing the clamp
  2. Spacer for aligning the extension pin
  3. Clamping block for pressing in the clamp
  4. Half-cylinder centre piece

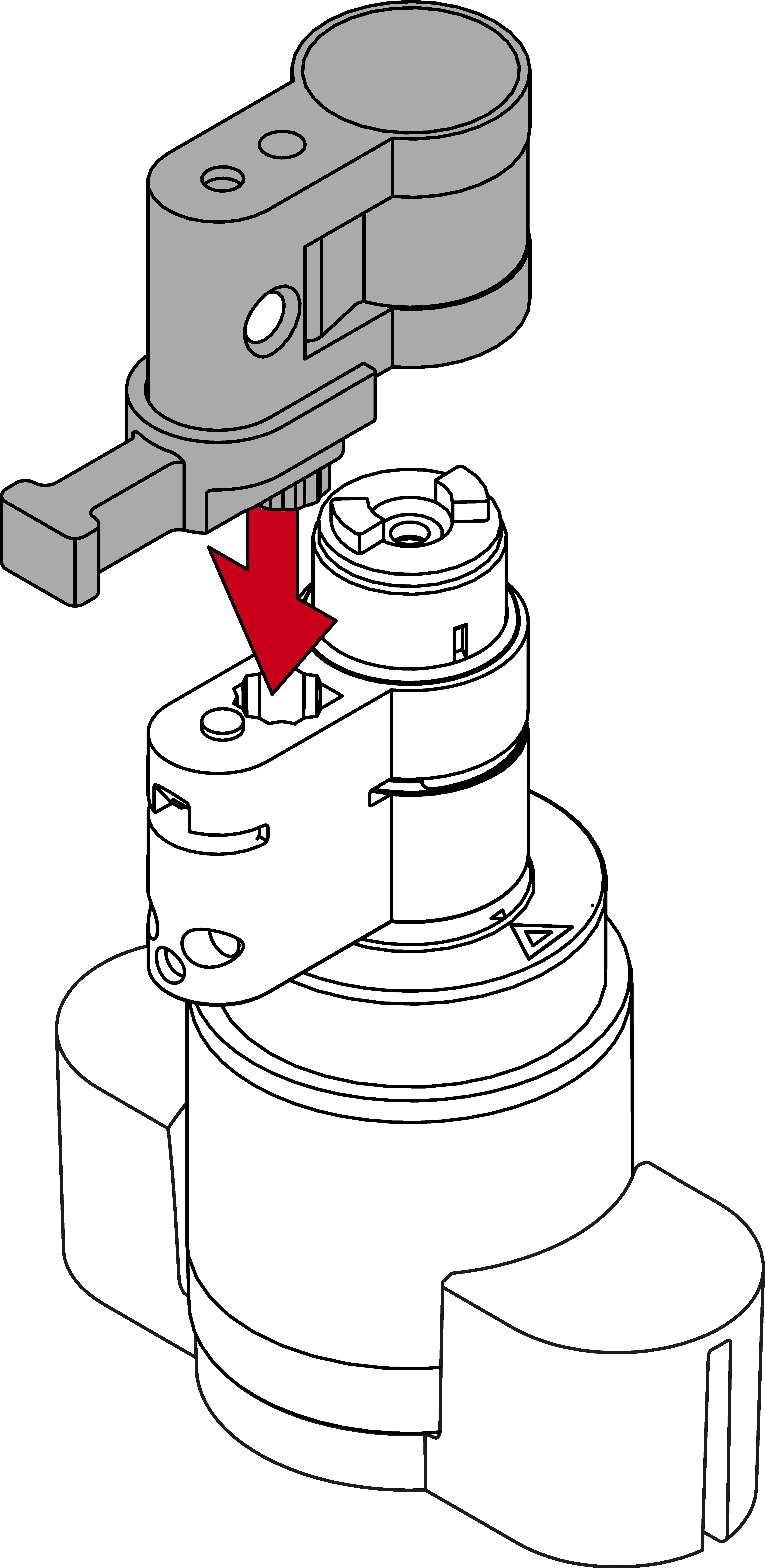

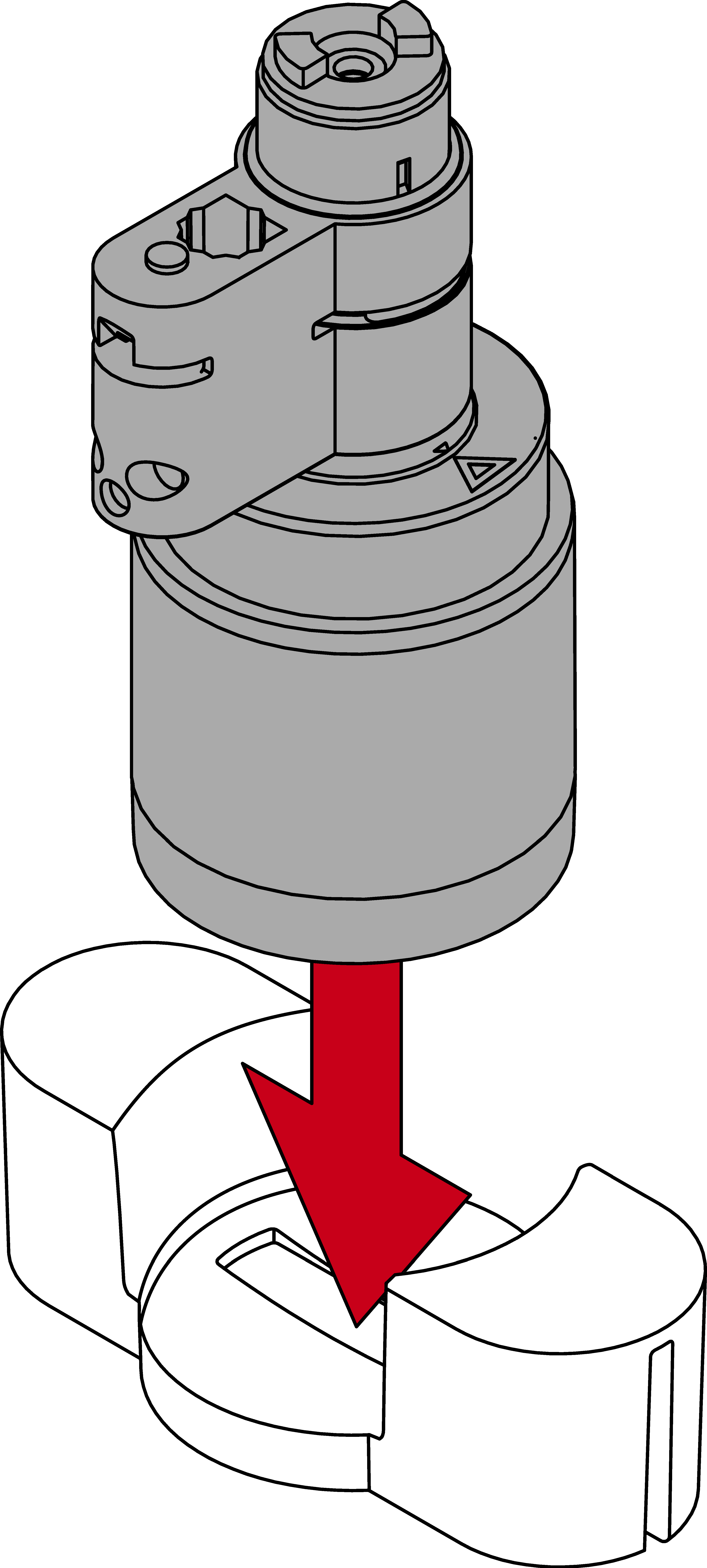

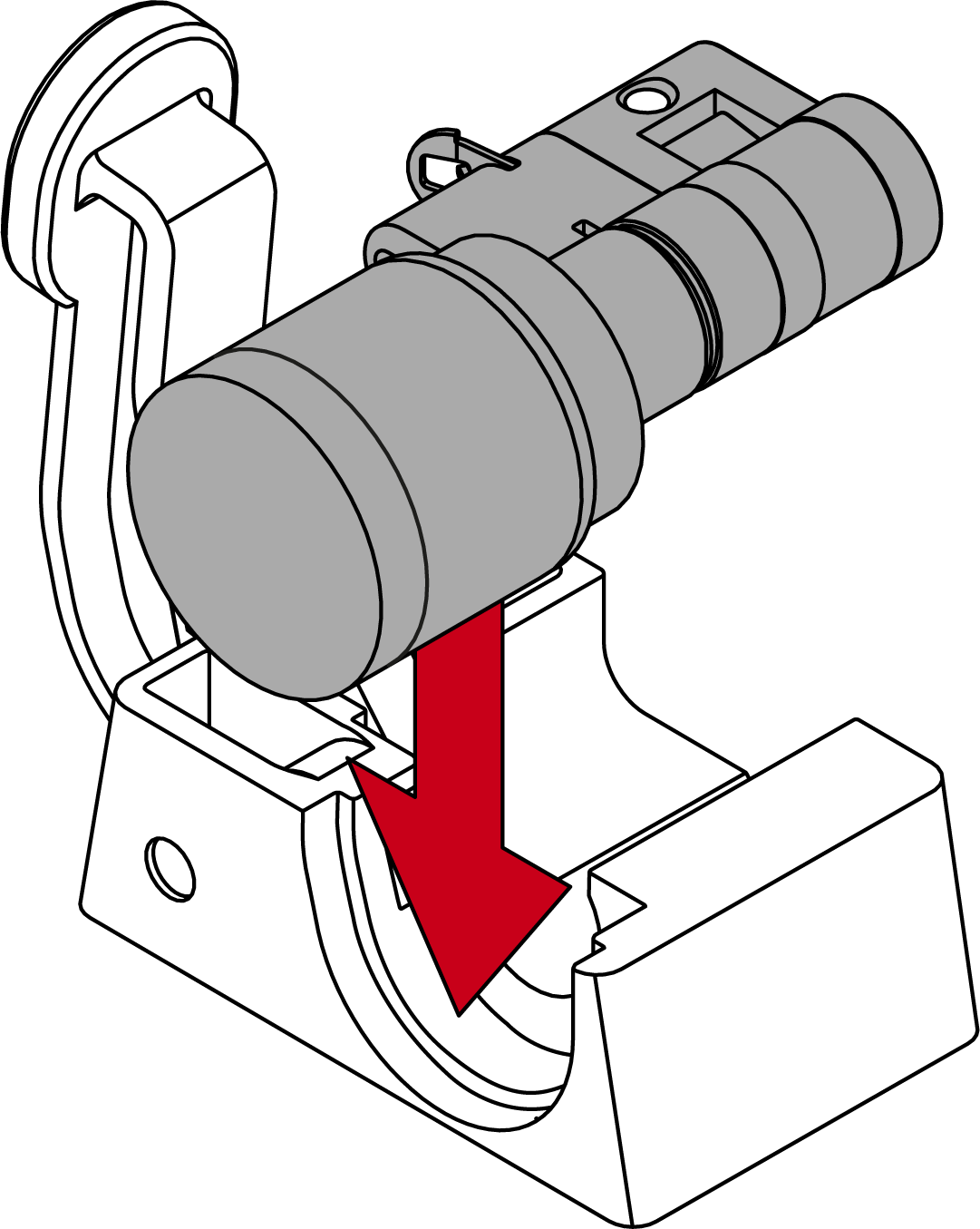

  1. Place the SI Digital Cylinder AX, with the electronic knob facing upwards, into the knob fitting tool.

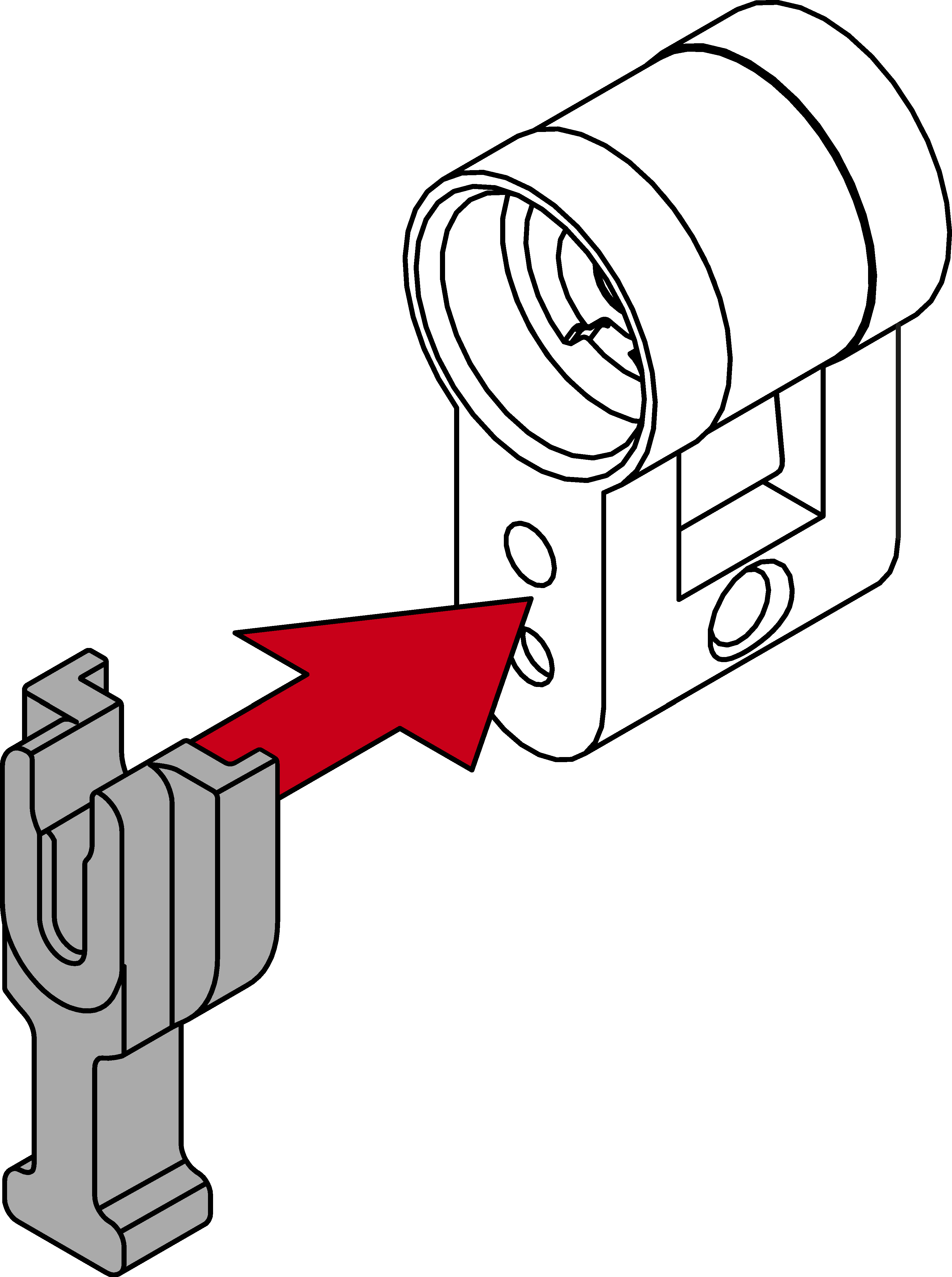

  3. Hook the tip of the extractor into the clip.

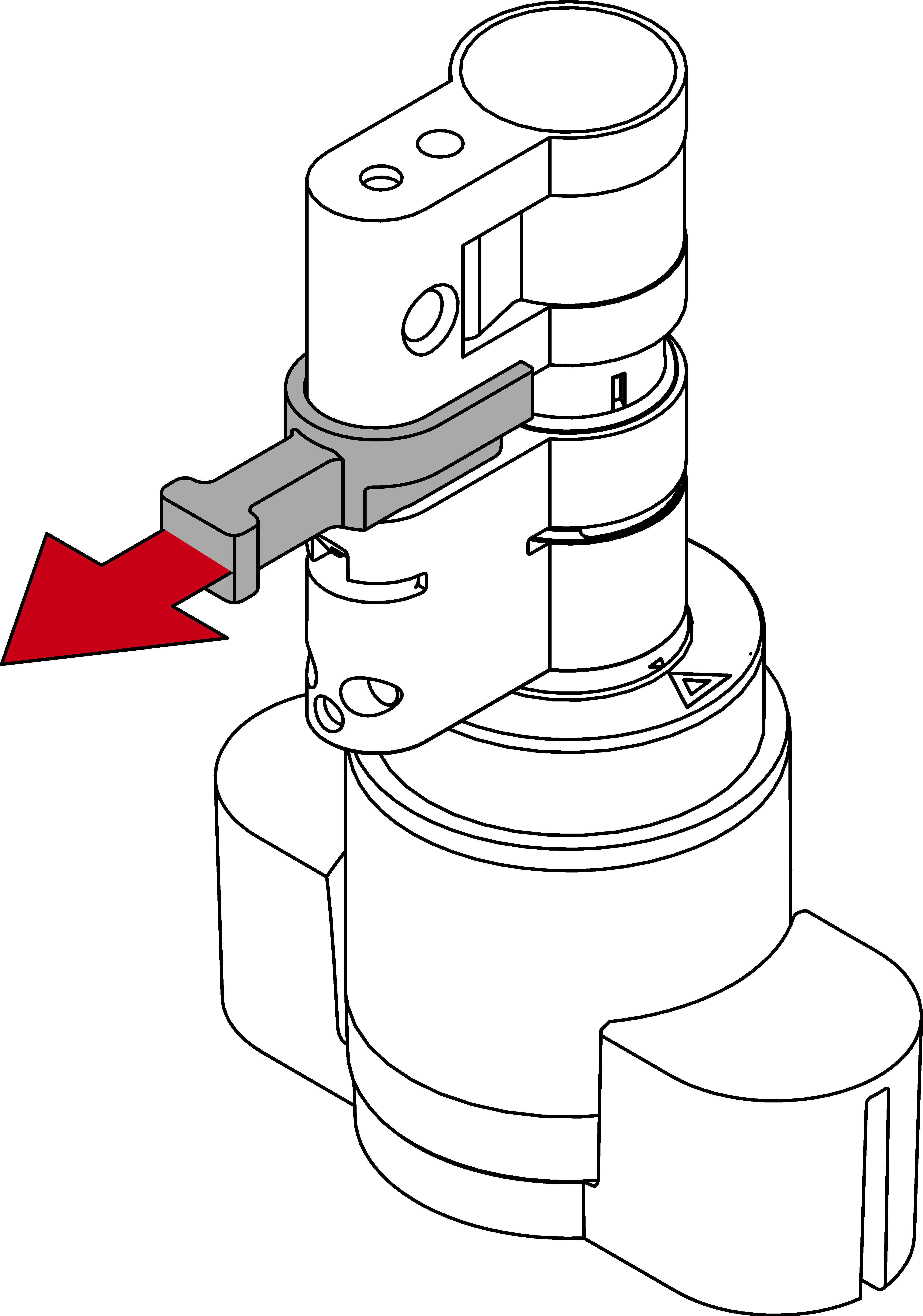

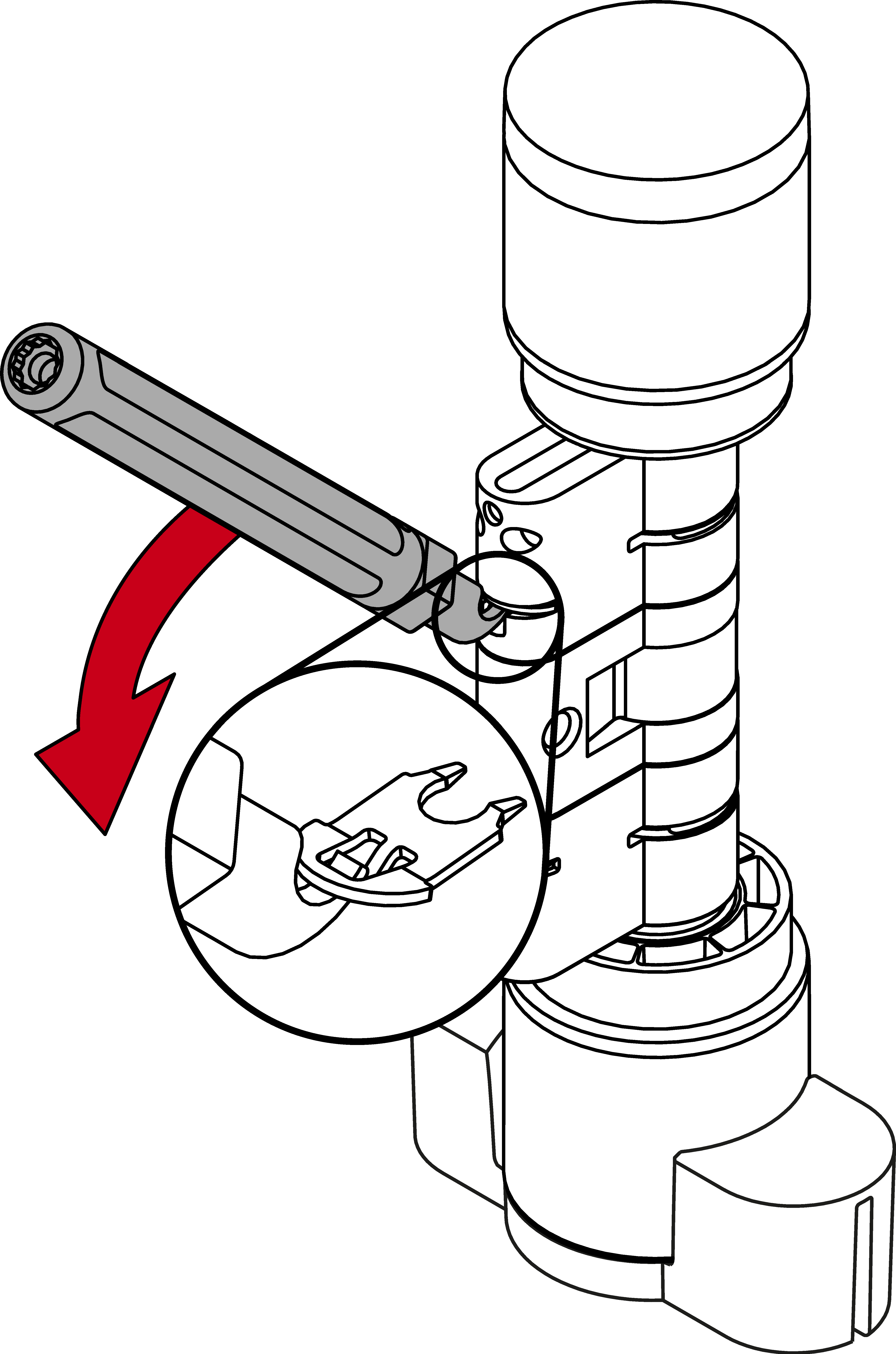

  5. Pry the clamp out of the profile cylinder by moving the extractor towards the centre of the cylinder.

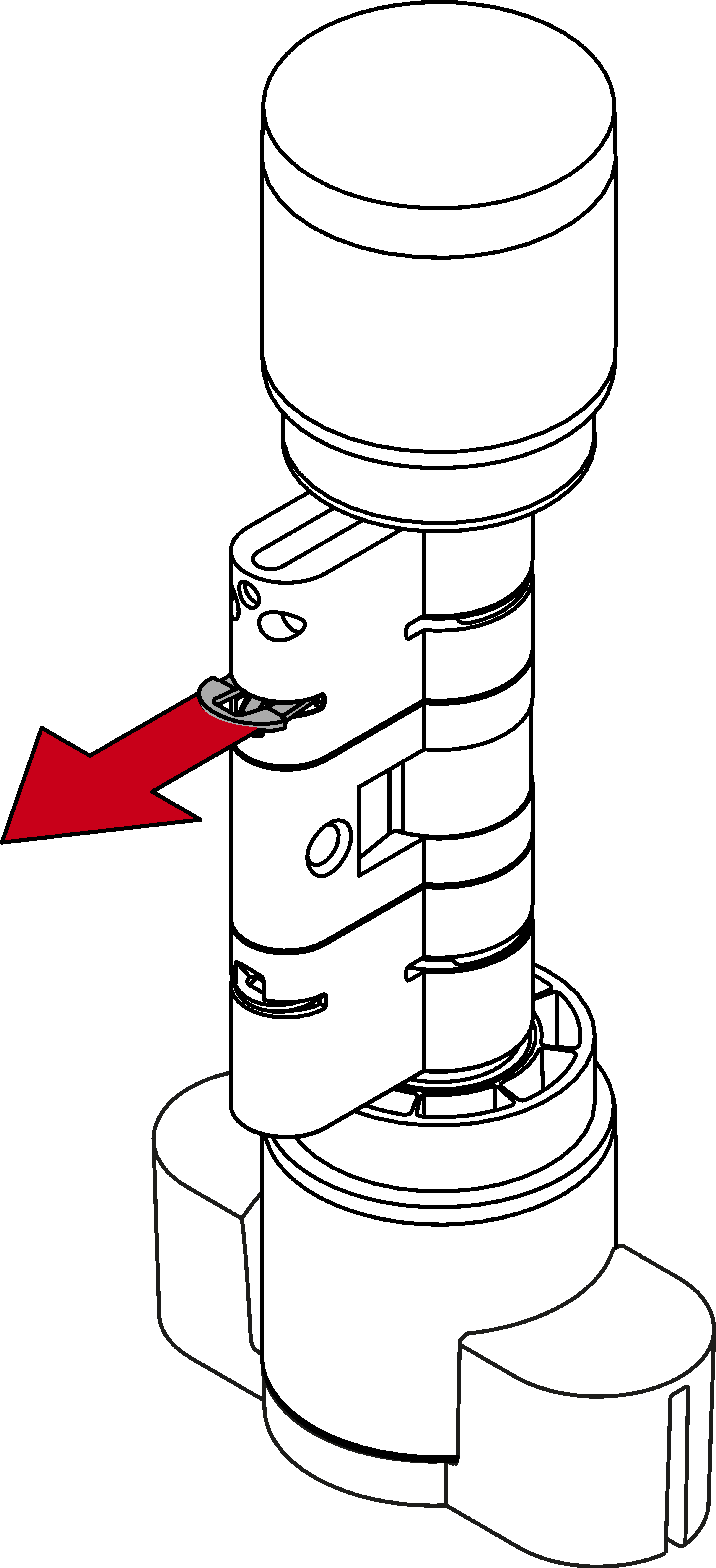

  7. Pull the clip completely out of the profile cylinder.

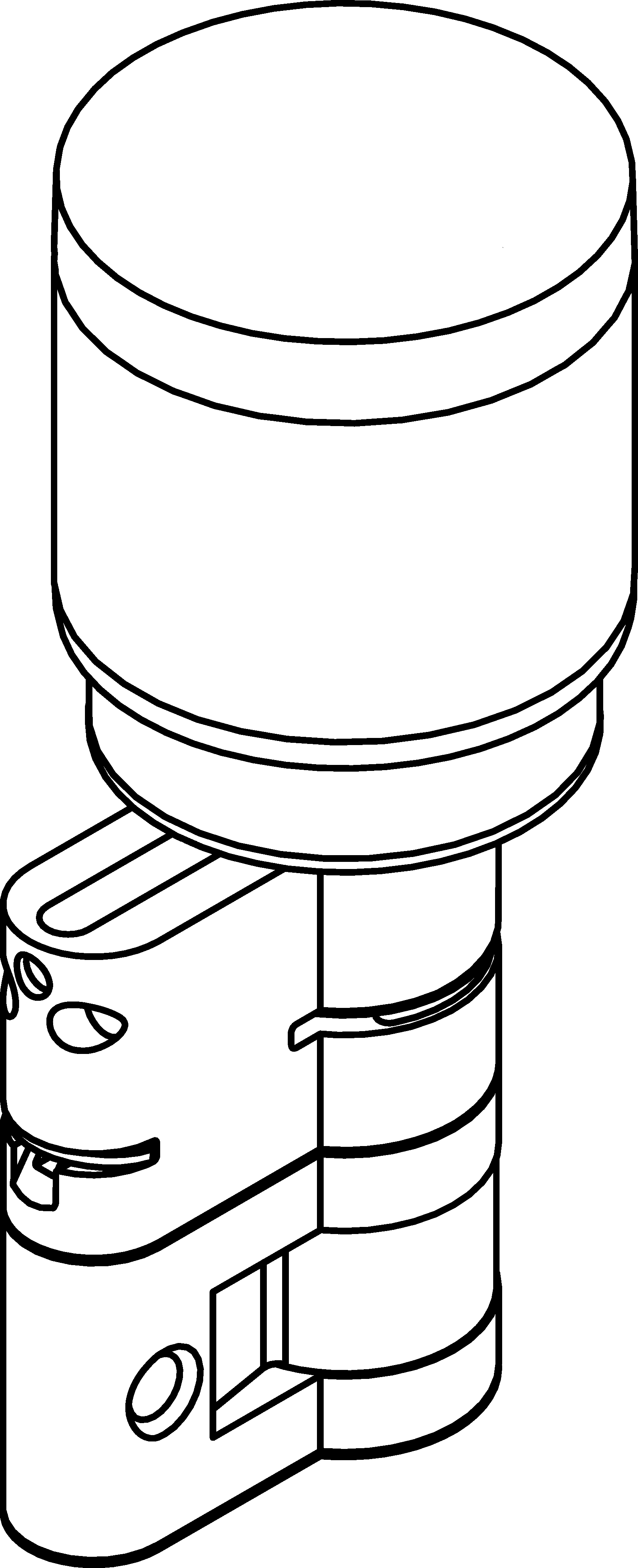

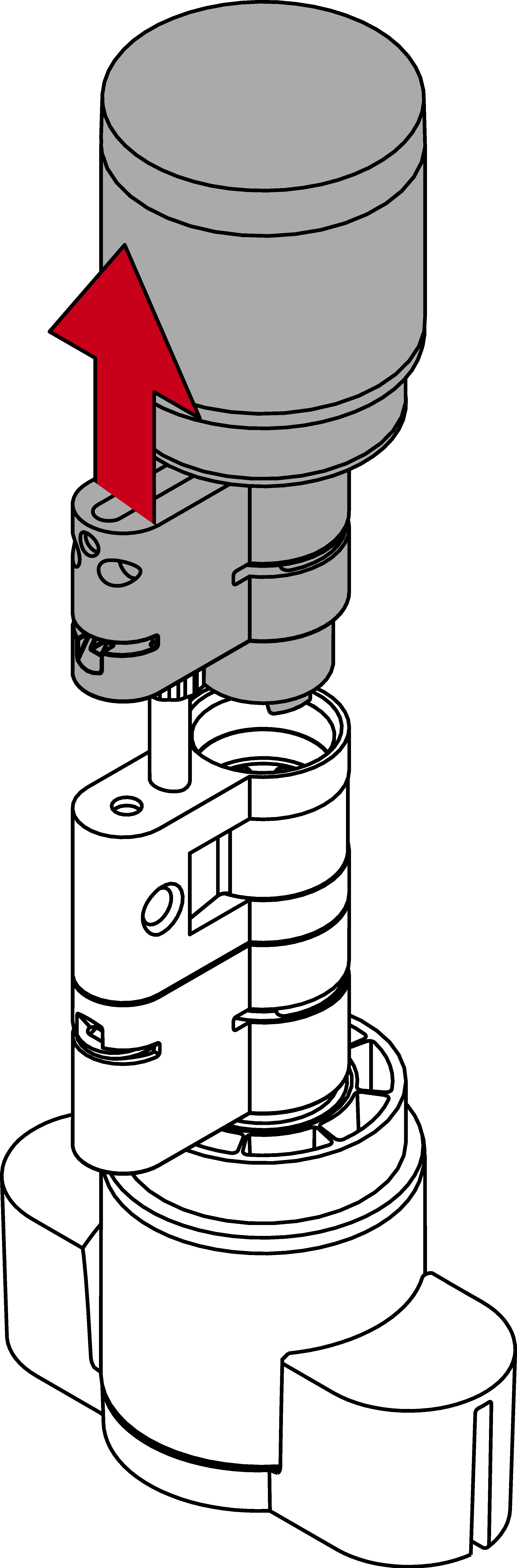

  9. Separate the two cylinder halves.
  11. First cylinder half prepared without the centre piece.
  13. Place the spacer against the centre piece of the half-cylinder.

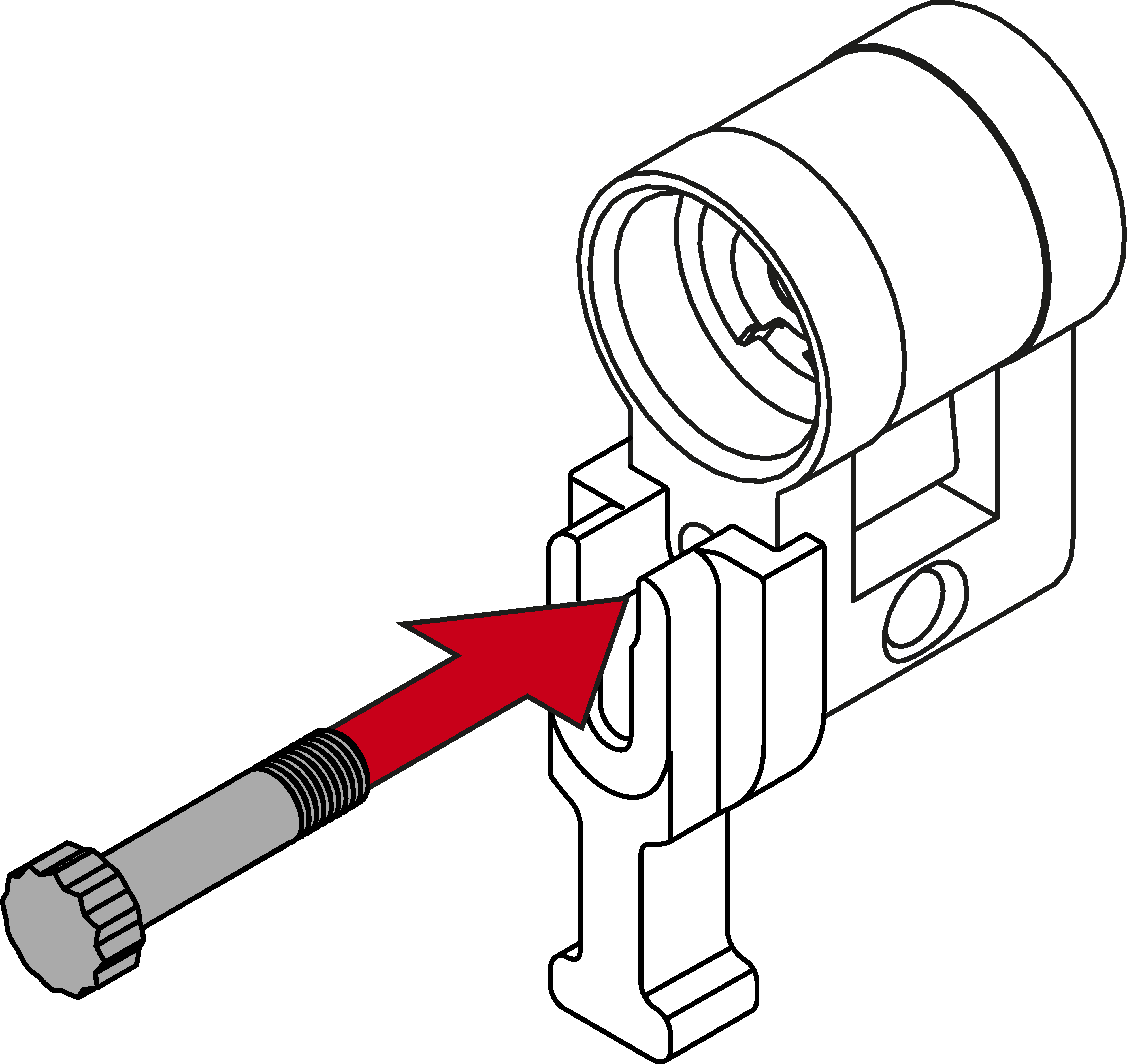

  15. Using the extractor, screw in a suitable extension bolt until it rests against the spacer.
  17. Place the prepared cylinder half into the Knauf fitting tool.

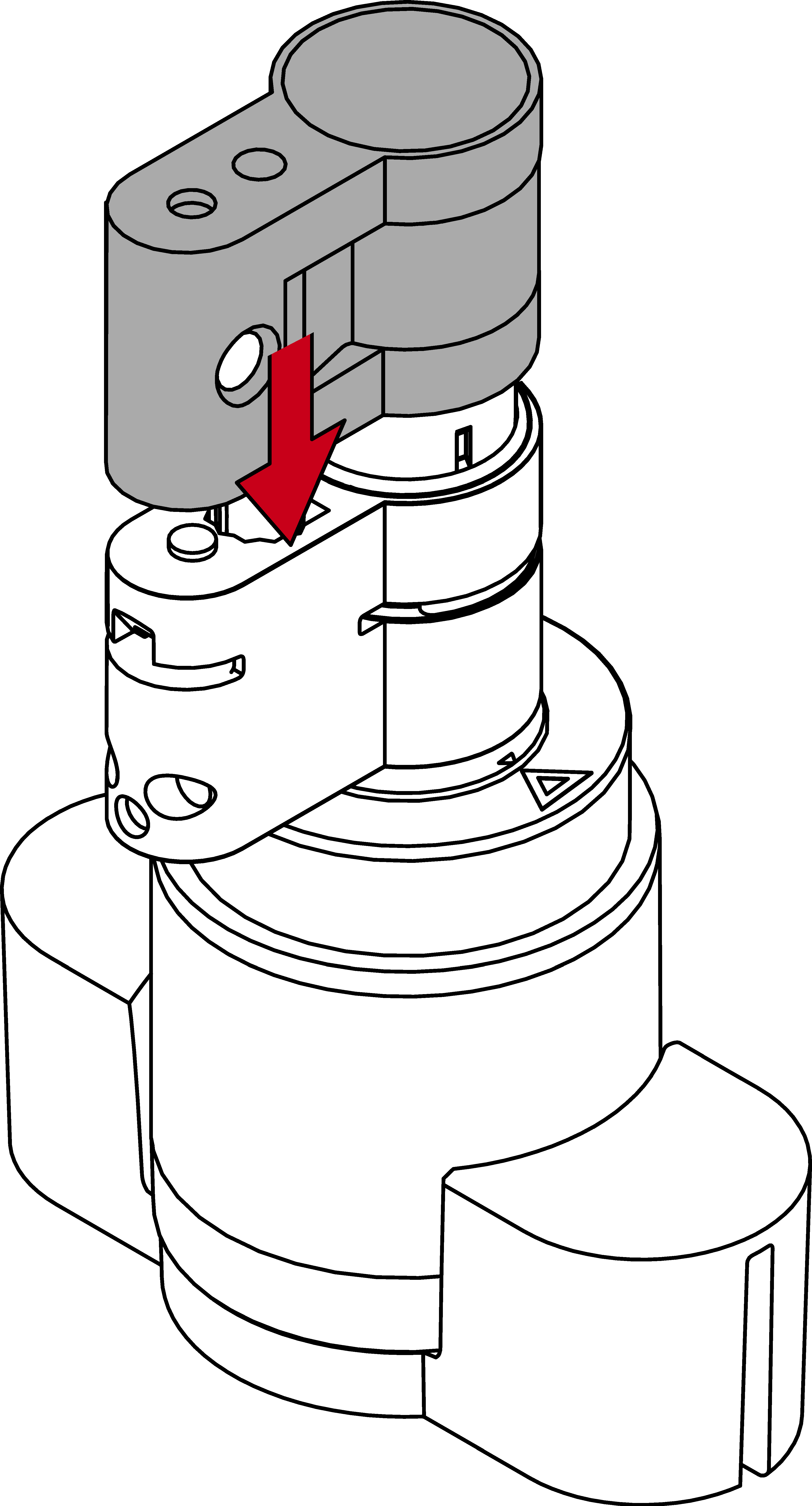

  19. Place the half-cylinder centre piece onto the prepared cylinder half.
  21. The extension bolt is secured against rotation.
  22. Remove the spacer again.
  24. Push the cylinder parts fully together.

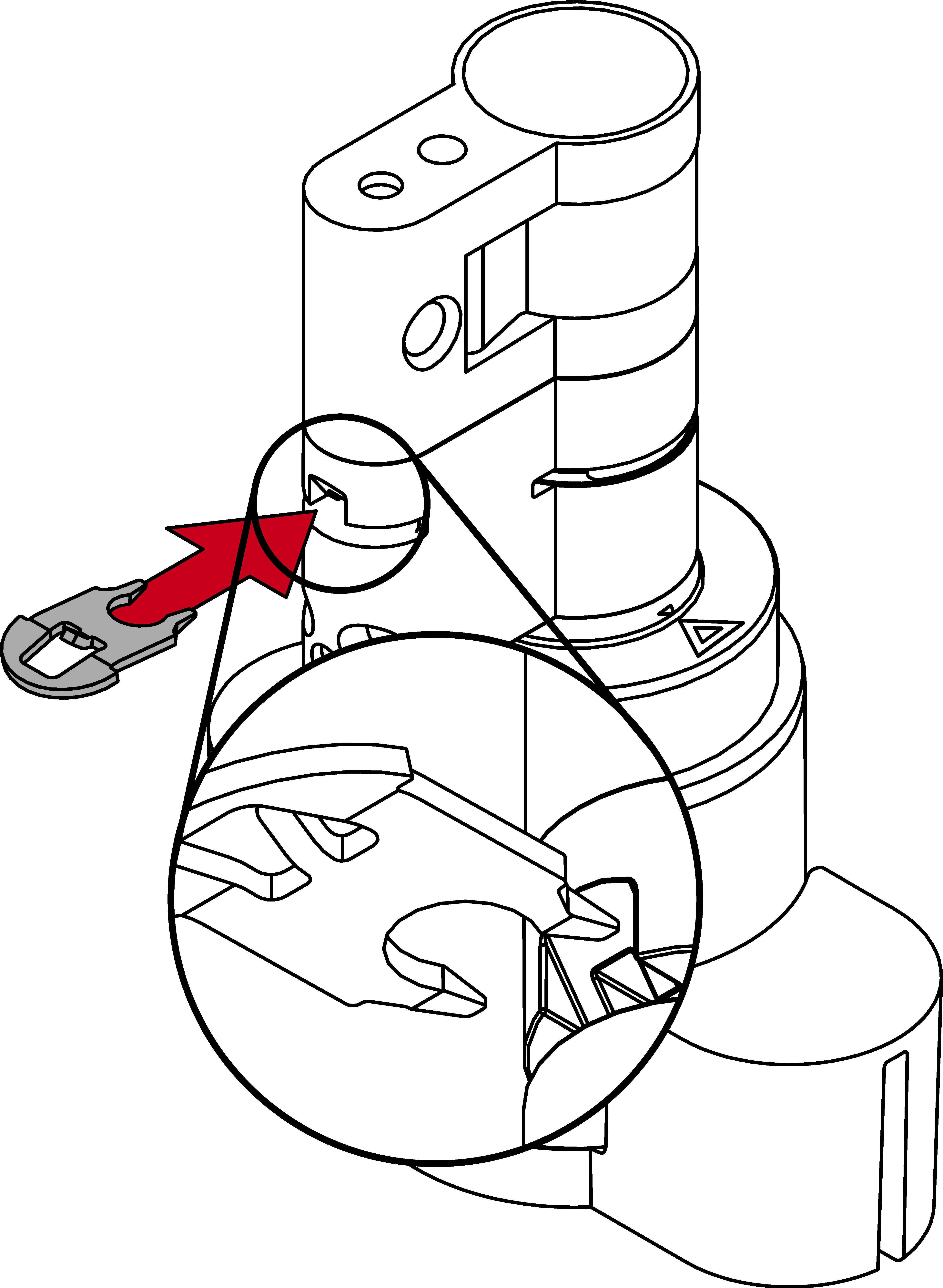

  26. Reinsert the clip, with the tab facing the faceplate screw, into the slot in the profile cylinder.

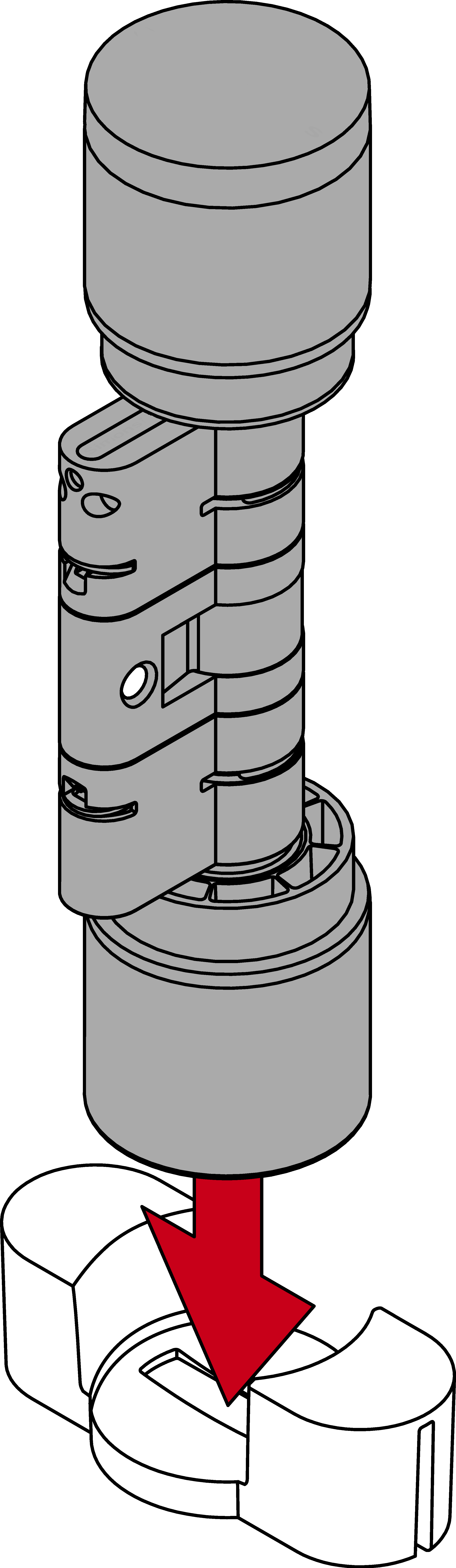

  28. Insert the cylinder into the clamping block so that the profile cylinder and the knob sit flush within the recesses.
  30. The lever of the clamping block is reinforced at one point with a small metal plate. The clip inserted earlier is positioned opposite this metal plate.

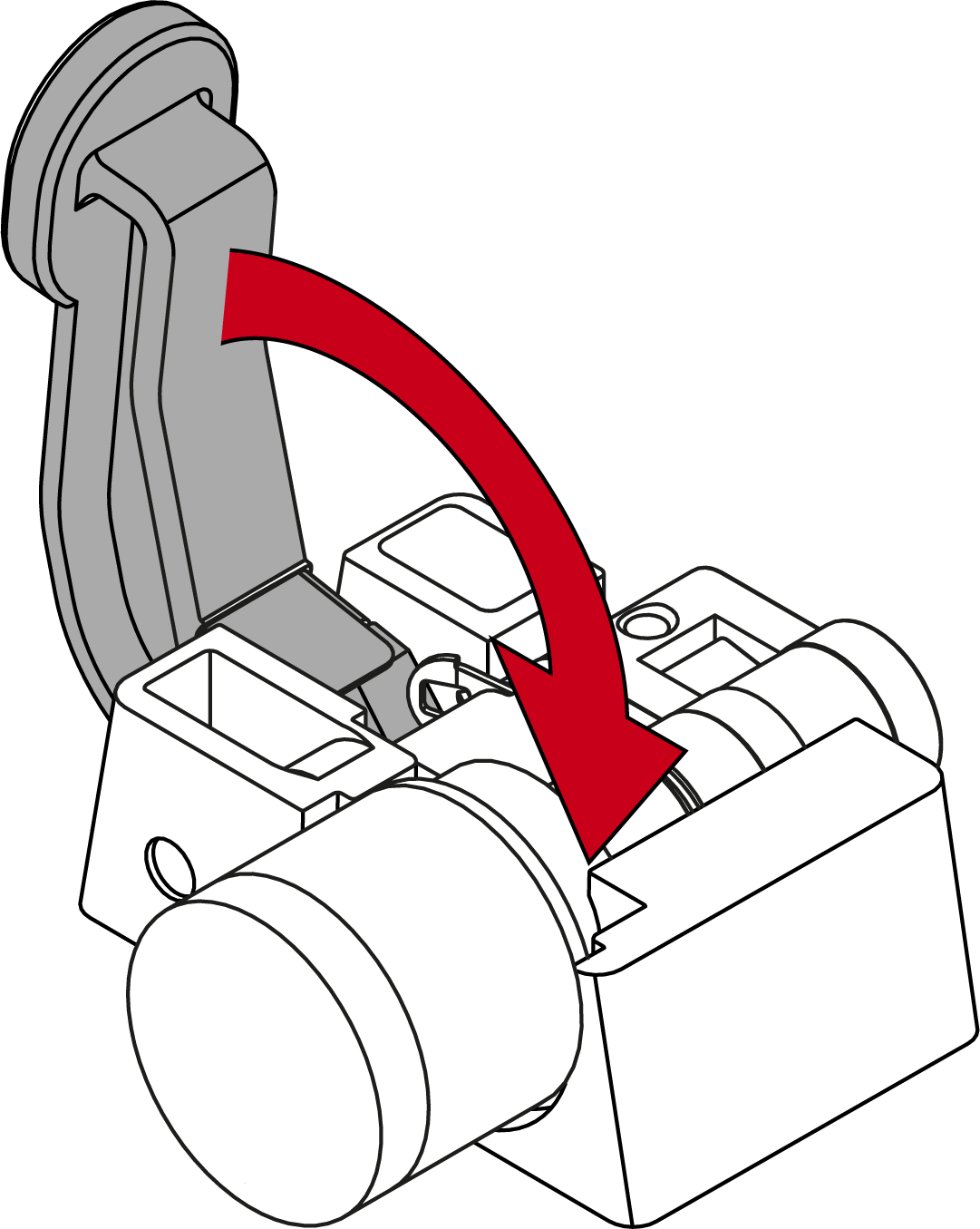

  31. Press the clamp block’s lever towards the base plate until the clamp is fully seated in the profile cylinder again.
  2. SI Digital Cylinder AX is now fully assembled.
