Installation - Digital Cylinder AX (Z5) SmartIntego

IMPORTANT

Unauthorised access by drilling on the inside

The outside of the SI Digital Cylinder AX is equipped with drilling protection on the outside, depending on the version.

  1. If you find a mark on the inside (IN) of the cylinder body, mount the SI Digital Cylinder AX so that this side is in a protected area.
  1. Rosettes may already be fitted.

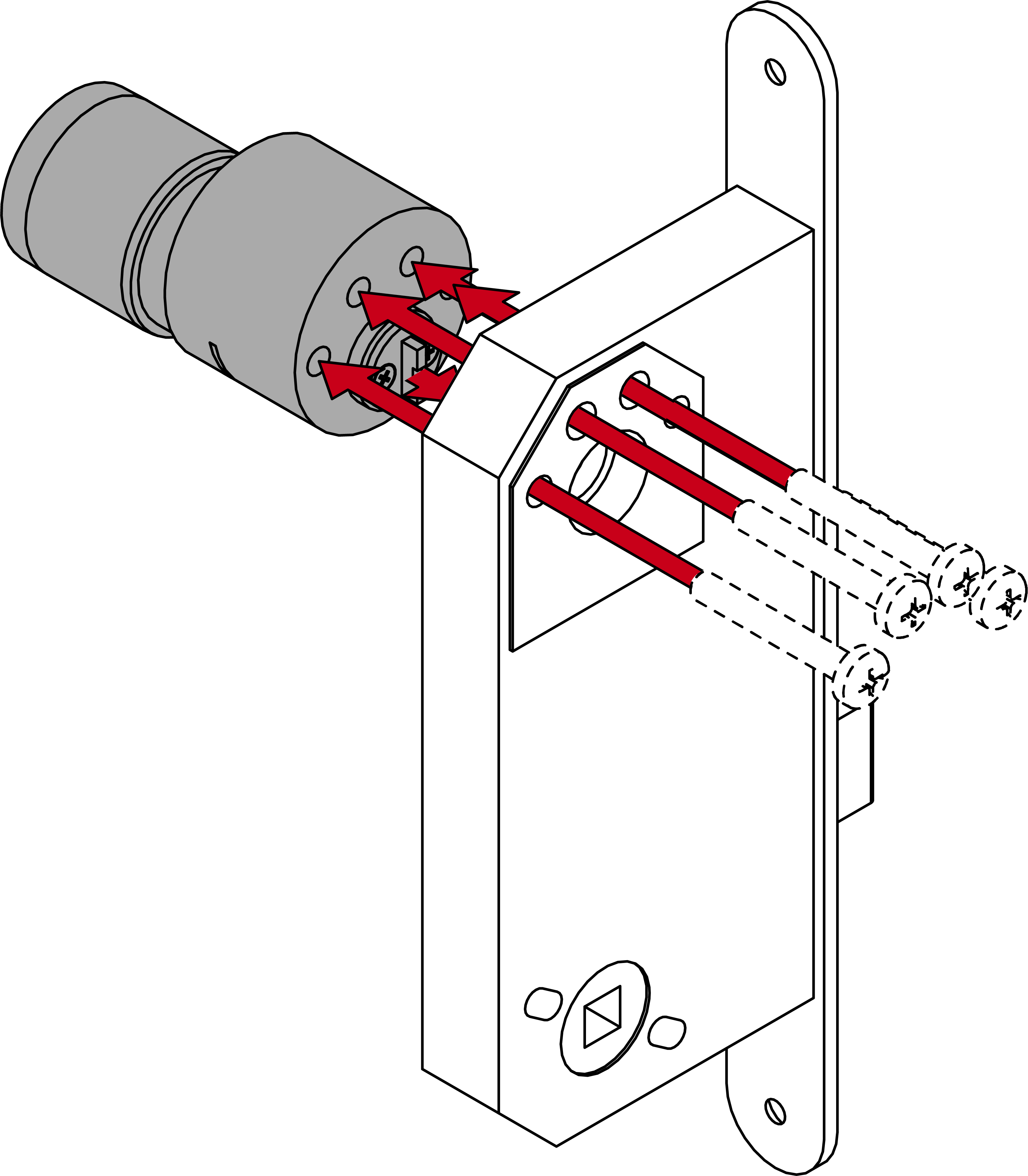

  1. Insert the SI Digital Cylinder AX with the cam into the retainer of the mortise lock.
  2. Screw the SI Digital Cylinder AX tight.
  3. If necessary, install other fittings.
  1. SI Digital Cylinder AX installed.
