For inner door handle, clockwise: prepare stud bolts - SmartIntego Digital SmartHandle AX

  1. TX3 screwdriver at hand.

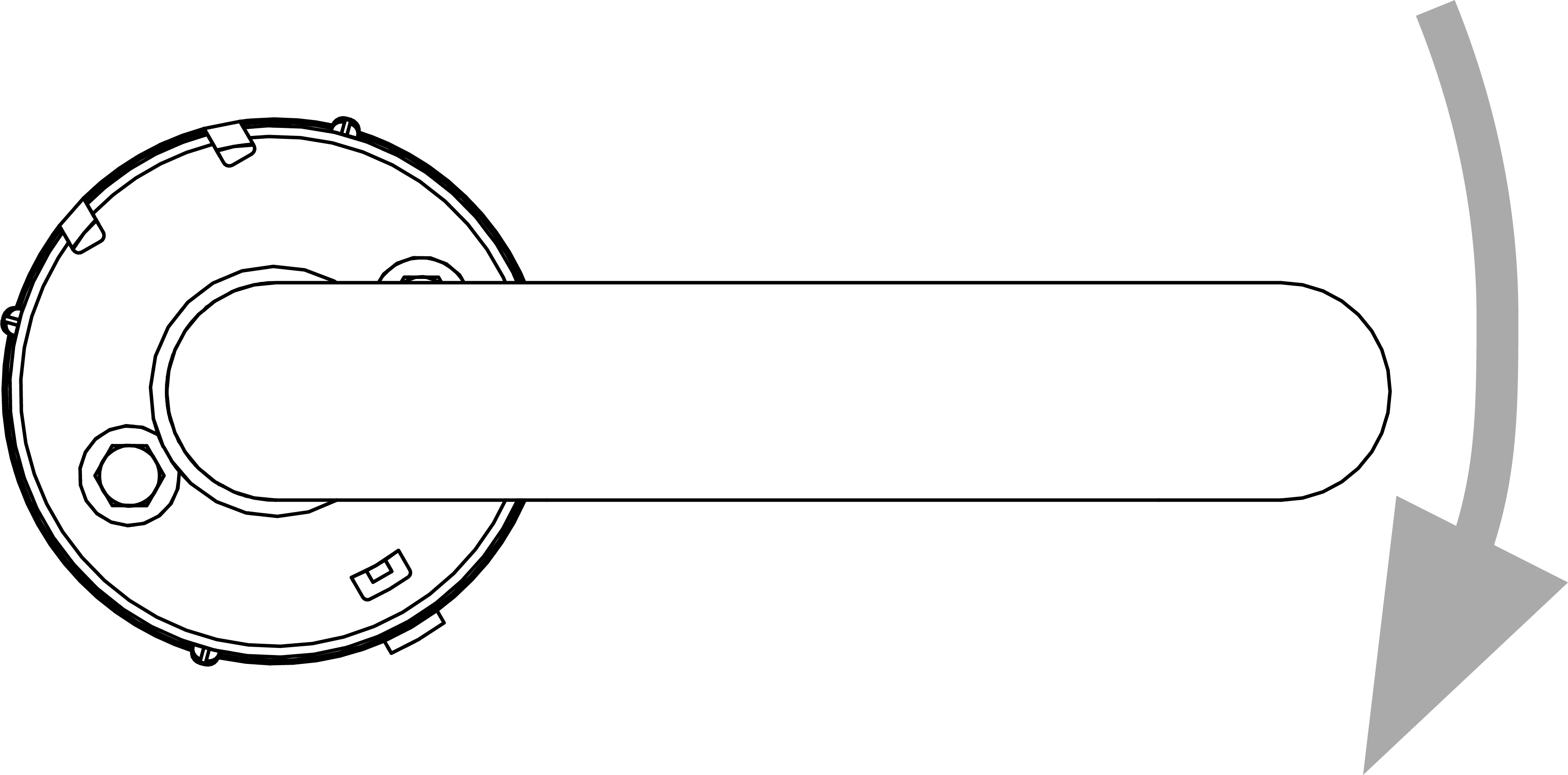

  1. Check whether you need to turn the inner handle clockwise.
  3. If yes, refit the SI.SmartHandle AX‘s stud nuts as described.
  4. Unscrew the SI.SmartHandle AX rear (TX8).
  6. Unscrew the stud nuts.
  8. Re-fasten the stud nuts firmly in the new positions.
  10. Screw the SI.SmartHandle AX rear firmly into place again (TX8, torque 1.1 Nm).
  1. Stud nuts are fastened through the SI.SmartHandle AX rear again.
